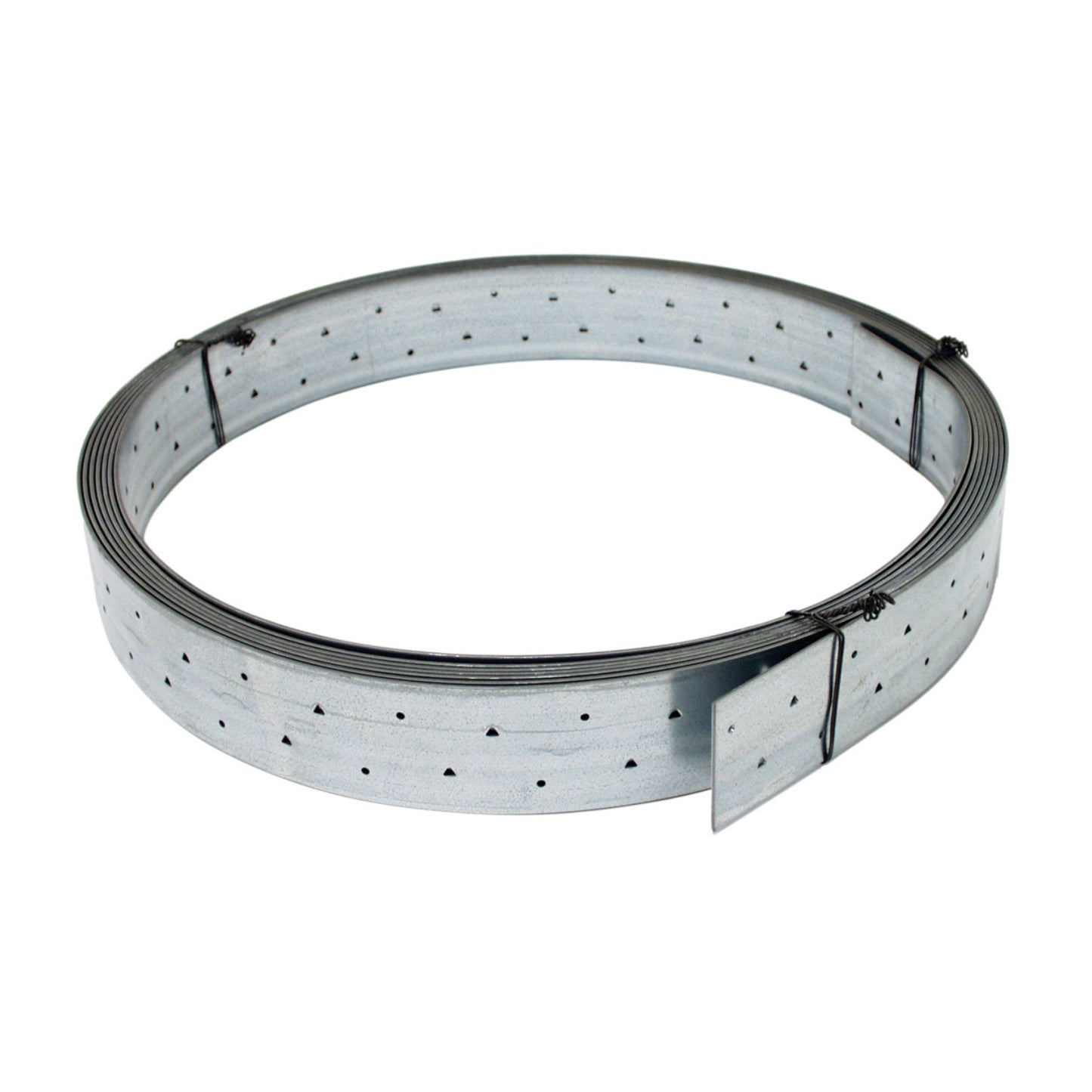

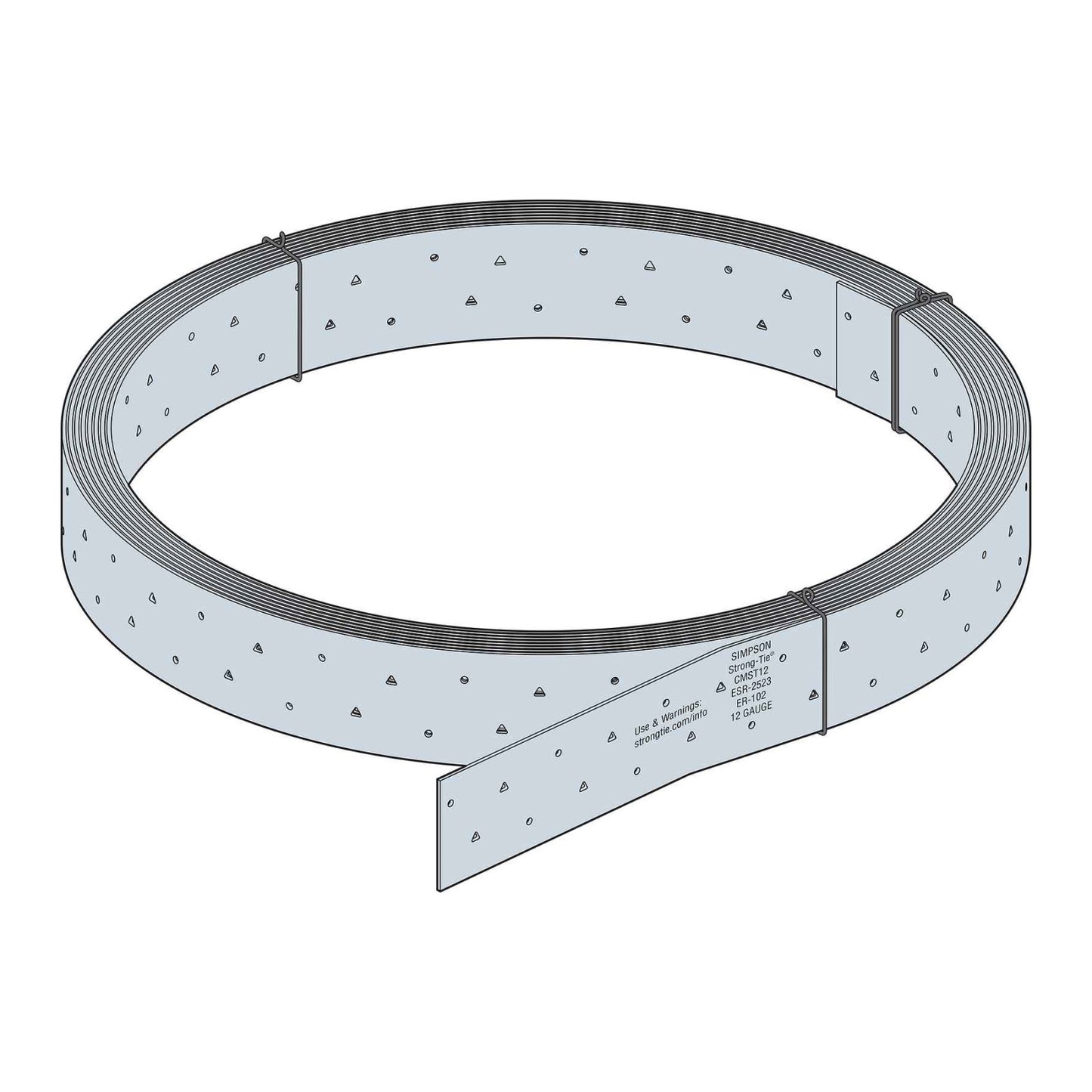

Simpson CMST12 12 Gauge 40 ft. Coiled Strap
Simpson CMST12 12 Gauge 40 ft. Coiled Strap
Description:
Description:
The Simpson Strong-Tie CMST12 strap provides nail slots for easy installation and can be cut to length on the job site for maximum versatility.
Installation:
- Use all specified fasteners.
- Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward.
- Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances.
- The table shows the maximum allowable loads and the nails required to obtain them.
- The cut length of the strap shall be equal to twice the "End Length" noted in the table plus the clear span dimension.
- CMST only - Use every other triangle hole if the wood tends to split. Use round and triangle holes for comparable MST loads, providing wood does not tend to split.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
Length: 40'
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Wood shrinkage after strap installation across horizontal wood members may cause strap to buckle outward.
-Refer to the applicable code for minimum nail penetration and minimum wood edge and end distances.
-The table shows the maximum allowable loads and the nails required to obtain them.
-The cut length of the strap shall be equal to twice the "End Length" noted in the table plus the clear span dimension.
-CMST only - Use every other triangle hole if the wood tends to split. Use round and triangle holes for comparable MST loads, providing wood does not tend to split.
