Simpson DPT7Z 4x4 Deck Post Tie - ZMAX Finish
Simpson DPT7Z 4x4 Deck Post Tie - ZMAX Finish
Description:
Description:

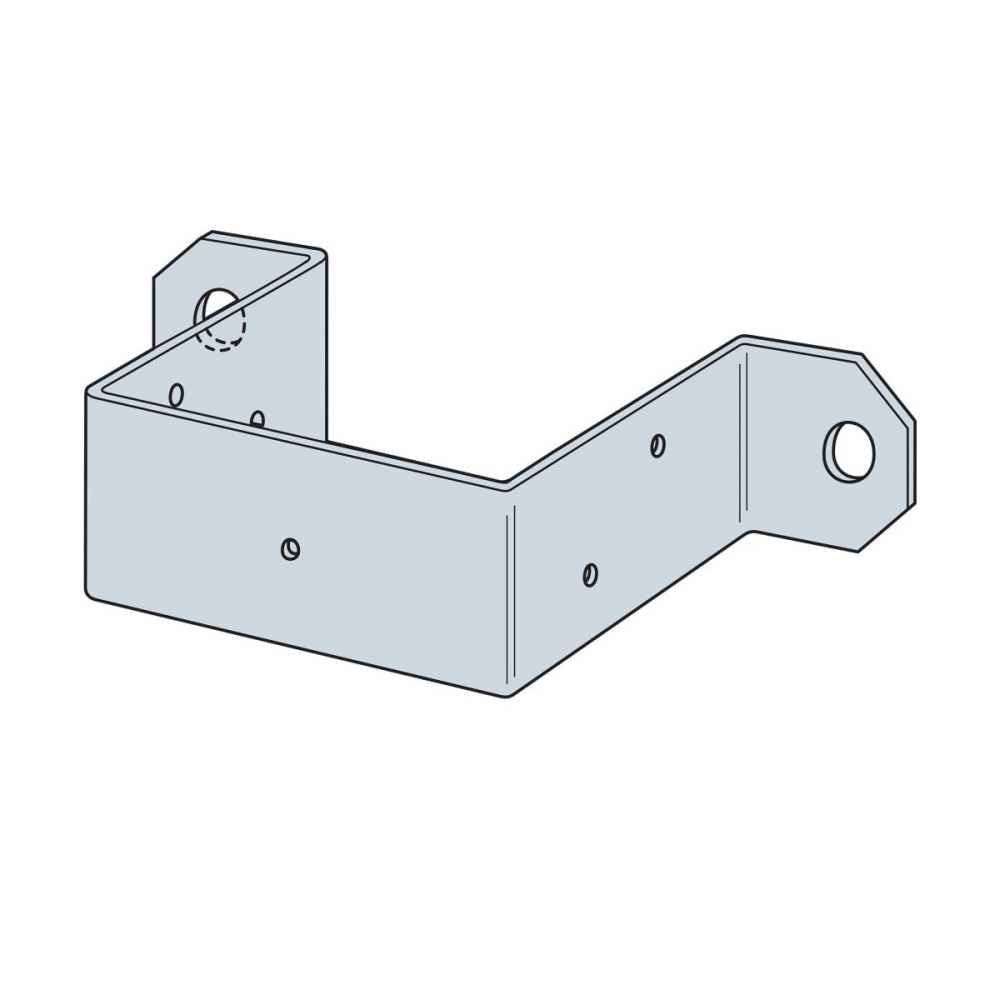

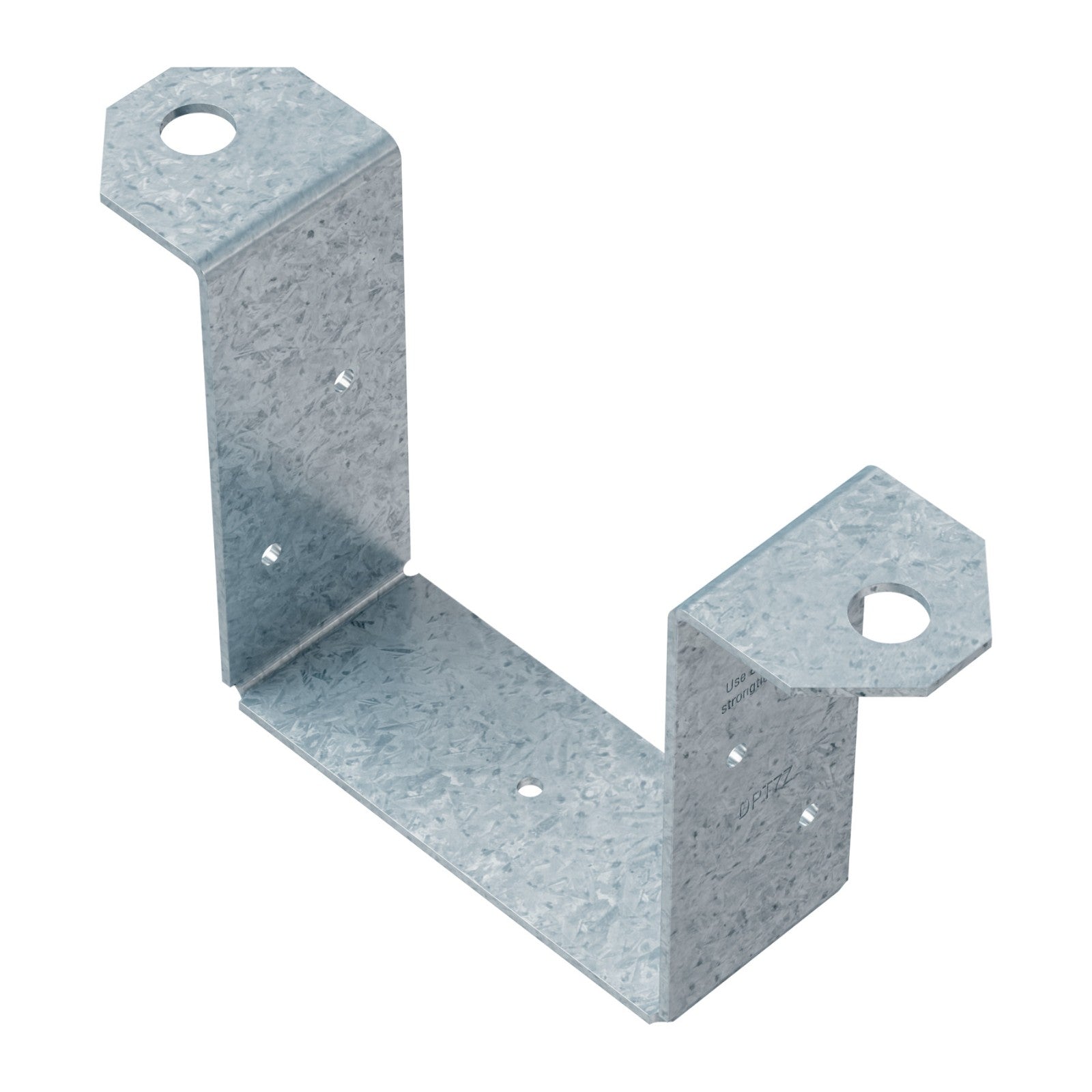

The Simpson Strong-Tie DPT7Z Deck Post Tie products are used to attach 4x4 vertical posts to the side of stringers, rims or other wood members. The Strong-Tie DPT7Z deck tension tie features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified HDG fasteners.
- Install in pairs.
- Install with two 3/8" through bolts into side member and 5-10d nails to post.
- DPT5Z and DPT7Z may be installed with the Strong-Drive SD Structural Connector screw (not load rated).
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: Side Member - (2) 3/8" Machine Bolts Post - (5) 0.148" x 3" Nails
Length: 3-1/2"
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet

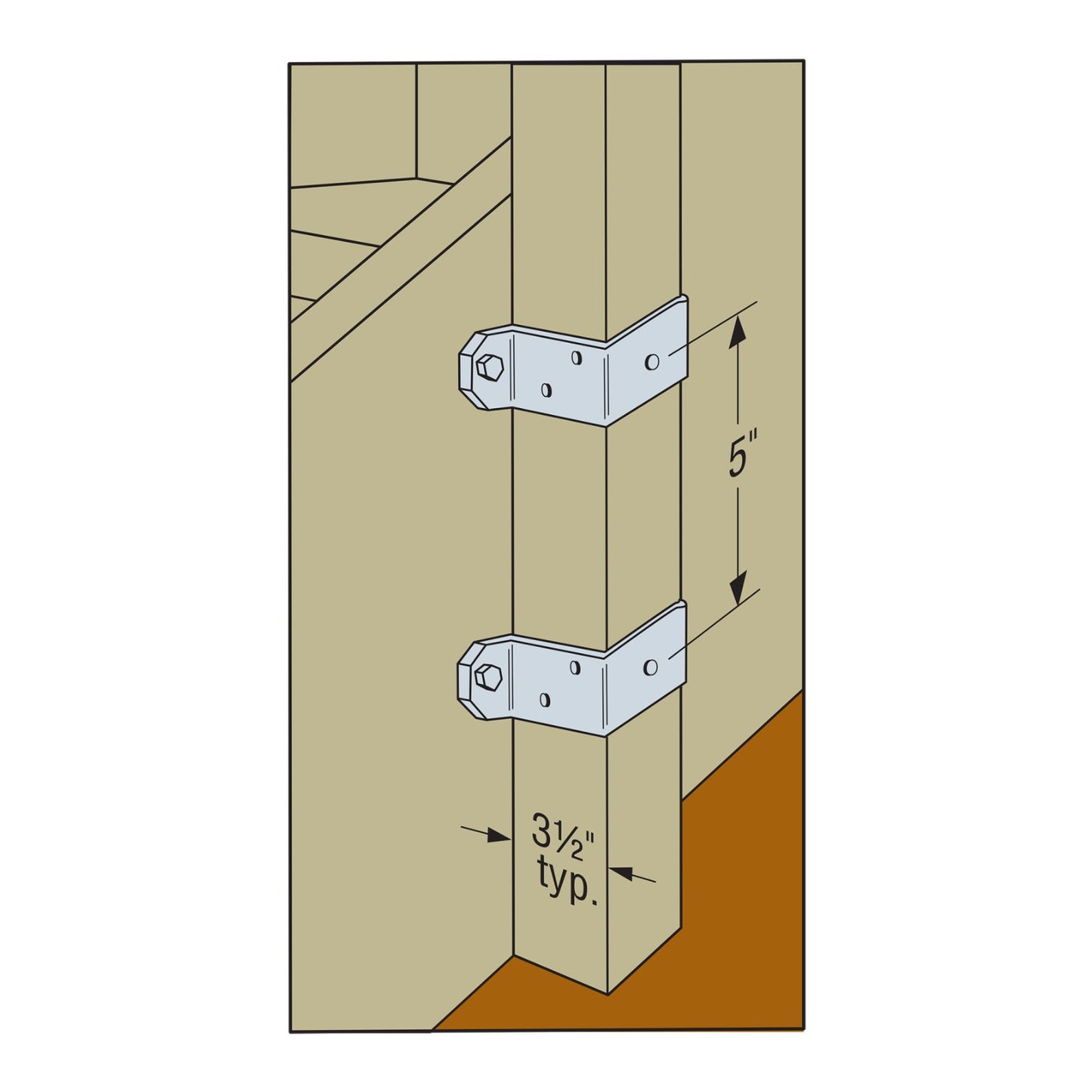

Installation
Installation
-Use all specified HDG fasteners.
-Install in pairs.
-Install with two 3/8" through bolts into side member and 5-10dx1 1/2 nails to post.
-DPT5Z and DPT7Z may be installed with the Strong-Drive SD Structural Connector screw (not load rated).
