Simpson HD3BHDG Bolted Holdown - Hot Dip Galvanized
Simpson HD3BHDG Bolted Holdown - Hot Dip Galvanized
Description:
Description:

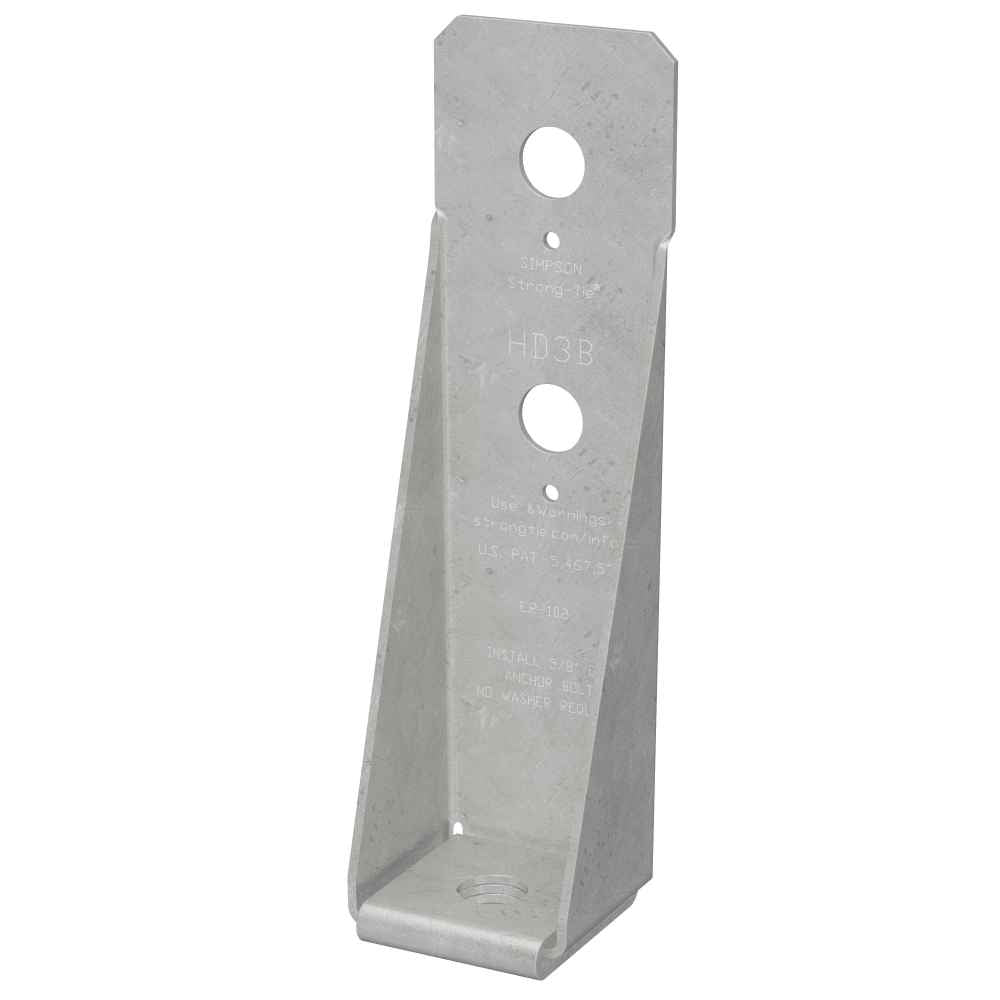

Simpson Strong-Tie offers a wide variety of bolted holdowns offering lowdeflection performance for a range of load requirements. The HD3BHDG holdown has been tested in accordance with ICC-ES's AC 155 acceptance criteria and are approved for use in vertical and horizontal applications. The HD3BHDG is a light-duty holdown designed for use in shearwalls and braced-wall panels, as well as other lateral applications.
Installation:
- Use all specified fasteners.
- Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2012 NDS, section 11.1.3.2).
- Stud bolts should be snugly tightened with standard cut washers between the wood and nut (BP's are required in the City and County of Los Angeles).
- HD and HDB holdowns are self-jigging and will ensure minimum bolt end distance when installed flush with the sill plate.
- Standard cut washer is required under the anchor nut for HD12 with 1" anchor and HD19 with 1 1/8" anchors.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:
Height: 8-5/8"
Fasteners required: - (2) 5/8" Machine Bolts - (1) 5/8" Concrete Anchor
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: Yes
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Bolt holes shall be a minimum of 1/32" to a maximum of 1/16" larger than the bolt diameter (per 2012 NDS, section 11.1.3.2).
-Stud bolts should be snugly tightened with standard cut washers between the wood and nut (BP's are required in the City and County of Los Angeles).
-HD and HDB holdowns are self-jigging and will ensure minimum bolt end distance when installed flush with the sill plate.
-Standard cut washer is required under the anchor nut for HD12 with 1" anchor and HD19 with 1 1/8" anchors.
