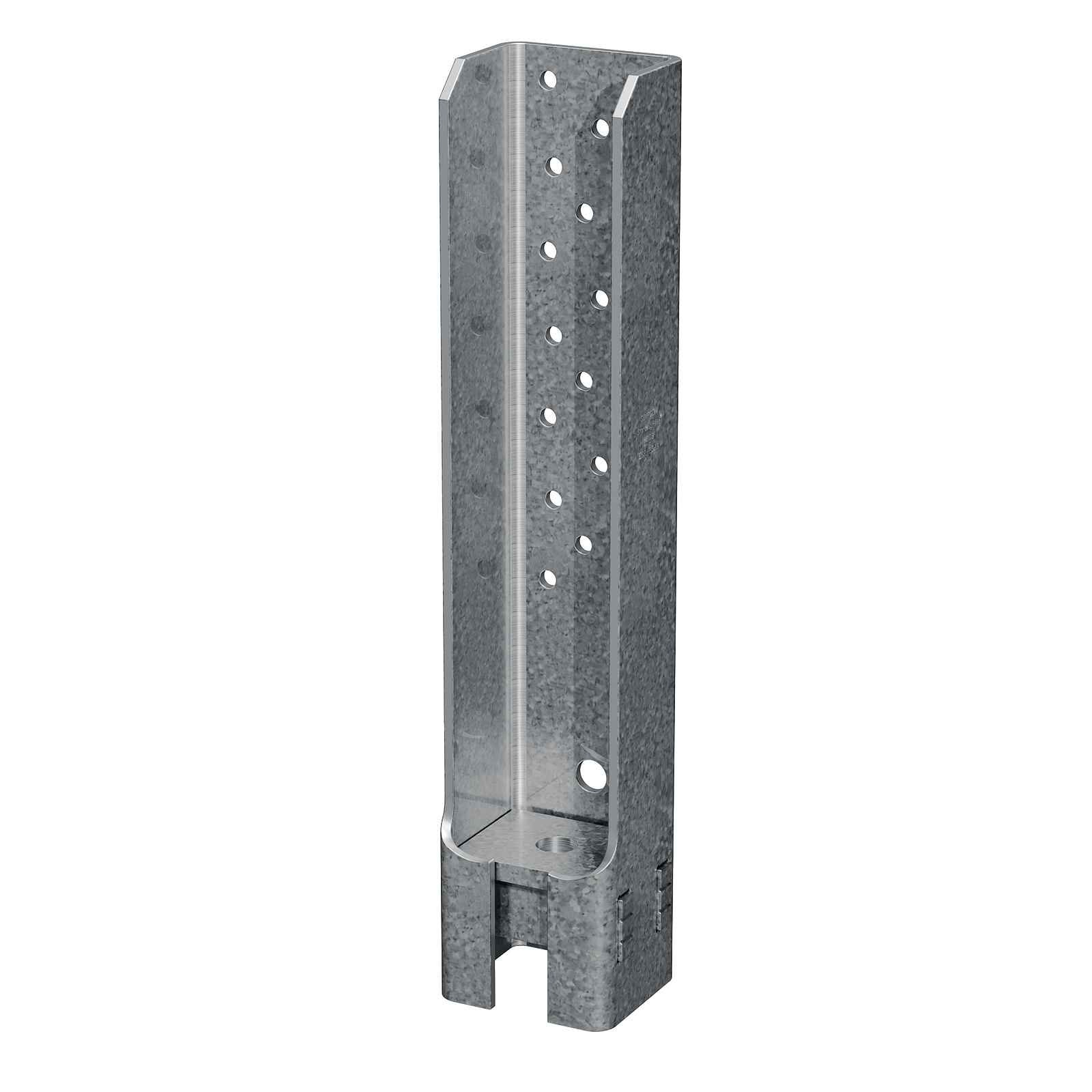

Simpson HDQ8-SDS3 14" Quick-Install Holdown - G90 Galvanized
Simpson HDQ8-SDS3 14" Quick-Install Holdown - G90 Galvanized
Description:
Description:
Simpson Strong Tie's holdowns are designed for high loads while also providing ease of installation. The Simpson HDQ features a unique seat design that allows installation raised above the sill plate and greatly minimizes deflection under the load. Simpson Strong Drive SDS heavy-duty connector screws are included for proper installation. The SDS screws install easily, reducing fastener slip. They provide a greater net section than bolts.
HDQ Special Features
- Strong-Drive SDS Heavy-Duty Connector screws are supplied with the holdowns to ensure proper fasteners are used
- Screws may be installed either flush or raised off the mudsill without a reduction in load value
- No stud bolts to countersink at openings
Installation:
- No additional washer is required
- Strong-Drive SDS Heavy-Duty Connector screws install best with a low-speed, high-torque drill equipped with a 3/8" hex-head driver
- 5/8" of adjustability perpendicular to the wall
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents:WARNING
Specifications:
Specifications:
Height: 14"
Fasteners required: (20) - 1/4" x 3" SDS Screws
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet
Installation
Installation
-No additional washer is required
-Strong-Drive SDS Heavy-Duty Connector screws install best with a low-speed, high-torque drill equipped with a 3/8" hex-head driver
-5/8" of adjustability perpendicular to the wall
