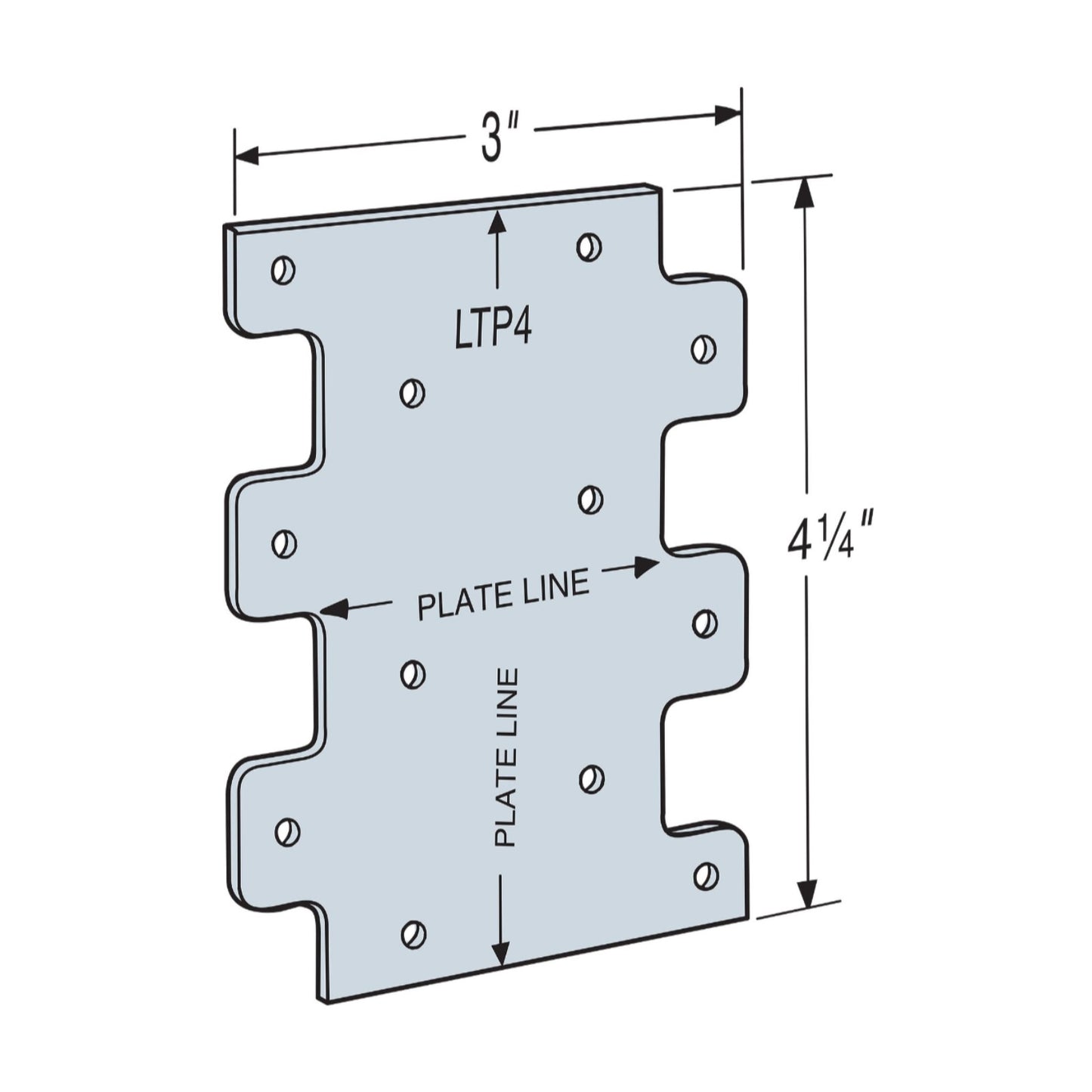

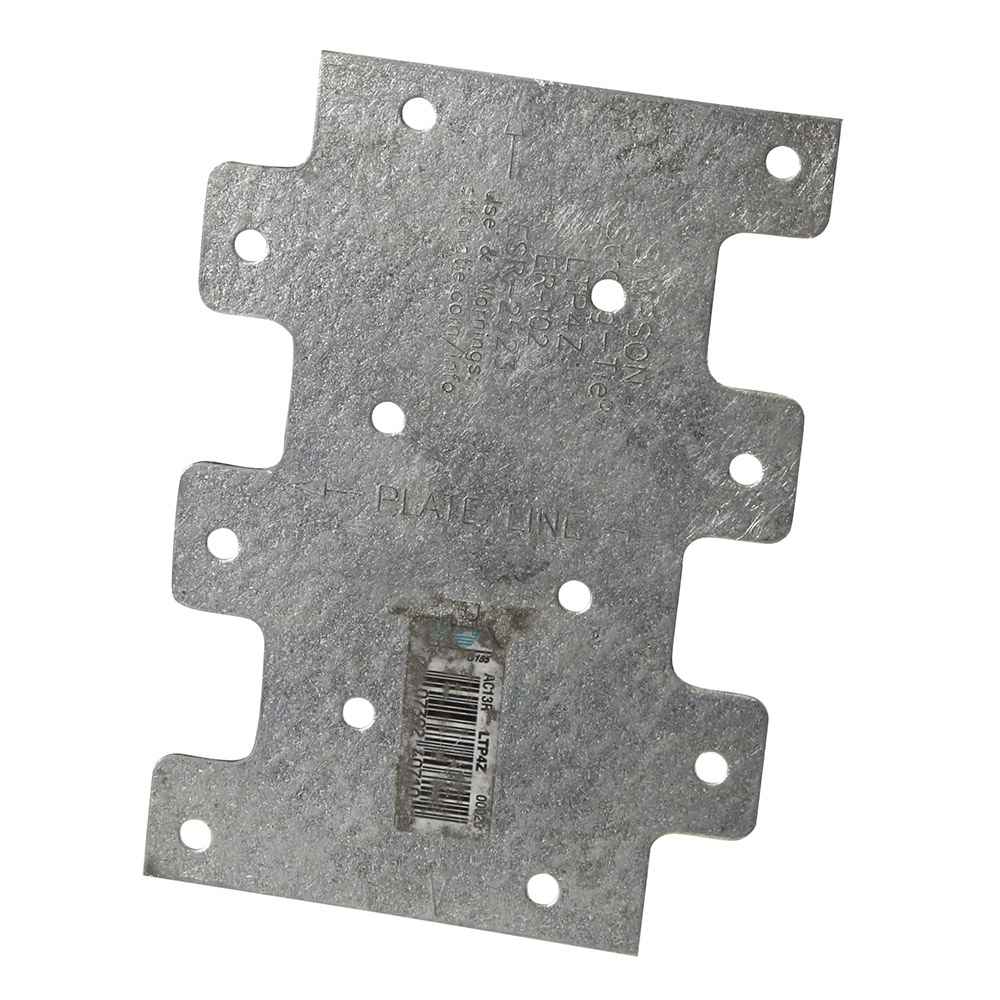

Simpson LTP4 3" x 4-1/4" Lateral Tie Plate - G90 Galvanized
Simpson LTP4 3" x 4-1/4" Lateral Tie Plate - G90 Galvanized
Description:
Description:

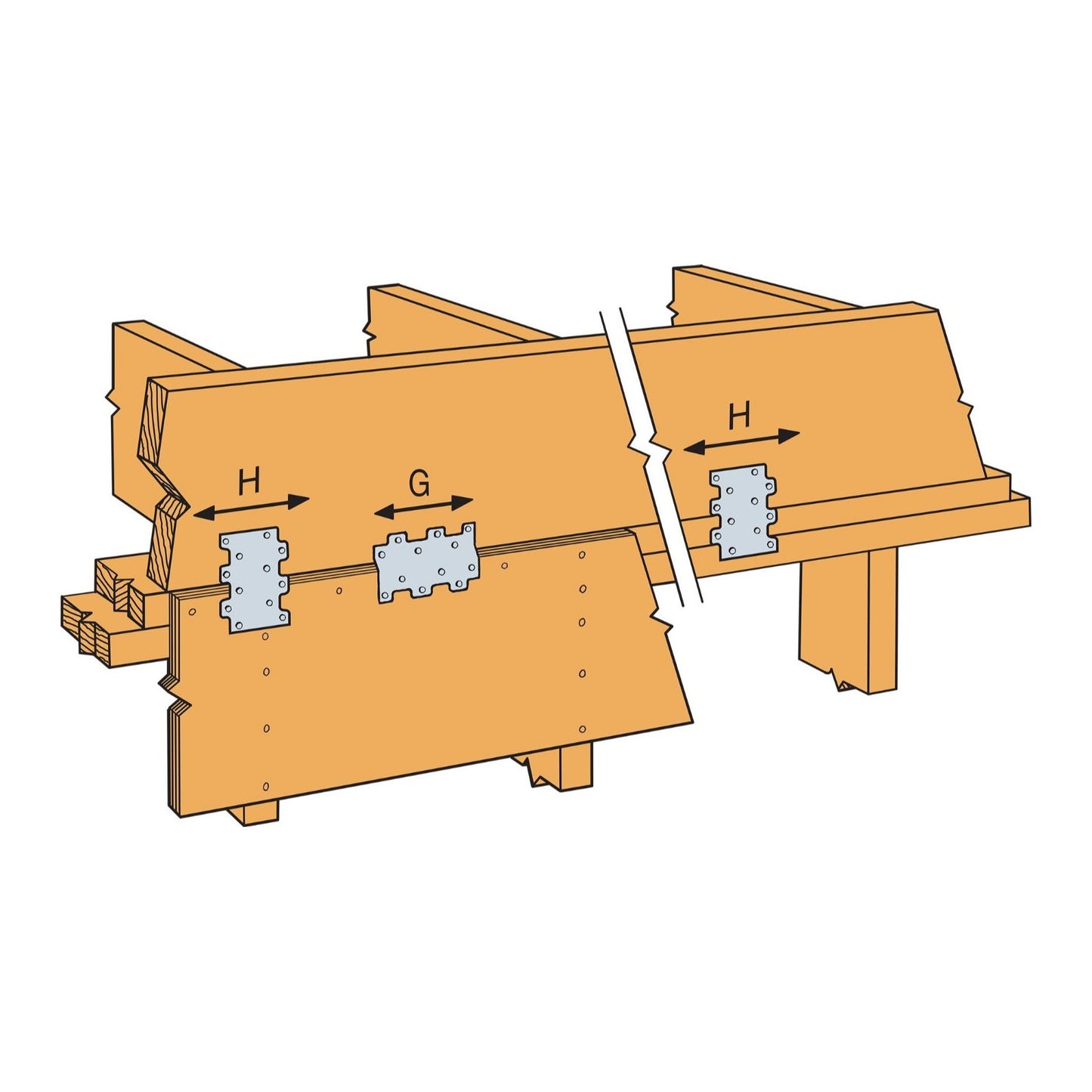

The LTP4 Lateral Tie Plate transfers shear forces for top plate-to-rim joist or blocking connections. Nail holes are spaced to prevent wood splitting for single and double top plate applications. May be installed over plywood sheathing. The Strong-Tie LTP4 lateral tie plate features a G90 galvanized finish designed for dry interiror use and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.
Installation:
- Use all specified fasteners.
- Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
California Residents: WARNING
Specifications:
Specifications:

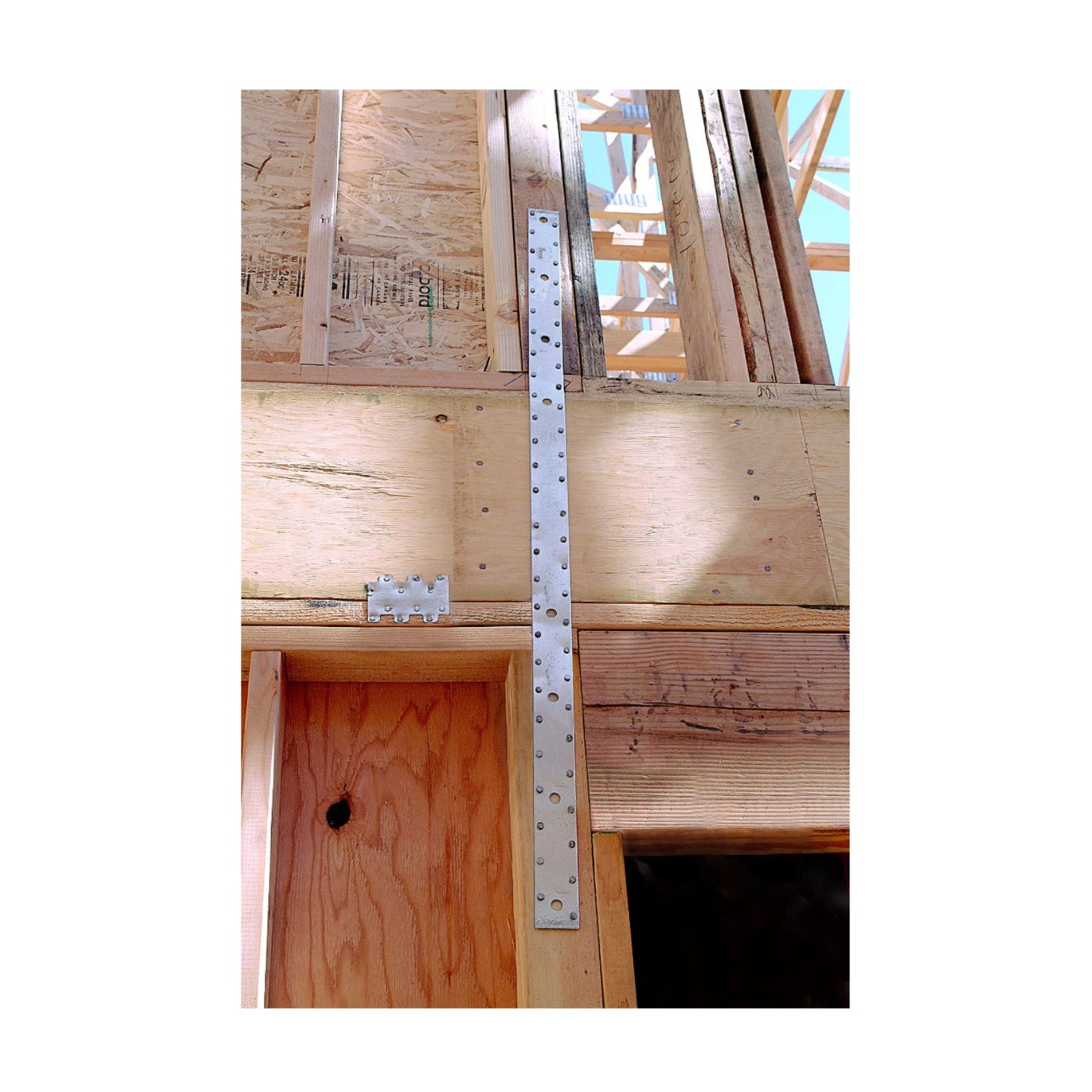

Installation
Installation
-Use all specified fasteners.
-Use hot-dip galvanized (HDG) nails with ZMAX and HDG connector products. Use Type 316 stainless-steel nails with our stainless-steel connector products.
-Joists sloped up to 1/4:12 achieve load tables.
