SKU: HUC28-2

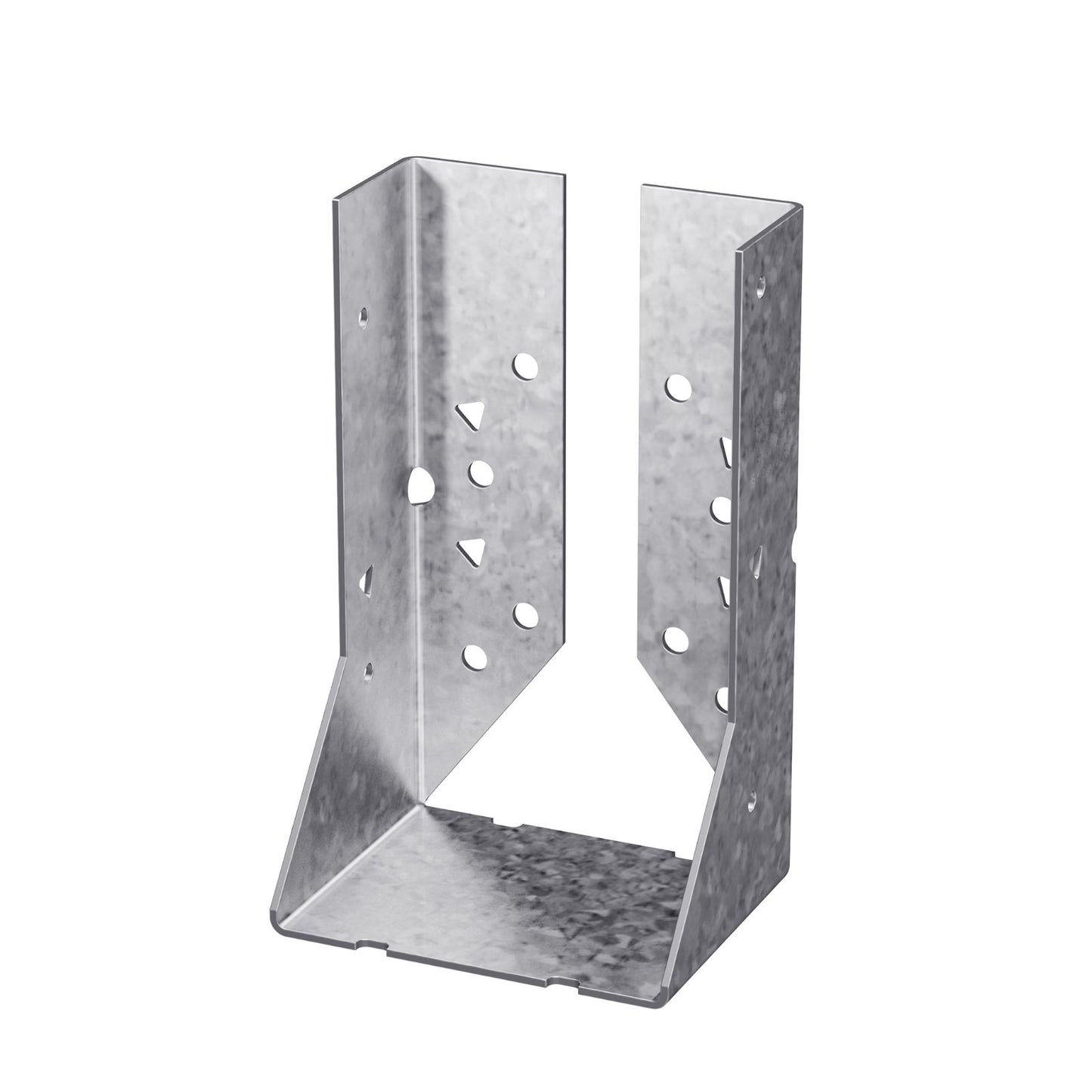

Simpson HUC28-2 Double 2x8 Concealed Flange Heavy Face Mount Hanger - G90 Galvanized

Simpson HUC28-2 Double 2x8 Concealed Flange Heavy Face Mount Hanger - G90 Galvanized!

Skip to product information
1 of 6
$18.28

Request Bulk Pricing
Request Bulk Pricing
Ships Dec 26
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Face - (14) 0.162" x 3-1/2" Nails Joist - (6) 0.148" x 3" Nails
For Treated Lumber: No
Height: 7"
Joist size: Double 2X8
Manufacturer name: Simpson Strong-Tie
Width: 3-1/8"
Description

Simpson Strong-Tie HUC hangers are the concealed flange version of the HU joist hanger. Concealed flange hangers have the face flanges turned in. The Strong-Tie HUC28-2 concealed flange hanger features a G90 Galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153. Most models have triangle and round holes. To achieve maximum loads, fill both round and triangle holes with common nails. These heavy-duty connectors are designed for schools and other structures requiring additional strength, longevity and safety factors.


Installation:
  • Use all specified fasteners.
  • HU/HUC—Can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • Joists sloped up to 1/4:12 achieve load tables.
  • HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the hanger tables or the weld capacity - refer to technical bulletin T-HUHUC-W.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
