HUC/HUCQ Concealed Face Mount Hangers
Specifications

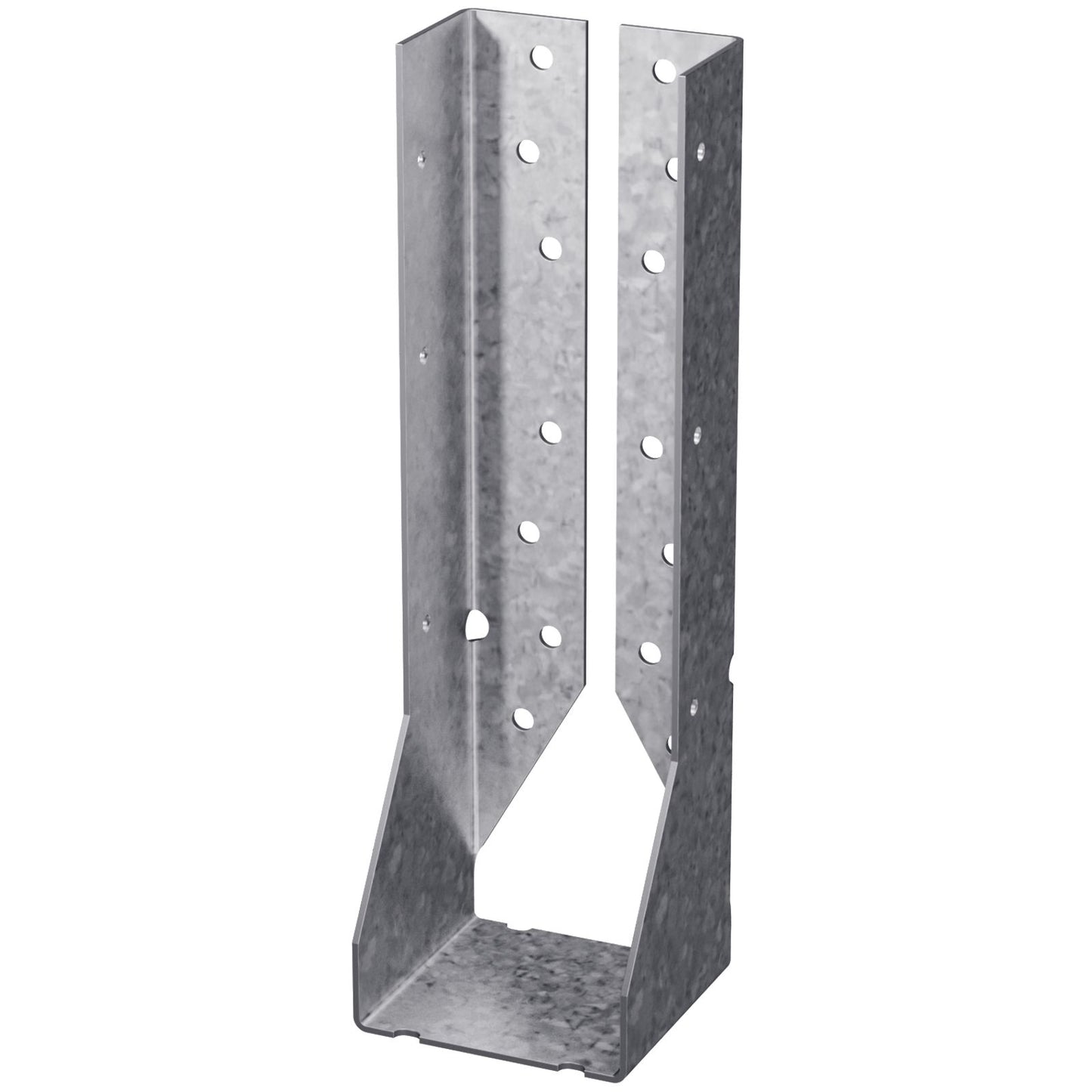

The Simpson Strong-Tie HUC series offers heavy-duty, concealed-flange face-mount joist hangers designed to provide robust support for various construction applications. Crafted from 14-gauge steel with a G90 galvanized finish, these hangers ensure durability and corrosion resistance, making them suitable for both interior and exterior projects.
Key Features:

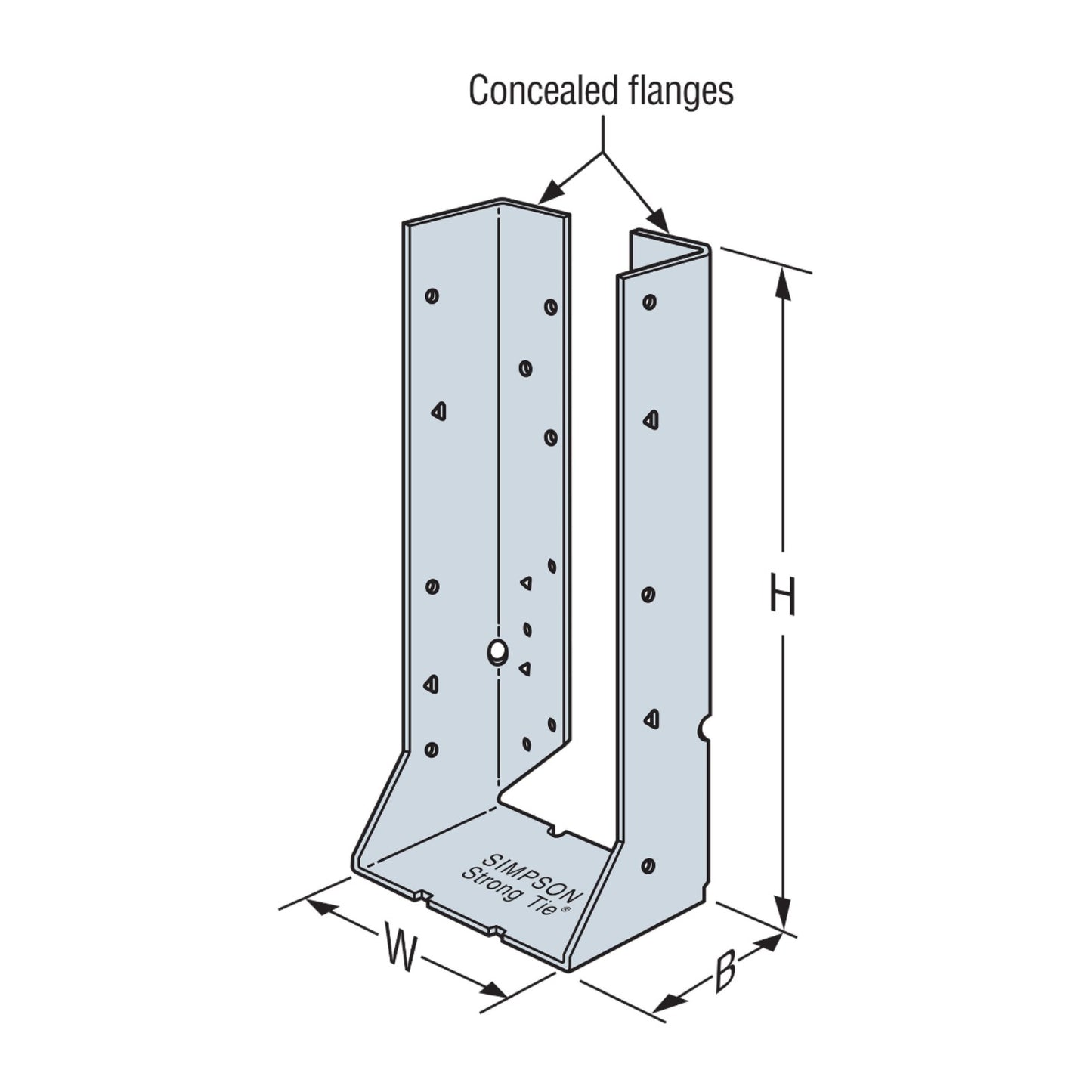

- Concealed Flange Design: The hidden header flanges offer clean lines for exposed conditions and allow installation close to the end of the supporting beam, enhancing aesthetic appeal without compromising structural integrity.
- G90 Galvanized Finish: Provides standard corrosion resistance suitable for most indoor and dry applications.
- Versatile Applications: Designed to accommodate a wide range of joist sizes, these hangers are suitable for solid sawn lumber, engineered wood products, and cold-formed steel (CFS) joists.
- Code Compliance: HUC-series hangers are tested, load-rated, and comply with building codes, ensuring reliable performance in structural applications.
Installation Notes:
- Fasteners: For G90 galvanized hangers, use hot-dip galvanized nails to ensure maximum corrosion resistance.
- Optional Triangle Holes: Some models feature extra optional triangle holes for additional load capacity; to achieve maximum loads, fill both round and triangle holes with common nails.
The Simpson Strong-Tie HUC Heavy Concealed-Flange Face-Mount Joist Hangers with G90 Galvanized Finish offer a reliable and versatile solution for various construction needs, ensuring structural integrity and longevity.
