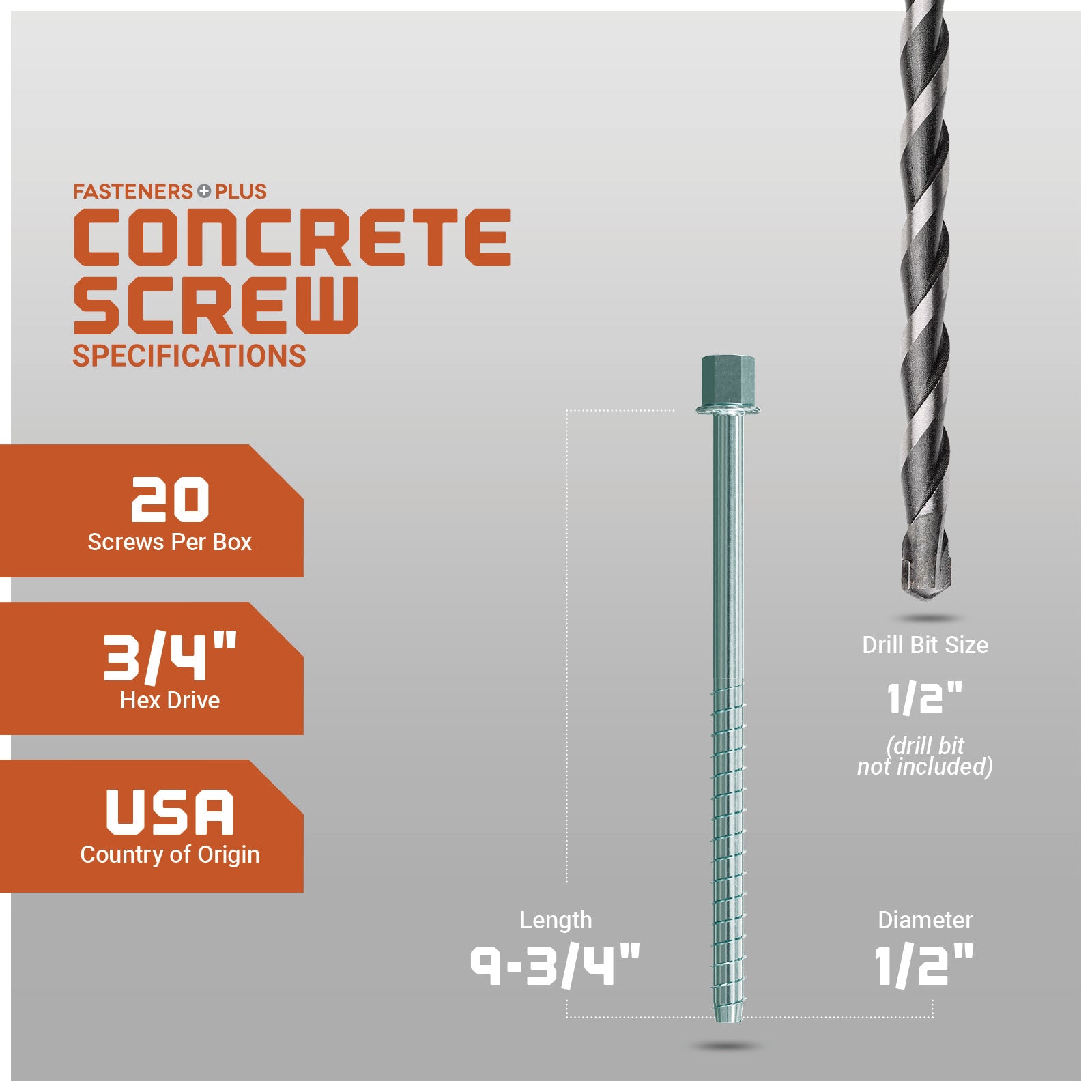

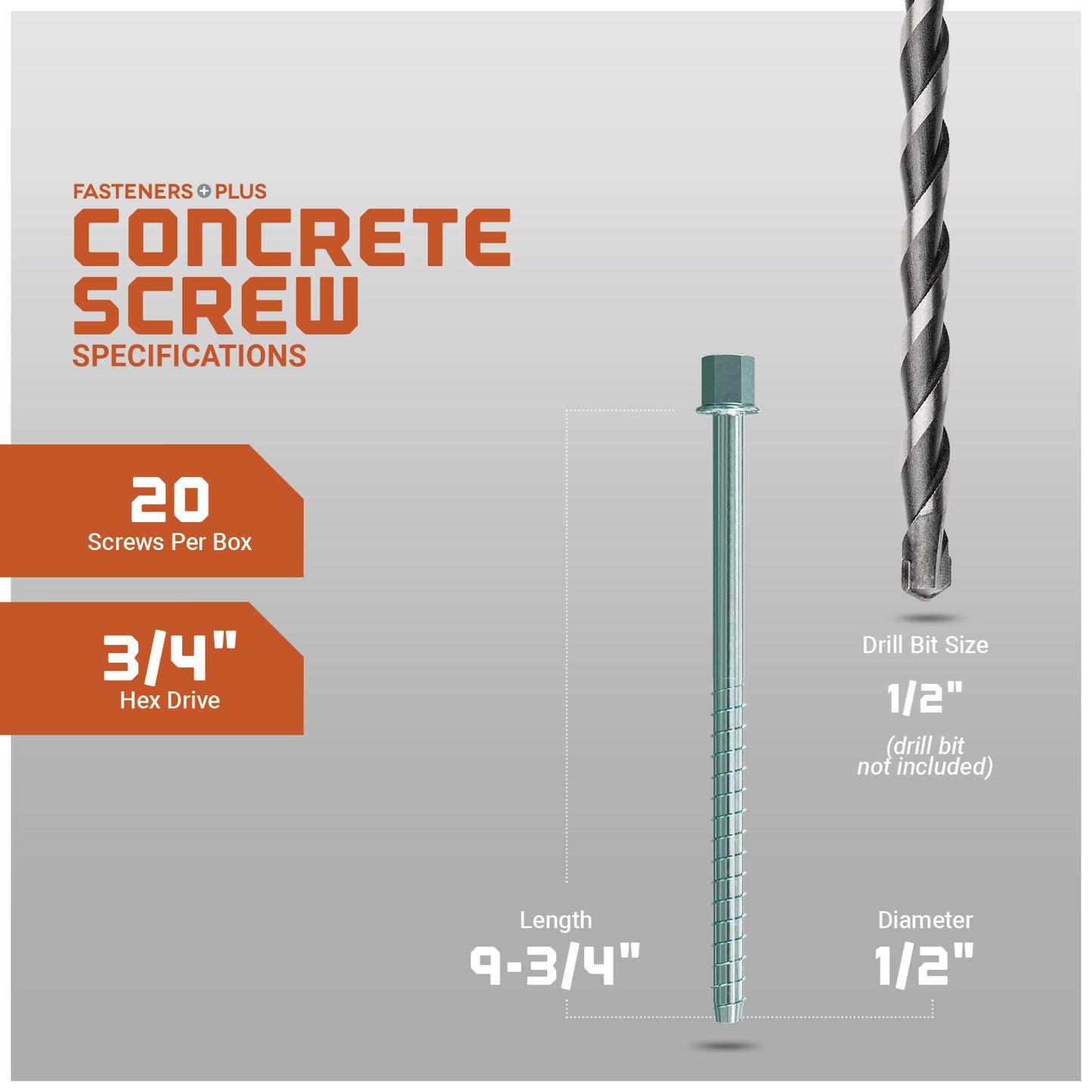

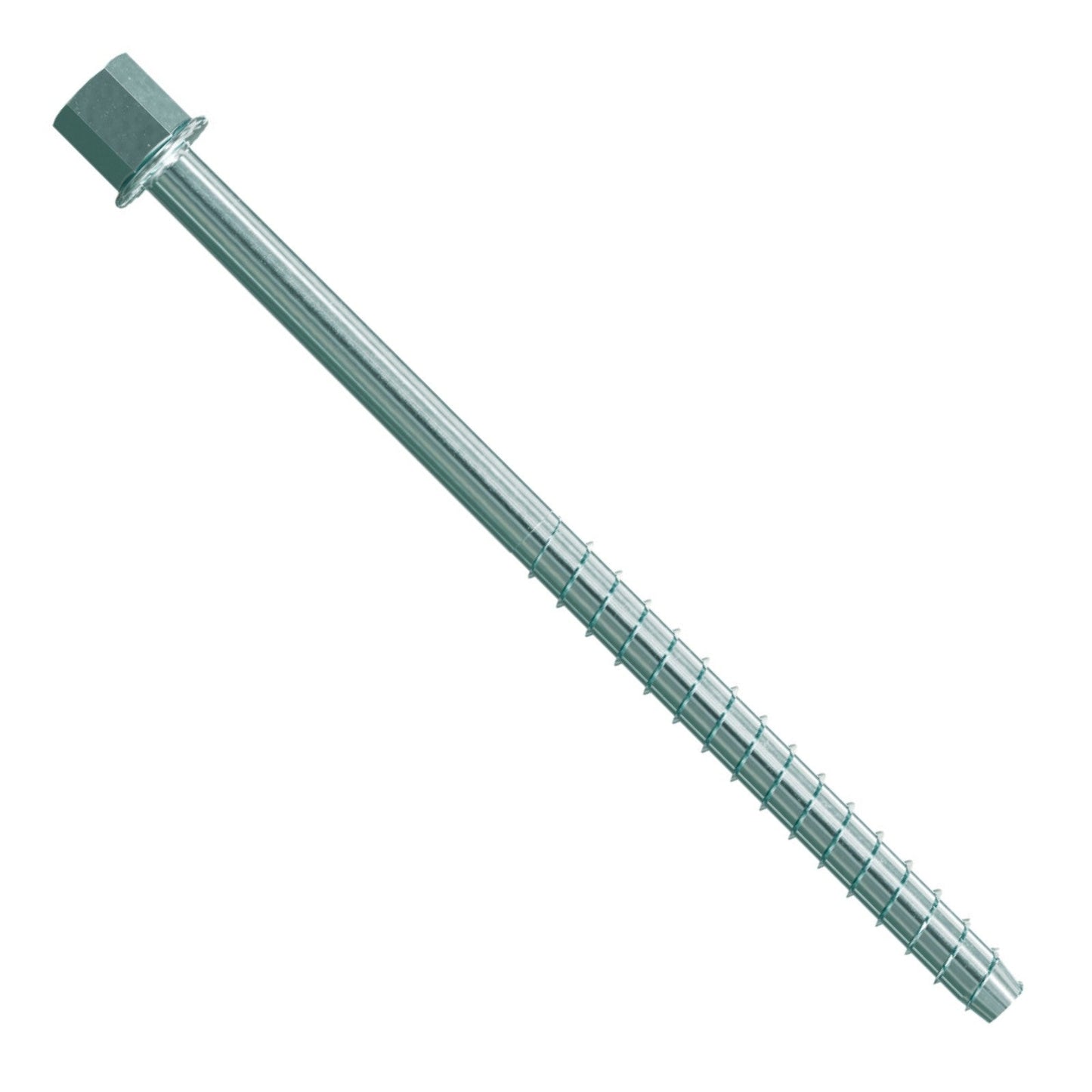

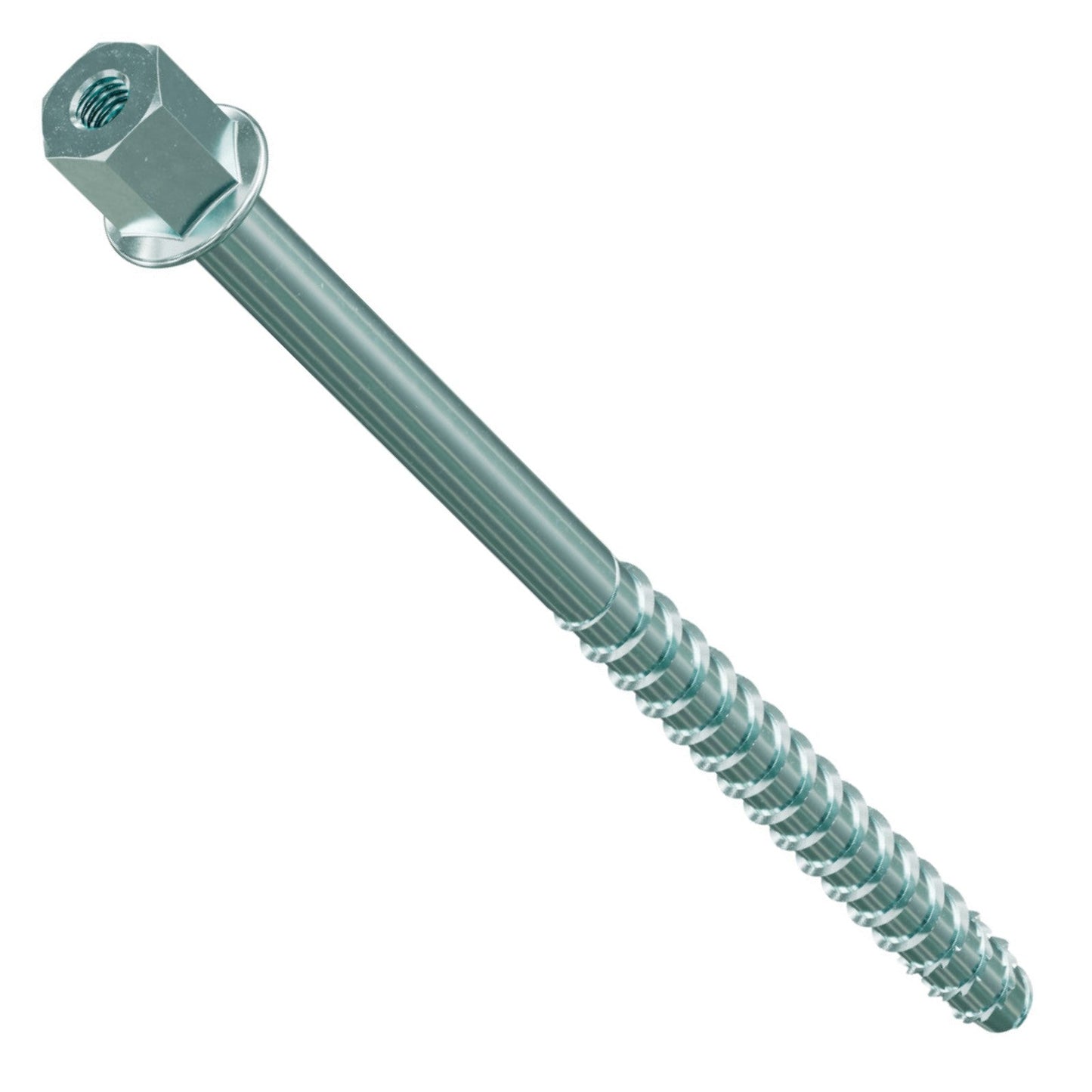

1/2" X 9-3/4" Strong-Tie THD5093437RC Titen HD Rod Coupler Screw Anchor, Zinc, Pkg 20
1/2" X 9-3/4" Strong-Tie THD5093437RC Titen HD Rod Coupler Screw Anchor, Zinc, Pkg 20!
Specifications

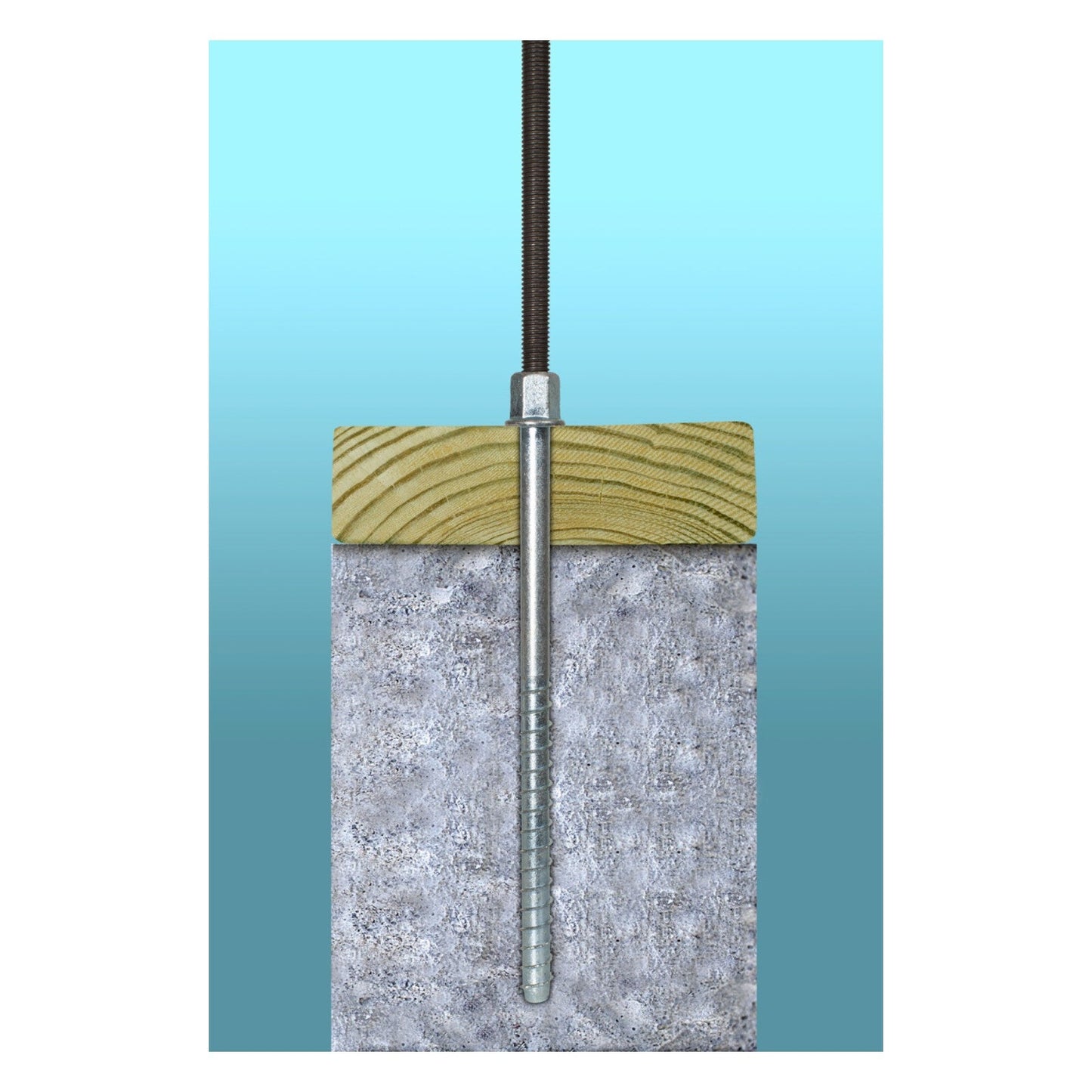

The Titen HD Rod Coupler is engineered for efficient attachment of threaded rods to concrete stem walls or thickened slab footings, seamlessly integrating into single or multi-story rod tiedown systems.
Key Features:

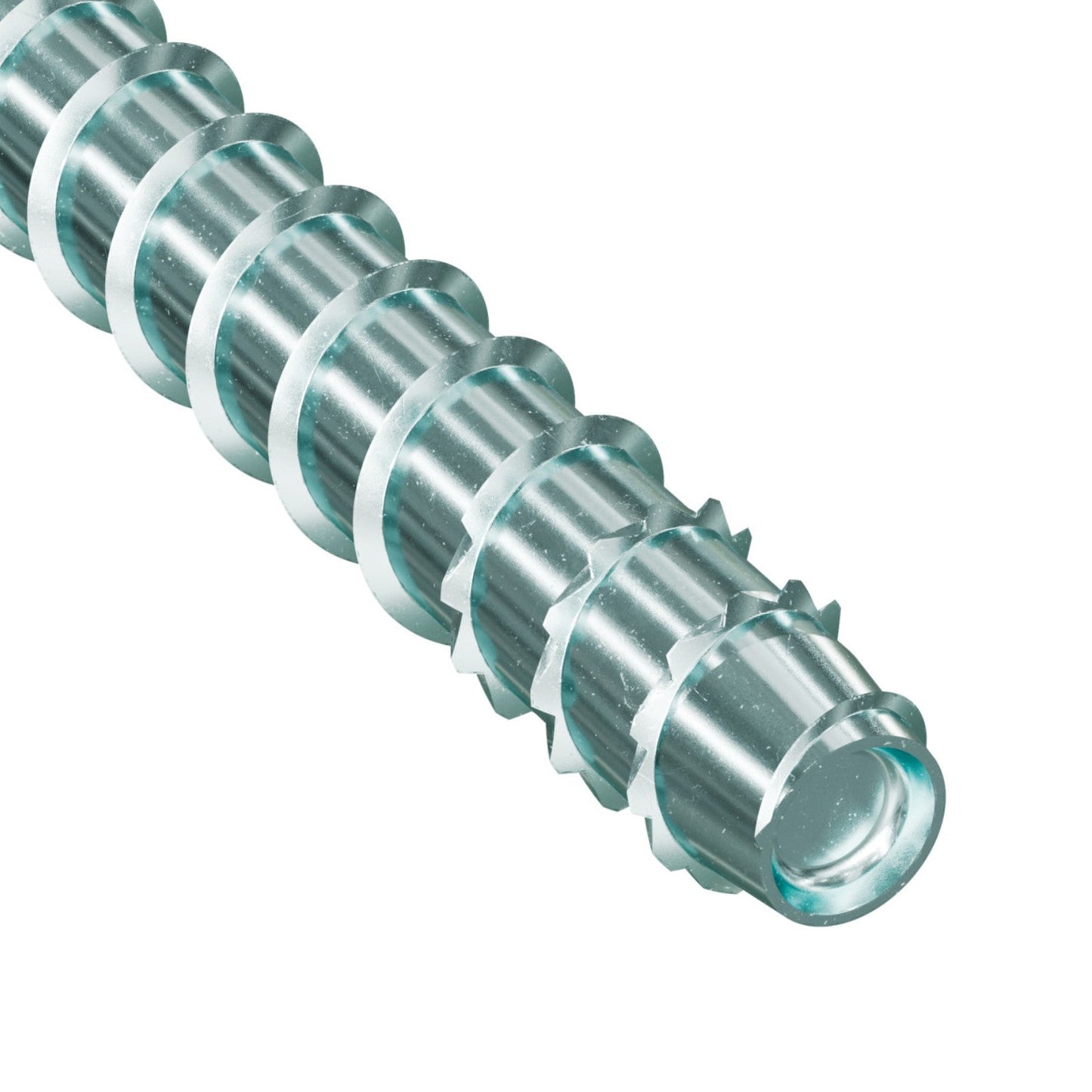

- Quick Installation: Serrated cutting teeth and specialized thread design enable rapid setup without the need for special tools or cure time.
- Durable Construction: Crafted from carbon steel with a zinc-plated finish, ensuring longevity in dry interior environments.
Installation Steps:
- Drill Hole: Use the specified diameter carbide bit to drill into the base material to a depth at least 1/2" deeper than the required embedment.
- Clean Hole: Remove dust and debris using compressed air. For overhead applications, cleaning may not be necessary.
- Set Anchor: Tighten the anchor with the appropriate socket size until the head is flush with the base material.
Note: Avoid oversized holes to maintain mechanical interlock and load capacity. The Titen HD Rod Coupler is designed for single-use applications; repeated installations may reduce effectiveness.
-
