SKU: FS-5637-12-E/G

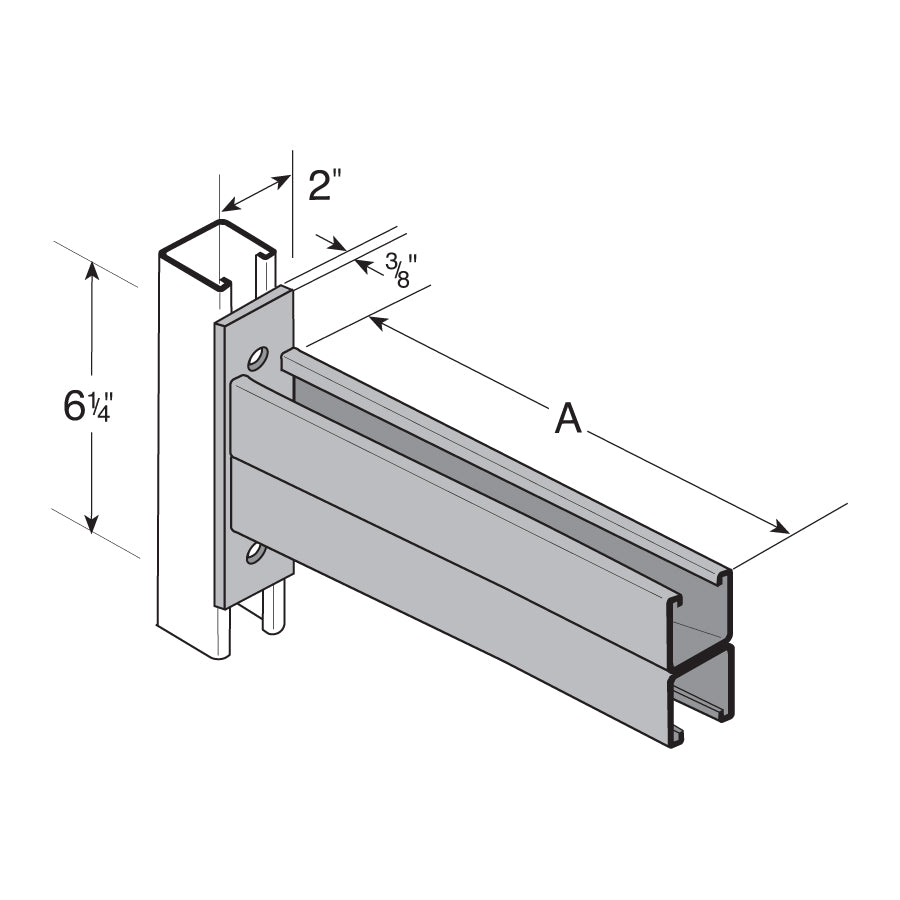

12" Double-Channel Bracket - Electro-Galvanized

12" Double-Channel Bracket - Electro-Galvanized!

Skip to product information
1 of 5

Continue Browsing

Channel Brackets

SKU: FS-5637-12-E/G
$20.29

Request Bulk Pricing
min. order qty: 5
Request Bulk Pricing
Please call (888) 794-1590 for custom quantities
Ships in 7-14 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Electro-Galvanized
Length: 12"
Material: Carbon Steel
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Load: Uniform Design Load=2,000#
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Thickness: 1/4"
Width: 1-5/8"
Description

12" Double-Channel Bracket - Electro-Galvanized connects directly to a vertical channel and provides structural support while also distributing loads. The double channel bracket allows for connections to be made on both the top and bottom of the bracket. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.

View full details

Continue Browsing

Channel Brackets
