SKU: FS-5142-60-E/G

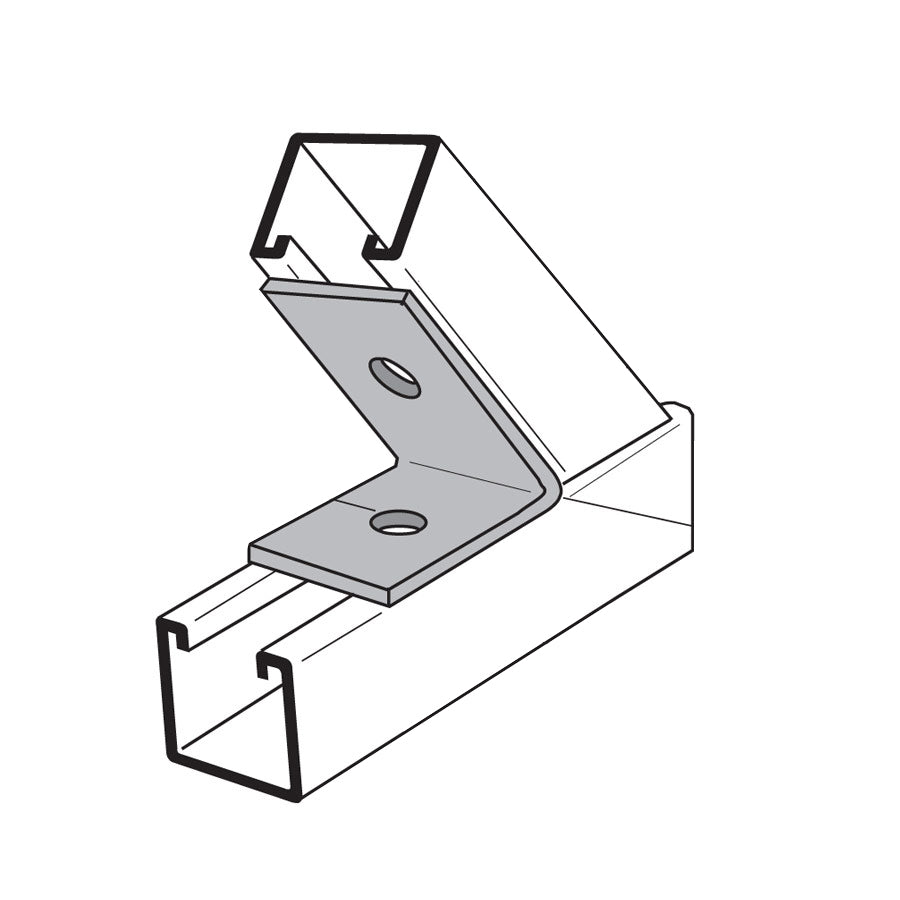

2-Hole 60 Degree Strut Angle - Electro-Galvanized

2-Hole 60 Degree Strut Angle - Electro-Galvanized!

Skip to product information
1 of 5

Continue Browsing

Angle Fittings

SKU: FS-5142-60-E/G
$6.75

Request Bulk Pricing
min. order qty: 15
Request Bulk Pricing
Please call (888) 794-1590 for custom quantities
Ships in 7-14 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Electro-Galvanized
Material: Carbon Steel
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))

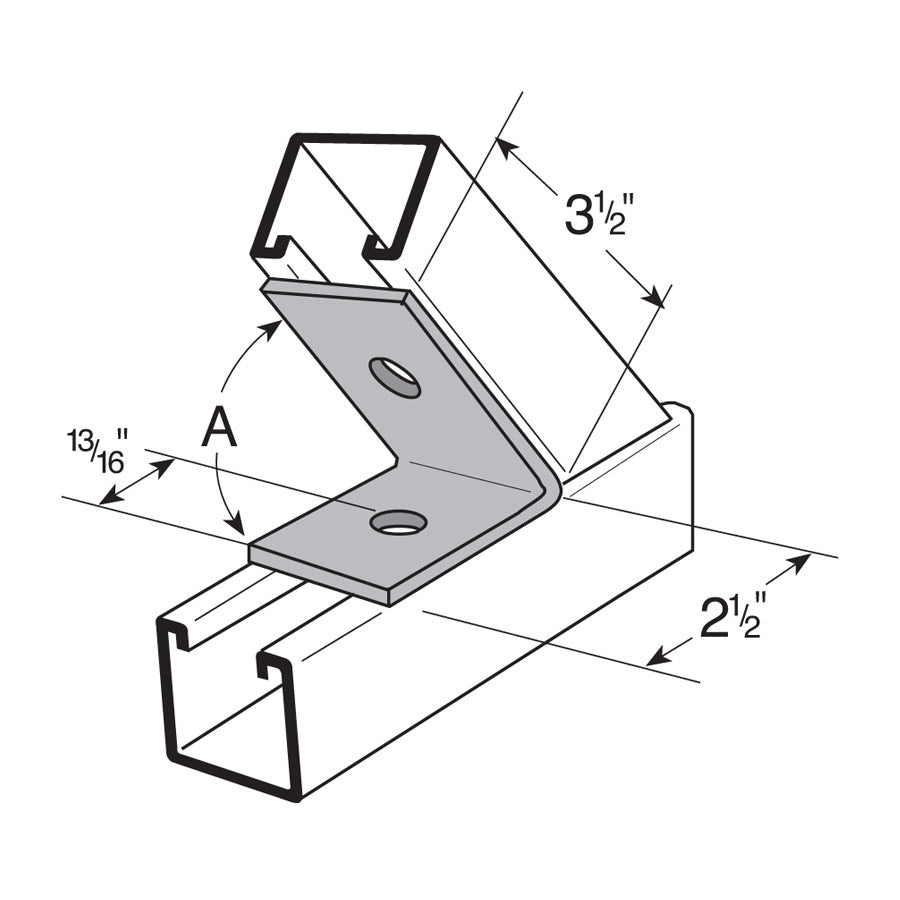

Hole diameter: 9/16"
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Thickness: 1/4"
Width: 1-5/8"
Description

2-Hole 60 Degree Angle - Electro-Galvanized fittings connect strut channel at the corners and joints. If you are looking to join channel sections using angle fittings use channel nuts, bolts, nuts, and washers to join the fitting to the channel. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
