SKU: FS-5011-E/G

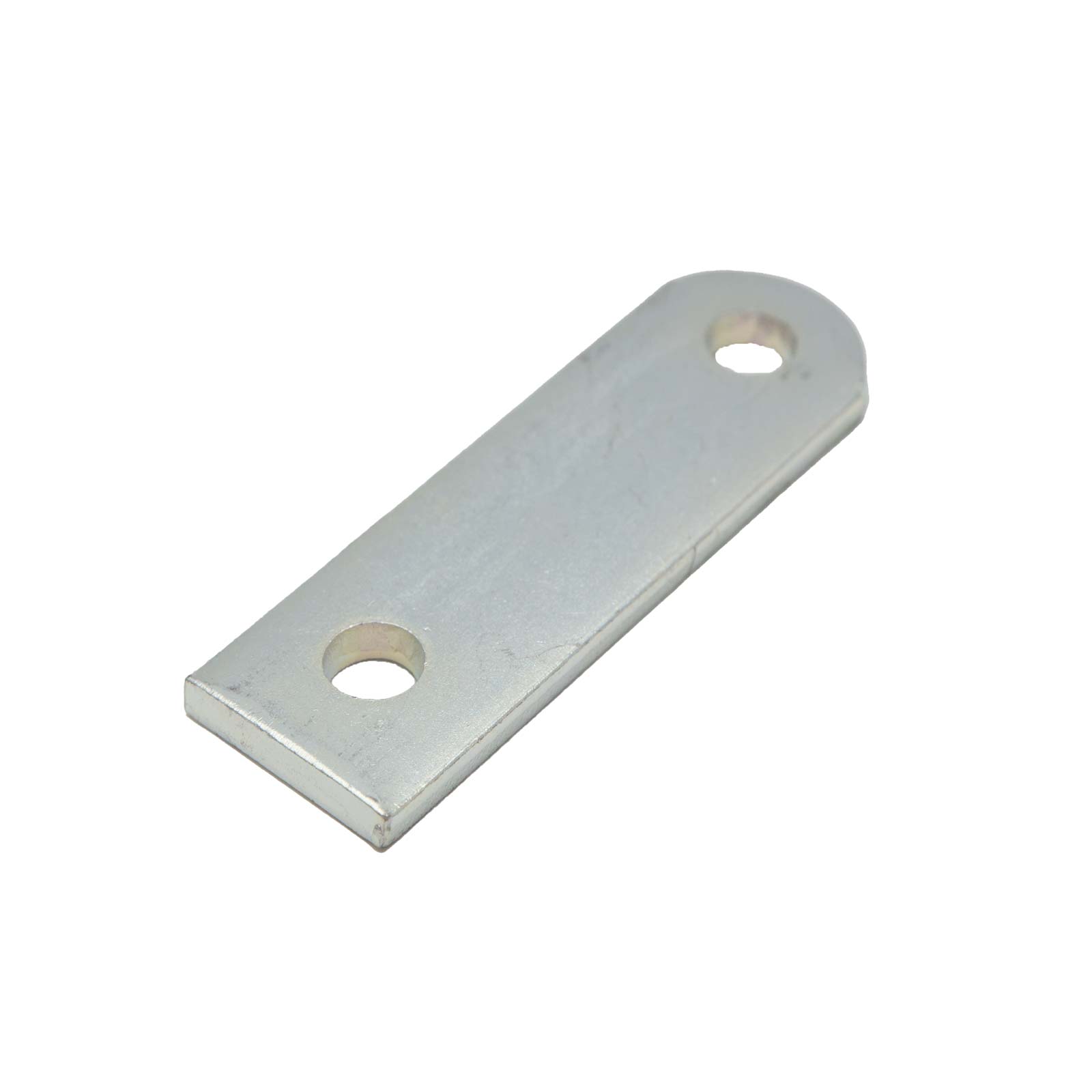

2-Hole Swivel Plate - Electro-Galvanized

2-Hole Swivel Plate - Electro-Galvanized!

  • Flextruts FS-5011 2 Hole Swivel Plate Drawing

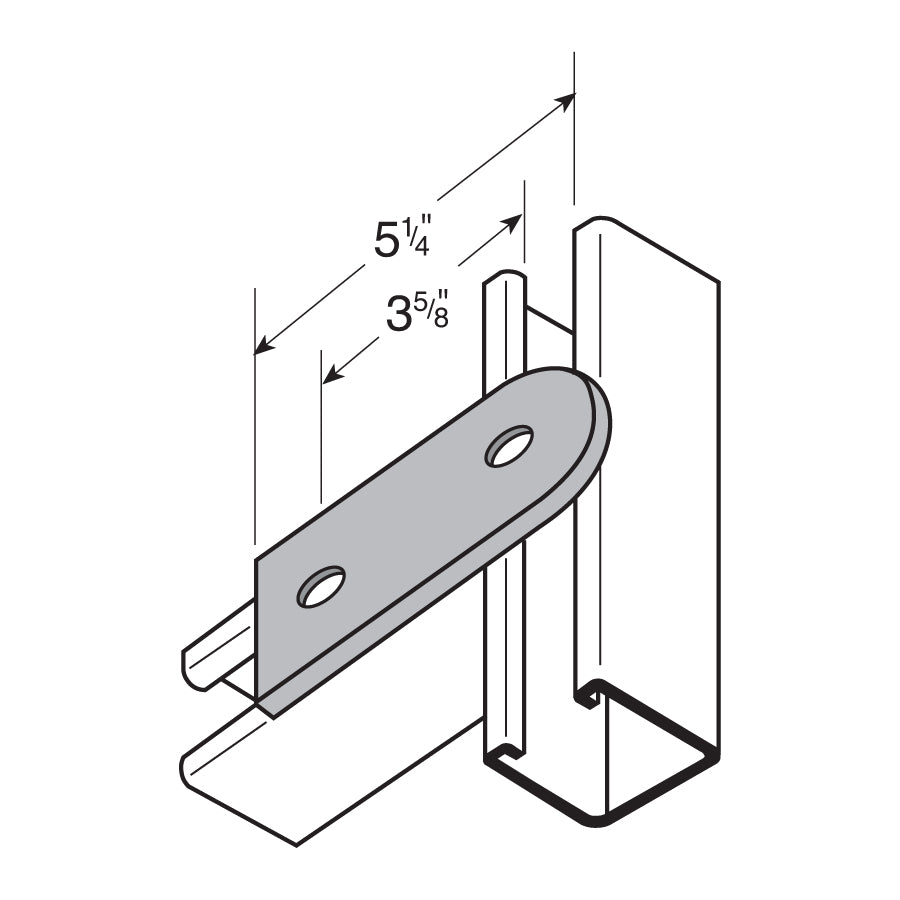

  • Flextruts FS-5011 2 Hole Swivel Plate Drawing With Dimensions
  • Strut Channel applications for storage shelving and solar panel roof racks
  • Strut Channel applications barn door track and conduit fixtures
1 5

Continue Browsing

Flat Fittings
SKU: FS-5011-E/G

2-Hole Swivel Plate - Electro-Galvanized

$4.52

Request Bulk Pricing
min. order qty: 23
Request Bulk Pricing
Please call (888) 794-1590 for custom quantities
Ships in 7-14 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Electro-Galvanized
Material: Carbon Steel
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Thickness: 1/4"
Width: 1-5/8"
Description

2-Hole Swivel Plate - Electro-Galvanized is used for slight angle adjustment of connections made perpendicularly off the hinge connection. Swivel plates join two channels together and sit on top of the channel lips. Pair swivel plated with like metal hardware for best results and longevity. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
