SKU: FS-5145-45-E/G

4-Hole 45 Degree Open Strut Angle - Electro-Galvanized

4-Hole 45 Degree Open Strut Angle - Electro-Galvanized!

  • 4-Hole 45 Degree Open Strut Angle
  • 4-Hole 45 Degree Open Strut Angle
  • 4-Hole 45 Degree Open Strut Angle

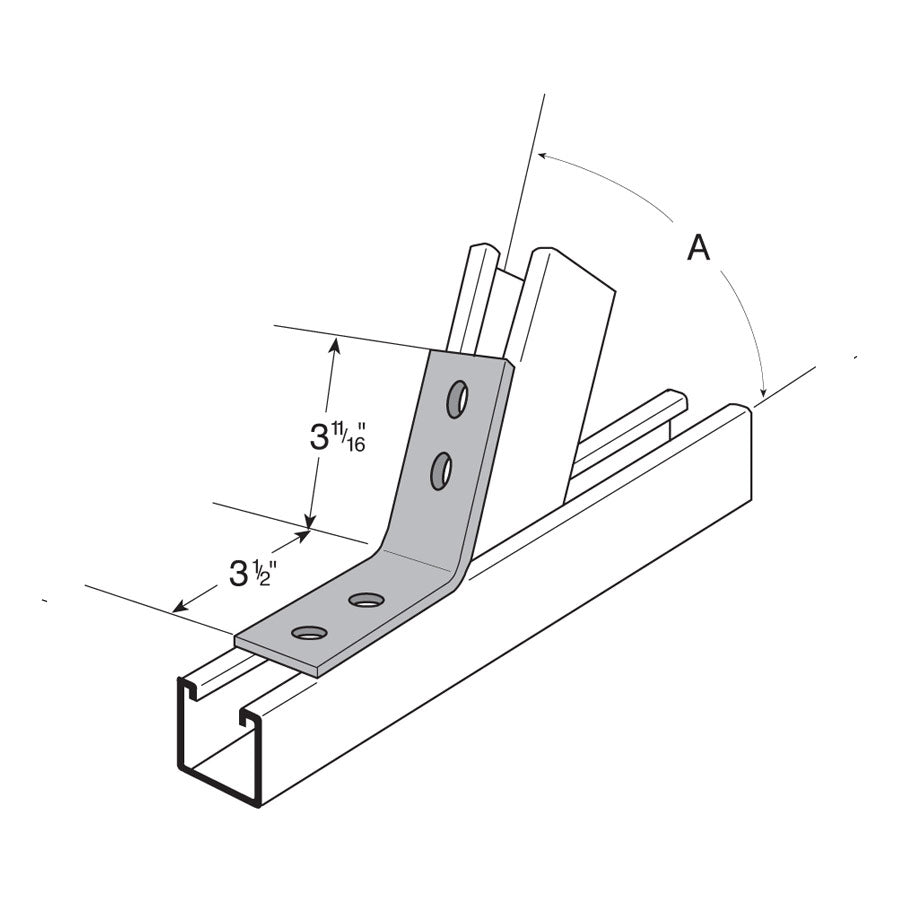

  • Flexstrut FS-5145 Drawing With Dimensions
  • Strut Channel applications for storage shelving and solar panel roof racks
  • Strut Channel applications barn door track and conduit fixtures
1 7

Continue Browsing

Angle Fittings
SKU: FS-5145-45-E/G

4-Hole 45 Degree Open Strut Angle - Electro-Galvanized

$5.10

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 13 hours 15 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Electro-Galvanized
Material: Carbon Steel
Additional Info: A Dimension (see image 2): 45°
Finish Specification: ASTM B-633 (Type III SC1 (0.2 mil thickness))
Hole diameter: 9/16"
Hole Spacing Center to Center: 1-7/8"
Hole Spacing End Distance: 13/16"
Manufacturer name: Flex-Strut
Material Specification: ASTM A575 or ASTM A1011 Grade 33
Thickness: 1/4"
Width: 1-5/8"
Description

4-Hole 45 Degree Open Angle - Electro-Galvanized fittings connect strut channel at the corners and joints. If you are looking to join channel sections using angle fittings use channel nuts, bolts, nuts, and washers to join the fitting to the channel. Electro-Galvanized Steel should be used in interior applications where conditions are dry, and humidity is low.
