SKU: HUC410-2

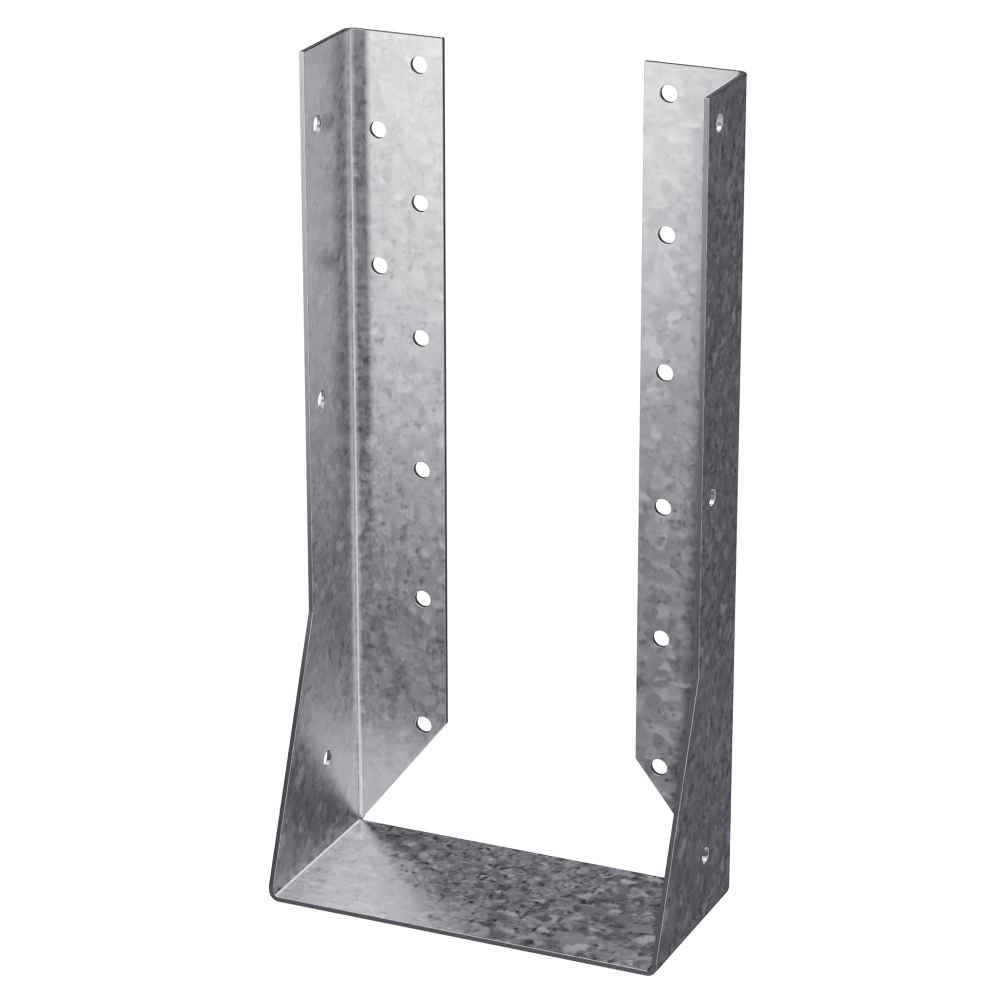

Simpson HUC410-2 Concealed Flange Face Mount I-Joist Hanger- G90 Galvanized

Simpson HUC410-2 Concealed Flange Face Mount I-Joist Hanger- G90 Galvanized!

  • Simpson HUC4102 Concealed Flange Face Mount IJoist Hanger G90 Galvanized

Continue Browsing

HUC/HUCQ I-Joist & SCL Hangers
SKU: HUC410-2

Simpson HUC410-2 Concealed Flange Face Mount I-Joist Hanger- G90 Galvanized

$32.20

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 12 when you add 7 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Face - (18) 0.162" x 3-1/2" Nails Joist - (8) 0.162" x 3-1/2" Nails
For Treated Lumber: No
Height: 8-3/4"
Joist size: 7" X 9-1/4"
Manufacturer name: Simpson Strong-Tie
Description

Simpson Strong-Tie HUC hangers are heavy duty concealed flange connectors designed for schools and other structures requiring additional strength, longevity and safety factors. Most models can be installed filling round holes only, or filling round and triangle holes for maximum values. The Strong-Tie HUC410-2 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


  • Use all specified fasteners.
  • HU/HUC - can be installed filling round holes only, or filling round and triangle holes for maximum values.
  • Web Stiffeners are required for all I-joists used with these hangers.
  • HU/HUC hangers can be welded to a steel member. Allowable loads are the lesser of the values in the Hanger tables or the weld capacity.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
