Simpson ABL10-1-OST Anchor Bolt Locator for 1-1/4" Anchor Bolt
Simpson ABL10-1-OST Anchor Bolt Locator for 1-1/4" Anchor Bolt!
Specifications

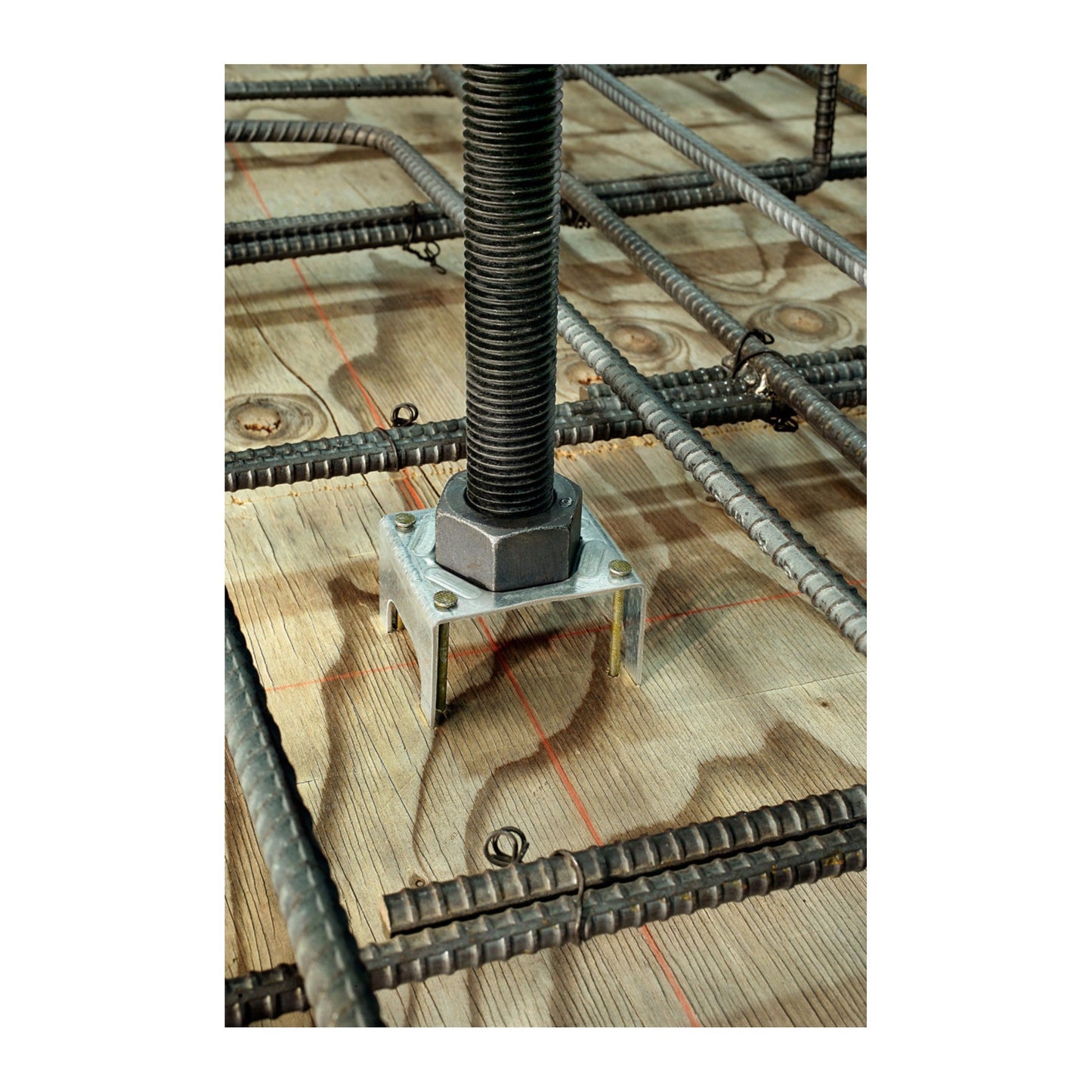

The Simpson Strong-Tie ABL10-1-OST Anchor Bolt Locator simplifies the placement of 1-1/4" diameter anchor bolts in concrete deck forms. With a heavy-duty steel chair and a pre-installed structural hex nut, this locator ensures consistent positioning while eliminating the need for a bottom nut. It's designed to work seamlessly with HDG (hot-dip galvanized) anchor bolts and meets code requirements for a 1" standoff.
Key Features:
- Steel Form Stand with Pre-Attached Nut: Ensures correct bolt height and alignment without extra components.
- Compatible with HDG Anchor Bolts: Designed specifically for use with hot-dip galvanized anchor bolts.
- Open Design for Concrete Flow: Allows concrete to fully surround the bolt for better bond and strength.
- Code-Compliant Standoff: Meets 1" minimum standoff requirement for structural applications.
Applications:
- Setting 1-1/4" diameter anchor bolts in concrete deck forms
- Structural steel column anchoring
- Holdown and base plate installations
- Projects requiring code-compliant anchor bolt standoff
Installation:
- Attach the anchor bolt to the locator using the pre-installed structural nut.
- Position the locator securely on the concrete form deck.
- Confirm vertical alignment and ensure the locator base is stable.
- Pour concrete as normal—no need for a bottom nut or secondary support.
