Shop more CB Column Bases
SKU: CB68X
Simpson CB68X Column Base
Simpson CB68X Column Base
No reviews
Regular price
$0.00
Sale price
$0.00
Regular price
Unit price
/
per
0% off
Call to Order
Couldn't load pickup availability
Payment methods
Accepted payments:
Ships in 1-3 business days.
Request Bulk Pricing
Fill out the form below or give our sales consultants a call at 866-421-4854.
Description:
Description:
Simpson Strong-Tie CB Column bases are a sturdy cast-in place anchor that are designed for heavy duty column loads. The Strong-Tie CB1010 features a standard Gray Painted coating for added corrosion resistance. Some products are available in HDG, stainless steel or black powder coat upon request.
Installation:- Use all specified fasteners.
- For full loads, minimum side cover required is 3" for CB, 2" for LCB.
- Install all models with bottom of base plate flush with concrete.
- Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Looking for something different? See the rest of our Simpson CB & LCB Column Bases.
California Residents: WARNING
Specifications:
Specifications:
Fasteners required: Bolts - (2) 5/8"
Manufacturer name: Simpson Strong-Tie Company Inc
Product Guide: View Spec Sheet
Stay in touch
This is a dummy newsletter form so don't bother trying to test it. Not that I expect you to, anyways. :)
Shop more CB Column Bases

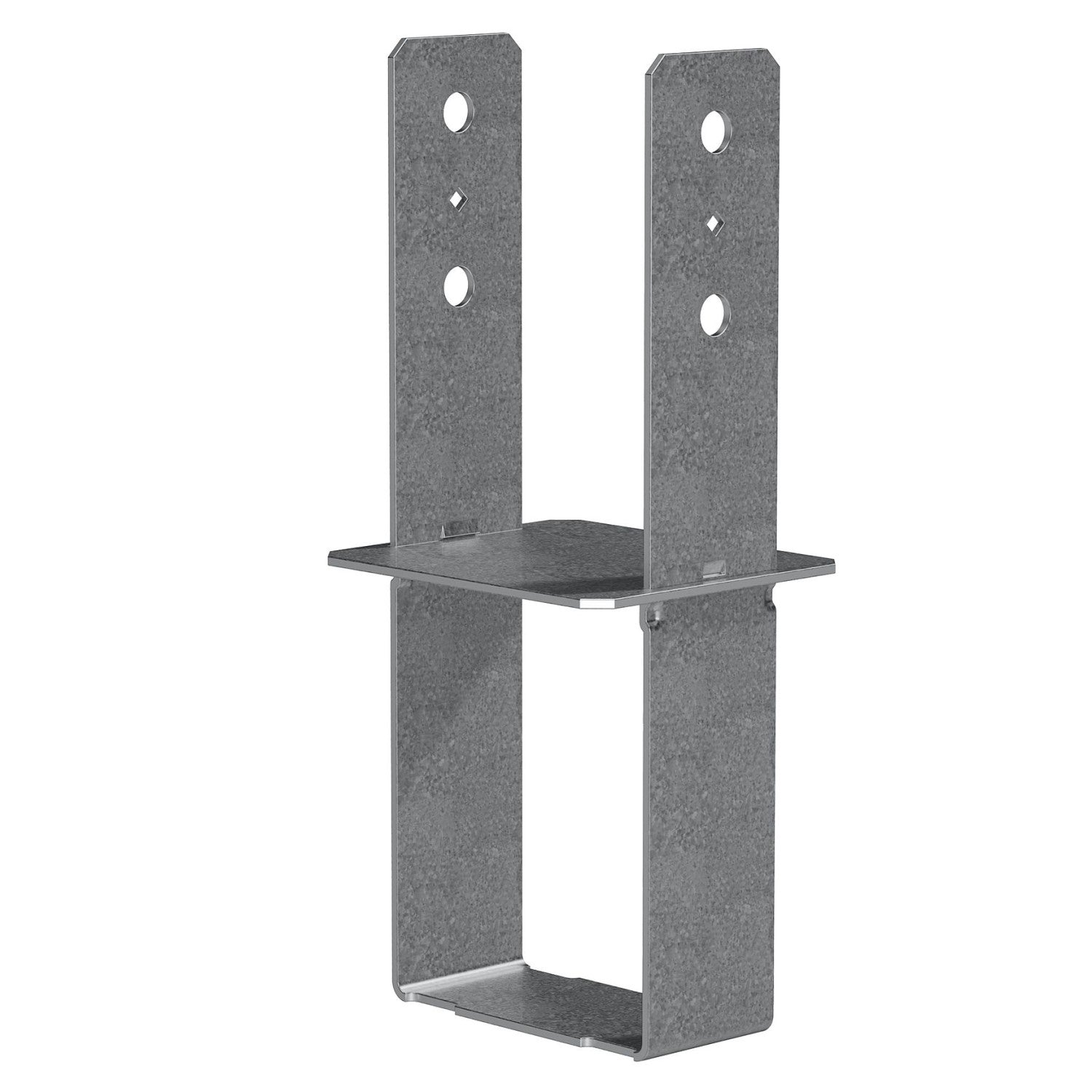

![CB66R Shown](http://www.fastenersplus.com/cdn/shop/products/CB66R_65cd3c5f-e773-4c51-8528-4c6213eb0f39.jpg?v=1675462769&width=1445)

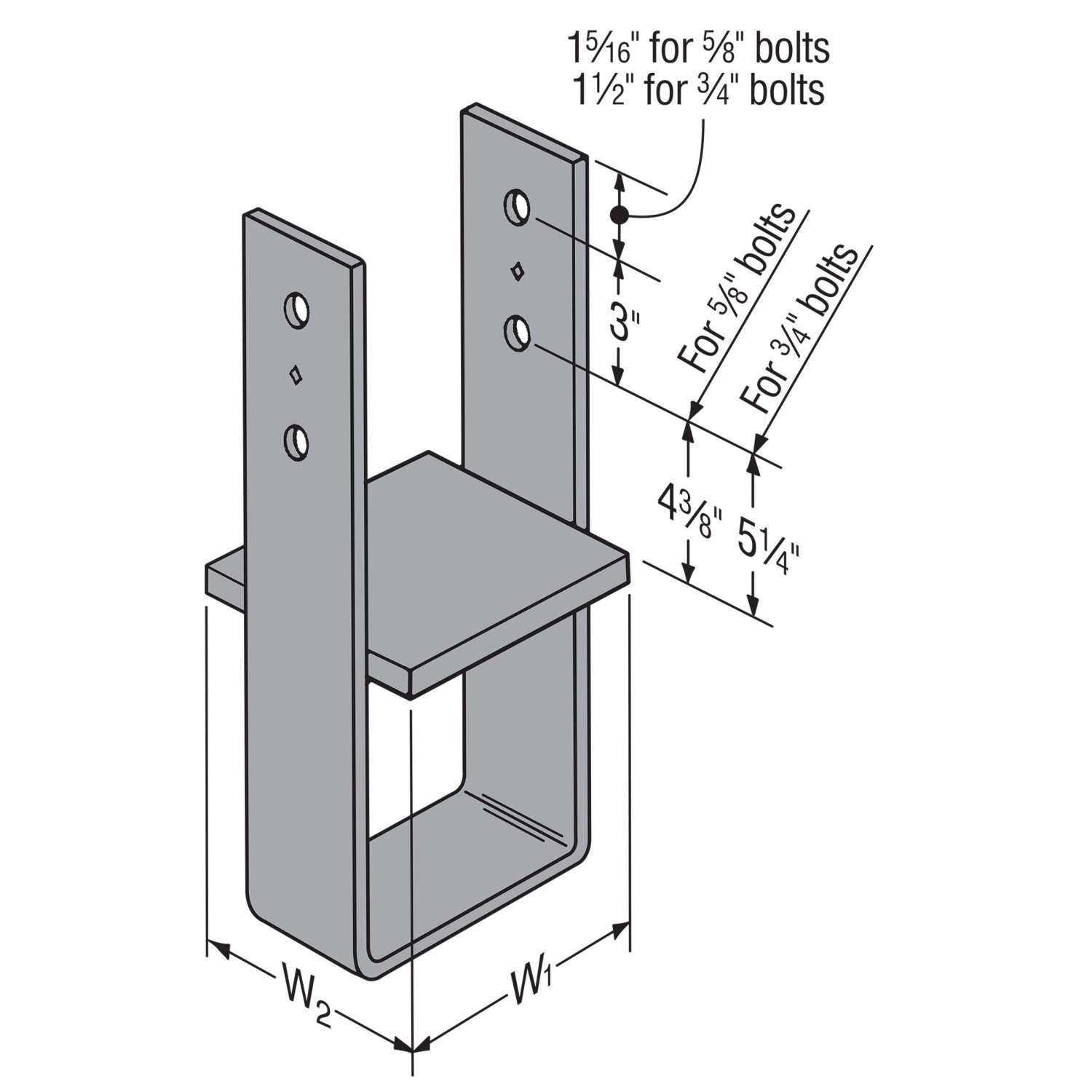

![CB callout](http://www.fastenersplus.com/cdn/shop/products/CB_callout_10b68cc1-1d77-453d-b0ae-9ed69a7bba01.jpg?v=1675462769&width=1445)

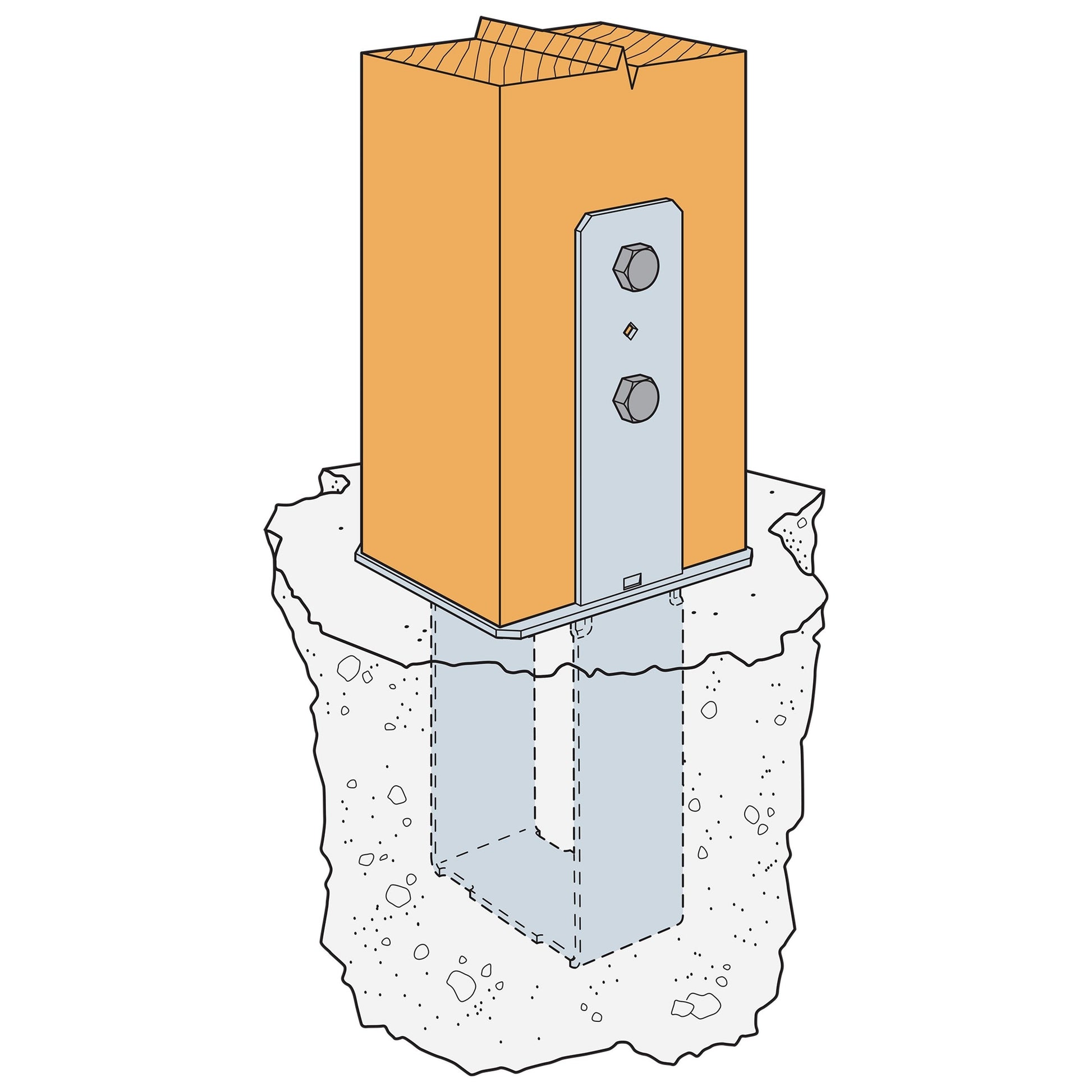

![Typical CB68 Installation Shown](http://www.fastenersplus.com/cdn/shop/products/Typical_CB68_Installation_e4018c8b-ef70-4a6d-bca3-09604b0d13ea.jpg?v=1675462769&width=1445)
