CBH Concealed Glulam Beam Hanger
Specifications
The CBH2.37X5.5B-KT from Simpson Strong-Tie is a concealed beam hanger kit designed for engineered wood applications that require hidden yet high-capacity connections. Engineered for strength and clean aesthetics, it’s an ideal solution for residential, commercial, and architectural projects where visual appeal and structural integrity go hand-in-hand.
Kit Includes:

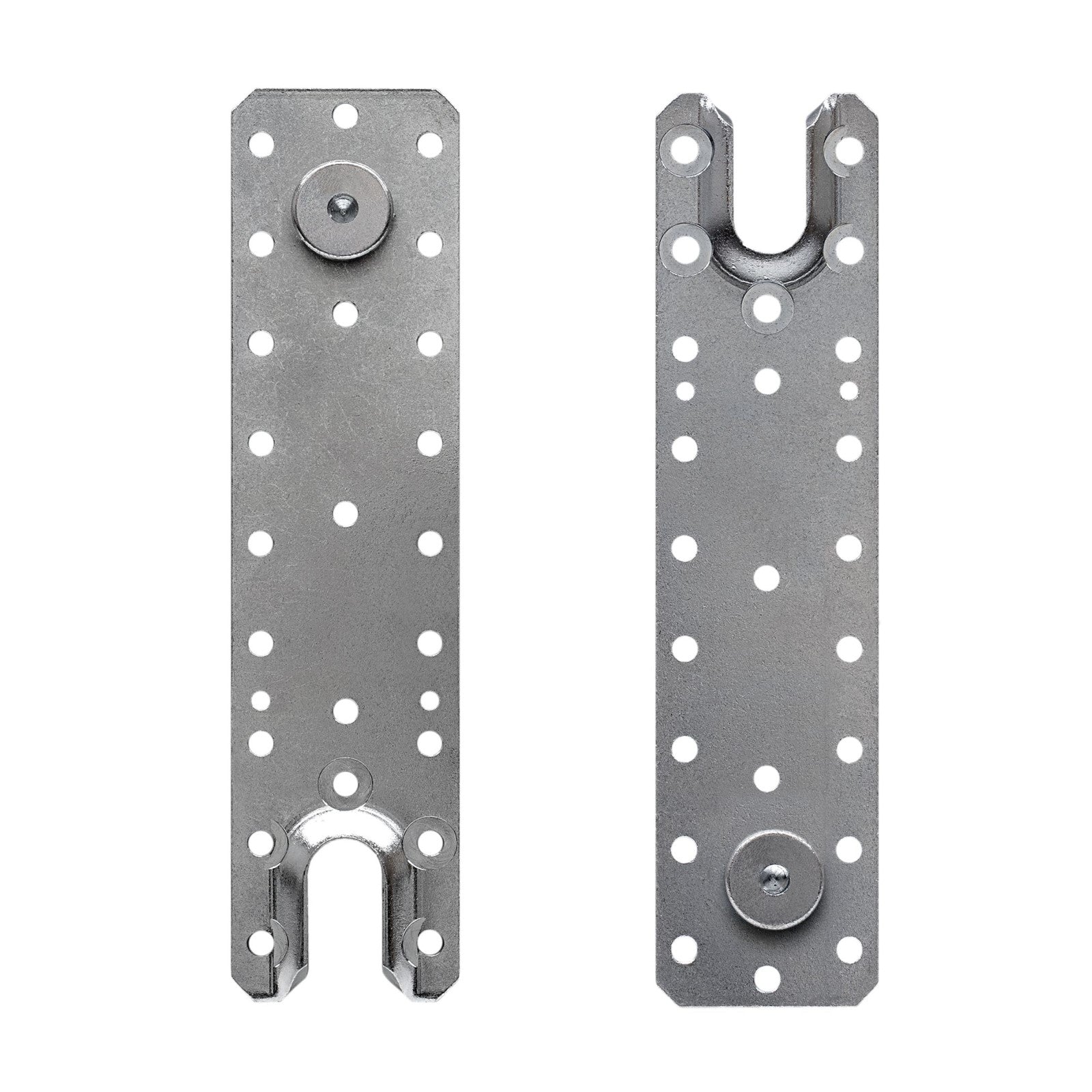

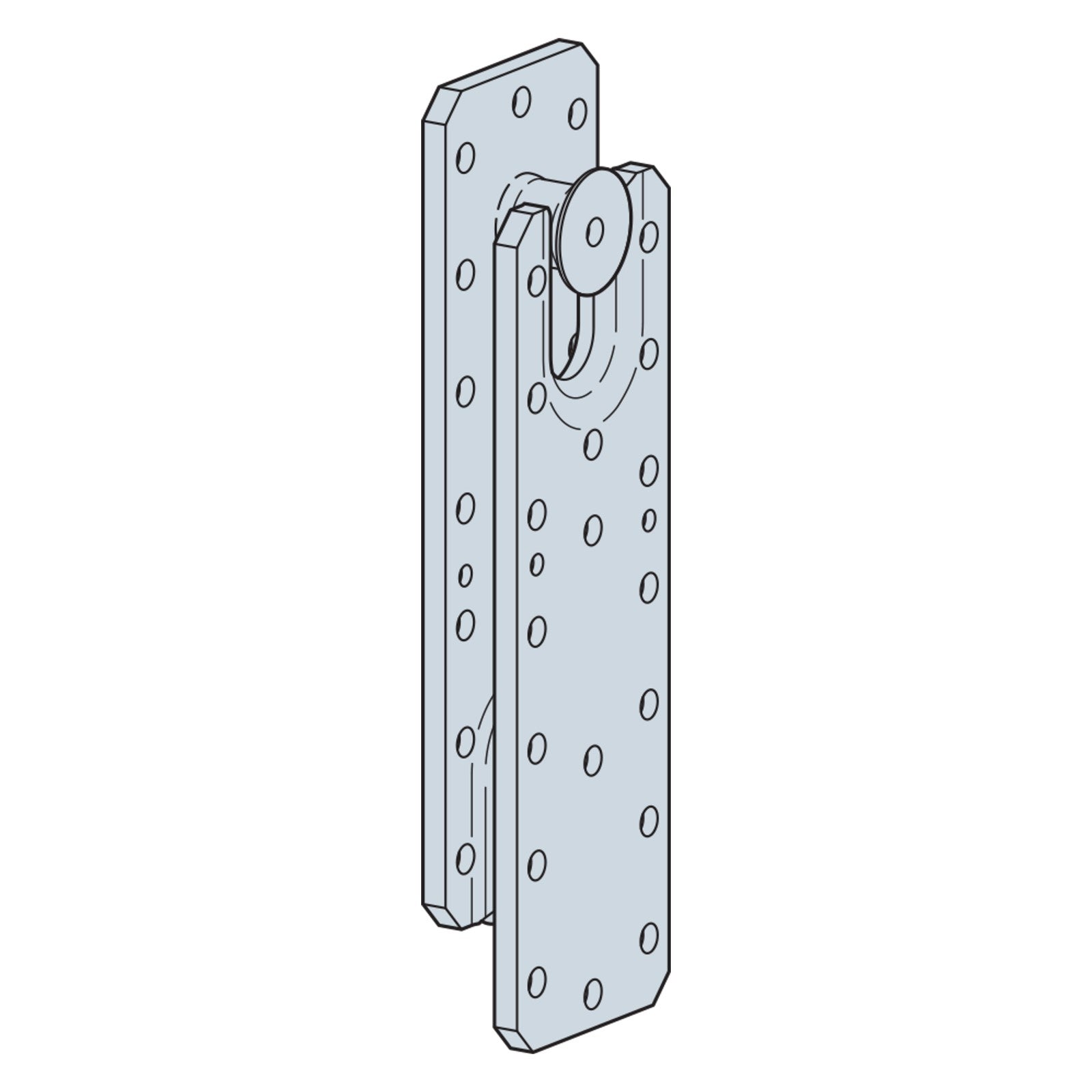

- (2) CBH2.37X5.5B Concealed Beam Hanger Back Plates
- (13) SDS25300 1/4" x 3" Strong-Tie SDS25300 Heavy-Duty Connector Screws
- (13) SDS25600 1/4" x 6" Strong-Tie SDS25600 Heavy-Duty Connector Screws
Applications:

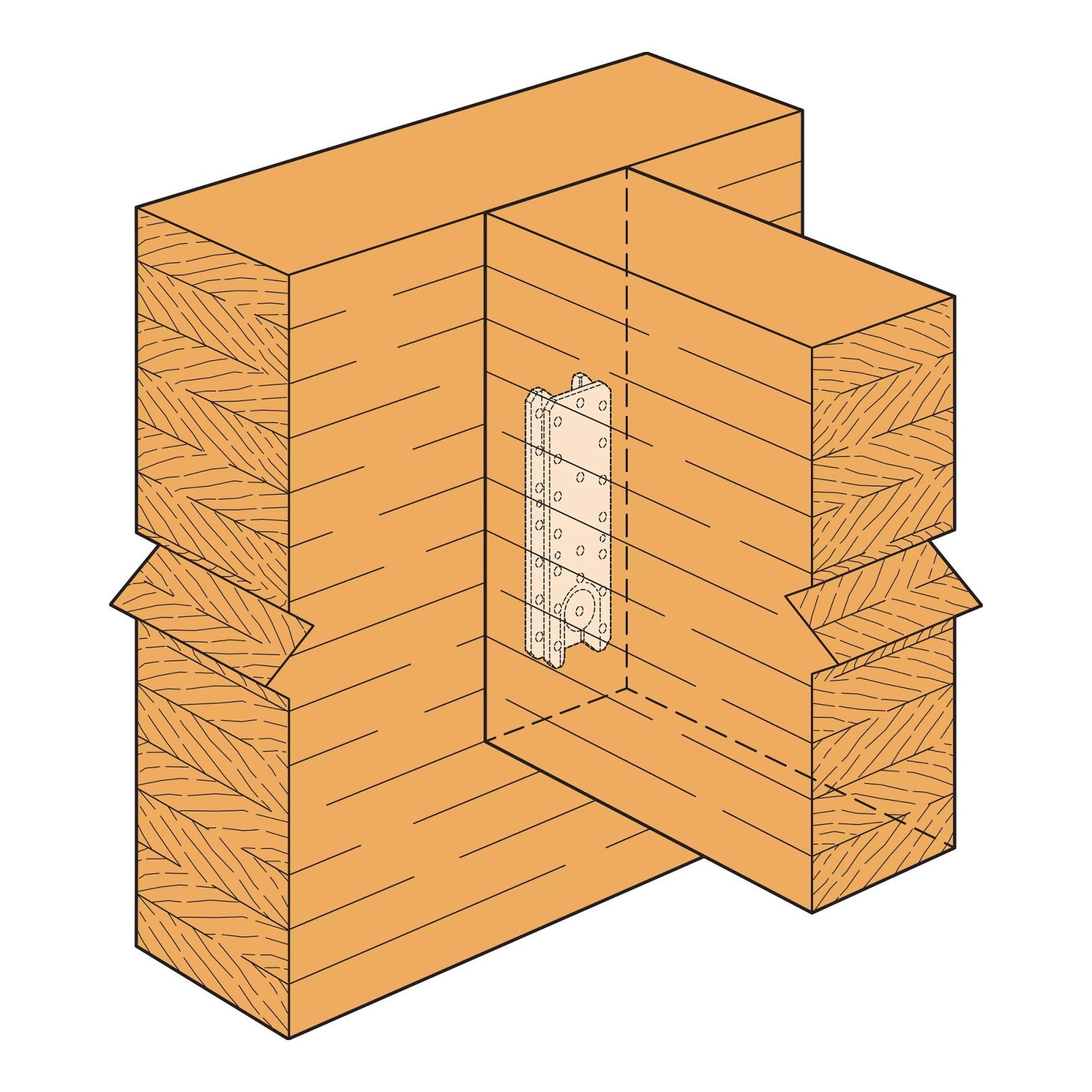

- Engineered wood-to-wood beam-to-column connections
- Architectural projects requiring hidden connections
- Interior framing and exposed timber designs
Installation:
- Inspect: Ensure all kit components are present and undamaged.

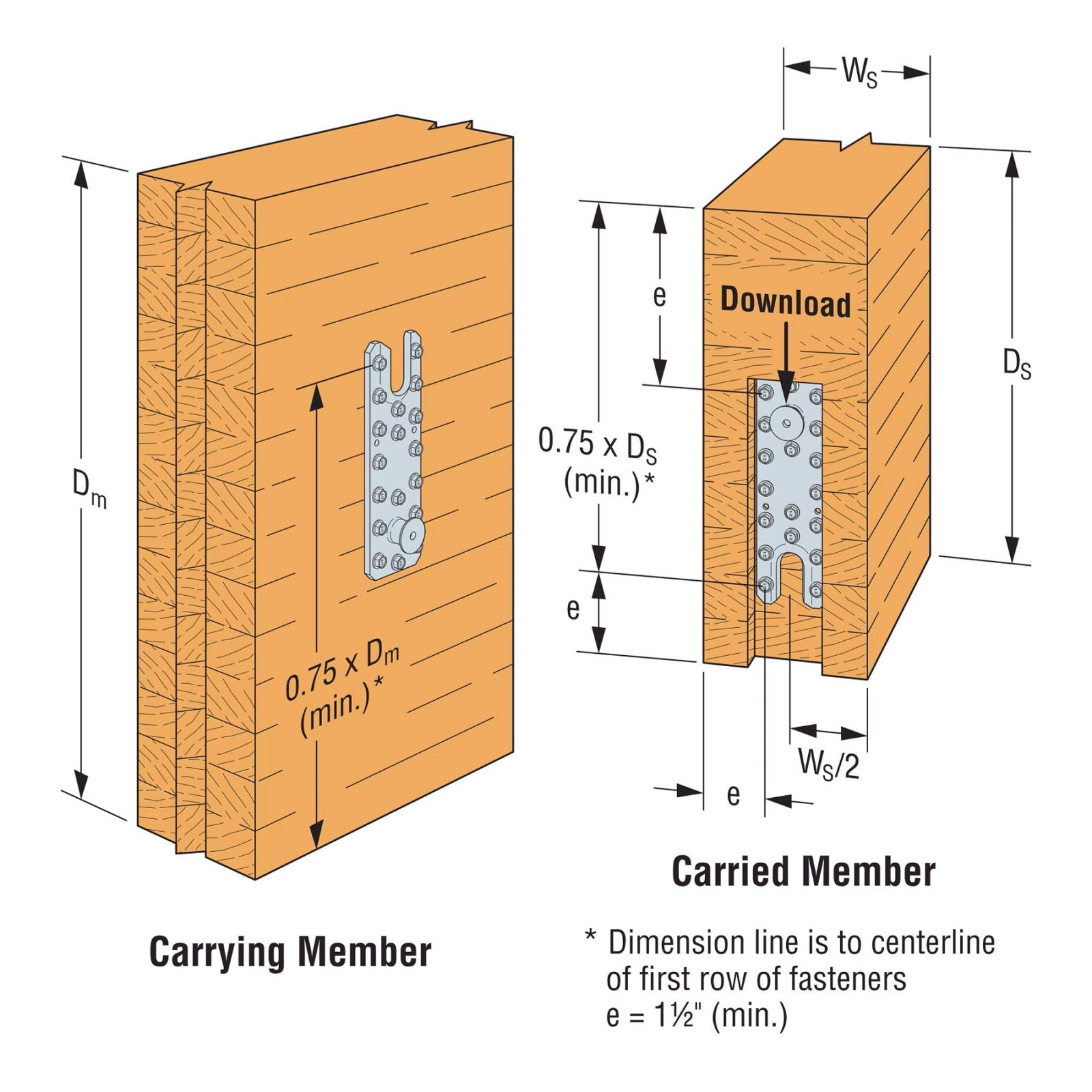

- Align: Position the hanger on the column face and mark predrill locations.

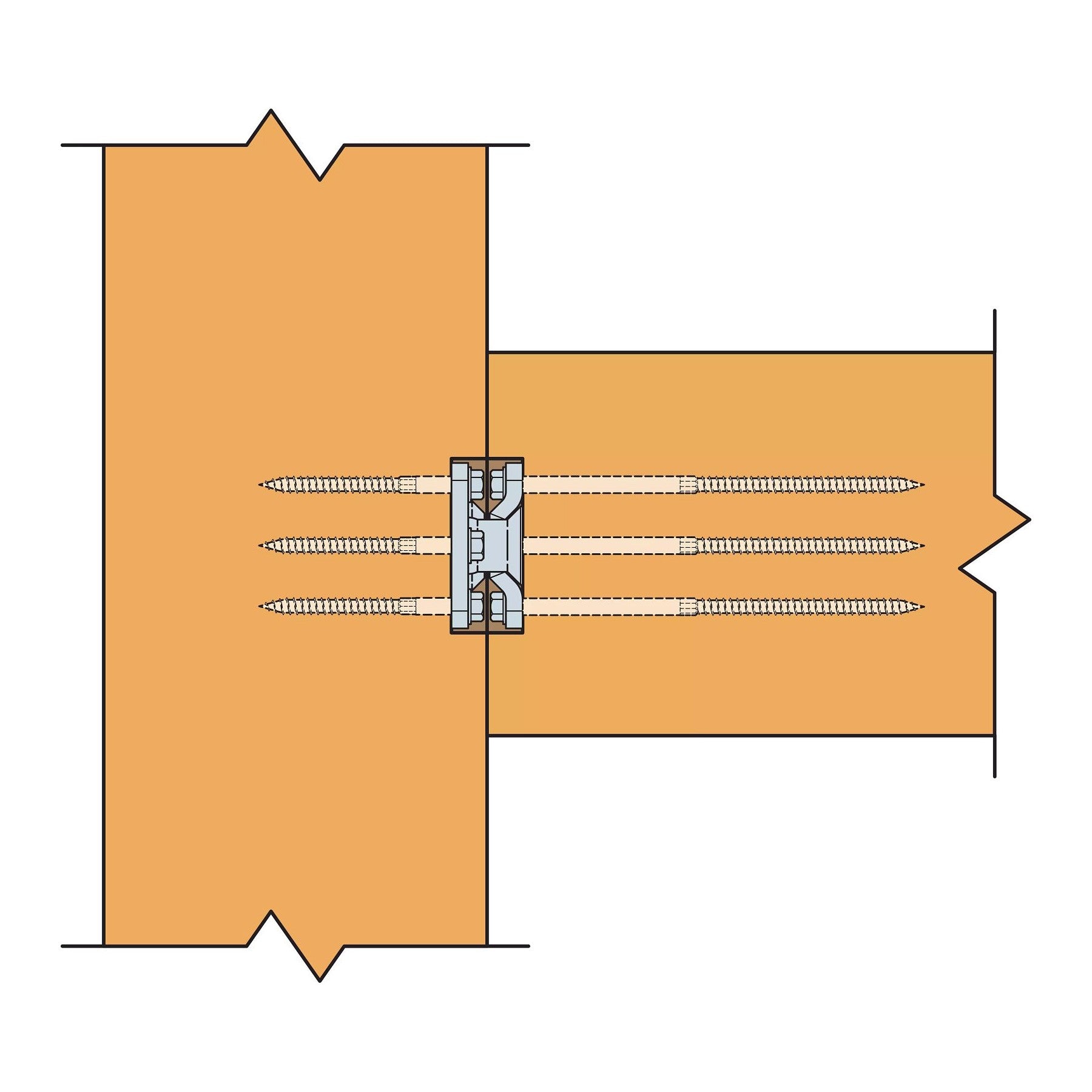

- Fasten: Attach the hanger using the included structural screws per design specs.
- Set Beam: Insert the beam into the hanger pocket, confirming full seating and flush fit.
- Verify: Perform a final inspection of the connection before loading.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
