CBH Concealed Glulam Beam Hanger
Specifications
The CBH2.37X7.63B-KT is a concealed beam hanger kit from Simpson Strong-Tie engineered to create strong, hidden connections for engineered wood applications. This kit enhances structural integrity while preserving the clean aesthetics of exposed wood constructions.
Kit Components:

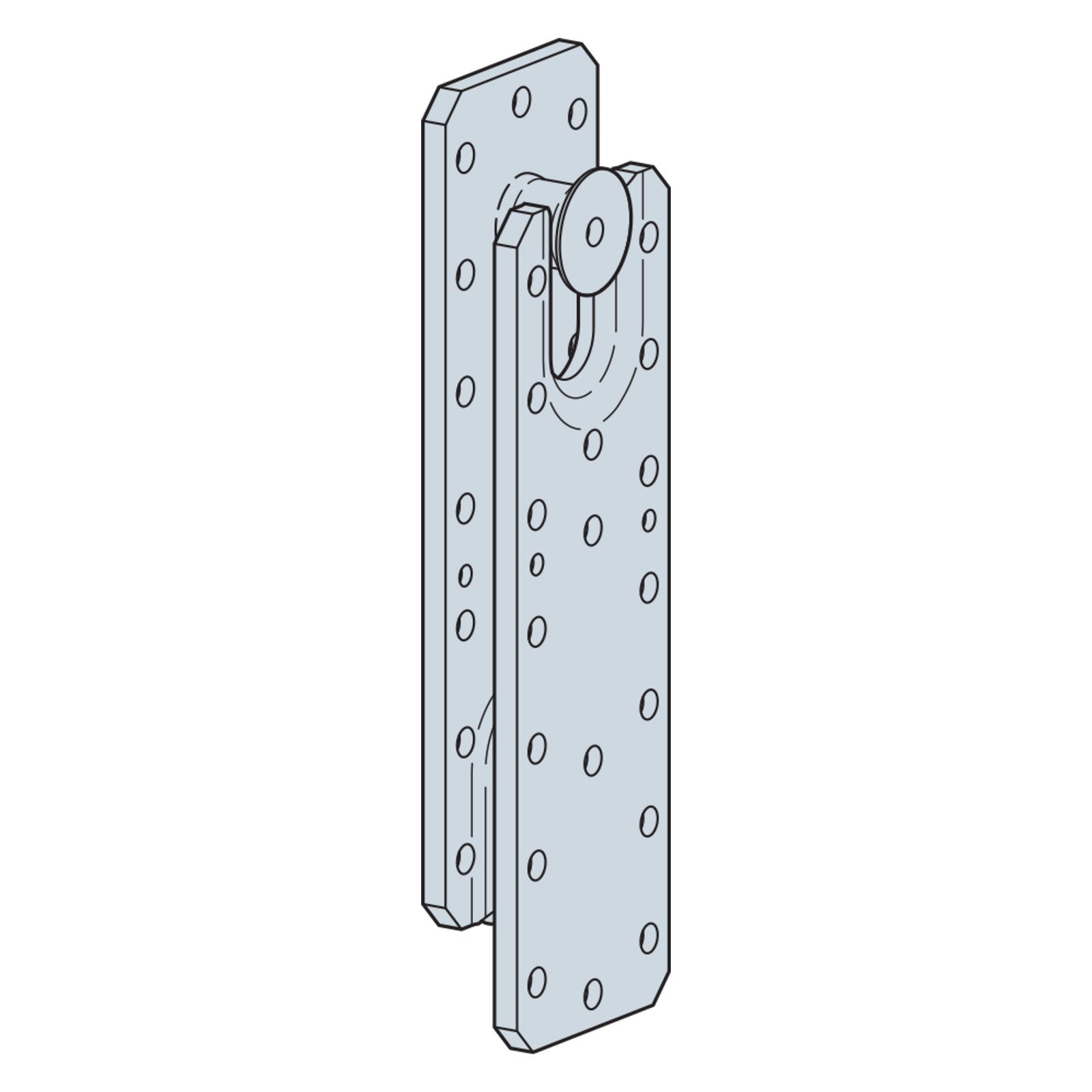

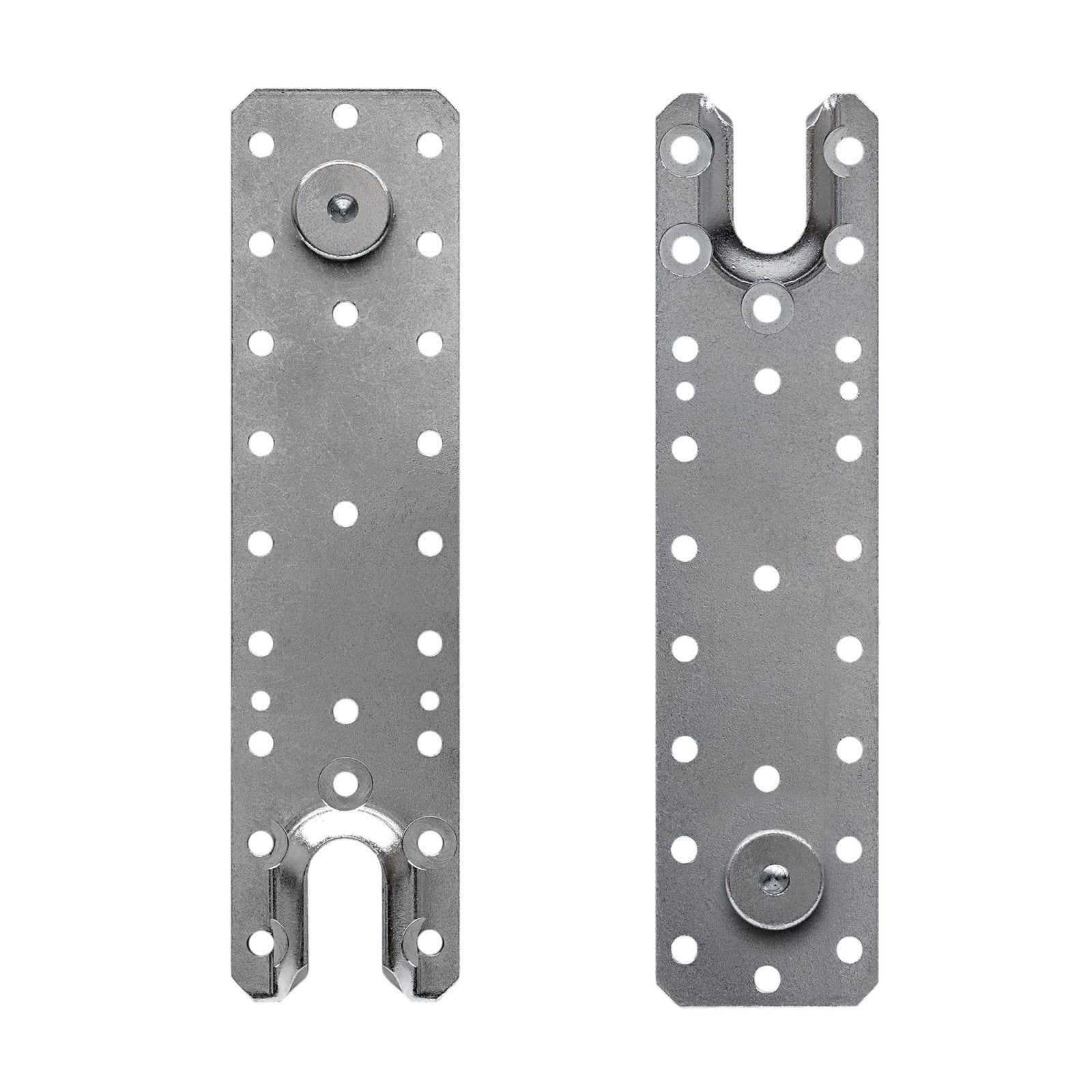

- (2) CBH2.37X7.63B-KT Concealed Beam Hanger Backplates
- (18) SDS25300 1/4" x 3" Strong-Tie SDS25300 Heavy-Duty Connector Screws
- (18) SDS25600 1/4" x 6" Strong-Tie SDS25600 Heavy-Duty Connector Screw
Key Features:
- Concealed Design: Provides a hidden connection, enhancing the visual appeal of exposed wood structures.
- High Load Capacity: Engineered to handle substantial loads, ensuring robust structural performance.
- Comprehensive Kit: Includes all necessary components for installation, streamlining the construction process.
Applications:
- Engineered Wood Structures: Ideal for creating concealed connections in glulam, LVL, and other engineered wood products.

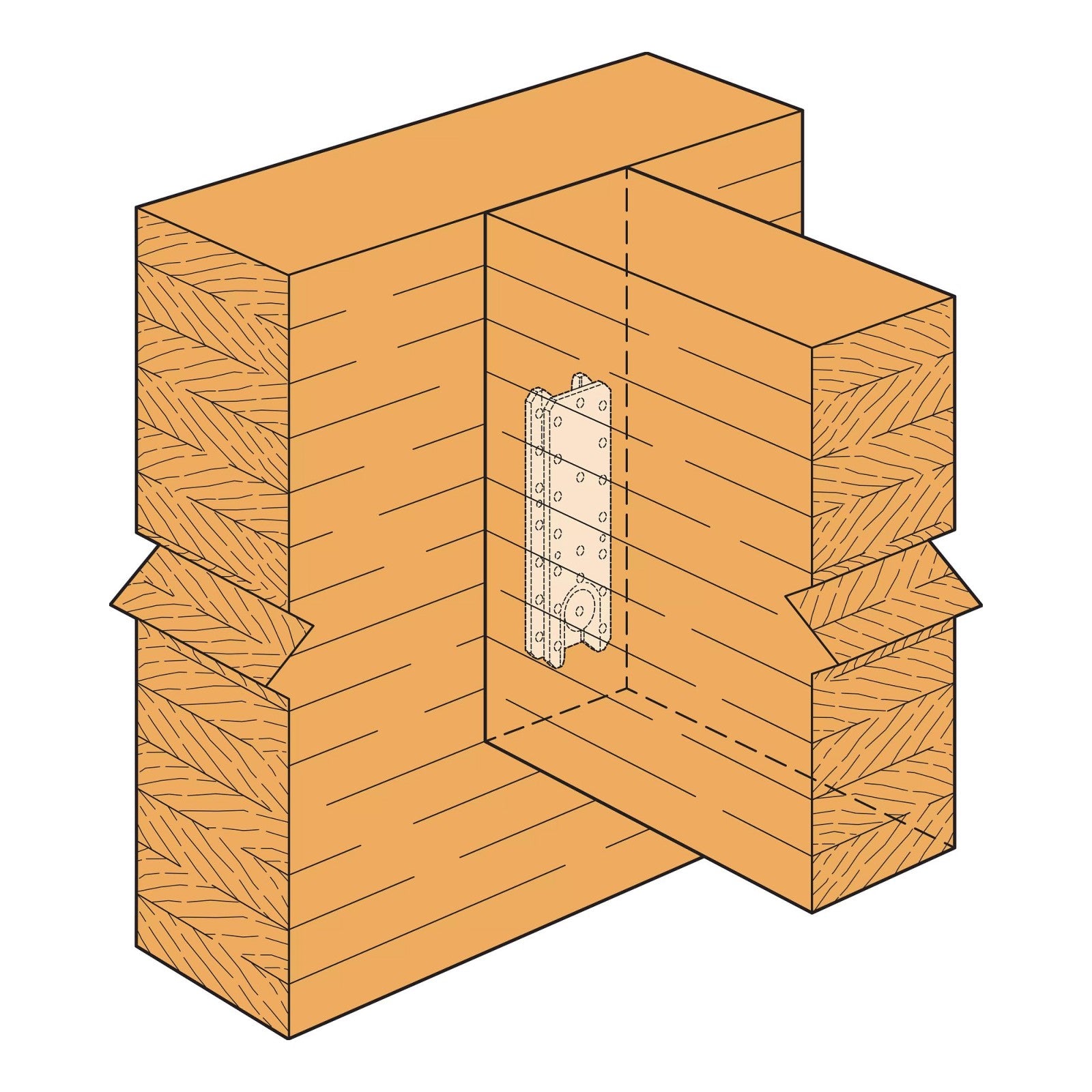

- Mass Timber Construction: Suitable for projects requiring hidden, high-strength beam-to-column connections.
- Architectural Projects: Perfect for designs emphasizing exposed wood aesthetics without visible metal hardware.
Installation:
- Preparation: Ensure all wood members are accurately cut and surfaces are clean and dry.

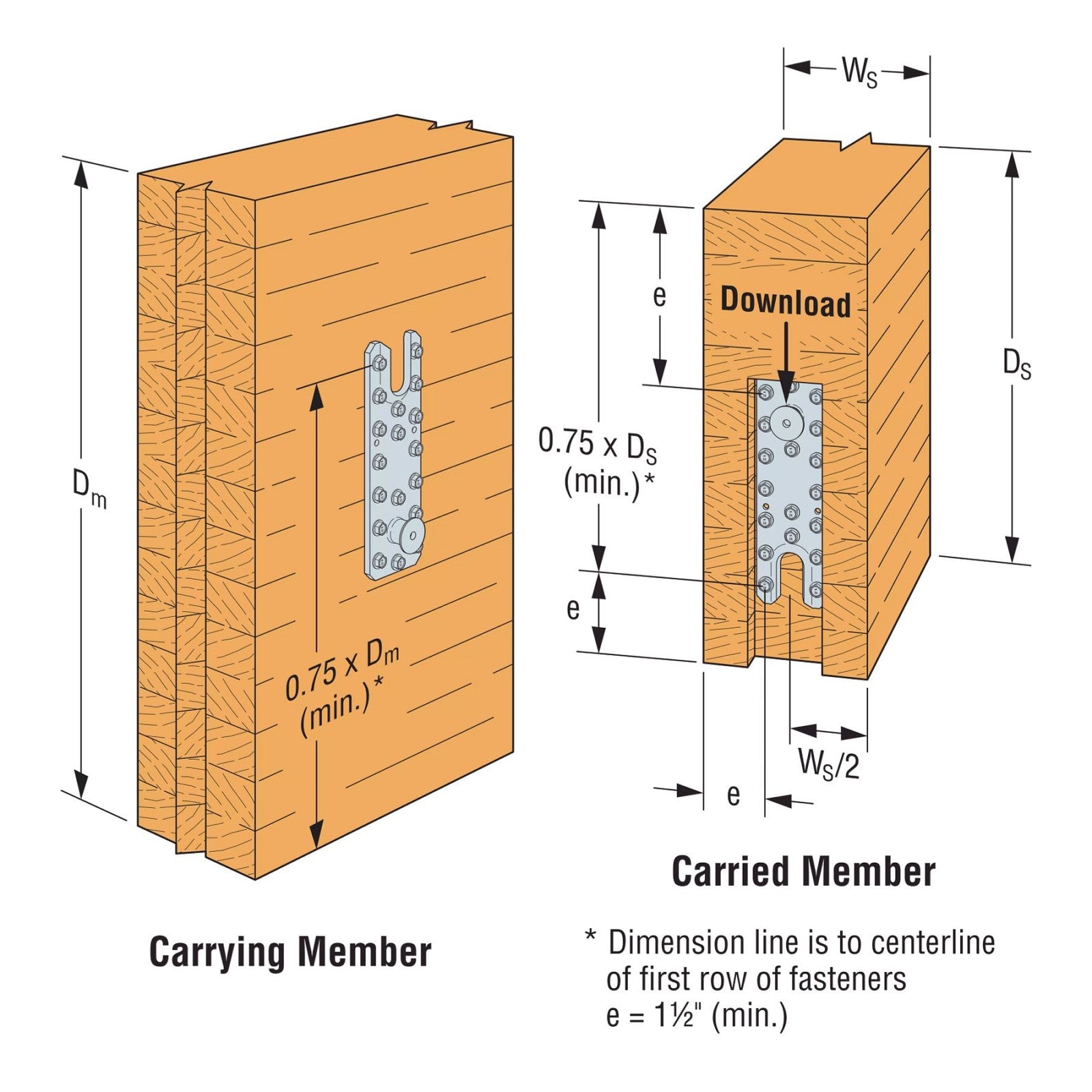

- Positioning: Align the CBH hanger body on the beam end, marking the locations for the fasteners.

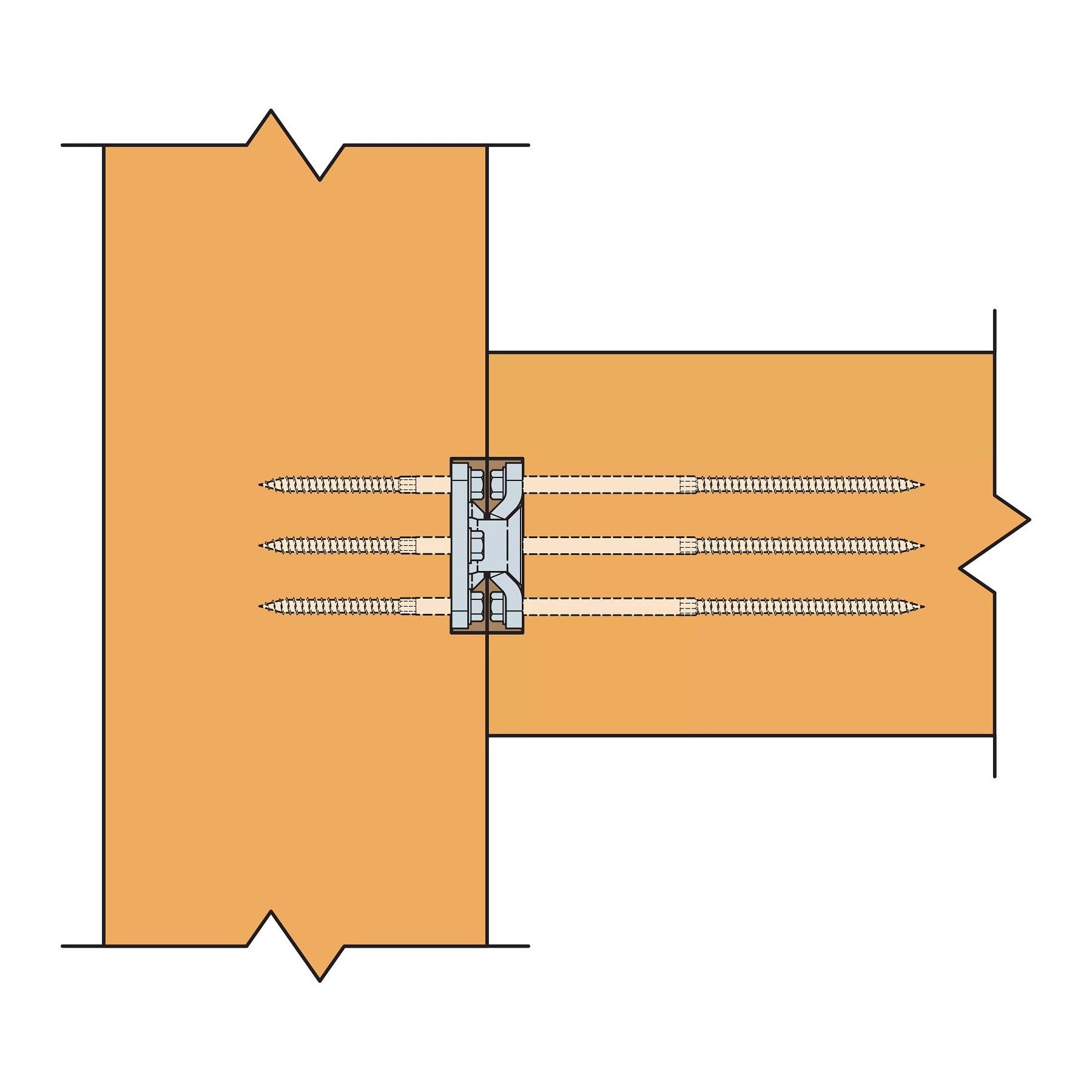

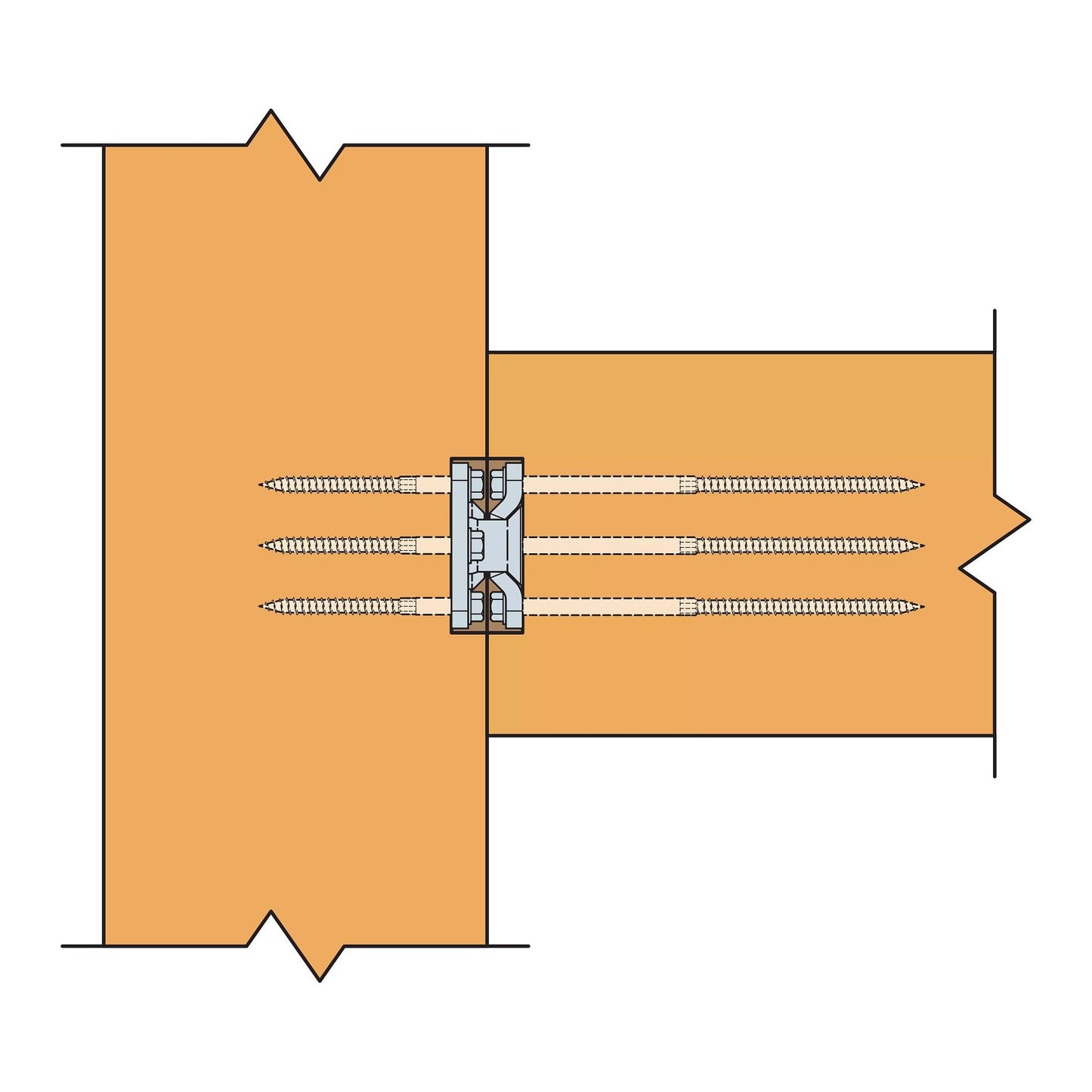

- Fastening: Attach the hanger to the beam using the provided Strong-Drive SDS Heavy-Duty Connector Screws, following the specified pattern and ensuring each screw is driven to the correct depth.
- Beam Placement: Position the beam with the attached hanger onto the supporting member, ensuring proper alignment and engagement.
- Final Inspection: Verify that all connections are secure and conform to the project’s structural requirements.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
