CBH Concealed Glulam Beam Hanger
Specifications
The Simpson CBH2.37X9.75C-KT is a high-performance concealed beam hanger kit engineered for mass timber construction. This code-listed solution provides a clean, hidden wood-to-wood connection between beams and columns—ideal for projects where structural integrity and visual appeal go hand in hand.
Kit Includes:

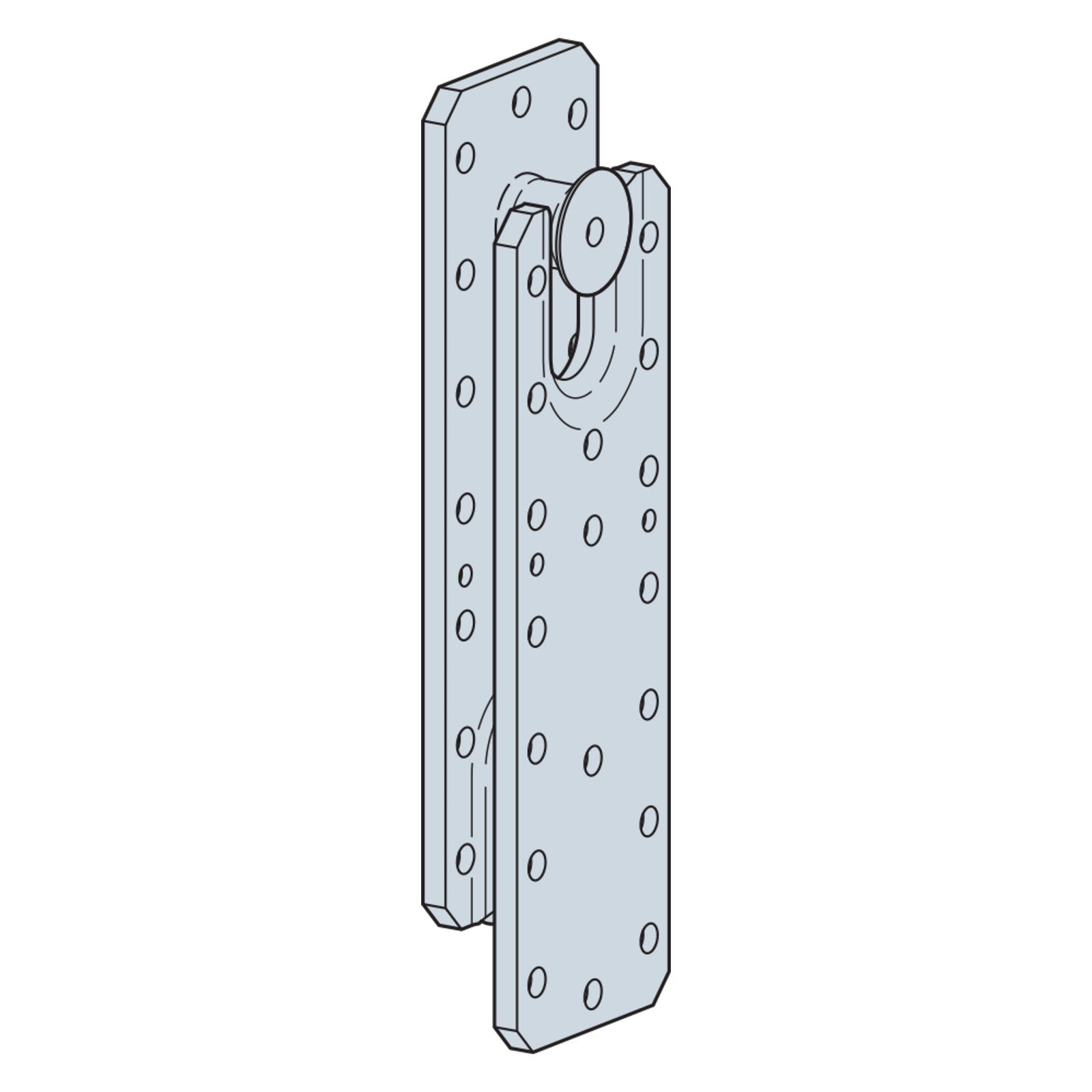

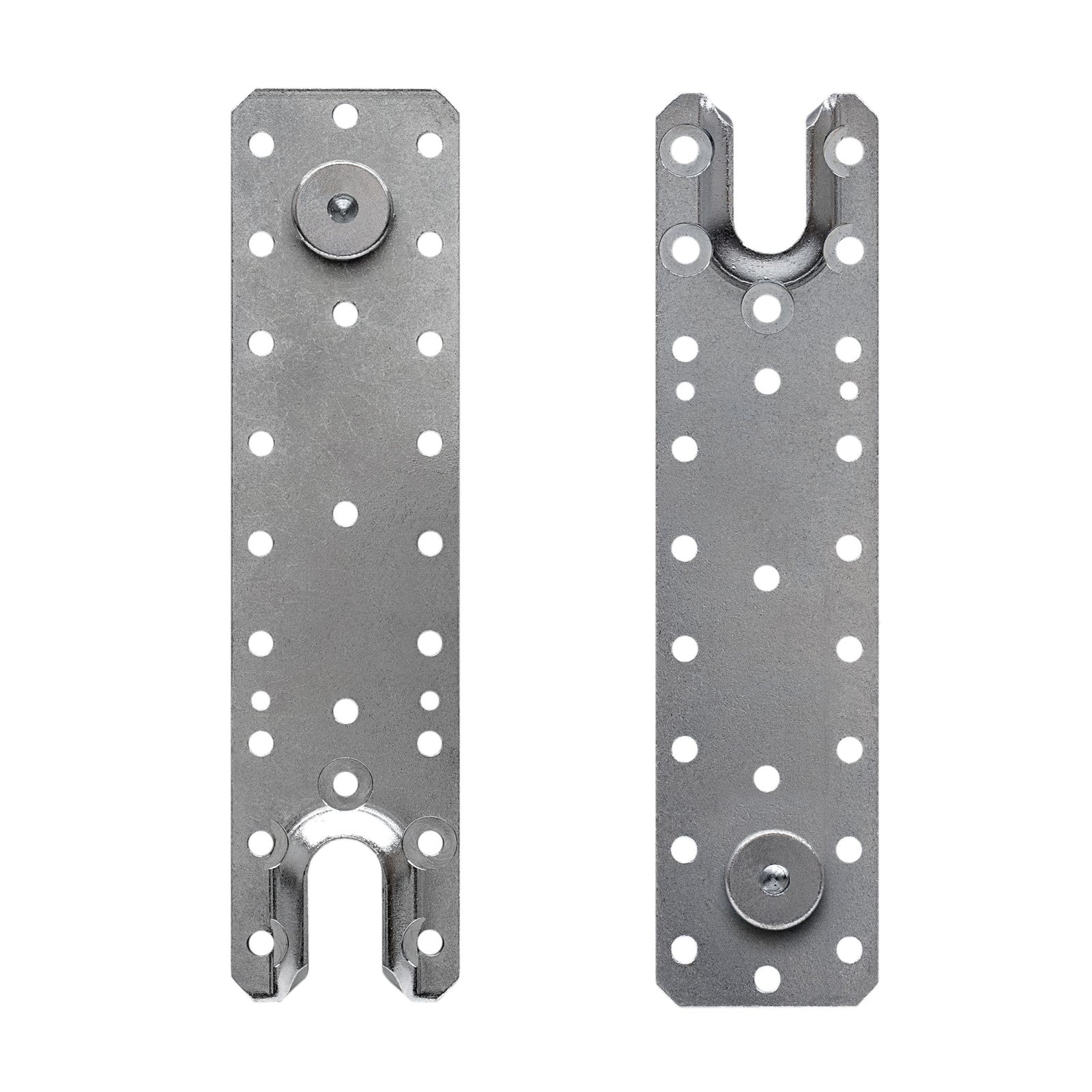

- (2) CBH2.37X9.75C Concealed Beam Hanger Backplates.
- (46) SDS25600 1/4" x 6" Strong-Tie SDS25600 Heavy-Duty Connector Screw
Key Features:
- Concealed Wood-to-Wood Connection: Enhances the finished appearance of timber structures
- High Load Capacity: Code-listed per ICC-ES ESR-2552 for dependable performance
- Fire Resistance: Designed for fire-rated assemblies with concealed placement
- Precision Fit: Beam length tolerance of ±1/32" supports ease of installation
Applications:
- Mass timber construction requiring concealed beam-to-column connections
- Architectural builds where aesthetics and structural capacity are critical
- Fire-rated timber designs and exposed wood framing
Installation:

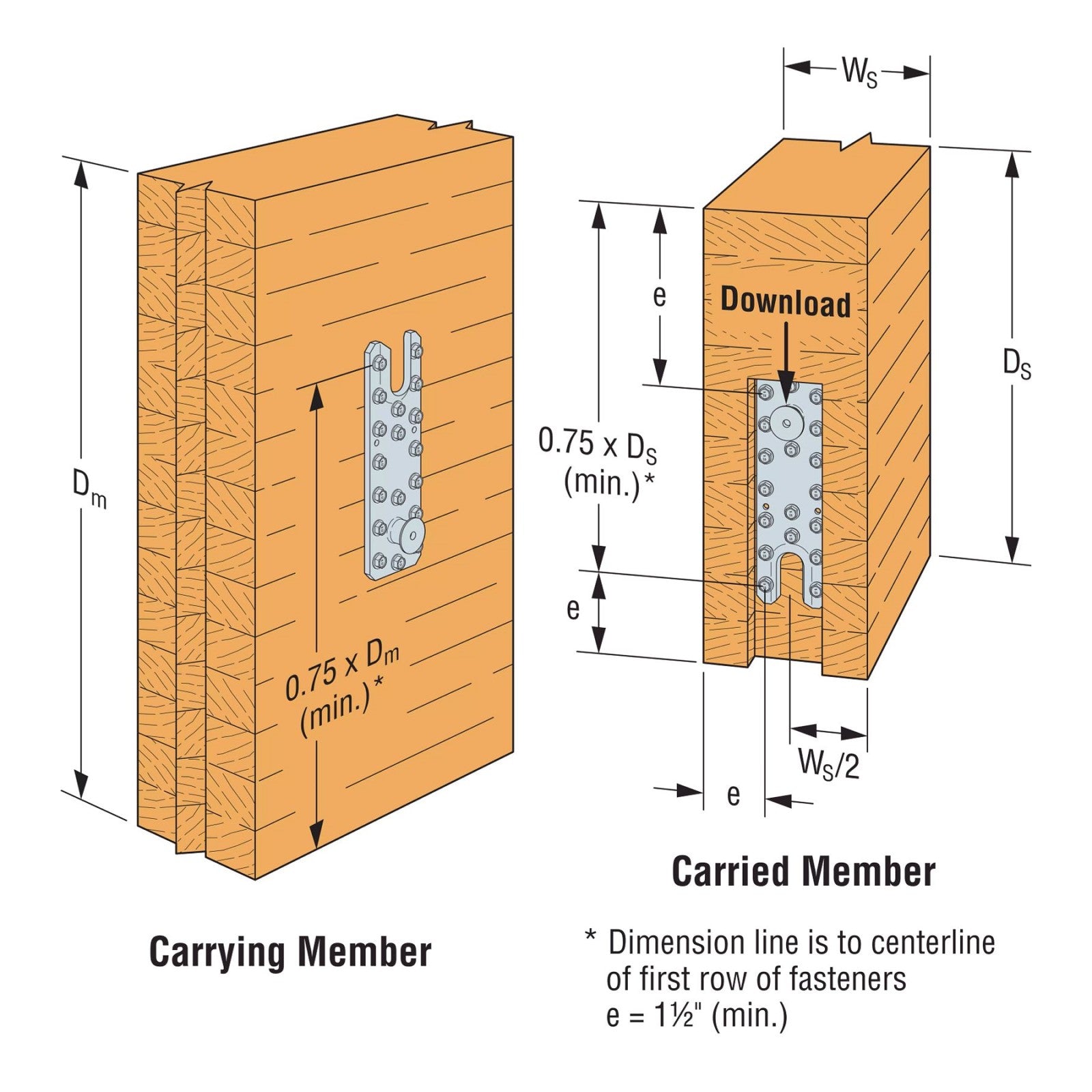

- Prepare: Inspect and route the beam and column members according to specifications

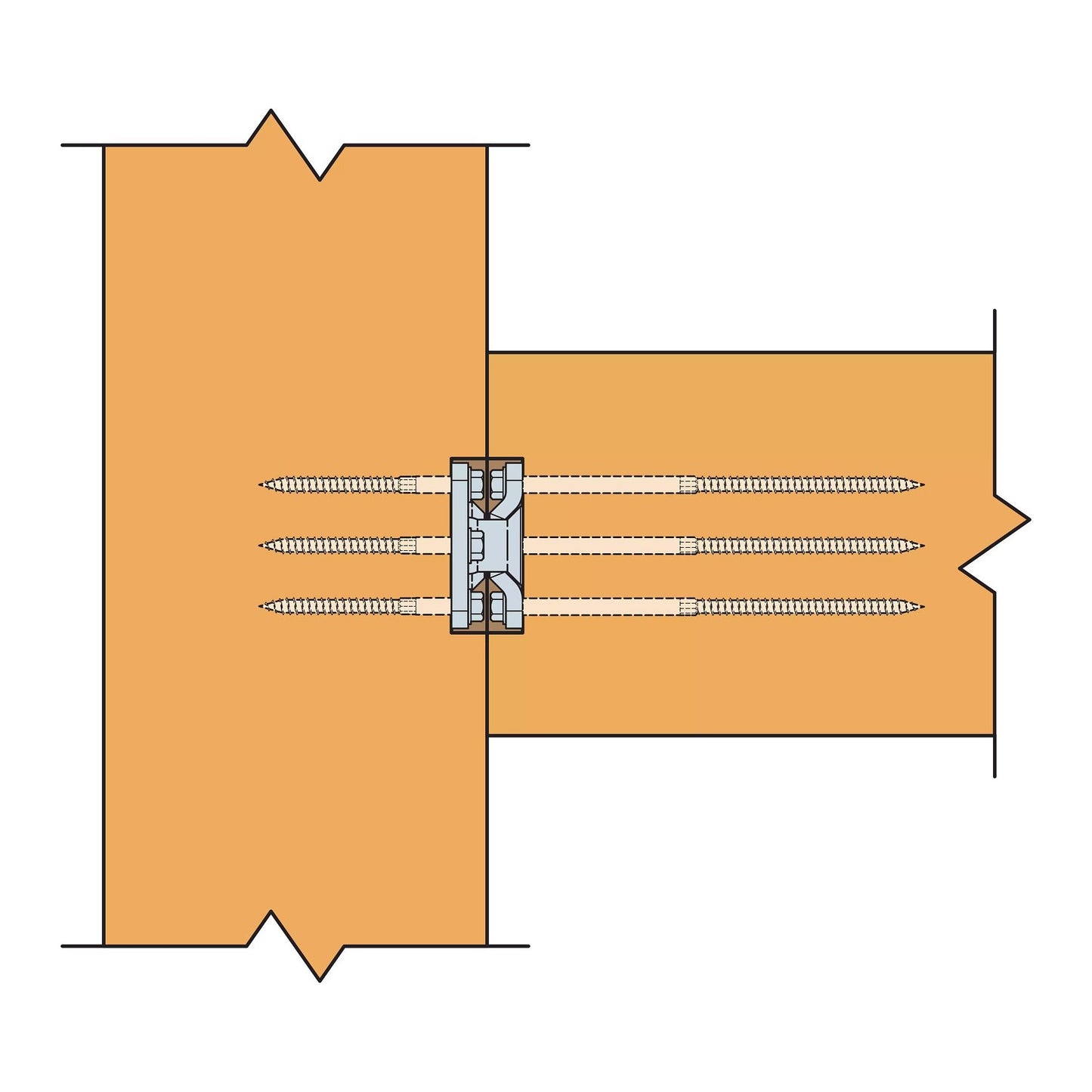

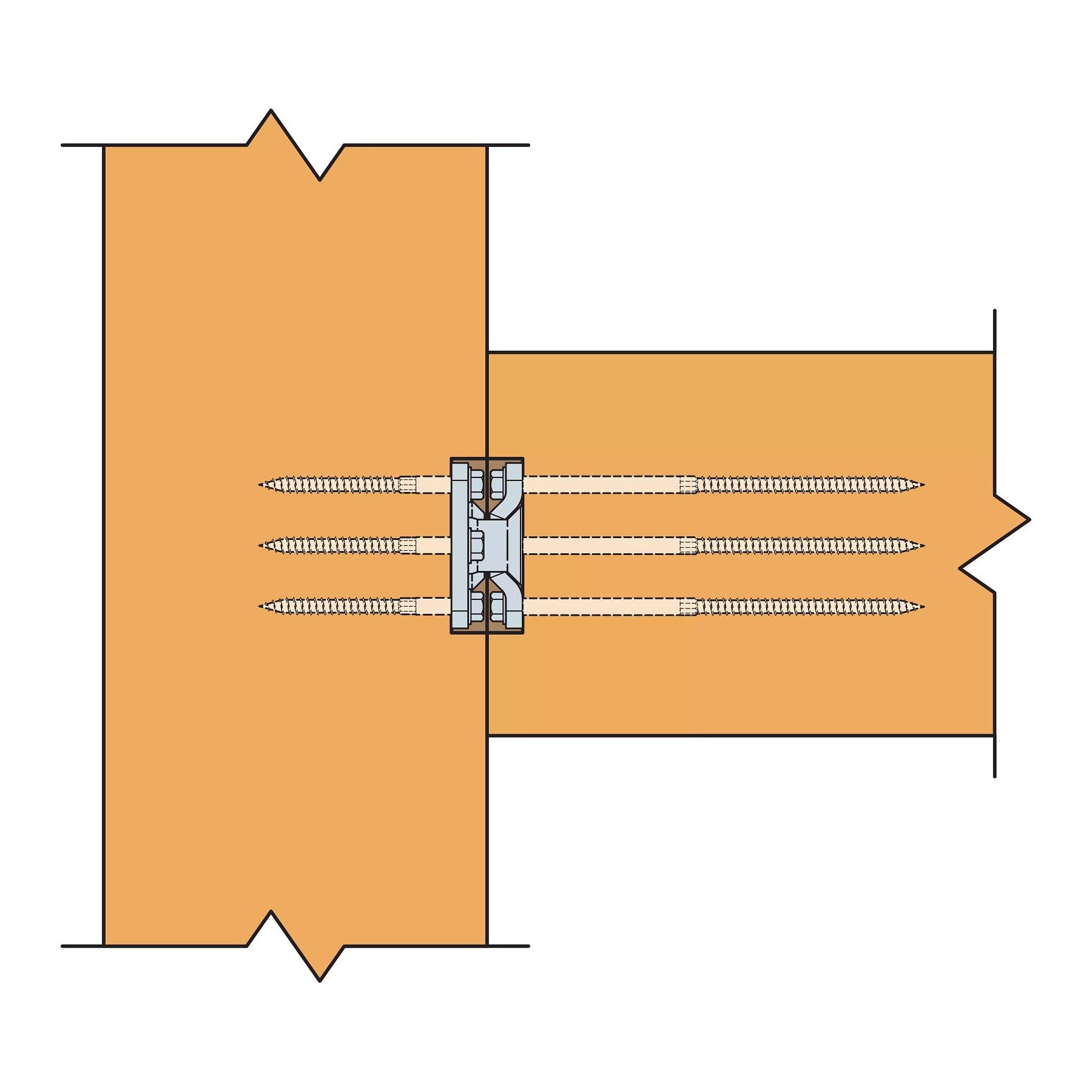

- Install: Mount each plate using the provided Strong-Drive SDS screws—welded stud side on one member, slotted side on the other

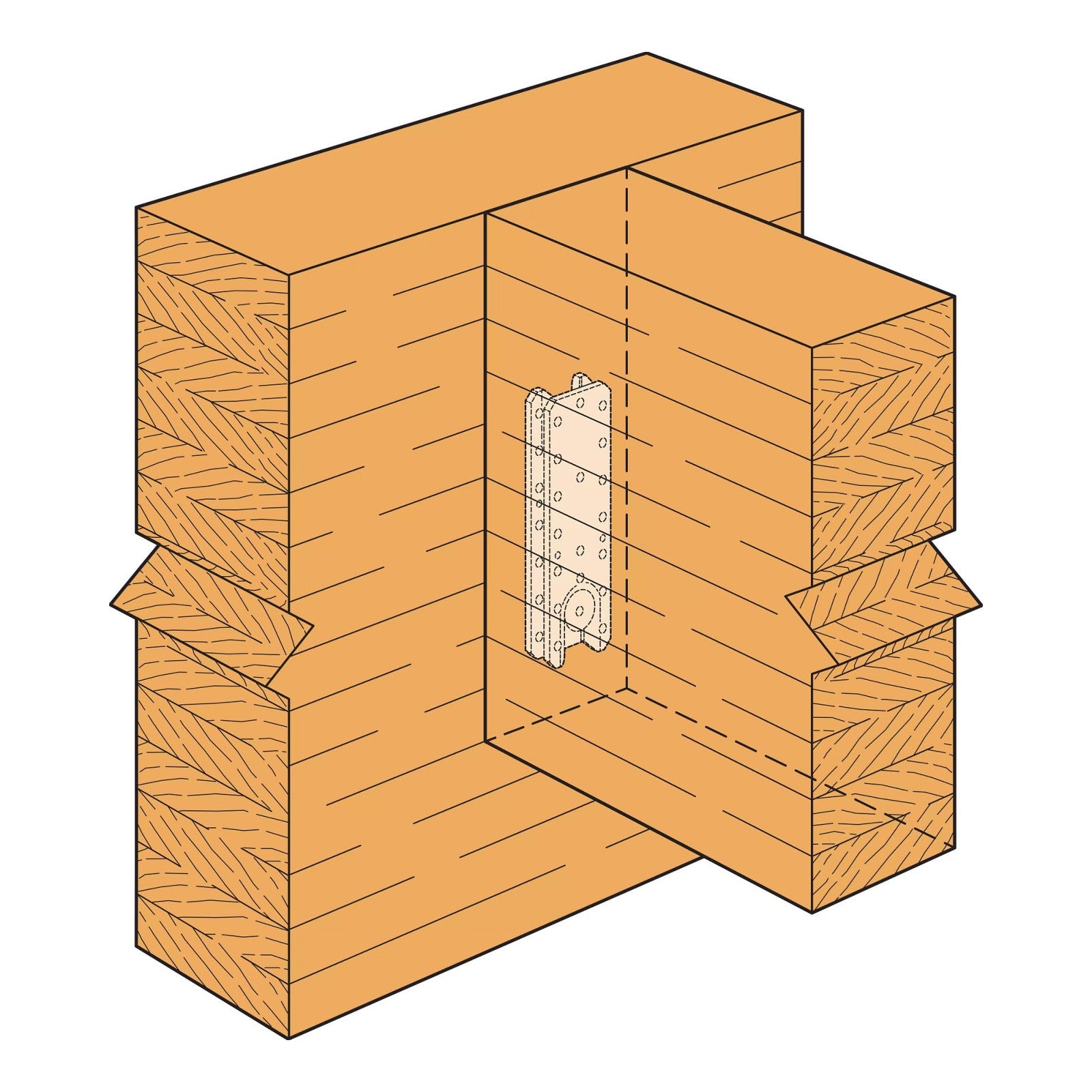

- Assemble: At the jobsite, join the two members by inserting the stud into the slot
- Secure: Confirm full engagement and alignment per design requirements
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
