SKU: CCQ78SDS2.5

Simpson CCQ78SDS2.5 Column Cap w/SDS Screws - Gray Paint

Simpson CCQ78SDS2.5 Column Cap w/SDS Screws - Gray Paint!

Skip to product information
1 of 4

Continue Browsing

CCQ Column Caps

$165.34

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 2 and order in the next 7 hours 34 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: Gray Paint
Material: Steel
Beam size: 7x
For Treated Lumber: No
Manufacturer name: Simpson Strong-Tie
Post size: 8x
Thickness: 3 Gauge
Description

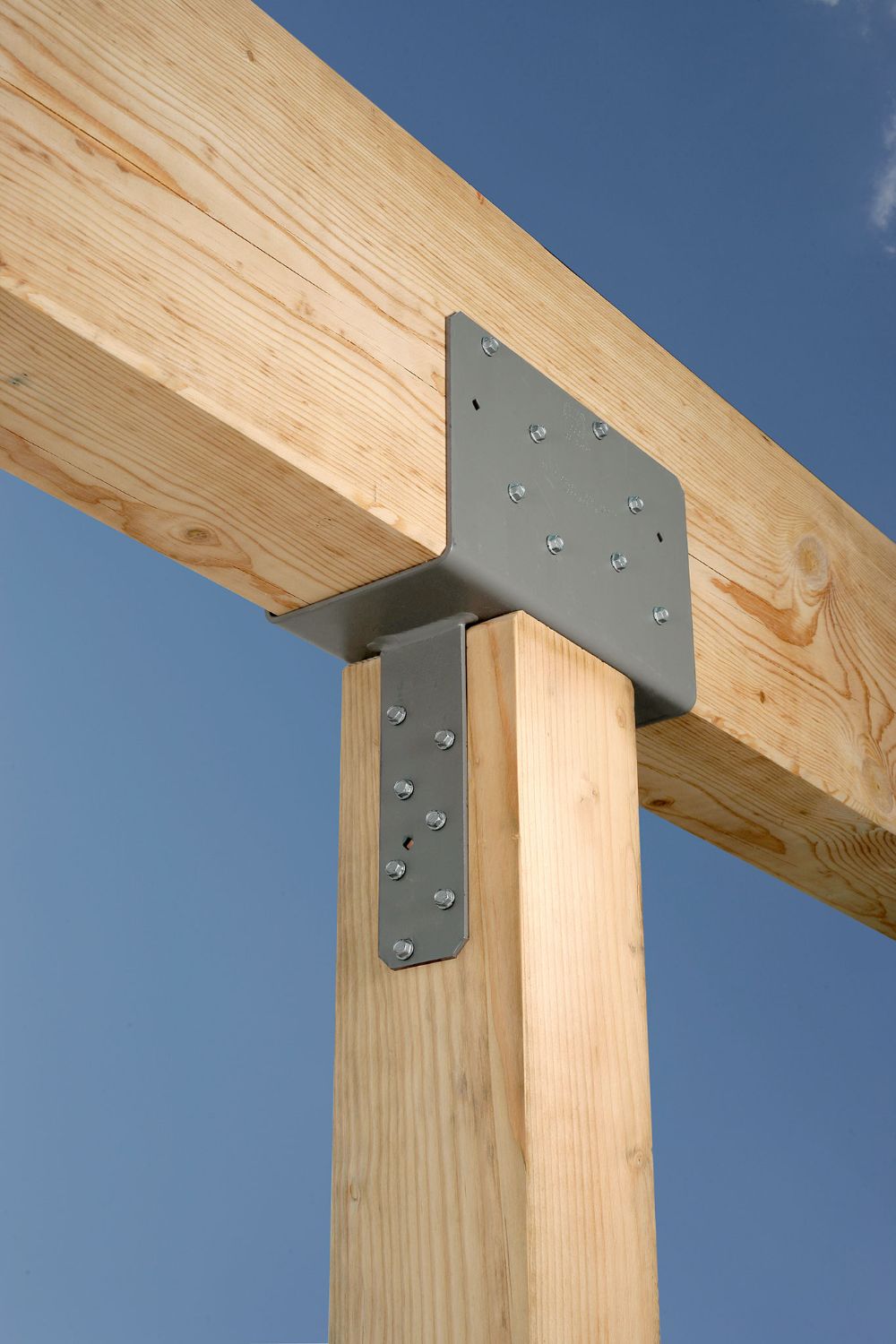

The Simpson CCQ78SDS2.5 Column Cap w/SDS Screws - Gray Paint enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in wood construction.

The seat of the column cap features additional surface area beyond each side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection.

This product is intended for use with 8x posts or columns but is also available in a wide range of other sizes and both nominal and rough-cut lumber. Included with this column cap are the necessary Simpson Strong-Drive SDS screws to provide fast installation and lower profile than standard bolts.

Features:

  • Connection Type: Provides strong column to beam connection and the extended area of the column seat offers additional surface area of bearing to distribute the load.
  • Lumber Size: Intended for use with 7x beams and 8x posts/columns and includes necessary SDS screws for quick installation.
  • Material and Finish: Made from Steel for durability and finished with Gray Paint coating.
  • Performance: Certified welds for strength and loading with increased uplift loads for earthquake or wind loading.
  • Installation Design:Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements.
