SKU: CJT3ZL

Simpson CJT3ZL Concealed Joist Tie w/ Long Pins - ZMAX Finish

Simpson CJT3ZL Concealed Joist Tie w/ Long Pins - ZMAX Finish!

  • Simpson CJT3ZL Concealed Joist Tie w Long Pins ZMAX Finish image 1 of 5
  • Simpson CJT3ZL Concealed Joist Tie w Long Pins ZMAX Finish image 2 of 5
  • Simpson CJT3ZL Concealed Joist Tie w Long Pins ZMAX Finish image 3 of 5
  • Simpson CJT3ZL Concealed Joist Tie w Long Pins ZMAX Finish image 4 of 5
  • Simpson CJT3ZL Concealed Joist Tie w Long Pins ZMAX Finish image 5 of 5
1 5

Continue Browsing

CJT Concealed Joist Ties
SKU: CJT3ZL

Simpson CJT3ZL Concealed Joist Tie w/ Long Pins - ZMAX Finish

$51.03

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 4 and order in the next 14 hours 8 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

For Treated Lumber: Yes
Manufacturer name: Simpson Strong-Tie
Description

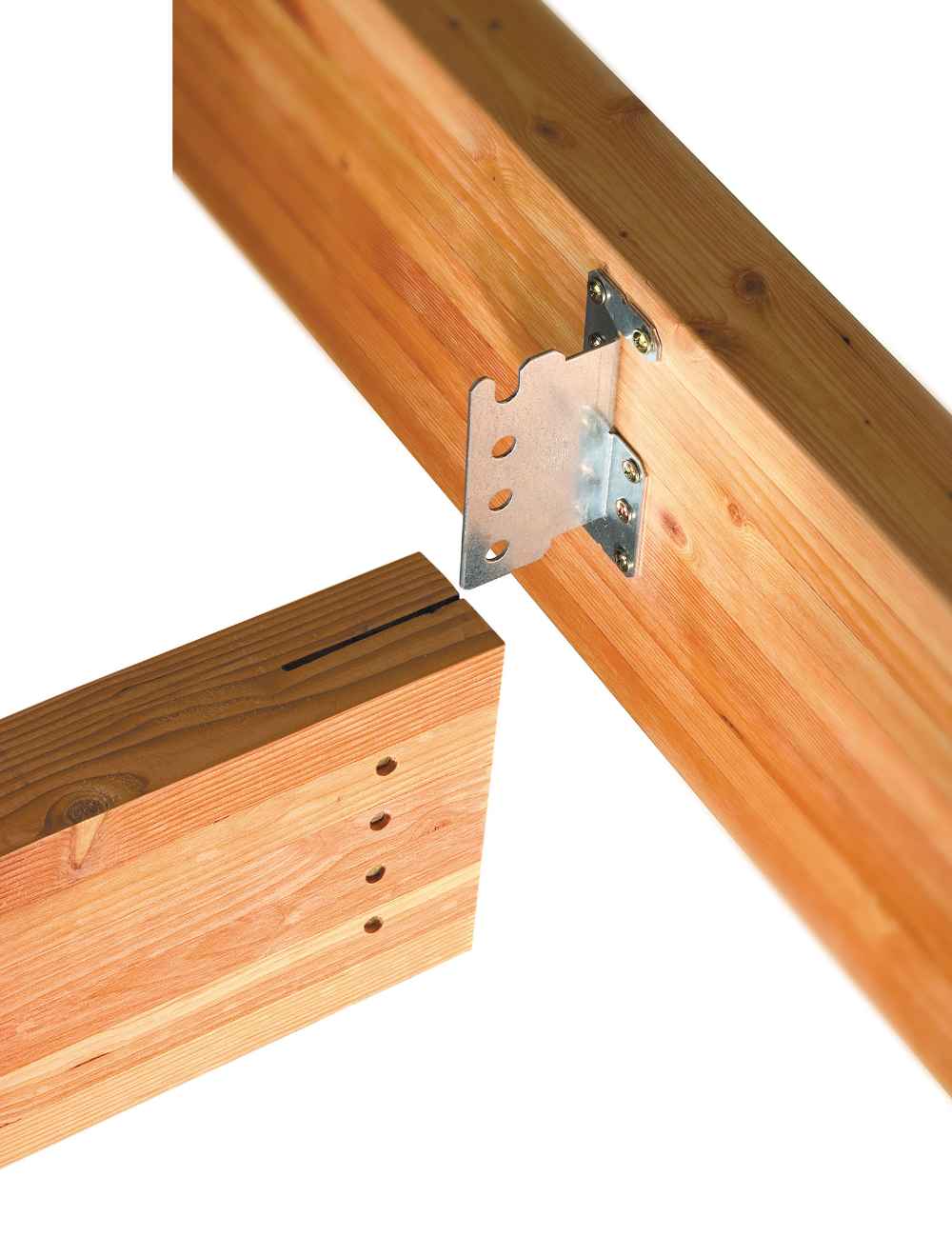

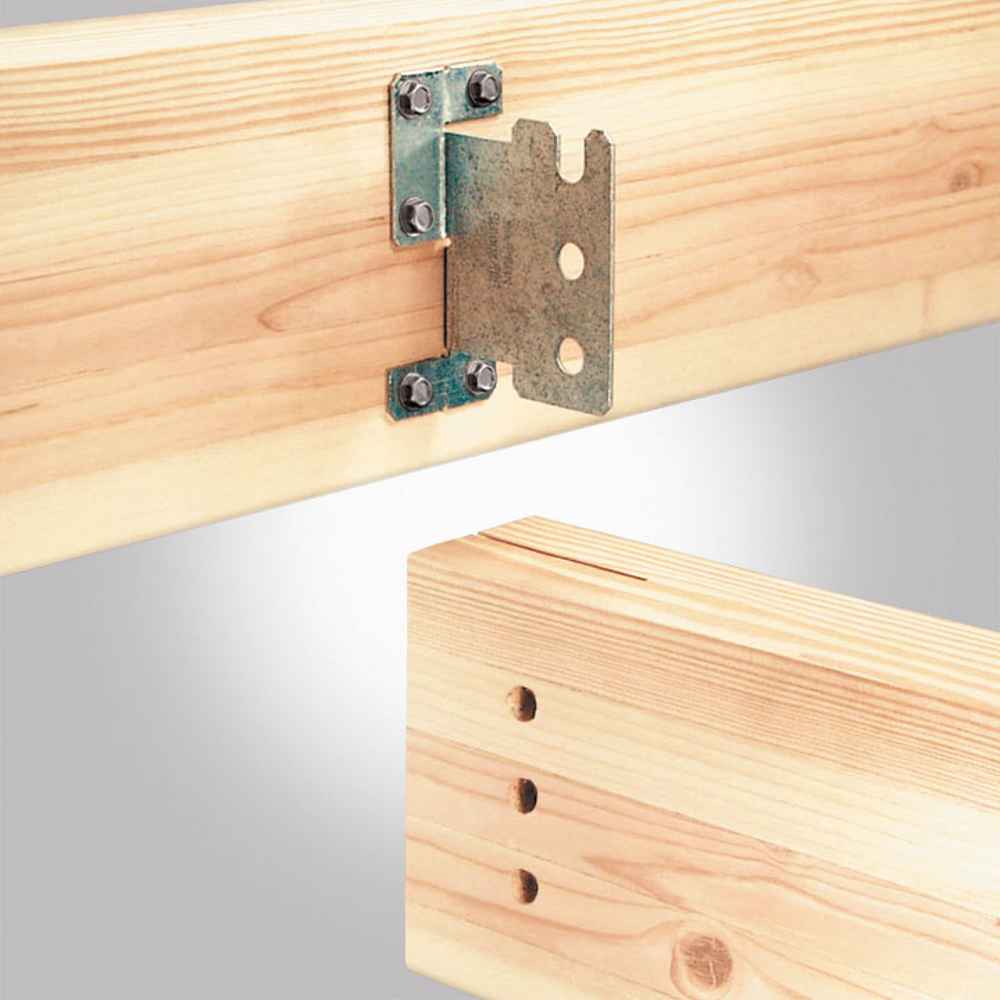

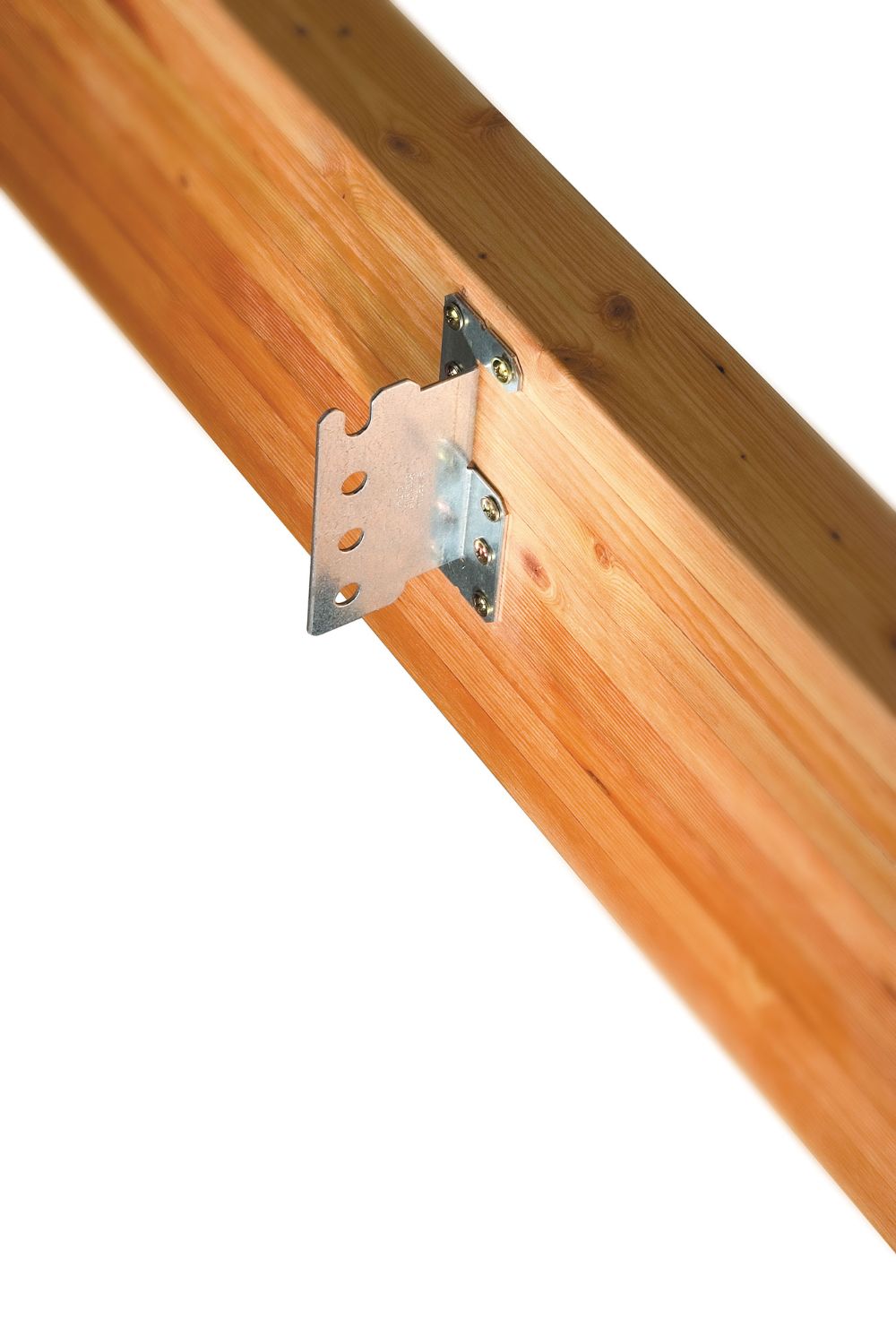

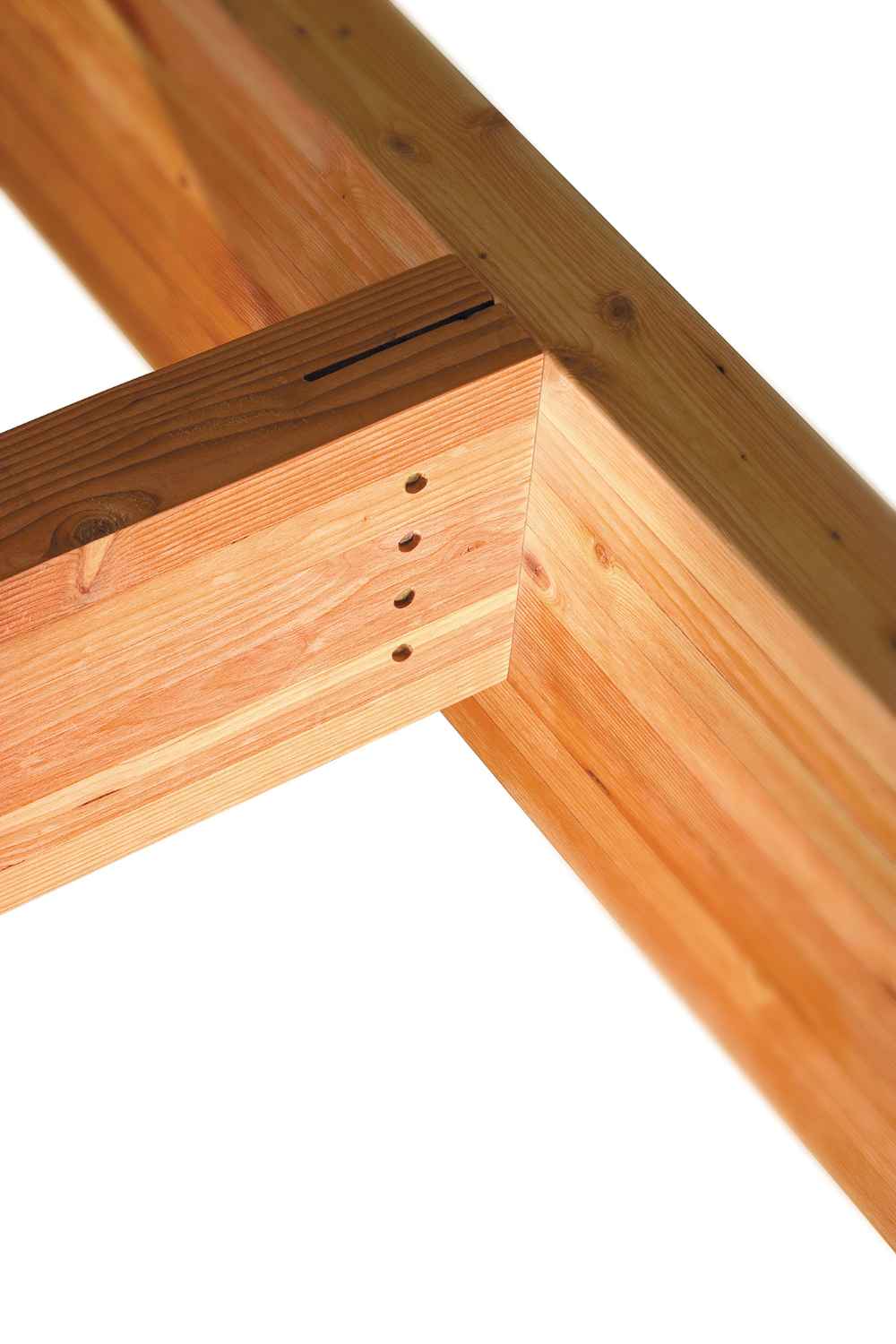

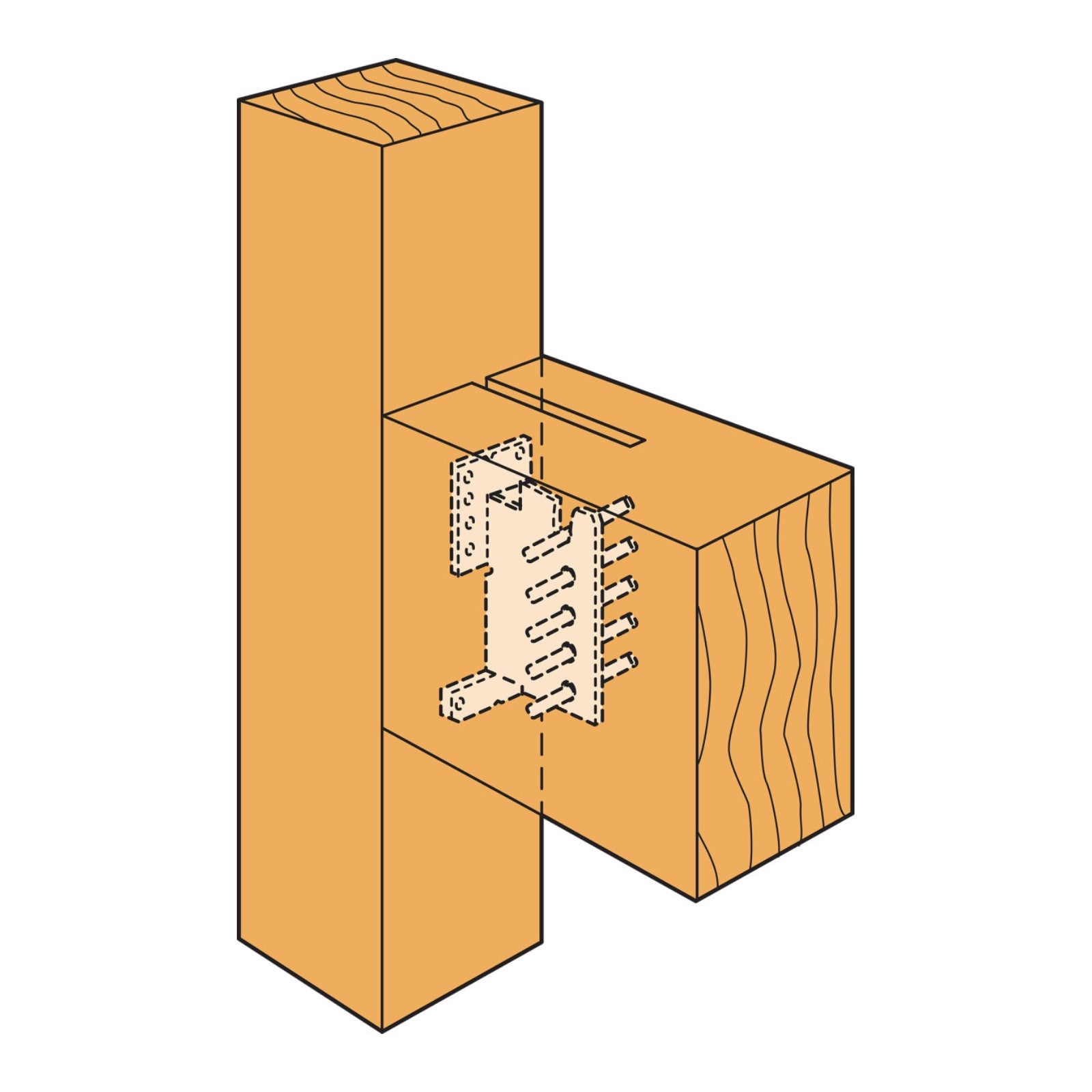

Simpson Strong-Tie CJTZ Concealed Joist Ties are designed to create a strong, concealed connection between a header/post and a beam. There are three preferred methods for installation: No routing of header/post or beam, routed header/post, or a routed beam. The package includes all necessary steel pins and Strong-Drive SDS Heavy Duty Connector Screws, and features a ZMAX coating, giving it greater corrosion resistance than a standard galvanized product.

Installation:
  • Use all specified fasteners.

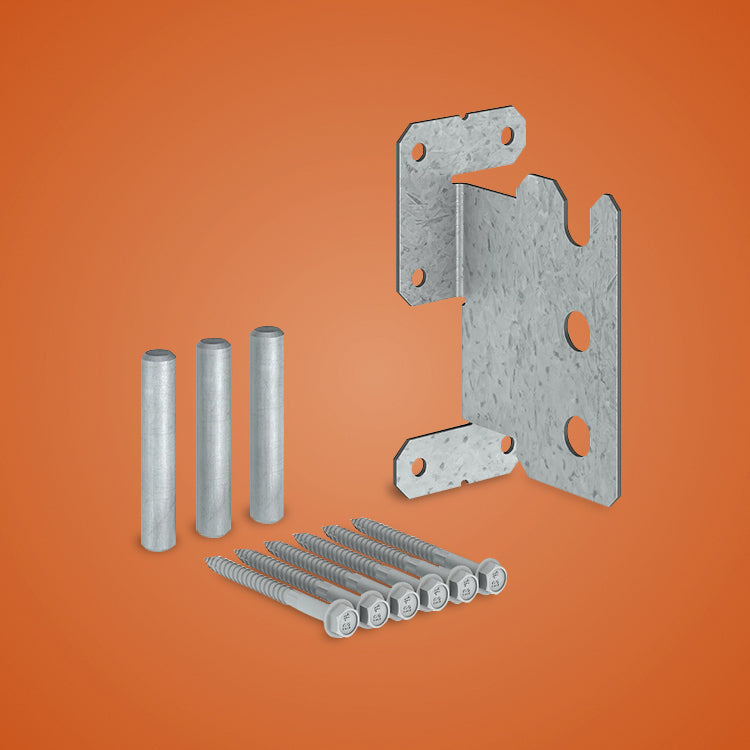

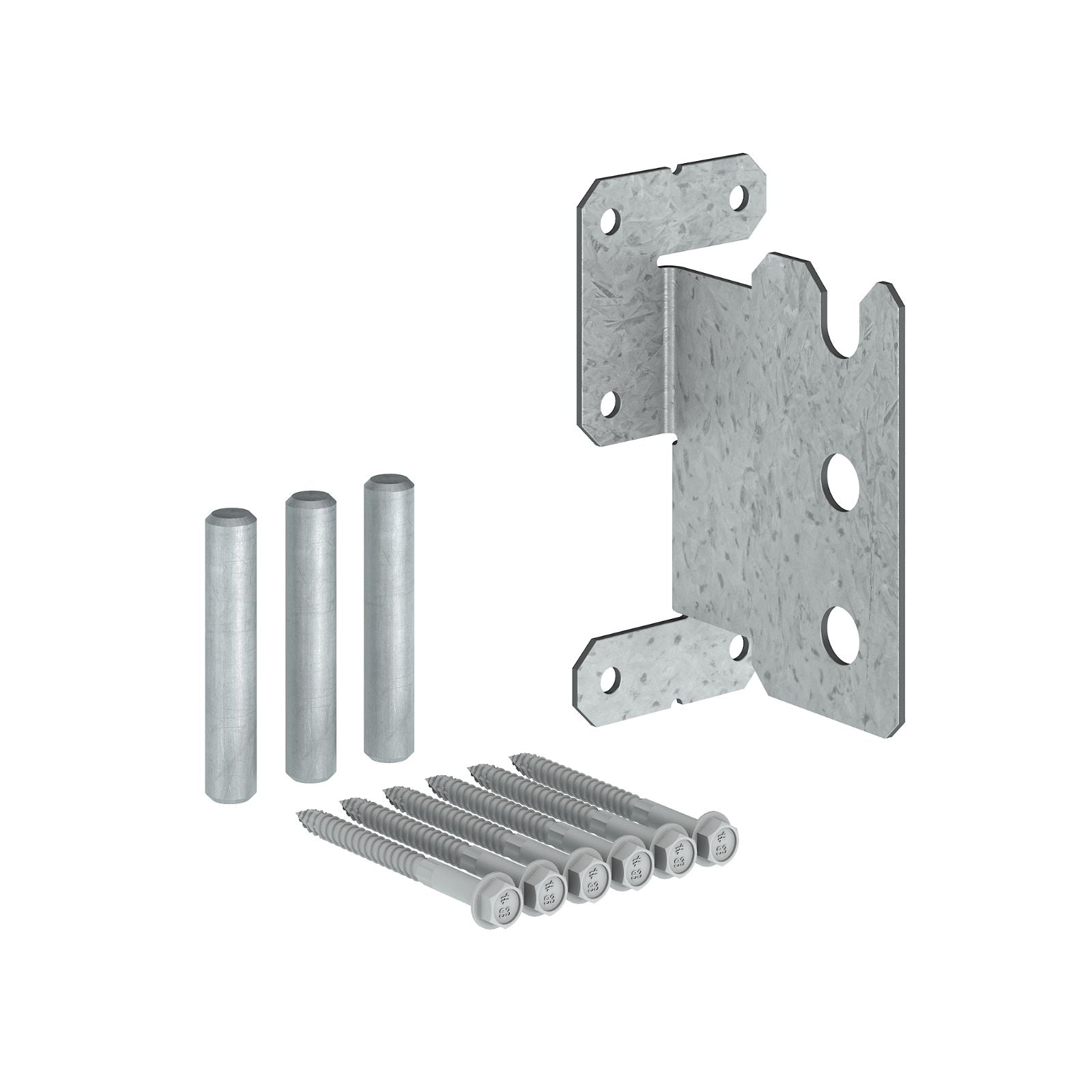

  • The CJTZ package is supplied with all dowels and screws required. Screws require a hex head driver.
  • Short pin versions are 2-3/4” in length, while Long pins are 4-3/4” in length.
  • Router end of beam for screw heads for flush installation.
  • The carried member may be sloped up or down to 45° with full table loads.
  • To provide maximum beam width for use with short dowels, center in beam.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
