SKU: CPS6

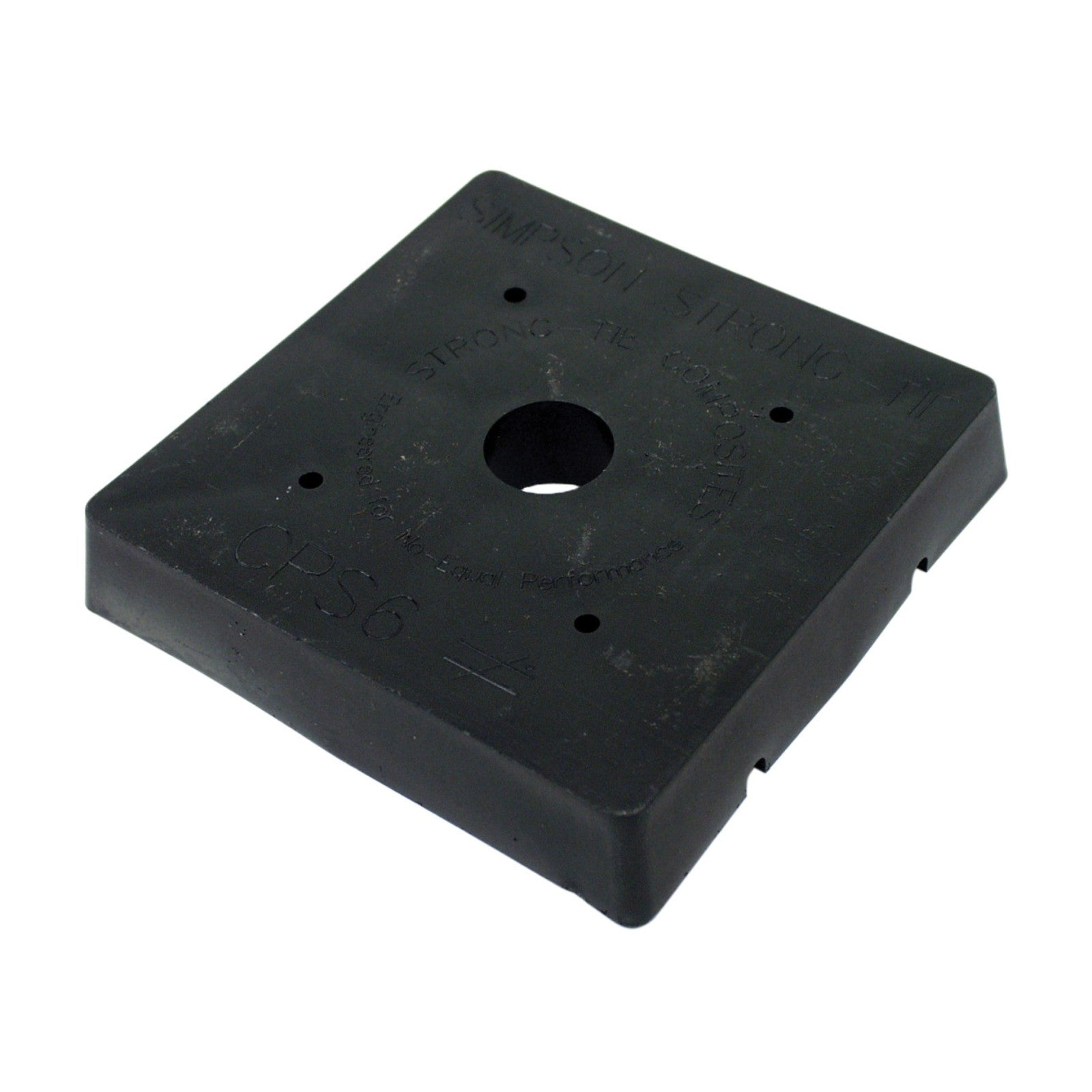

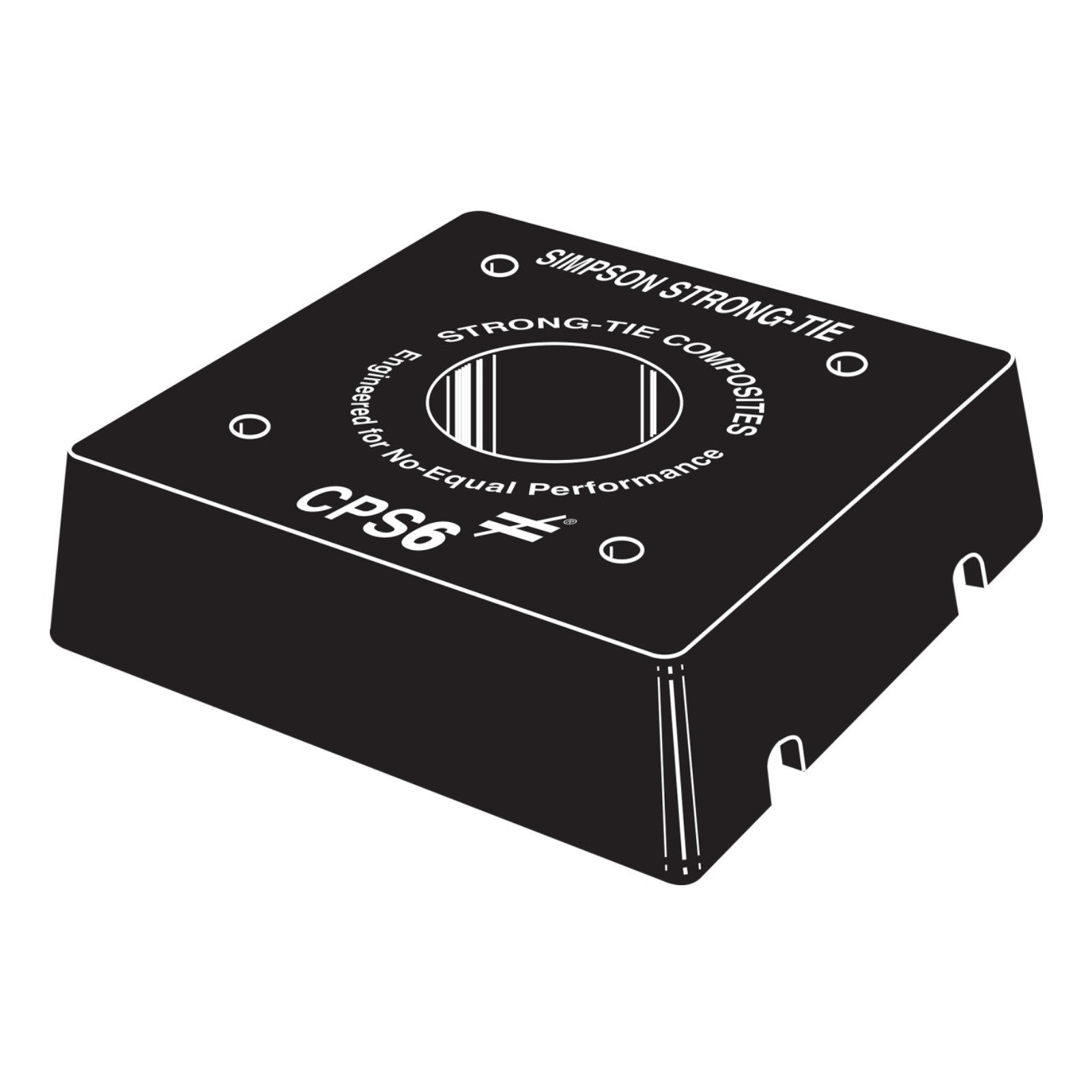

Simpson CPS6 6x6 Composite Plastic Standoff

Simpson CPS6 6x6 Composite Plastic Standoff!

  • Simpson CPS6 6x6 Composite Plastic Standoff

Continue Browsing

Standoff Bases
SKU: CPS6

Simpson CPS6 6x6 Composite Plastic Standoff

$10.13

Request Bulk Pricing
Request Bulk Pricing
Ships Dec 12
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Length: 5-5/16"
Fasteners required: - (4) 0.148 x 3" Nails - (1) 5/8" Concrete Anchor
Height: 1"
Manufacturer name: Simpson Strong-Tie
Post size: 6X6
Description

The Simpson Strong-Tie CPS is a composite-plastic standoff designed for increased concrete surface area. The molded composite plastic will never rust and has been designed for maximum durability.

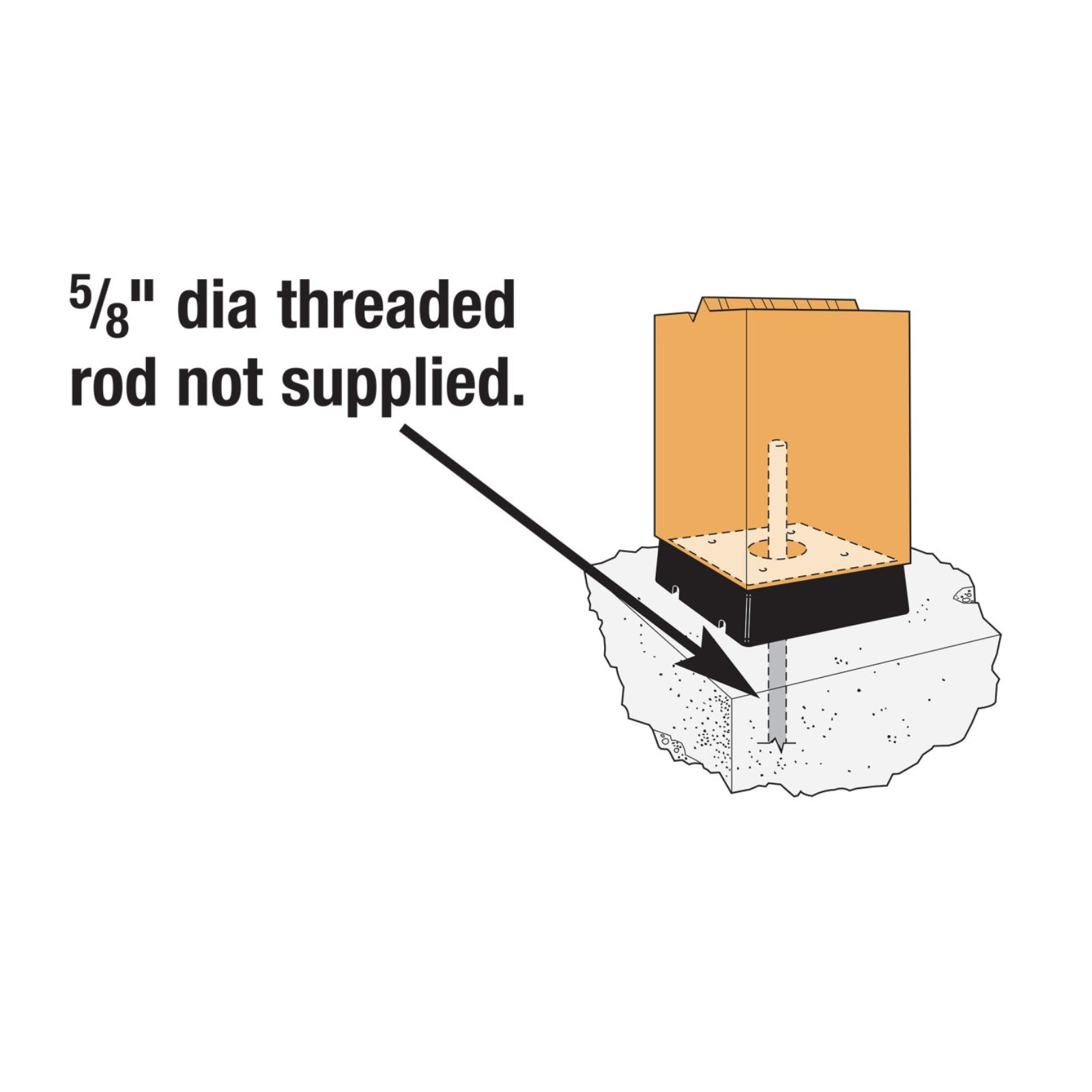

Installation:
Post:
  • Drill a 3/4" diameter hole, 10" into the center of the post.
  • Clean out dust. Fill hole halfway with Simpson Strong-Tie® SET® epoxy anchoring adhesive.
  • Insert all-thread rod and allow epoxy to set and cure.
  • Secure standoff to post using four 10d nails except PBV which uses four Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws.

Concrete:
  • Drill a 3/4" diameter hole per anchor design.
  • Clean out dust. Fill hole halfway with Simpson Strong-Tie SET epoxy anchoring adhesive.
  • Insert post subassembly into hole and allow epoxy to set and cure.
  • Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

More
View full details

Continue Browsing

Standoff Bases

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
c
charles hinton
6 X 6 standoff base

We are a timber frame company and use these all the time. I highly recommend them.
