SKU: CSD25300MG

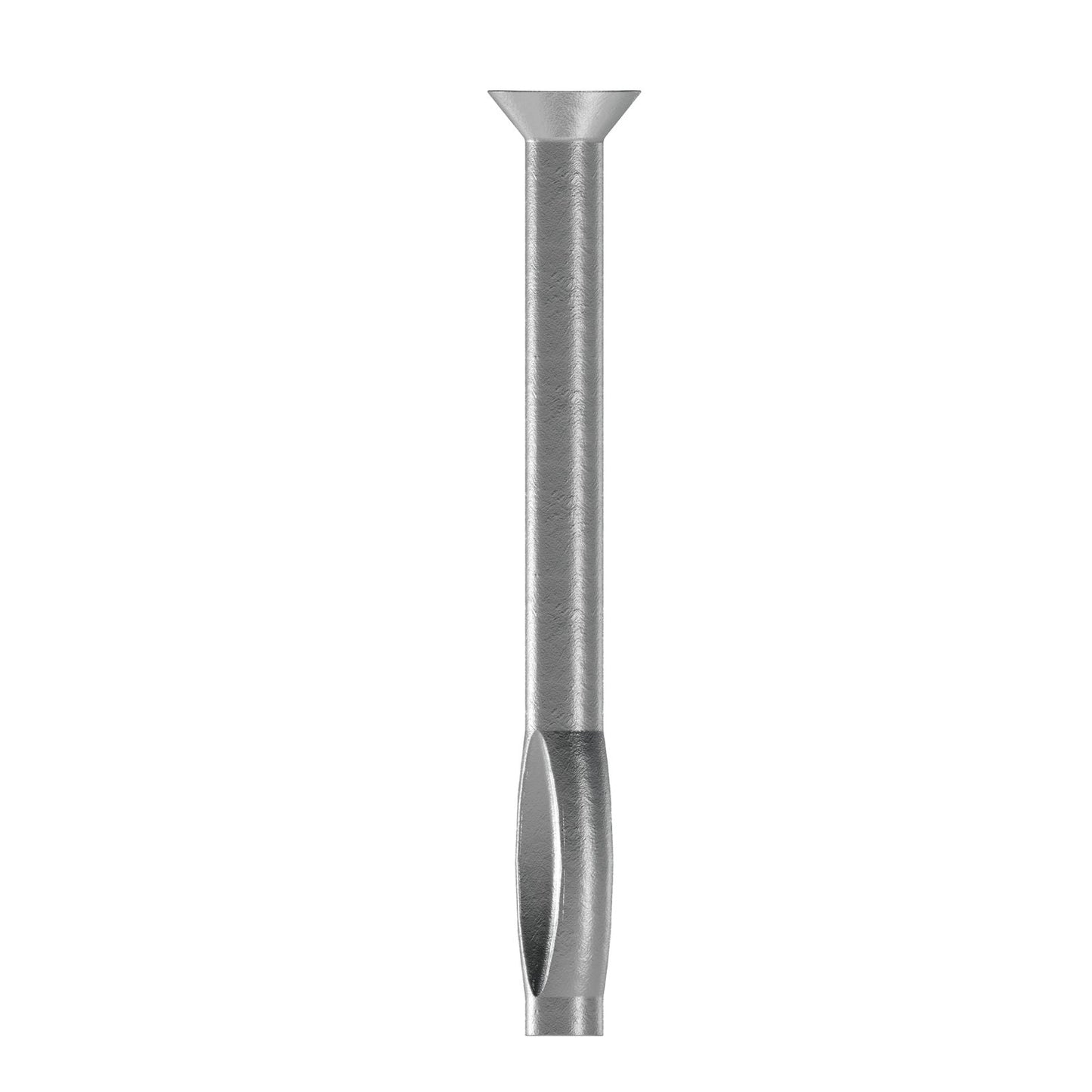

Simpson CSD25300MG 1/4" X 3" Countersunk Head Split-Drive Anchor - Galvanized, Pkg 100

Simpson CSD25300MG 1/4" X 3" Countersunk Head Split-Drive Anchor - Galvanized, Pkg 100!

  • Simpson CSD25300MG 14 inch X 3 inch Countersunk Head SplitDrive Anchor Galvanized Pkg 100

Continue Browsing

Split-Drive Anchors
SKU: CSD25300MG

Simpson CSD25300MG 1/4" X 3" Countersunk Head Split-Drive Anchor - Galvanized, Pkg 100

$36.29

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Dec 12 when you add 6 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Diameter: 1/4"
Length: 3"
Material: Carbon Steel
Drill bit size: 1/4"
For Treated Lumber: Yes
Head type: Countersunk Head
Manufacturer name: Simpson Strong-Tie
Quantity: 100
Description
The Split-Drive anchor is a one-piece expansion anchor that can be installed in concrete, grout-filled block and stone. As the anchor is driven in, the split-type expansion mechanism on the working end compresses and exerts force against the walls of the hole. The Countersunk head allows for a smooth surface when attaching wood or light gauge steel to concrete and grout-filled block surfaces.
Installation:
  • For Common Rafters:
  • Drill a hole in base material using a 1/4"-diameter carbide-tipped drill. Drill hole to specified embedment depth and blow clean using compressed air. (Overhead installation need not be blown clean.) Alternatively, drill hole deep enough to accommodate embedment depth and dust from drilling. Position fixture and insert split-drive anchor through fixture hole.
  • For CSD, 3/8"-diameter fixture hole is recommended for hard fixtures such as steel. For DSD, 5/16"-diameter fixture hole is recommended.
  • Drive anchor until head is flush against fixture.

    • California Residents: WARNING

More
View full details

Continue Browsing

Split-Drive Anchors

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
