SKU: DBR/30-R20

Simpson DBR/30-R20 Spacer Bracers - G90 Galvanized, Pkg 20

Simpson DBR/30-R20 Spacer Bracers - G90 Galvanized, Pkg 20!

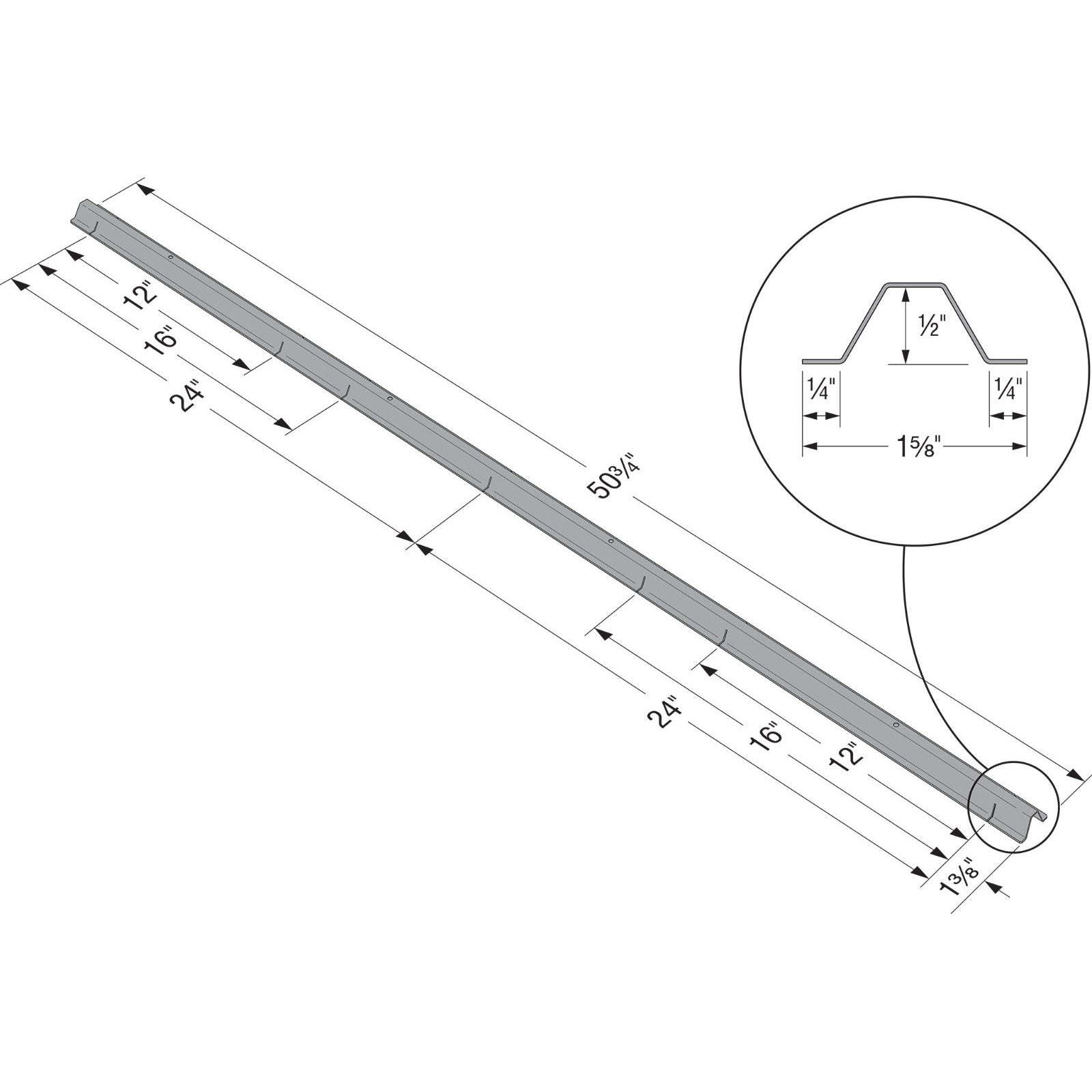

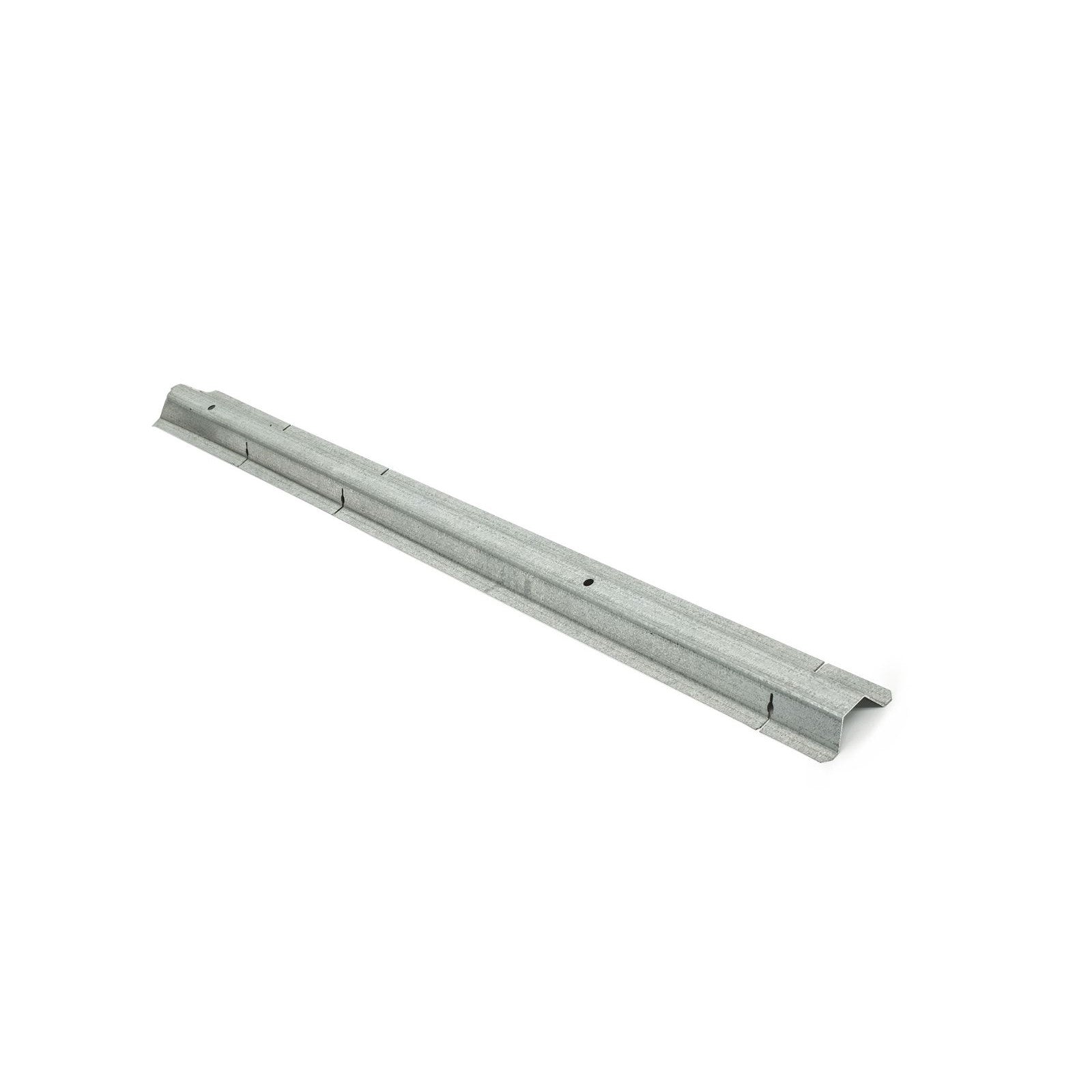

  • Simpson DBR30R20 Spacer Bracers G90 Galvanized Pkg 20 image 1 of 2

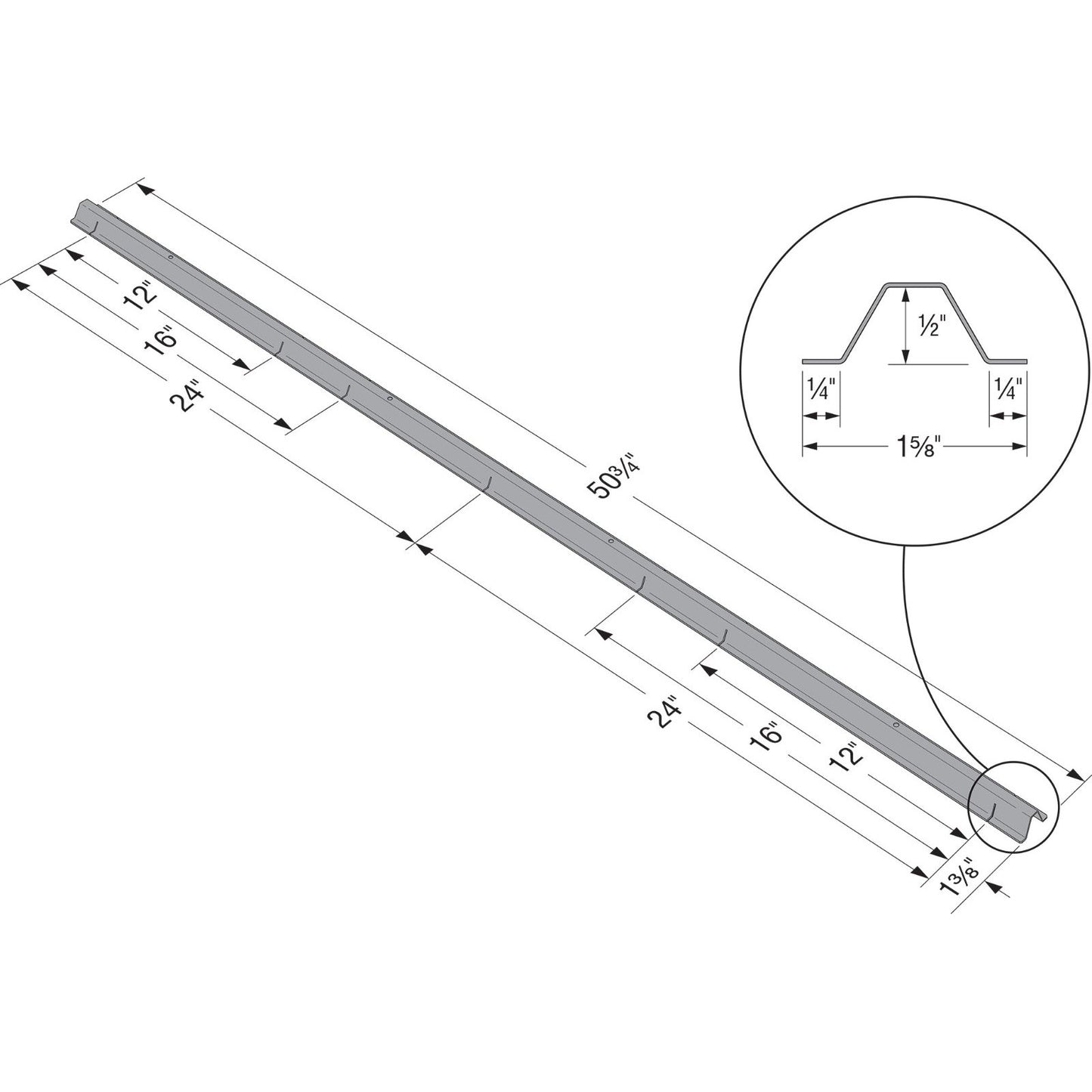

  • Simpson DBR30R20 Spacer Bracers G90 Galvanized Pkg 20 image 2 of 2
1 2

Continue Browsing

SBR/DBR Spacer Bracers
SKU: DBR/30-R20

Simpson DBR/30-R20 Spacer Bracers - G90 Galvanized, Pkg 20

$63.32

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 4 and order in the next 2 hours 10 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Material: Carbon Steel
For Treated Lumber: No
Manufacturer name: Simpson Strong-Tie
Description
Simpson Strong-Tie introduces the DBR spacer bracers for cold-formed steel construction. These spacer bracers reduce the installed cost of cold-formed steel stud walls by enabling faster stud layout while minimizing the need for bridging clips. The DBR is used for interior walls to eliminate stud bow and allow for quicker drywall attachment, and are designed to connect to 2-1/2", 3-5/8", and 6" studs in various thicknesses from 20 gauge to 25 gauge. Provides bracing along the length of the stud, and for head-of-wall slip conditions. The DBR also comes with prepunched slots that eliminate the need to use bridging clips with on-module studs. The DBR spacer bracers come with bracing load data based on assembly testing, thus mitigating risk for designers and maximizing confidence in design specs. In fact, the DBR are the only spacer bracers on the market with tabulated design values based on assembly tests, making it one of Simpson Strong-Tie's newest, most trusted products!
Installation:
  • Spacer bracers are fed through the stud knockout at a 90° angle until studs align with spacer-bracer slots. With the slots engaging the stud web, the spacer bracer is then rotated back to the flat position so the slotted flanges are on the bottom.
  • For off-layout or end-of-run studs where a spacer-bracer slot does not engage a stud, manually snip the spacer-bracer flanges with a 1/2"-deep slot and secure the spacer bracer to the stud with Simpson Strong-Tie LSSC or RCA connectors. Use all specified fasteners.
  • Wear gloves while handling and installing spacer bracers.

    • California Residents: WARNING

More
View full details

Continue Browsing

SBR/DBR Spacer Bracers

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
