Simpson DGT28 2" x 8" Top-Flange Fire Wall Hanger - G90 Zinc Galvanized
Simpson DGT28 2" x 8" Top-Flange Fire Wall Hanger - G90 Zinc Galvanized
Couldn't load pickup availability
Description:
Description:
The patent-pending Simpson DGT™ is a load-tested fire wall hanger with a two-hour fire rating and ideal for multifamily, multilevel Type III residential construction. The first of its kind, the DGT fire wall hanger is designed to install with a power nailer to save time before hanging drywall allowing for greater construction project efficiency. After framing is complete, this top-flange hanger provides space for two layers of 5/8" gypsum board (drywall) to be slipped into place. The DGT has been tested according to ASTM E814 and is fire rated for use on both sides of the wall.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
Specifications:
Specifications:
Height: 7-1/8"
Fasteners required: TOP: (6) 0.148 in. x 1-1/2 in. OR 0.148 in. x 2-1/2 in. nails FACE: (2) 0.148 in. x 1-1/2 in. nails OR (4) 0.148 in. x 2-1/2 in. nails POST: (6) 0.148 in. x 1-1/2 in. nails
Thickness: 12 Gauge
Quantity: 1
Width: 1-9/16"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Joist size: 2" x 8” Nominal
Product Guide: View Spec Sheet
Features
Features
• The Simpson DGF fire wall hanger is being replaced with this new model.
• Code listed and loads tested for 1-1/2 in. and 2 -1/2 in. power-driven or hand-installed nails.
• Two-hour Fire-Resistant rating Intertek Design No. SST/WPCF 120-01 and this fire rating applies to 2x4 or thicker walls.
• Innovative top-flange design for back-to-back installation on 2x6 minimum walls.
• Allows space for two layers of 5/8-in. drywall after framing.
Installation
Installation
• Use all specified fasteners; I-joists require web stiffeners.
• DGHT is mounted similar to a standard top-flange hanger.
• Wall-plate splices must occur at a stud location.
• DGHT welded to steel header with (4) 1 1/2" fillet welds and (6) joist nails achieves a download of 2,700 lb. Face flanges require full backing.
Stay in touch
This is a dummy newsletter form so don't bother trying to test it. Not that I expect you to, anyways. :)

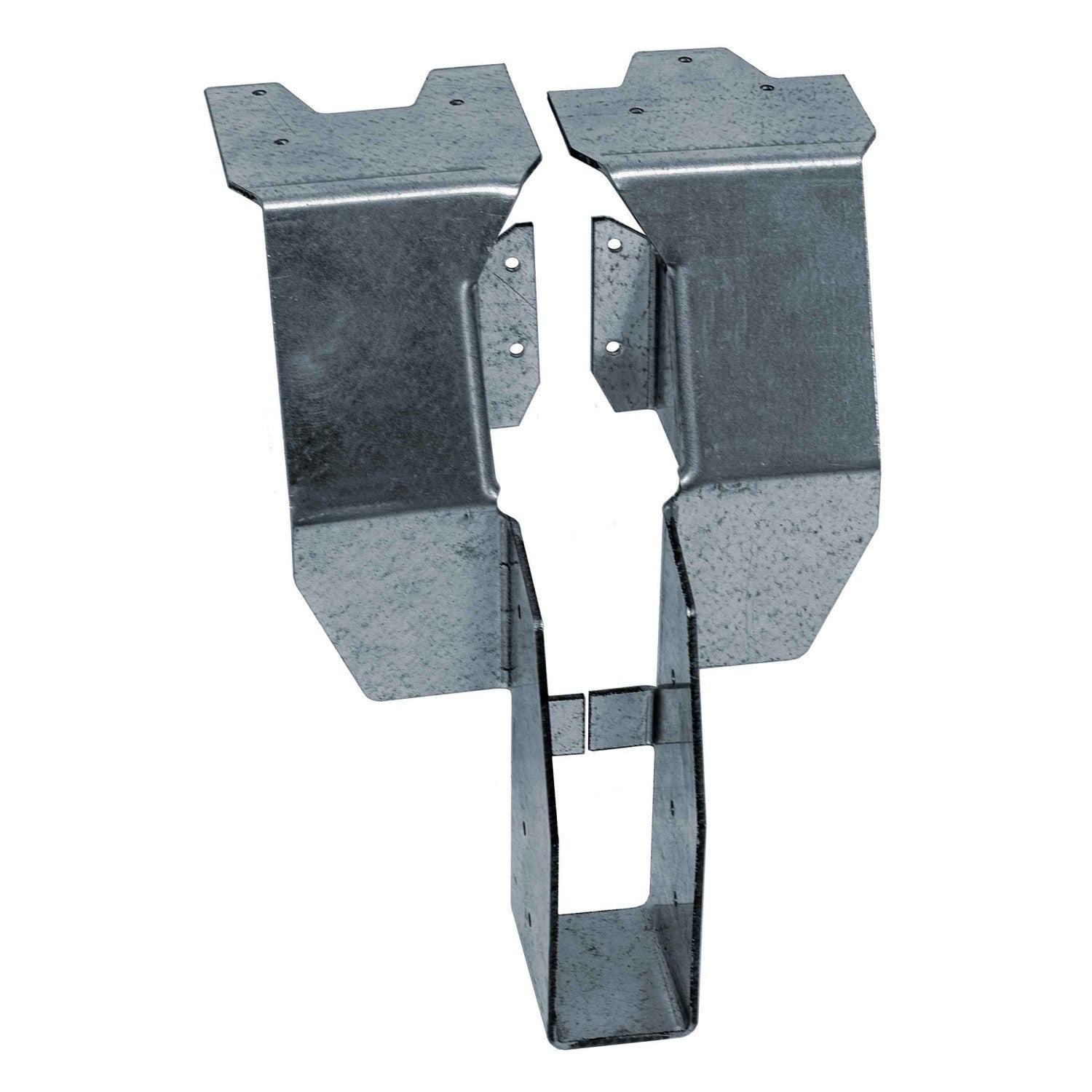

![DGT Top Flange Fire Wall Hanger - DGT210 shown](http://www.fastenersplus.com/cdn/shop/products/DGT_Top_Flange_Fire_Wall_Hanger_DGT210_c8741728-3f8e-4c1d-9629-3567ae2114df.jpg?v=1688412211&width=1445)

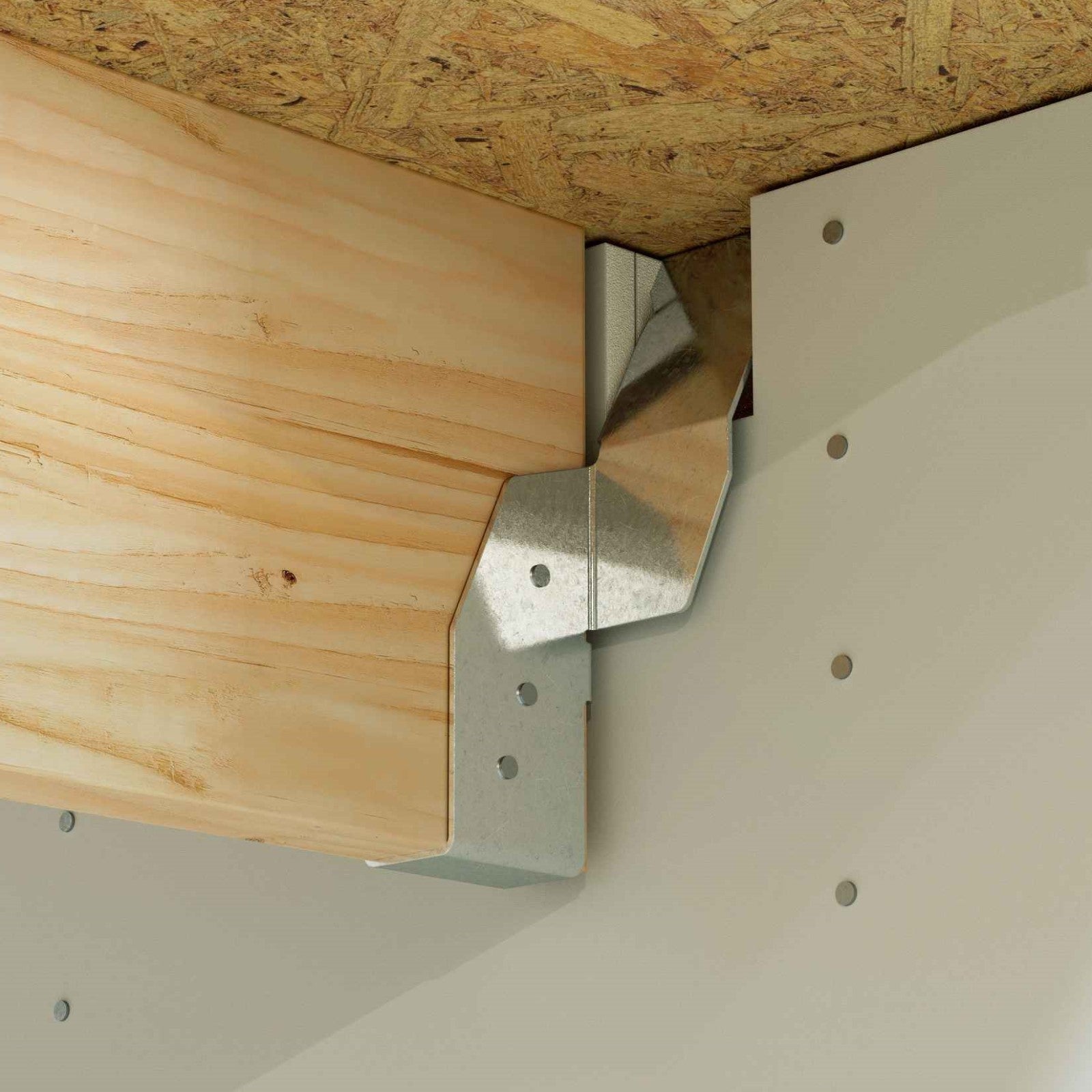

![DGT Top Flange Fire Wall Hanger - DGT210 Installation](http://www.fastenersplus.com/cdn/shop/products/DGT_Top_Flange_Fire_Wall_Hanger_DGT210_Installation_2da4abab-d74b-49a1-a37e-de4681771a92.jpg?v=1688412211&width=1445)

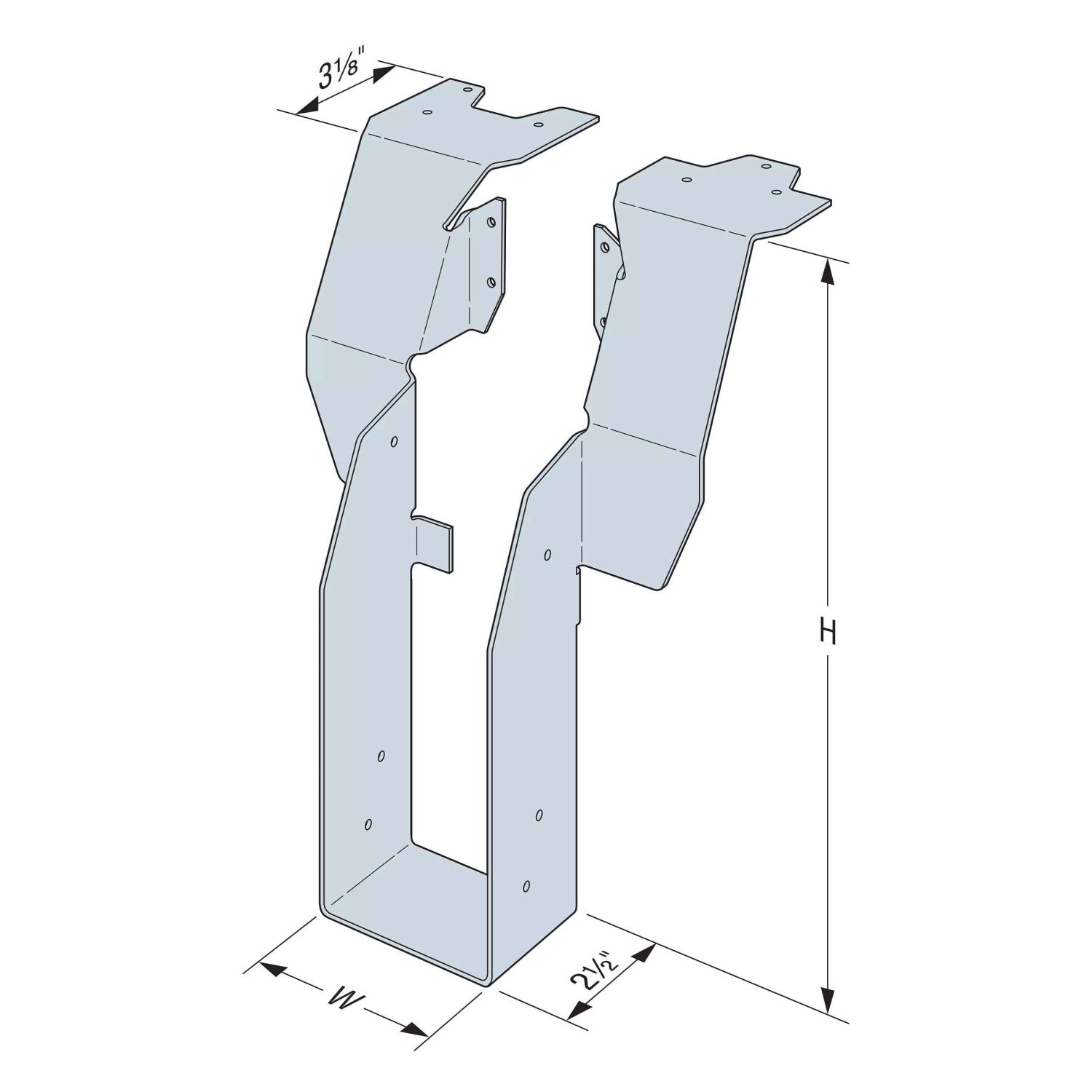

![DGT Top Flange Fire Wall Hanger Callout - DGT3.62-11.88 shown](http://www.fastenersplus.com/cdn/shop/products/DGT_Top_Flange_Fire_Wall_Hanger_Callout_DGT362-1188_shown_90d8d387-062c-47c4-87f0-684da7a6b224.jpg?v=1688412211&width=1445)
