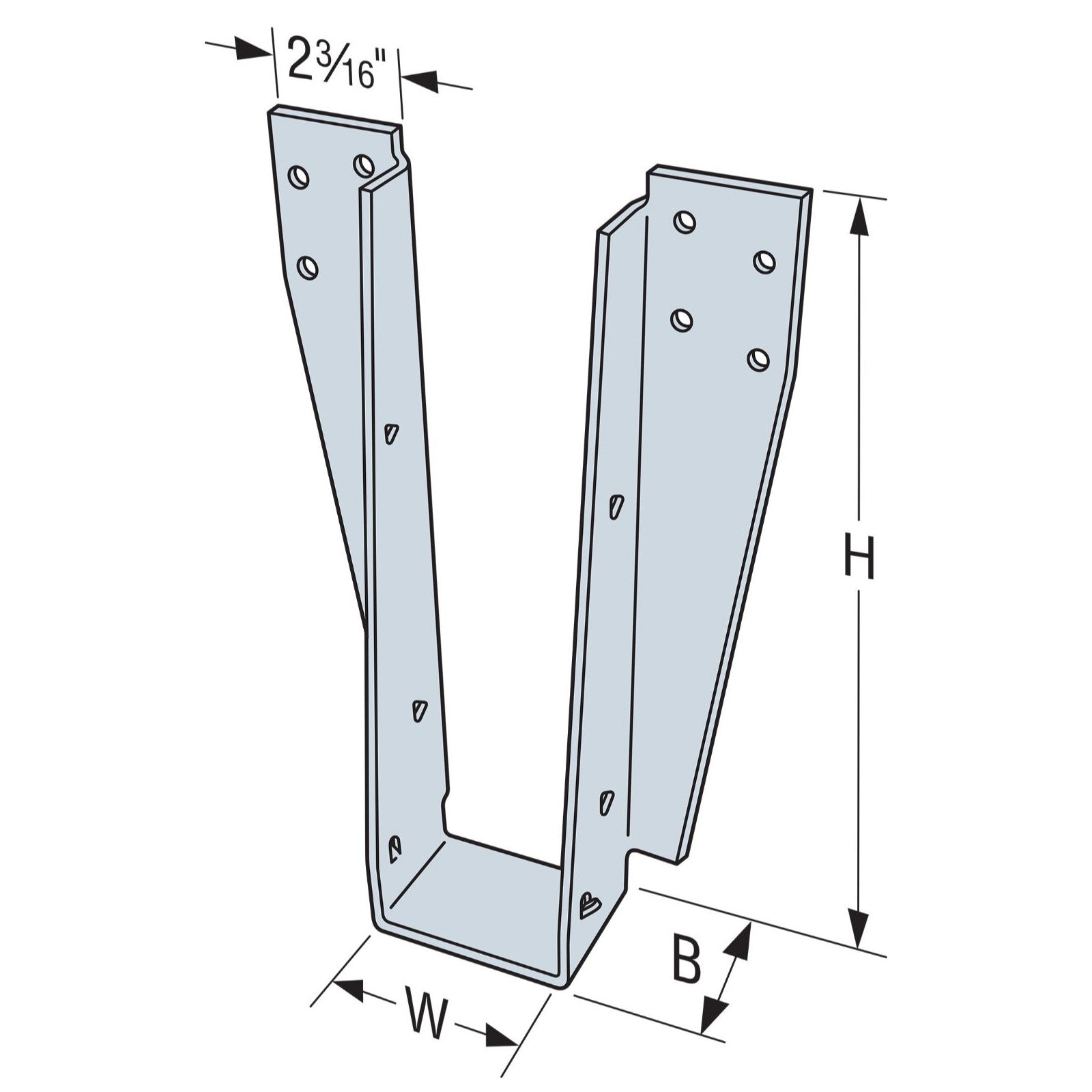

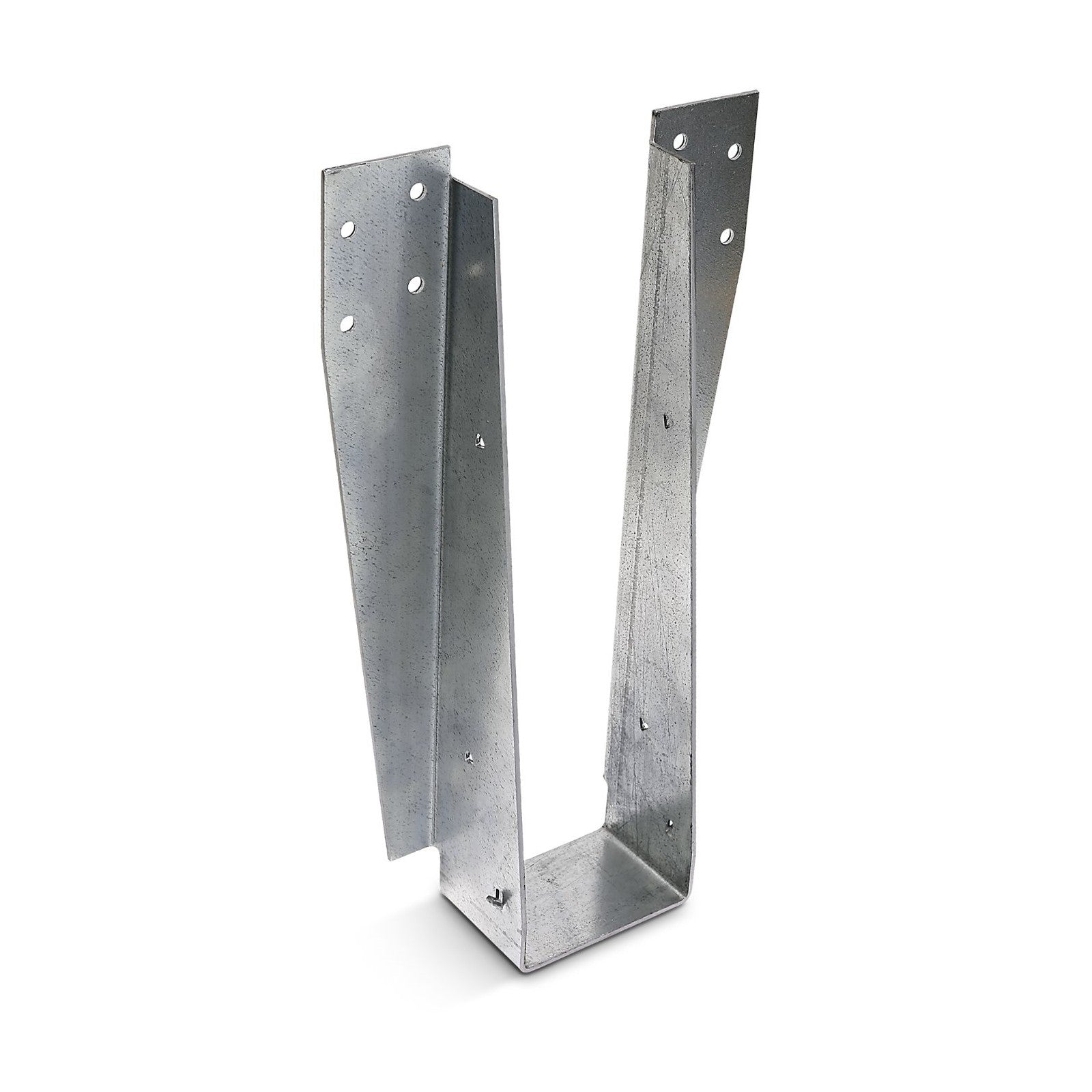

Simpson DHU2.37/14 Drywall Face Mount Hanger w/SDS Screws - G90 Galvanized, Made to Order Non-Returnable
Simpson DHU2.37/14 Drywall Face Mount Hanger w/SDS Screws - G90 Galvanized, Made to Order Non-Returnable!
Continue Browsing
DU/DHU Face Mount Drywall Hangers
Specifications
This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product
The Simpson Strong-Tie DHU Face-Mount Fire Wall Hanger is designed for structurally supporting joist floor loads that bear on wood stud walls with two layers of 5/8" gypsum board. It’s a smart solution for framing situations that require a fire-rated assembly—especially in multi-family or light commercial projects. Installed after the drywall is in place, the DHU saves time while ensuring fire-resistance compliance without compromising structural integrity.
This hanger is available in multiple widths and can be ordered with one concealed flange or skewed up to 45°, giving contractors the flexibility to meet project-specific layout needs. Whether you're working with plated trusses, solid sawn lumber, or engineered wood, the DHU delivers versatile, code-compliant performance in demanding construction environments.
Key Features:
- Fire-Rated Performance: Designed for use on two-hour fire-rated wall assemblies, tested for use with both 2x4 and 2x6 wall construction.
- Flexible Installation: Can be installed after drywall, and configured with concealed flanges or skewed up to 45° as needed.
- Material Versatility: Compatible with plated trusses, solid sawn lumber, and engineered wood joists.
Installation:
- Hanger must be installed after drywall is applied to the wall assembly.
- Fasten using Strong-Drive SDS Heavy-Duty Connector screws as specified per application.
- Top of hanger should be flush with the top of the wood wall and tight to the drywall face.
- Ensure wall top plates are restrained to resist rotation. For gravity loads under 150 plf, use a stud-plate tie connector or equivalent restraint.
- Position top plate splices over studs for maximum structural performance.
Applications:
- Multi-Family Residential Construction: Ideal for joist-to-wall connections in fire-rated assemblies within apartments, condos, and townhomes.
- Commercial Buildings: Suitable for light commercial structures requiring two-hour fire wall designs.
- Retrofits and Remodels: Perfect for upgrading wall assemblies to current fire-resistance requirements without complete re-framing.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
