SKU: HSURC210-2Z

Simpson HSURC210-2Z Double 2x10 Concealed Flange Joist Hanger Skewed Right - Zmax Finish

Simpson HSURC210-2Z Double 2x10 Concealed Flange Joist Hanger Skewed Right - Zmax Finish!

  • Simpson HSURC2102Z Double 2x10 Concealed Flange Joist Hanger Skewed Right Zmax Finish

Continue Browsing

SUR/SUL/HSUR/HSUL Skewed 45 Degree Hangers
SKU: HSURC210-2Z

Simpson HSURC210-2Z Double 2x10 Concealed Flange Joist Hanger Skewed Right - Zmax Finish

$57.20

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Nov 18 when you add 4 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: ZMAX
Fasteners required: Face - (20) 0.162" x 3-1/2" Nails Joist - (6) 0.162" x 2-1/2" Nails
For Treated Lumber: Yes
Height: 8-11/16"
Joist size: Double 2X10
Manufacturer name: Simpson Strong-Tie
Description

  • This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product

    • Simpson Strong-Tie HSURC joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. A concealed flange on one side of the hanger provides a cleaner looking installation. The Strong-Tie HSURC210-2Z skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


    Installation:
    • Use all specified fasteners.
    • These hangers will normally accommodate a 40° to 50° skew.

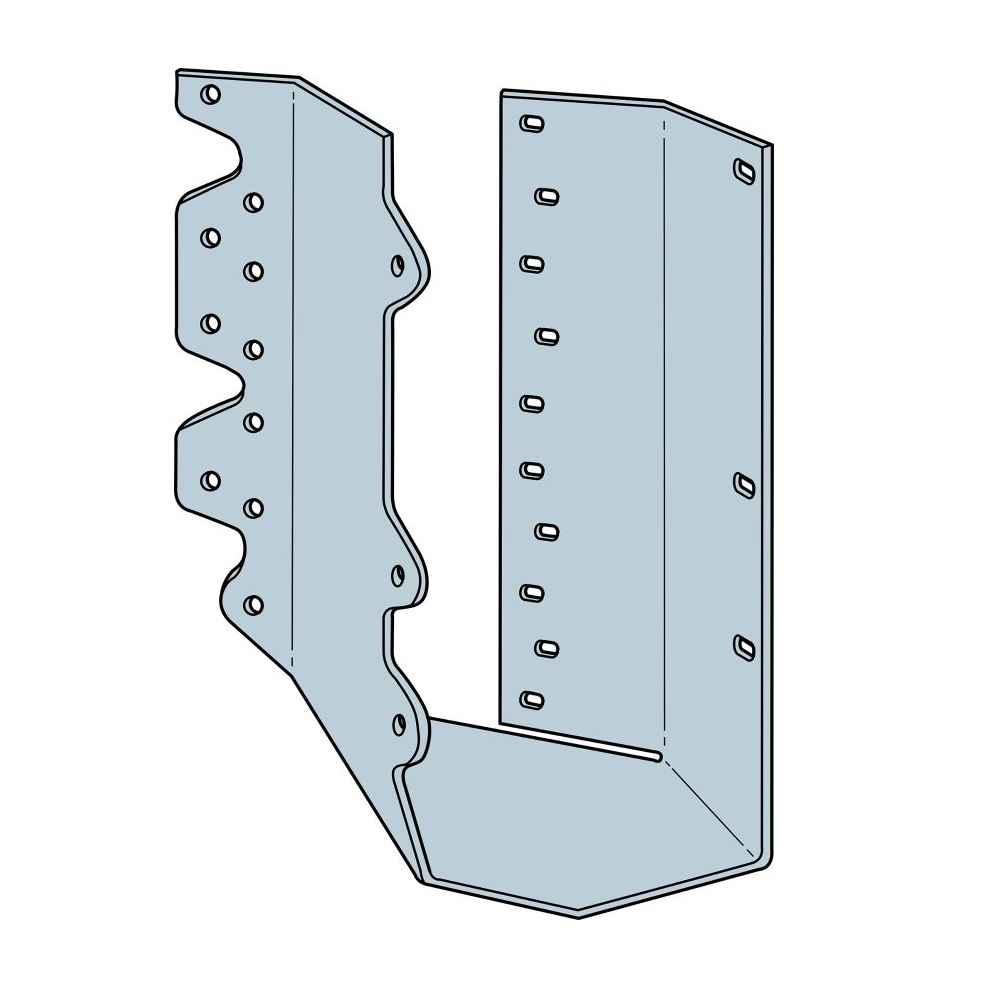

    • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
    • The joist end may be square cut or bevel cut.

    NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
