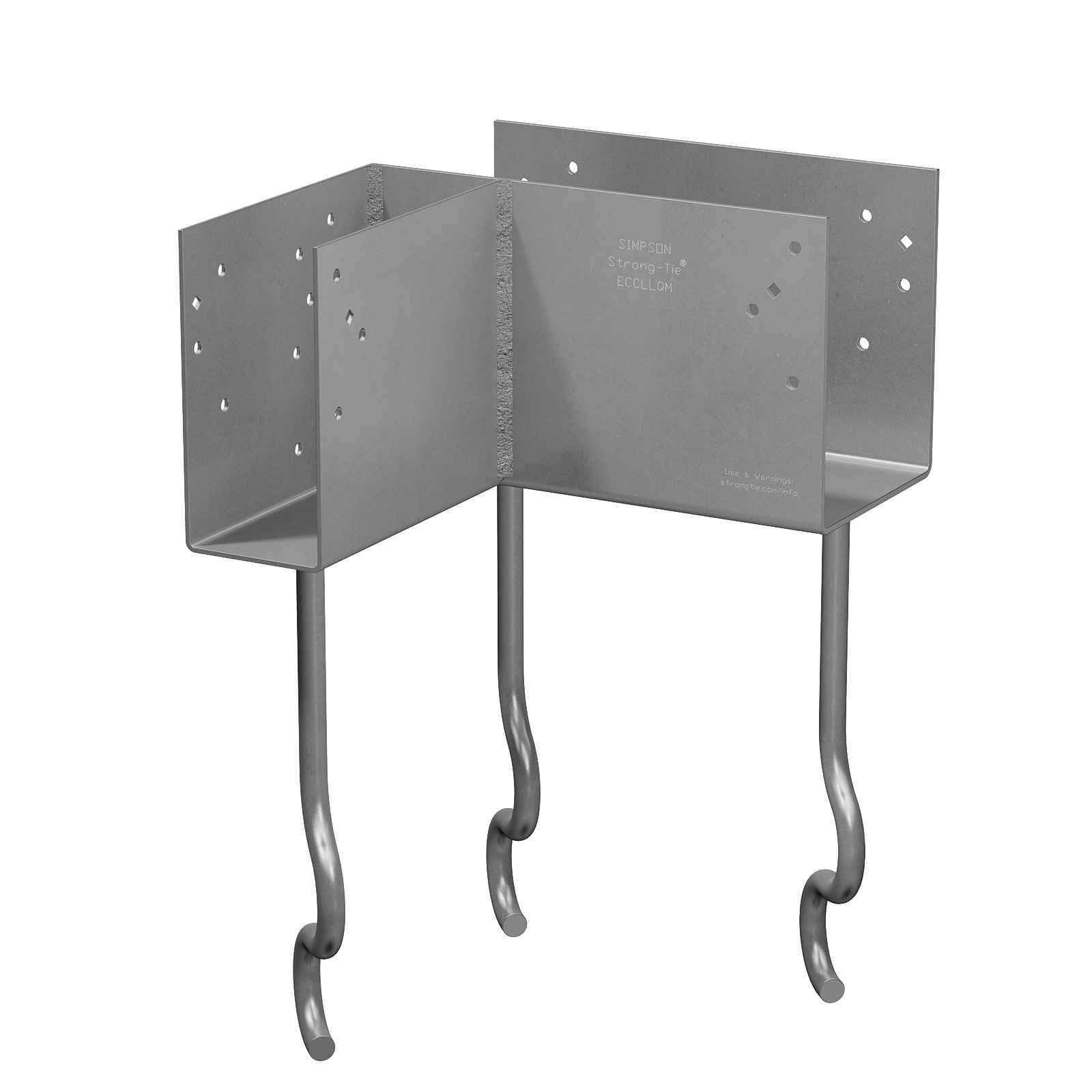

Simpson ECCLQM4.62G-KT End Column Cap, L-Shaped for GFCMU and Concrete Piers
Simpson ECCLQM4.62G-KT End Column Cap, L-Shaped for GFCMU and Concrete Piers!
Continue Browsing
ECCLQ/CCCQ/CCTQ Column Caps
Specifications
Main Channel Width (W1): 4-5/8"
Side Stirrup Width (W3 & W4): 4-5/8"
Main Channel Length (L1): 11-1/2"
Side Stirrup Length (L2): 7-3/4"
Please Note: This item is made to order and is non-returnable. Please call us for more information on lead times and availability.

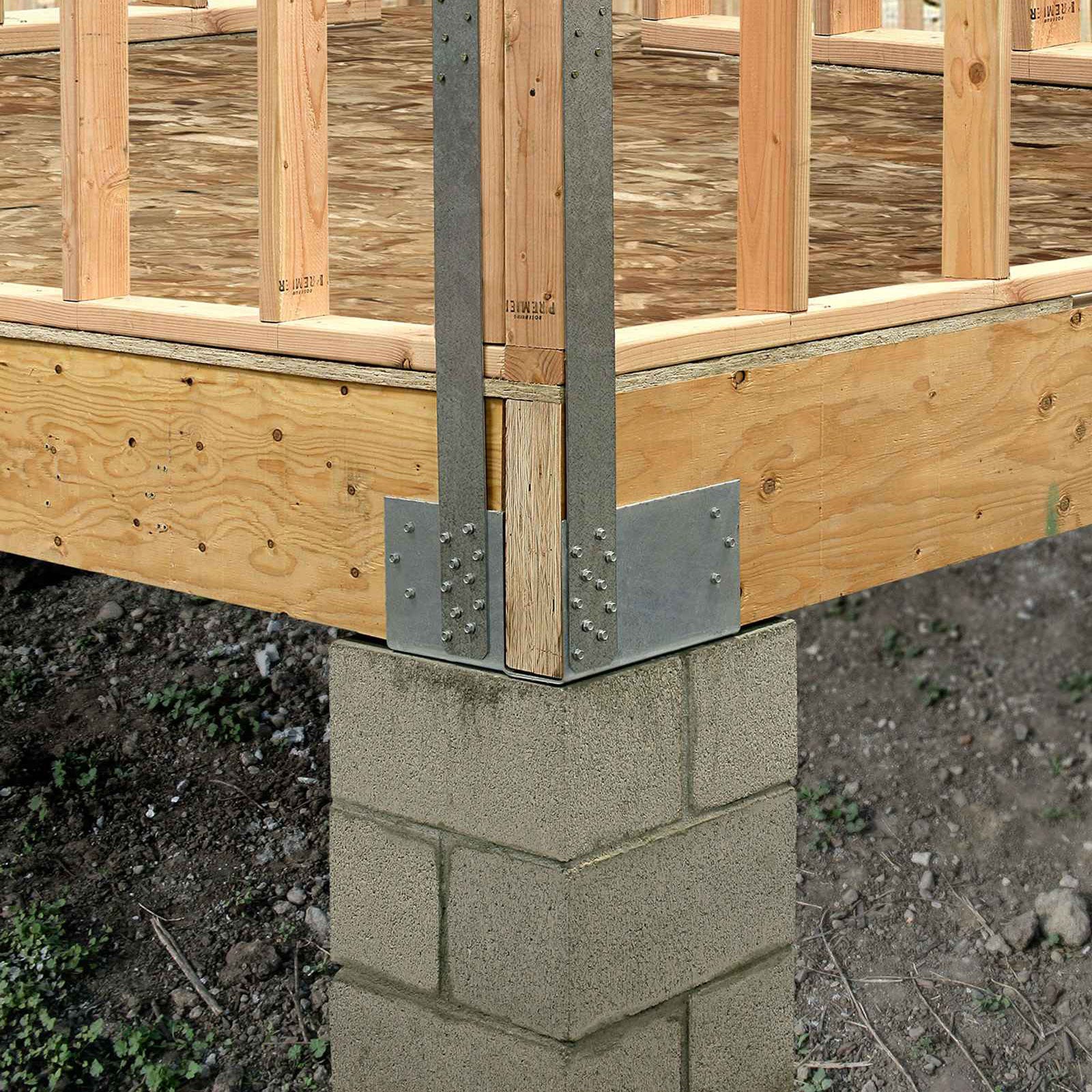

The Simpson ECCLQM4.62G-KT End Column Cap, L-Shaped for GFCMU and Concrete Piers enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this column cap is designed to provide column-to-beam connections in end-of-beam applications where two beams form an "L" for GFCMU and concrete piers.
The seat of the column cap features additional surface area beyond the side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection.
This product is intended for use with posts or columns and 4-5/8x beams but is also available in a wide range of other sizes and both nominal and rough-cut lumber Included with this column cap are the necessary Simpson Strong-Drive SDS connector screws to provide fast installation and lower profile than standard bolts.
Features:
- Connection Type: Provides strong end-of-beam connection for column-to-beams that form an "L" for GFCMU and concrete piers.
- Lumber Size: Intended for use with 4-5/8x beams.
- Material and Finish: Made from Steel for durability and finished with Gray Paint coating.
- Performance: Certified welds for strength and loading with increased uplift loads for earthquake or wind loading.
- Installation Design:Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements.
