Simpson ECCOQ9-SDS2.5 End Column Cap Legs Omitted, Quick-Install
Simpson ECCOQ9-SDS2.5 End Column Cap Legs Omitted, Quick-Install!
Continue Browsing
ECCQ End Column Caps
Specifications

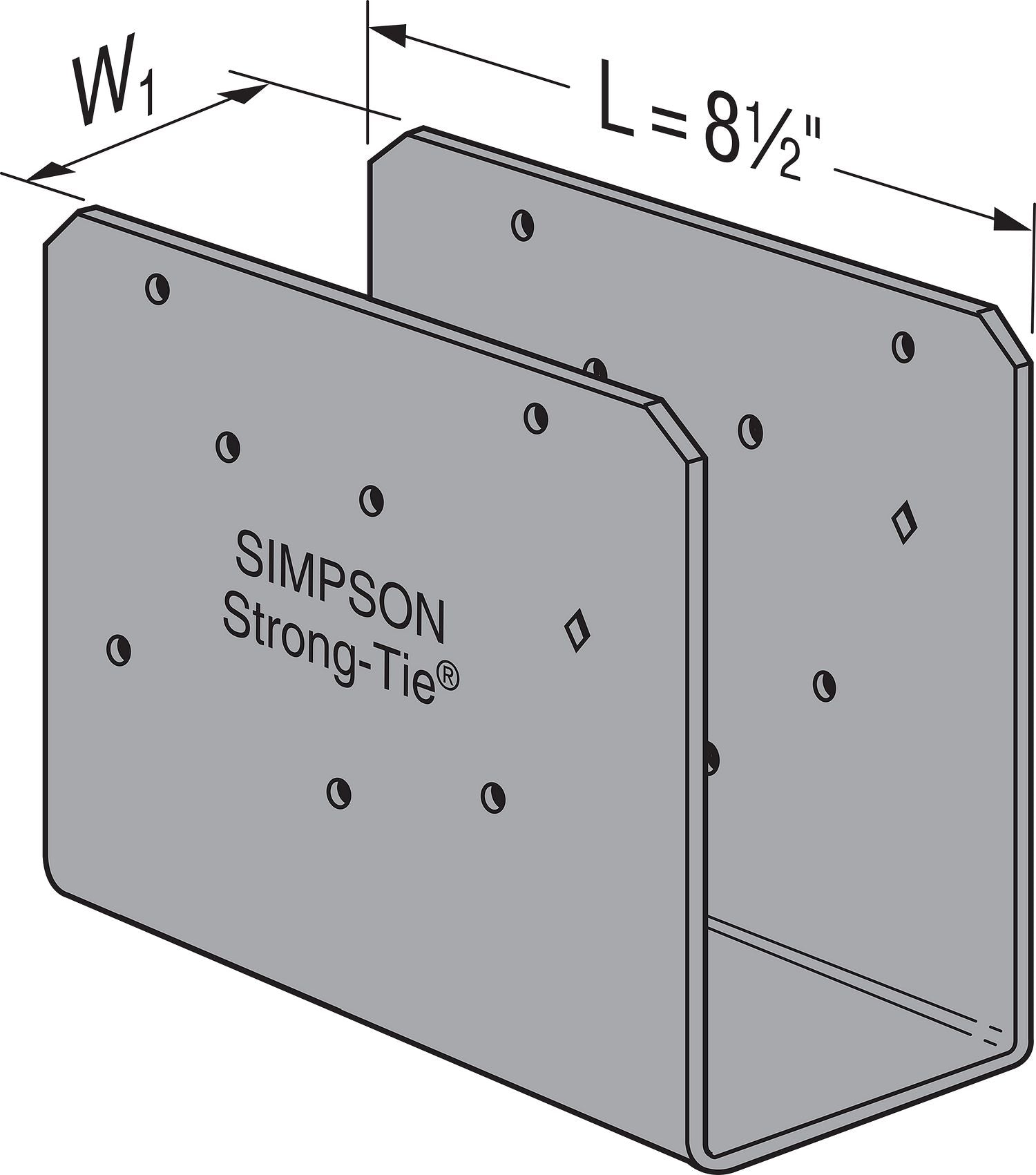

The Simpson ECCOQ9-SDS2.5 End Column Cap Legs Omitted, Quick-Install enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this end column cap is designed to provide column-to-beam connections in wood construction.
The seat of the column cap features additional surface area beyond each side of the column to allow added area of bearing to distribute the load from the beam and provide enhanced support for the connection, while the strapless design was created specifically for field welding to a steel column.
This product is intended for use with 9x beams but is also available in a wide range of other sizes. Included with this column cap are the necessary Simpson Strong-Drive SDS connector screws to provide fast installation and lower profile than standard bolts.
Features:
- Connection Type: Provides strong column to beam connection while the strapless design is intended for field welding to a steel column.
- Lumber Size: Intended for use with 9x beams and includes necessary SDS connector screws for a quick installation
- Material and Finish: Made from Steel for durability and finished with None coating.
- Performance: Extended surface area of the column seat provides additional bearing distrubtion for the load.
- Installation Design:Features diamond holes to provide temporary fastening during installation, bolt spacing to meet NDS code requirements.
