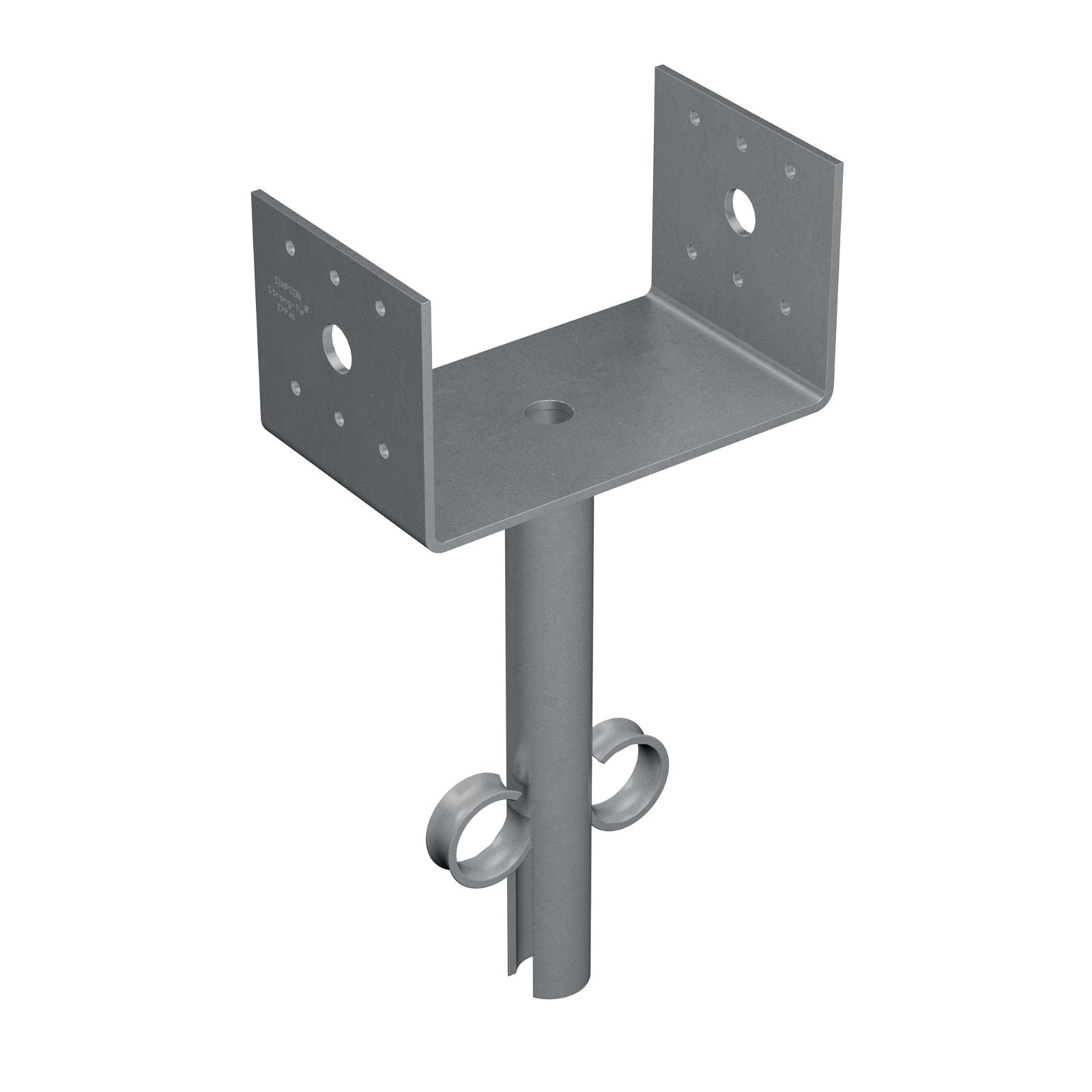

Simpson EPB46 4x6 Elevated Post Base - Gray Painted
Simpson EPB46 4x6 Elevated Post Base - Gray Painted
Description:
Description:
The Simpson EPB46 4x6 Elevated Post Base - Gray Painted enhances the strength and stability of your construction projects. Crafted from durable heavy-gauge steel, this post base is designed to be cast-in-place in concrete and provide a secure connection to the concrete.
These connectors provide the code-required 1" standoff to help prevent rot or decay at the post end to provide long-lasting durability and performance.
This product is intended for use with 4x6 posts or columns but is also available for other post and column sizes.
Features:
- Connection Type: Designed to provide an elevated post base and cast-in-place into concrete.
- Lumber Size: Intended for use with posts/columns.
- Material and Finish: Made from Steel for durability and finished with Gray Paint coating.
- Elevated Standoff: 2" standoff provides enough room for moisture barrier material and a thin finish surface while still providing 1" code-required standoff.
California Residents: WARNING
Specifications:
Specifications:
Post Size: 4x6
Height: 3"
Fasteners required: (12) 0.162" x 3-1/2" Nails
Width: 5-1/2"
Finish: Gray Paint
Length: 3-5/16"
Manufacturer name: Simpson Strong-Tie
For Treated Lumber: No
Product Guide: View Spec Sheet
Installation
Installation
-Use all specified fasteners.
-Allows 1" to 2-1/2" clearance above concrete.
-Post bases do not provide adequate resistance to prevent members from rotating about the base and therefore are not recommended for non top-supported installations (such as fences or unbraced carports).
