Simpson GLB7C Beam Seat, Gray Paint
Simpson GLB7C Beam Seat, Gray Paint!
Continue Browsing
GLB/HGLB Beam Seats
Specifications
- This item is made to order and is non-returnable - Please call us at 888-794-1590 for exact lead times on this product

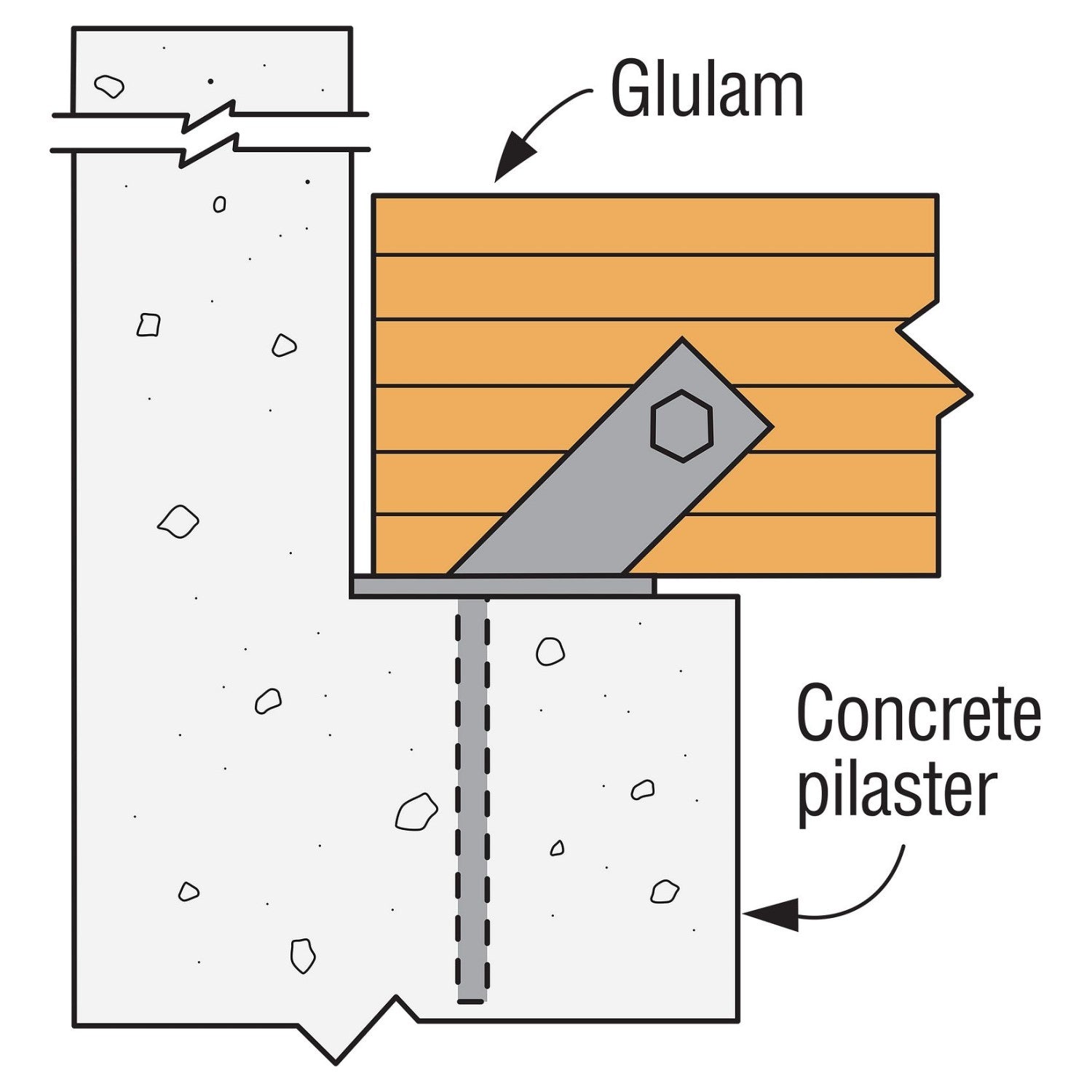

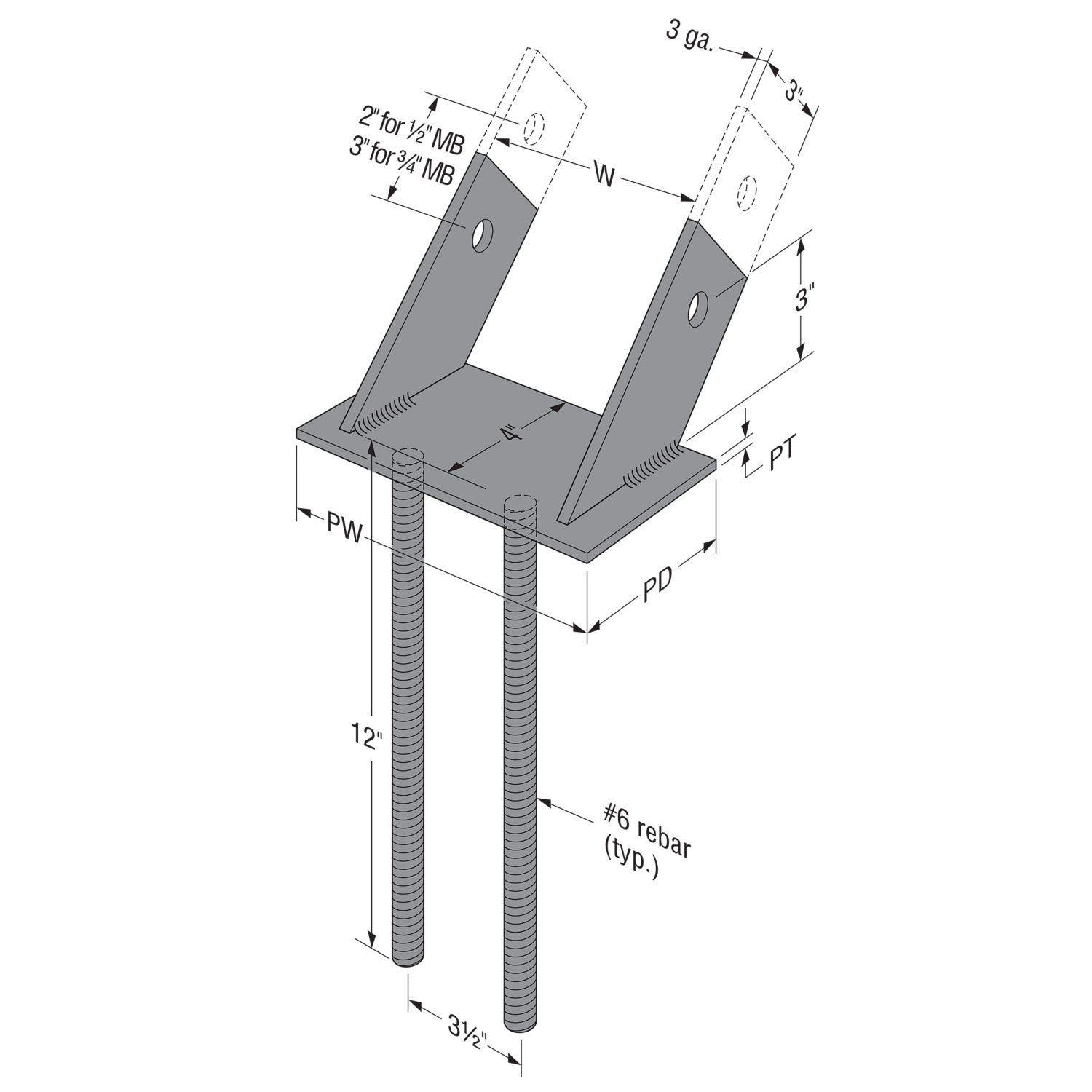

The Simpson GLB Beam Seat is designed to support and connect glulam, sawn lumber or engineered wood beams to structural concrete or concrete masonry unit (CMU) pilasters. The rectangular, steel-plate seat features two vertical plates that secure the beam with one or two bolts and has two #6 by 12"-long rebar for placement in forms before concrete is poured. This glulam beam seat provides necessary bearing capacity at structural walls.
- Designed for cast-in-place applications.
- Provides additional bearing for beam connections.
- Steel plate provides barrier for wood from masonry.
- Specify if two-bolt GLB model is desired.
- Use all specified fasteners.
