Simpson HB312 Top Flange I-Joist Hanger - G90 Galvanized
Simpson HB312 Top Flange I-Joist Hanger - G90 Galvanized
Description:
Description:

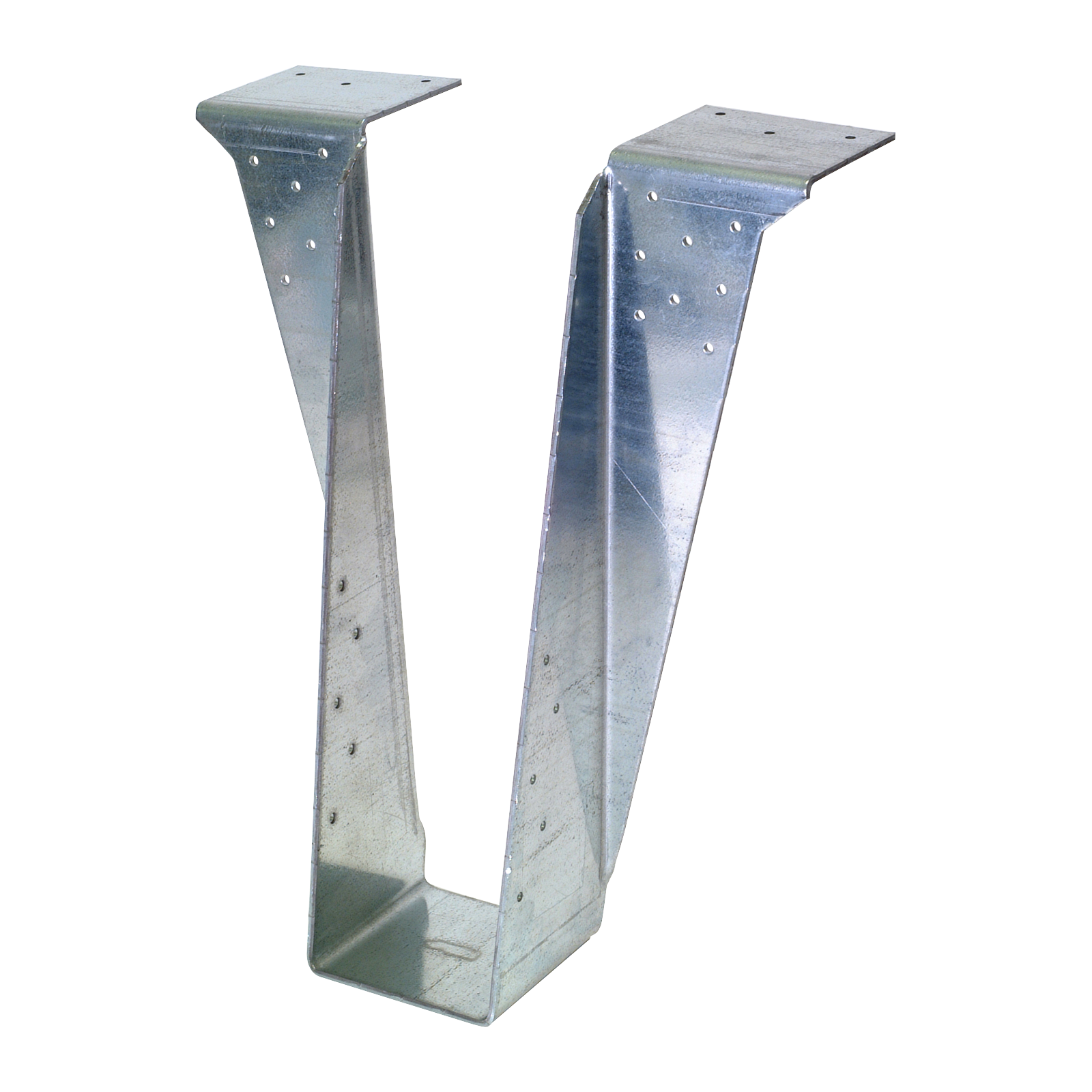

The Simpson HB Heavy Beam Hanger is a top-flange hanger made for solid sawn and engineered wood applications that require the ability to support medium to heavy loads. A full-height joist flange on this substantial beam hanger catches the top chord of the joist to stop rotation. The HB is a one-piece design that offers a less expensive alternative to welded hangers. These hangers come in a galvanized finish, but hot-dip galvanizing is available; please specify HDG when ordering.
California Residents: WARNING
Specifications:
Specifications:
Height: 12"
Fasteners required: See Spec Sheet; fastner requirements are based on ordered width
Thickness: 10 Gauge
Quantity: 1
Width: 3"
Finish: G90 Galvanized
Manufacturer name: Simpson Strong-Tie
Product Guide: View Spec Sheet
Features
Features
• Efficient design
• Cost-effective options for high-load applications
• To accommodate members that are sloping or skewed, custom ordering is available
