SKU: HDIA50

Simpson HDIA50 1/2" Hollow Drop-In Anchor - Zamac 3, Pkg 50

Simpson HDIA50 1/2" Hollow Drop-In Anchor - Zamac 3, Pkg 50!

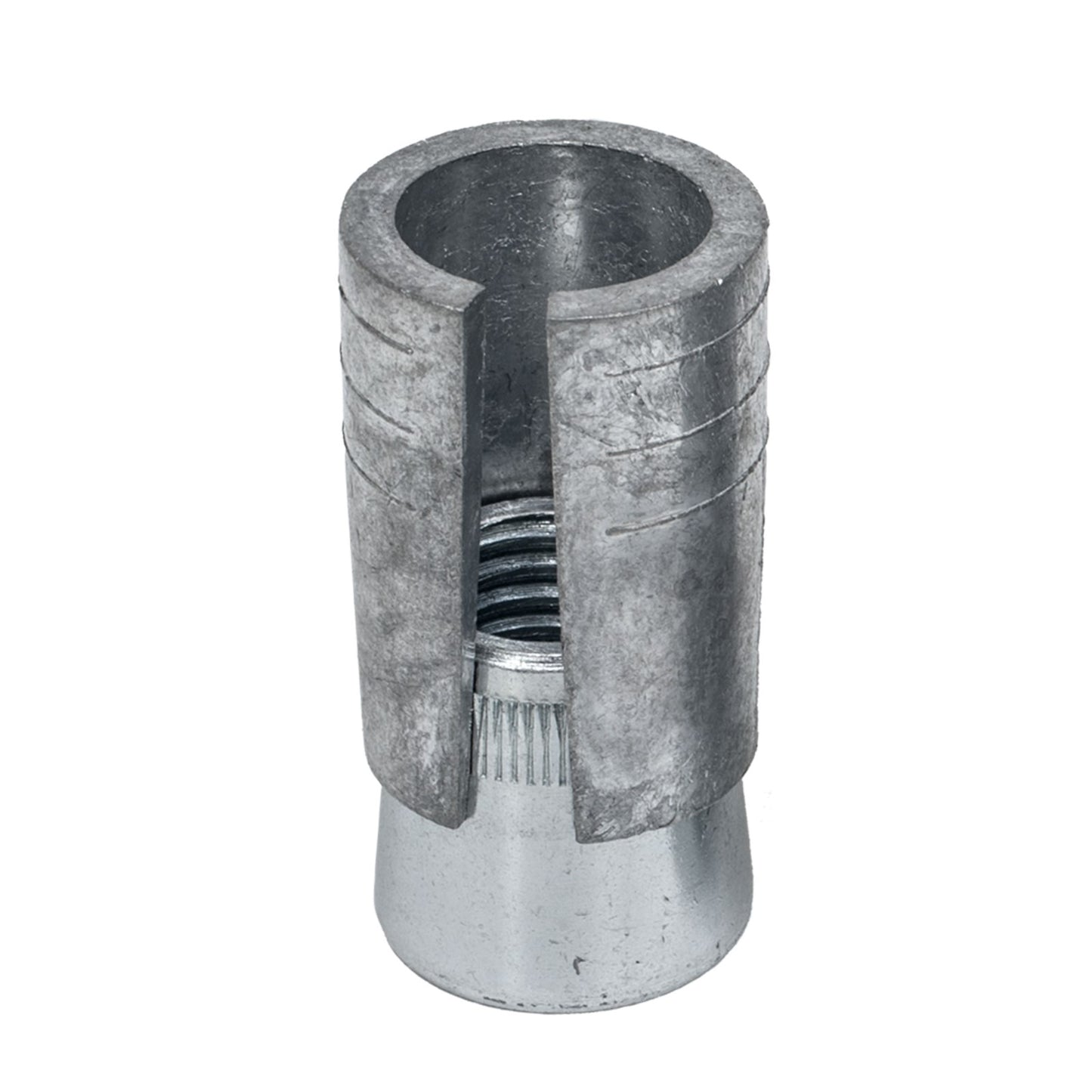

  • Simpson HDIA50 12 inch Hollow DropIn Anchor Zamac 3 Pkg 50

Continue Browsing

Drop-In Anchors
SKU: HDIA50

Simpson HDIA50 1/2" Hollow Drop-In Anchor - Zamac 3, Pkg 50

$66.21

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Nov 4 when you add 4 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Length: 1-3/4"
Material: Zamac 3
Accepts rod size: 1/2"
Drill bit size: 3/4"
For Treated Lumber: Yes
Manufacturer name: Simpson Strong-Tie
Quantity: 50
Description
The Simpson Strong-Tie® Hollow Drop-In Anchor (HDIA) is an internally threaded, flush-mount expansion anchor for use in hollow materials such as CMU and hollow-core plank, as well as in solid base materials such as brick, normal-weight and lightweight concrete. The expansion design allows anchoring to CMU, hollow-core plank, brick, normal-weight concrete and lightweight concrete while the internally threaded anchor allows for easy bolt removal. Suitable for suspending conduit, cable trays, pipe supports, fire sprinklers and suspended lighting into concrete.
Installation:
  • Installation Instructions — Solid Base (using solid setting tool):
  • Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table. Drill the hole to the specified embedment depth.
  • Blow the hole clean using compressed air. Overhead installations need not be blown clean.
  • Insert the HDIA into hole. Tap with hammer until flush against surface.
  • Using the designated setting tool, drive the anchor to the bottom of the drilled hole. After the anchor reaches the bottom of the drilled hole, perform an additional three hammer blows against the setting tool to drive the anchor body over the cone.
  • Position fixture; insert fastener and tighten.

  • Installation Instructions — Hollow Base (using hollow setting tool):
  • Drill a hole in the base material using the appropriate diameter carbide drill bit as specified in the table.
  • Thread the HDIA onto the designated setting tool for hollow base materials.
  • Insert the HDIA into the hole. Tap the setting tool until the face of the tool contacts the surface.
  • Rotate the setting tool a minimum of two turns to set the anchor.
  • Remove the setting tool.
  • Position fixture; insert fastener and tighten.

    • California Residents: WARNING

More
View full details

Continue Browsing

Drop-In Anchors

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
