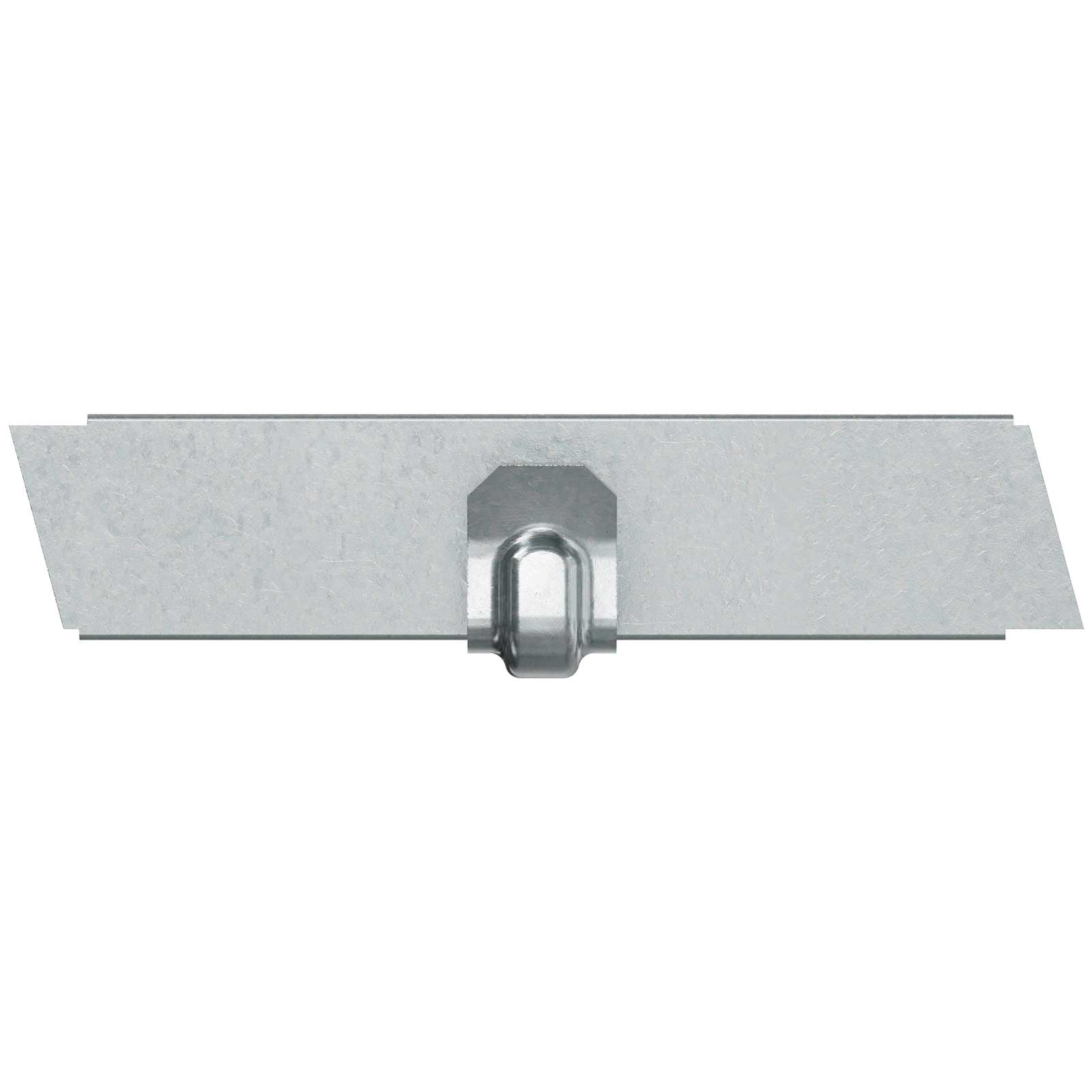

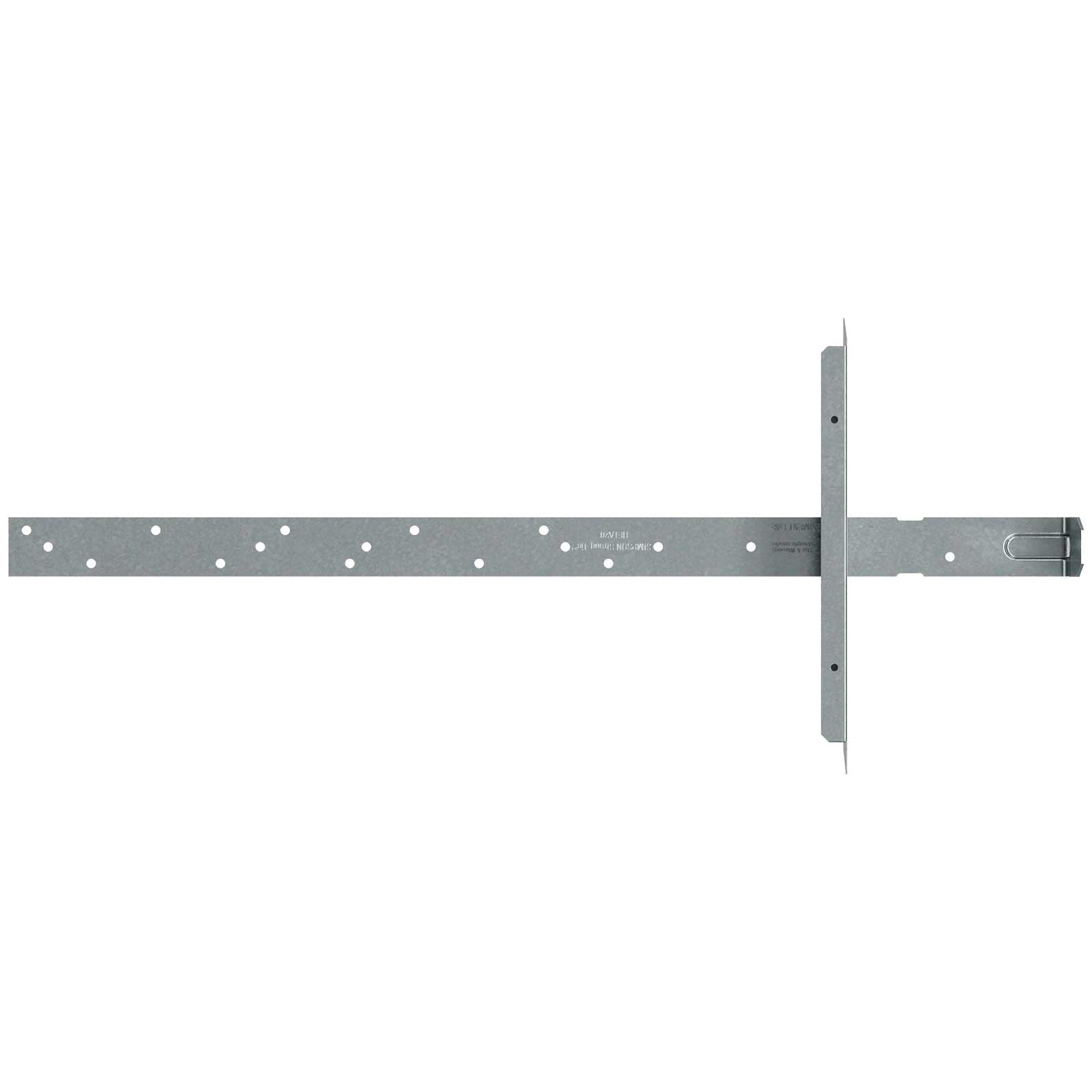

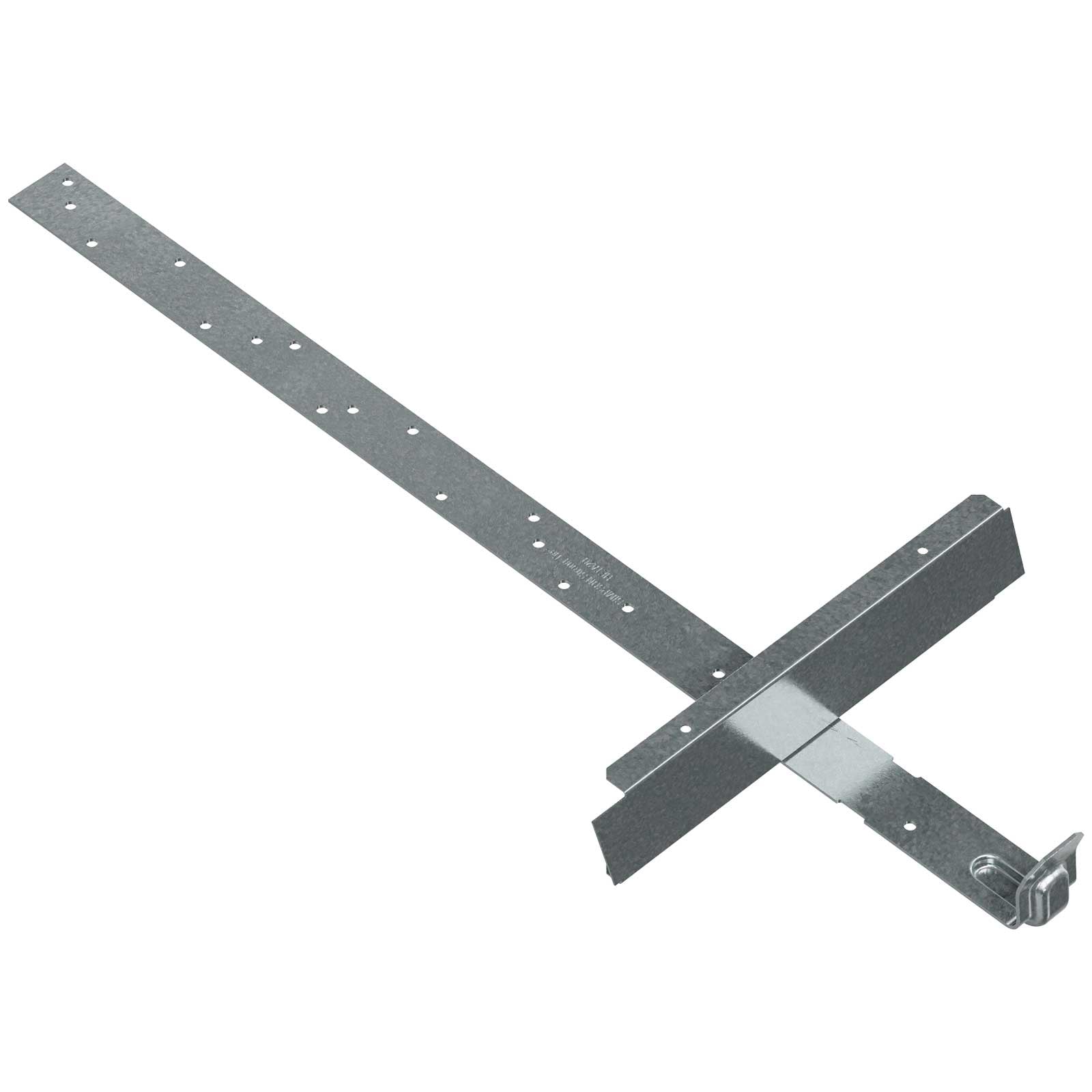

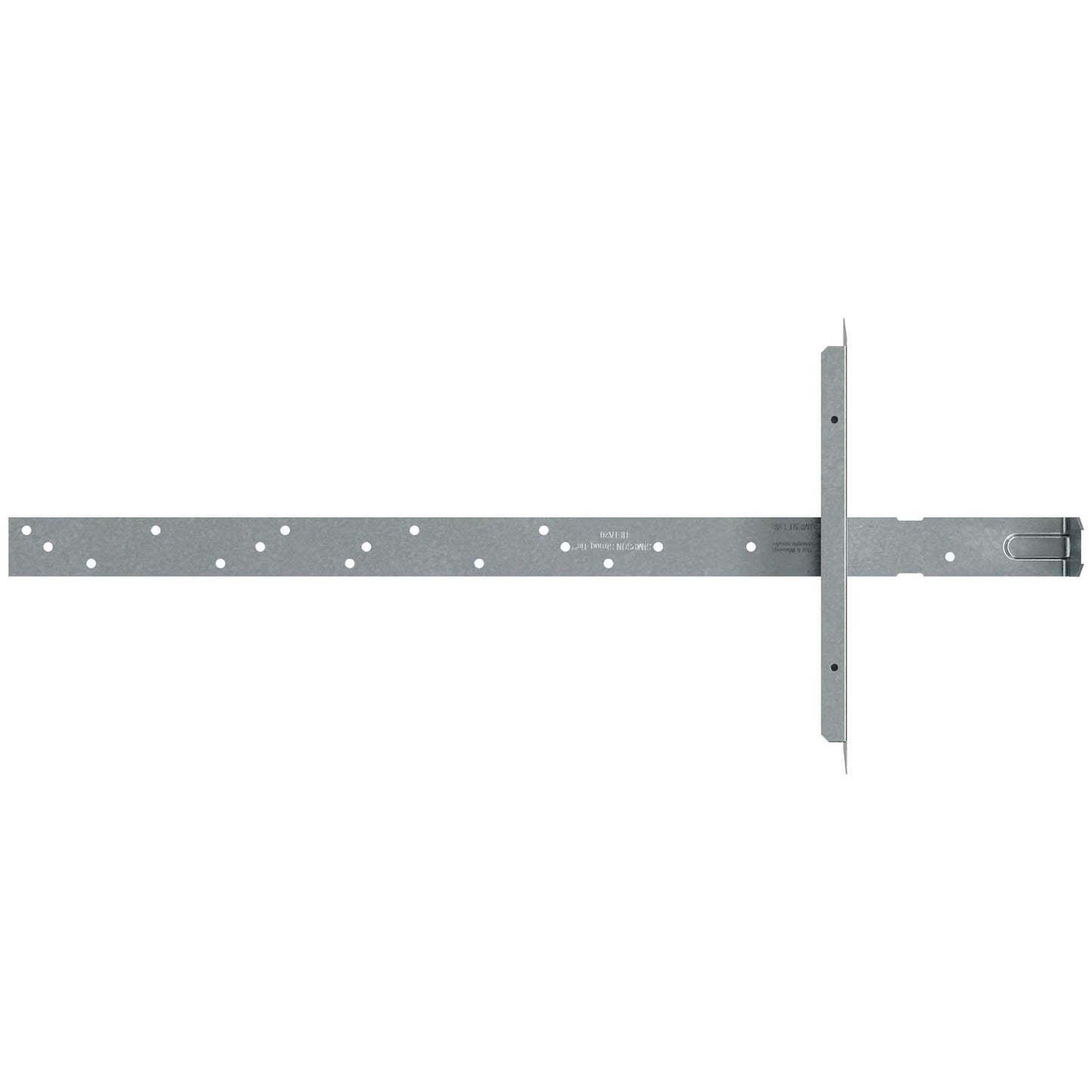

Simpson HETA20/TSS2 16" Embedded Truss Anchor W/seat
Simpson HETA20/TSS2 16" Embedded Truss Anchor W/seat!
Continue Browsing
META/HETA/HETAL/HHETA/AHEP Embedded Truss Anchors
Specifications
The HETA embedded truss anchor series provides an engineered method to properly attach roof trusses to concrete and masonry walls. The products are designed with staggered nail patterns for greater uplift resistance. Information regarding the use of two anchors on single- and multi-ply trusses is included. The TSS, a companion product of the META, provides a moisture barrier between the concrete and truss. The preassembled unit is riveted with no height adjustment.
- Use all specified fasteners (included).

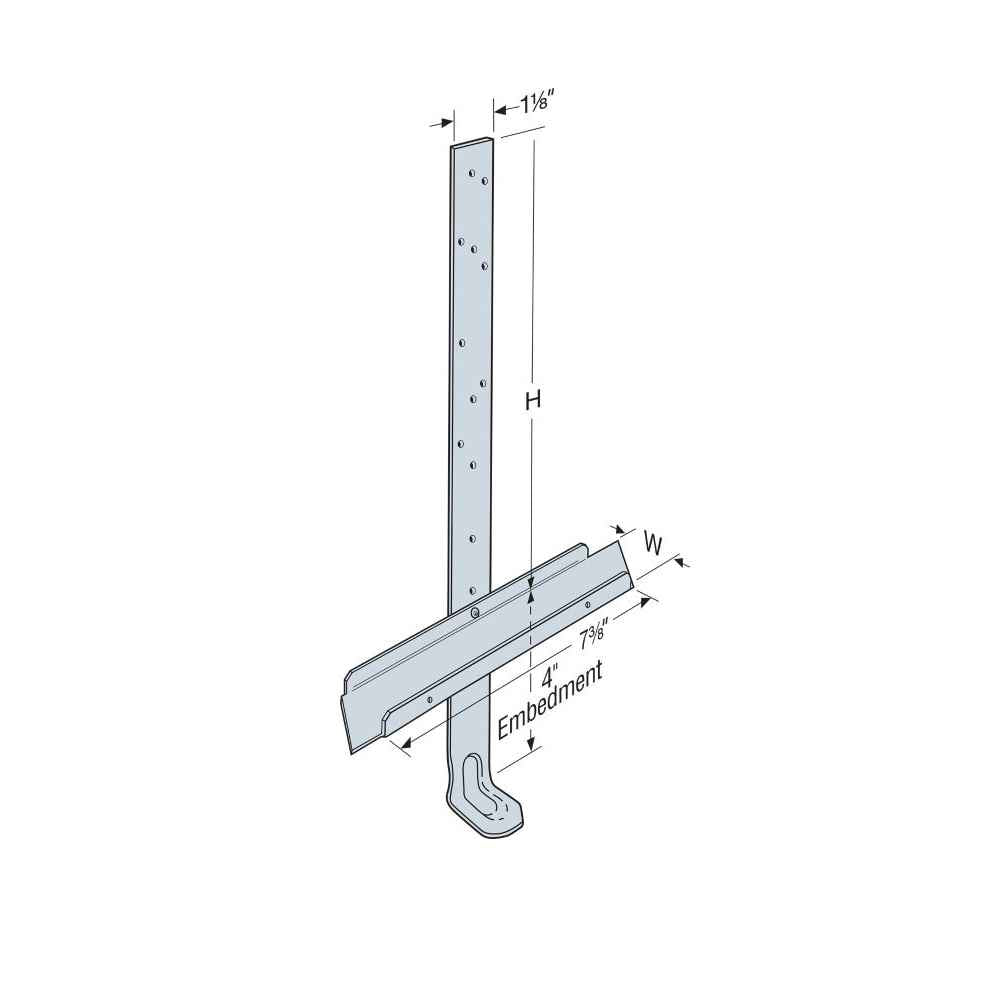

- The META, HETA and HHETA are embedded 4" into a 6" min. concrete beam or 8" nominal grouted block wall; HETAL is embedded 5 1/16"; DETAL is embedded 4 1/2".
- For mislocated truss anchors which are greater than 1/8" but less than 1 1/2" from the face of the truss, a shim must be provided. Shim design by Truss Engineer. When gap is greater than 1 1/2", install new anchors.
- The TSS moisture barrier may be preattached to the truss using 6d commons.
- In double embedded anchor installations, do not install fasteners where the straps overlap when wrapped over the truss heel.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
