Simpson HSURC26-2 Double 2x6 Concealed Flange Joist Hanger Skewed Right - Galvanized, Made to Order Non-Returnable
Simpson HSURC26-2 Double 2x6 Concealed Flange Joist Hanger Skewed Right - Galvanized, Made to Order Non-Returnable!
Continue Browsing
SUR/SUL/HSUR/HSUL Skewed 45 Degree Hangers
Specifications
This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product.

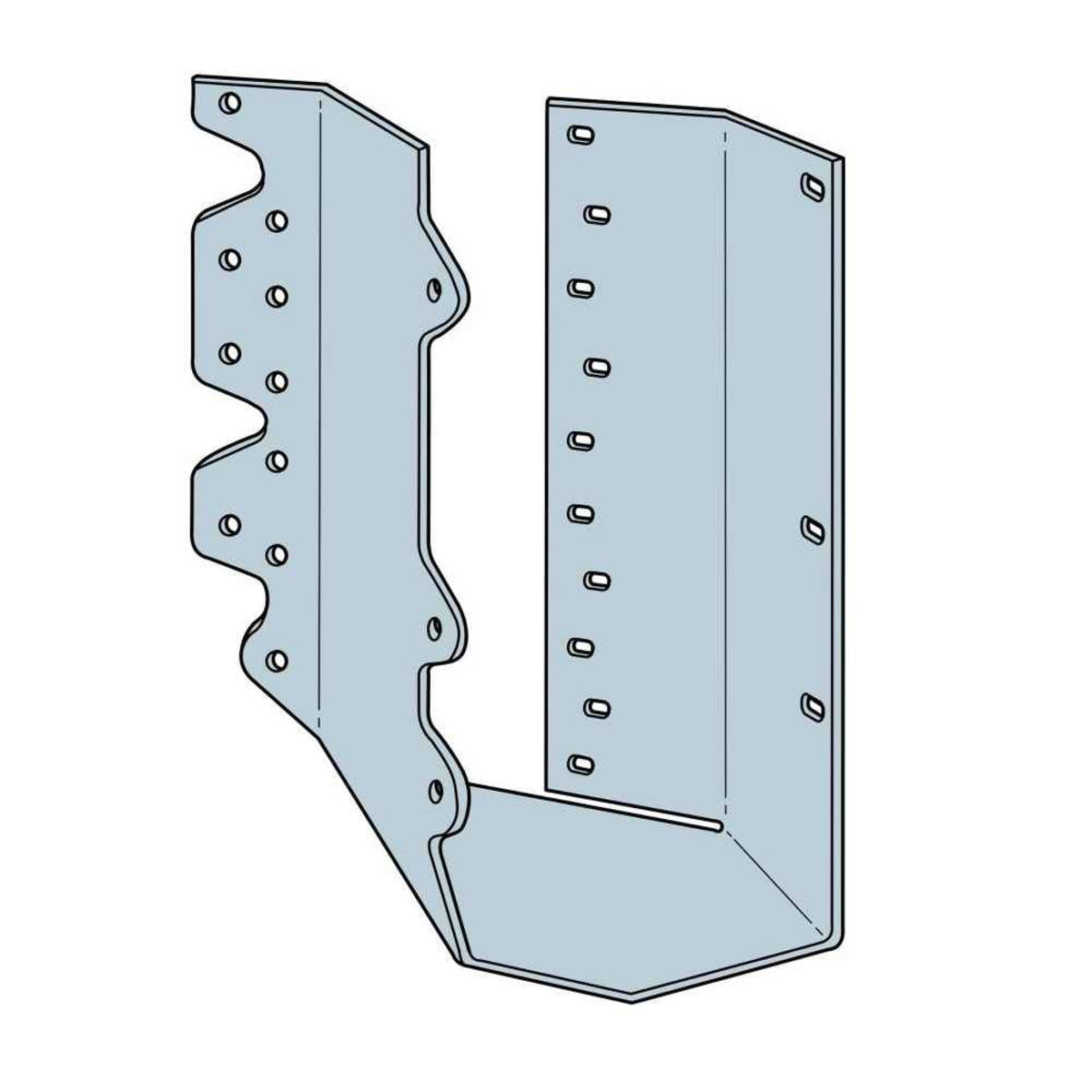

The Simpson HSURC Heavy Right-Skewed U-Shaped Joist Hanger is built for demanding structural applications that require a 45-degree skewed connection. Designed for solid sawn lumber and engineered wood, this hanger provides exceptional support and load-bearing capacity in angled framing applications.
Constructed from heavy-gauge steel with a G90 galvanized coating, the HSURC offers reliable corrosion resistance in standard indoor and outdoor environments. Its reinforced U-shaped design enhances stability, ensuring strong lateral and vertical load support for beams, rafters, and joists requiring right-skewed connections.
Key Features:
- G90 Galvanized Coating: Provides protection against moisture and corrosion in standard construction environments.
- 45-Degree Right Skew: Precision-engineered for secure, angled wood-to-wood connections.
- Heavy-Gauge Steel: Designed for high-load applications requiring superior strength.
- Reinforced U-Shaped Design: Improves load distribution and connection stability.
- Versatile Compatibility: Suitable for solid sawn lumber and engineered wood applications.

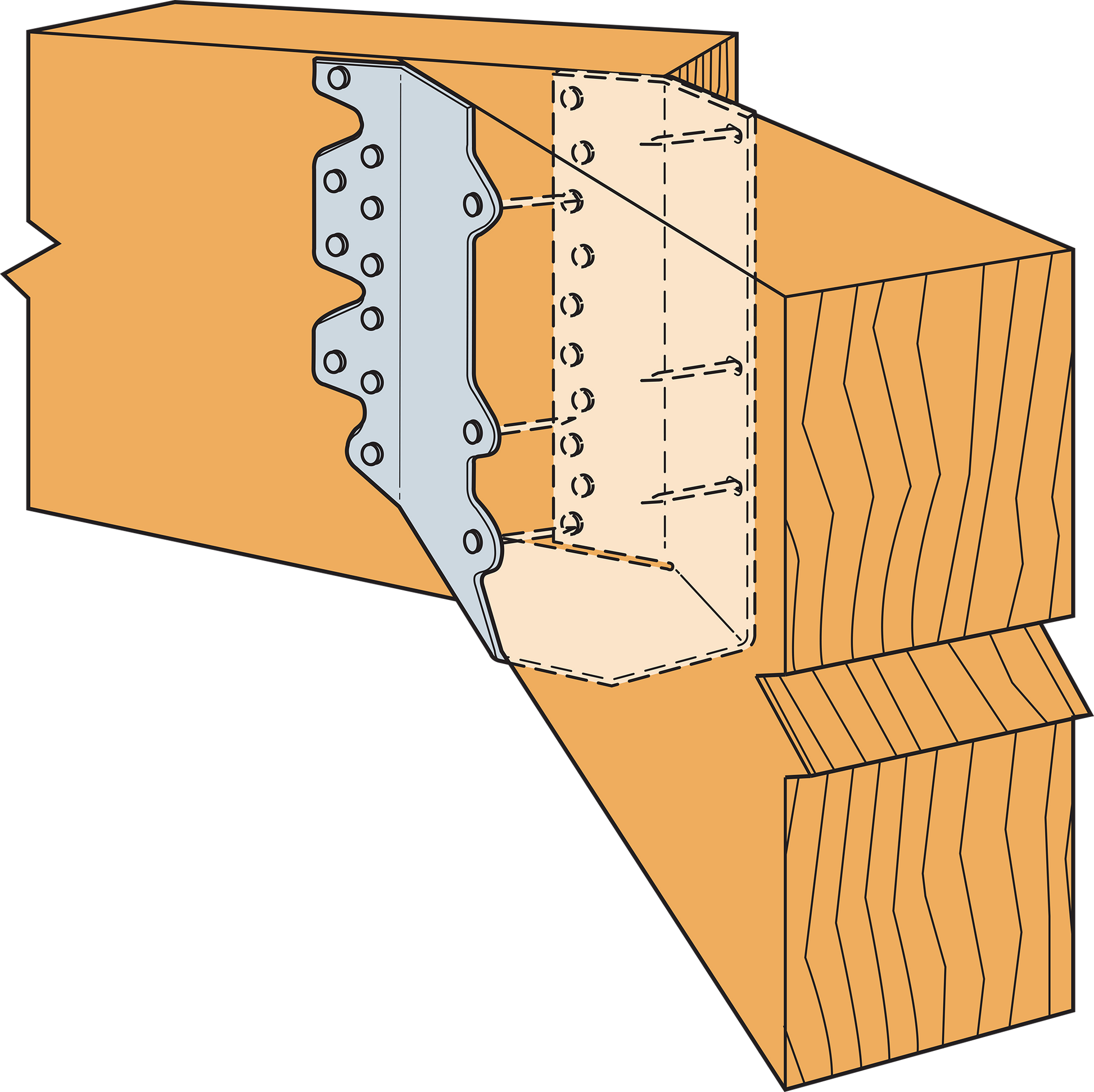

Installation:
- For Solid Sawn Lumber: Use 10d or 16d common nails for secure fastening.
- For Engineered Wood: Use Strong-Drive SDS Heavy-Duty Connector screws where specified.
- Secure the hanger to the beam using all pre-punched fastener holes for optimal load distribution.
- Ensure the joist is fully seated within the hanger for a snug, secure fit.
- Pre-Drilling: Recommended for dense engineered wood to prevent splitting.
Applications:
- Roof Framing: Ideal for hip, valley, and rafter connections requiring a right-skewed design.
- Floor Joist Connections: Provides a secure, skewed joist-to-beam attachment in residential and commercial flooring systems.
- Deck & Porch Construction: Supports angled joists in decks, patios, and pergolas.
- Engineered Wood & Structural Framing: Designed to work with LVL, PSL, and other engineered lumber applications.
- Custom Wood Framing: Ideal for non-standard angles in heavy-duty framing projects.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
