SKU: HTT4

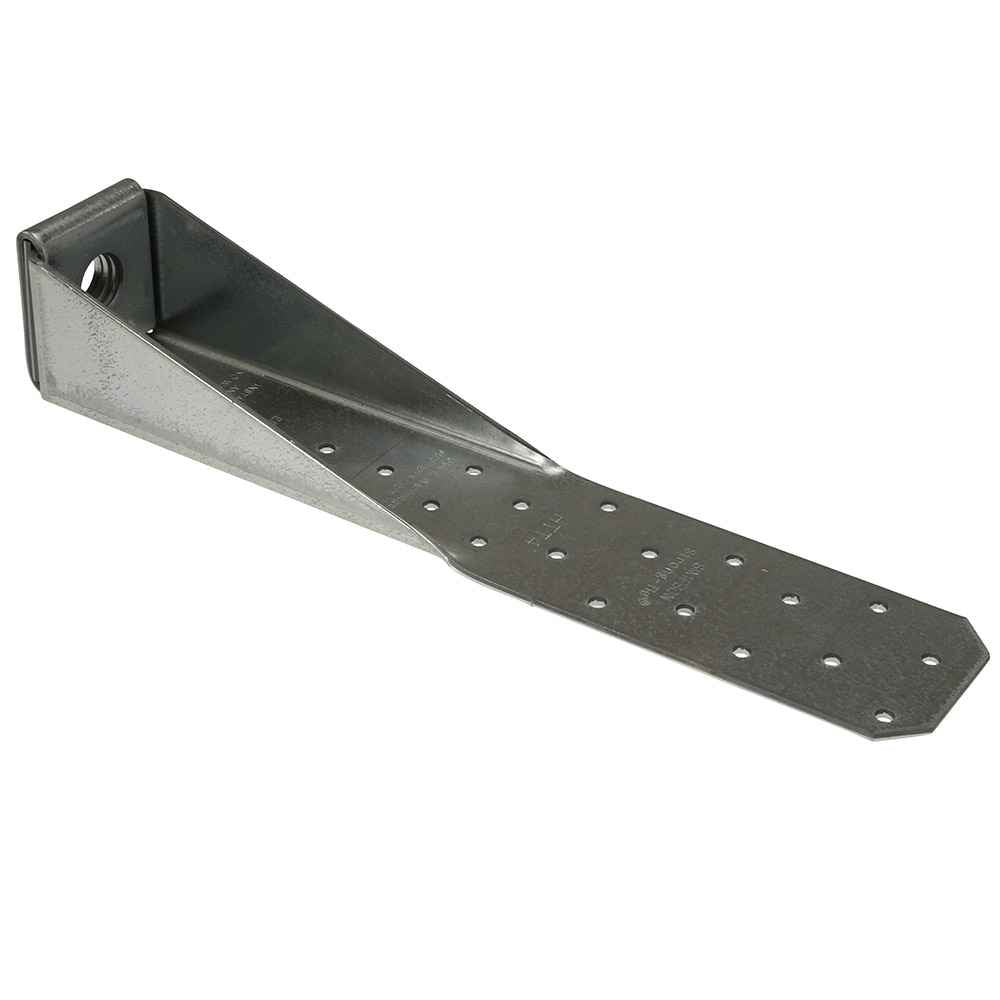

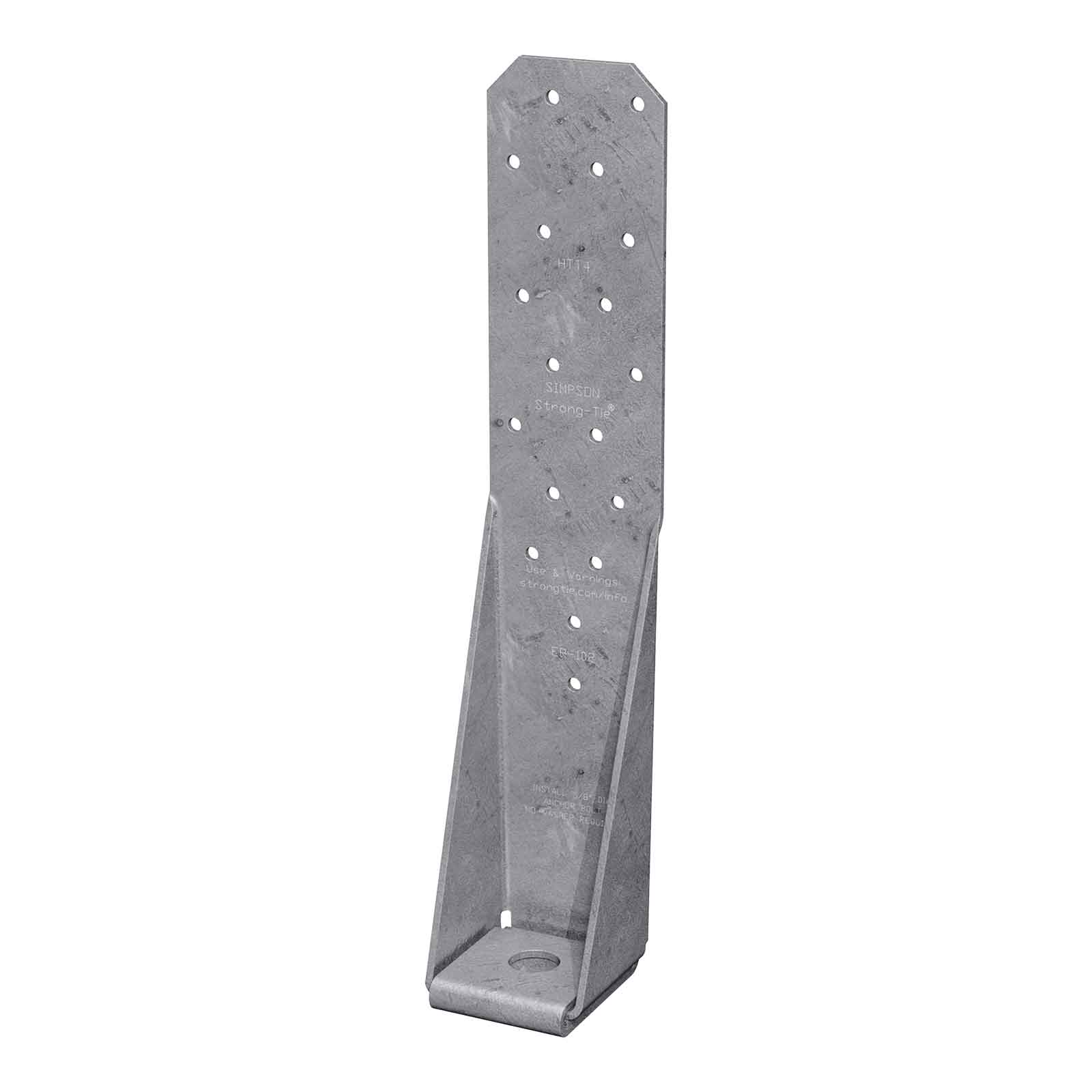

Simpson HTT4 12-3/8" Tension Tie

Simpson HTT4 12-3/8" Tension Tie!

  • Simpson HTT4 1238 inch Tension Tie image 1 of 3
  • Simpson HTT4 1238 inch Tension Tie image 1 of 3 image 2 of 3
  • Simpson HTT4 1238 inch Tension Tie image 1 of 3 image 2 of 3 image 3 of 3
1 3

Continue Browsing

LTT/HTT Tension Ties
SKU: HTT4

Simpson HTT4 12-3/8" Tension Tie

$23.41

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Jan 15 when you add 9 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Length: 12-3/8"
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
For Treated Lumber: No
Manufacturer name: Simpson Strong-Tie
Description

The HTT4 Heavy Tension Tie is a robust solution for resisting high tension loads in wood-to-concrete connections, ideal for both residential and light-frame commercial buildings.

Key Features:

  • High Load Capacity: Achieves allowable loads up to 7,650 lbs when installed with Strong-Drive® SD Connector screws, making it suitable for demanding applications.
  • Optimized Design: Features a four-fold seat and tapered base to reduce deflection and enhance strength, ensuring reliable performance under load.
  • Versatile Installation: Compatible with standard pneumatic nail sizes and Strong-Drive® SD Connector screws, facilitating easy installation in both retrofit and new construction projects.
  • Durable Construction: Made from 10-gauge galvanized steel, providing corrosion resistance for long-term durability.

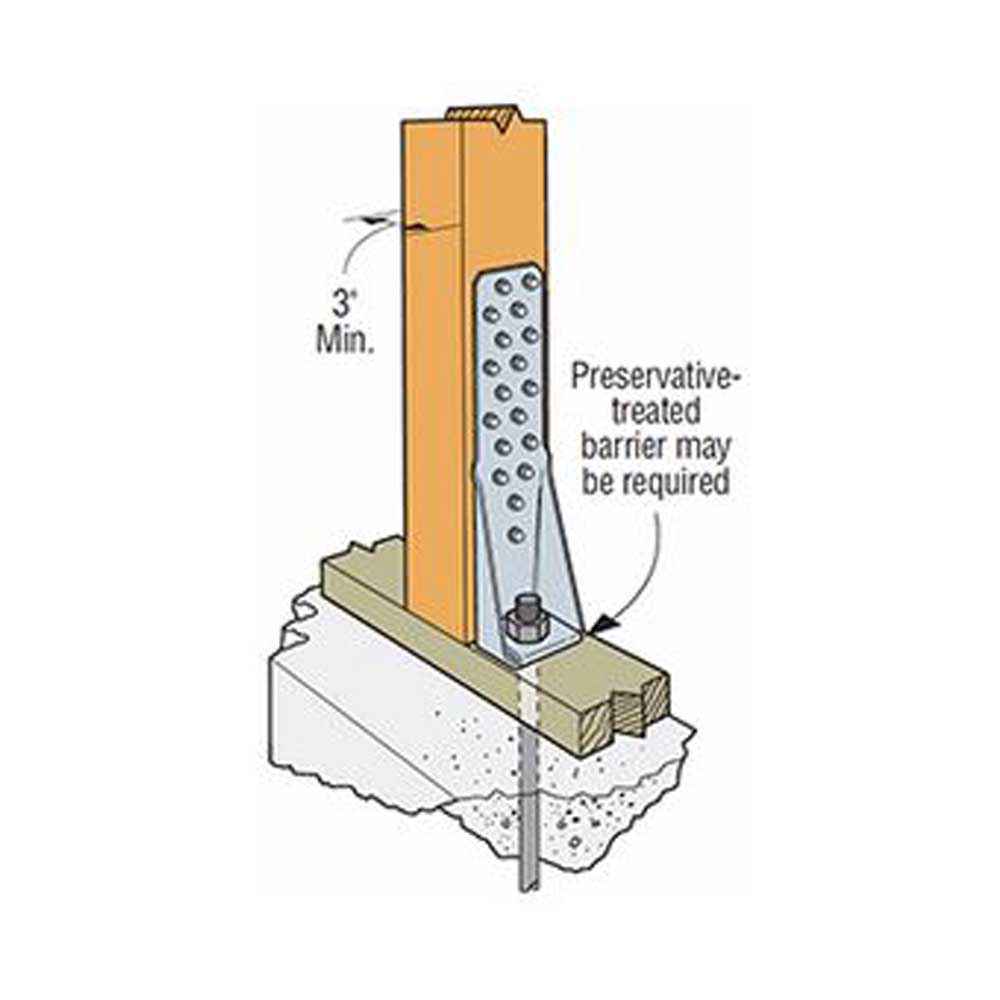

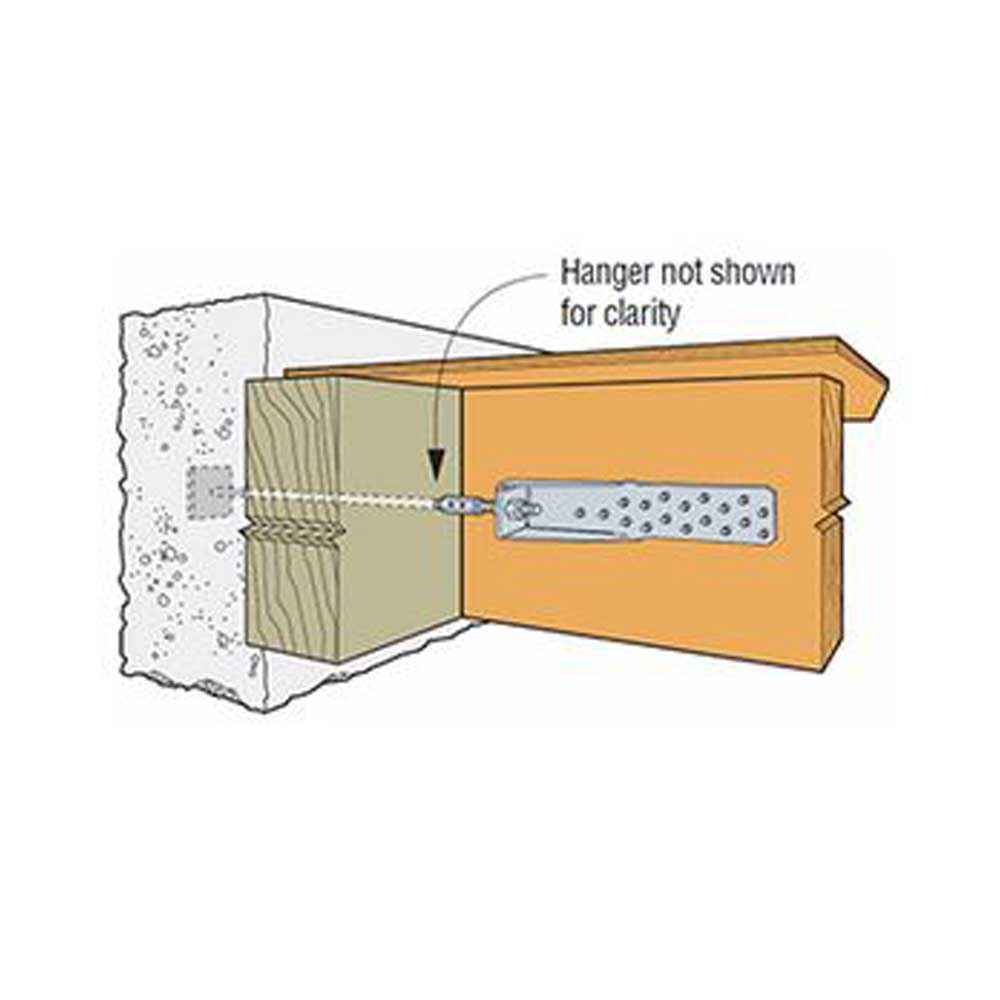

Installation Notes:

  • Fasteners: Can be installed with 0.148" x 2 1/2" or 0.162" x 2 1/2" nails, or #10 x 2 1/2" Strong-Drive® SD Connector screws for maximum load capacity.
  • Anchor Bolt: Requires a 3/4" diameter anchor bolt and one standard 3/4" cut washer (not included) for proper installation.
  • Wood Member Size: Suitable for minimum wood member sizes of 3" x 3 1/2" when using nails or screws.
