Simpson HU48Z 4x8 Face Mount Joist Hanger - ZMAX Finish
Simpson HU48Z 4x8 Face Mount Joist Hanger - ZMAX Finish!
Continue Browsing
HU Face Mount Hangers
Specifications

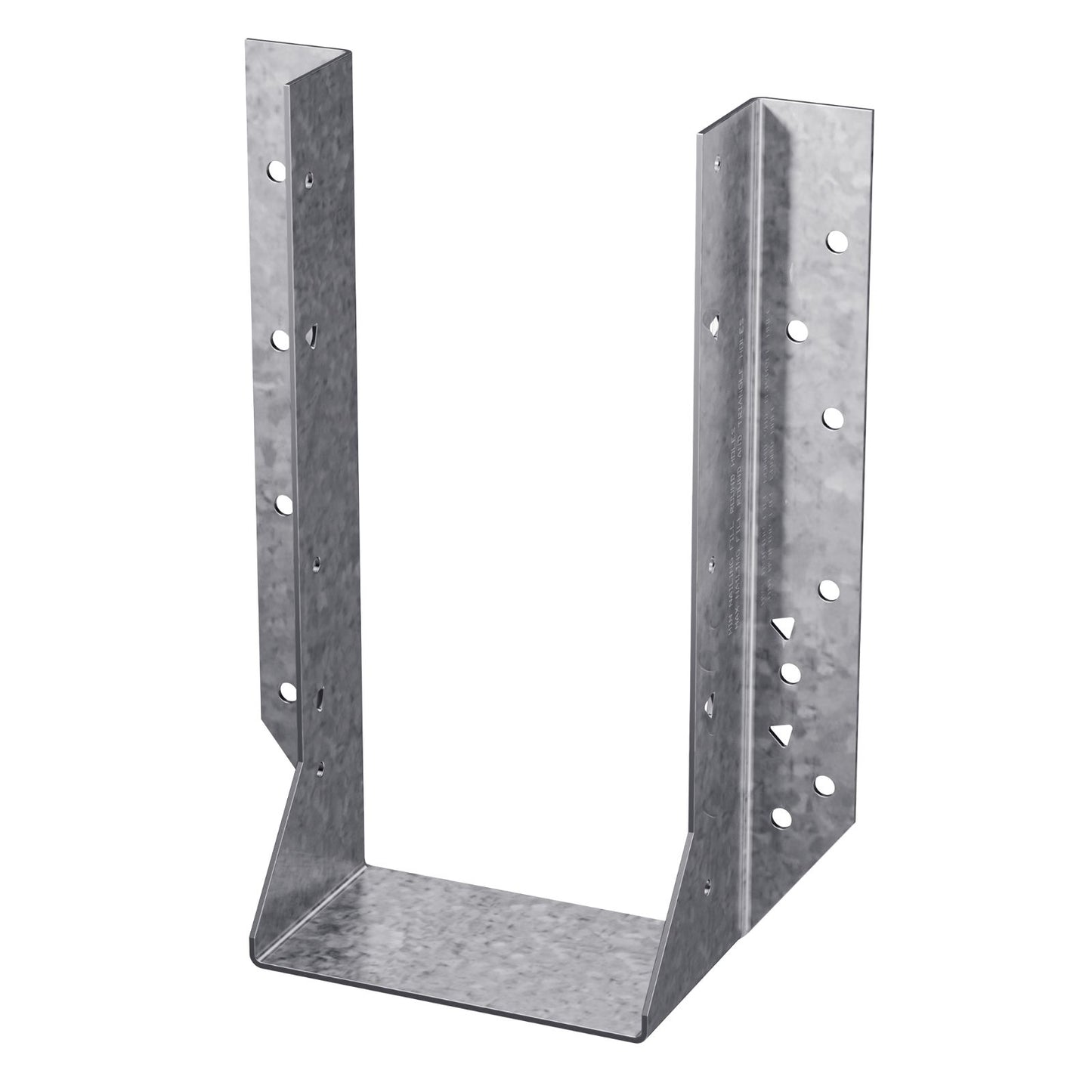

The Simpson Strong-Tie HU series offers heavy-duty face-mount joist hangers designed to provide robust support for joists and beams in demanding structural applications. Featuring the ZMAX galvanized coating, these hangers deliver enhanced corrosion resistance, making them ideal for both interior and exterior projects, especially when working with treated lumber.
Key Features:
- Heavy-Duty Construction: Manufactured from 14-gauge steel, the HU series ensures superior strength and durability, suitable for commercial applications requiring additional safety factors.
- ZMAX Galvanization: The G185 ZMAX coating offers extra protection against corrosion, extending the lifespan of the hanger in environments exposed to moisture and chemicals.
- Versatile Applications: Designed for use with solid sawn lumber, engineered wood products, and suitable for installations involving masonry or concrete when used with appropriate fasteners.
- Code Compliance: HU-series hangers are rigorously tested, load-rated, and comply with building codes, ensuring reliable performance in structural applications.
Installation Notes:
- Masonry and Concrete Applications: When installing to grouted CMU walls or concrete, utilize appropriate Simpson Strong-Tie Titen HD screws, ensuring minimum end and edge distances are maintained.
- Complete Fastening: Fill all round and optional triangular holes to achieve maximum load capacities.
Applications:
The Simpson Strong-Tie HU series joist hangers are engineered for a wide range of structural applications, including:
- Deck Construction: Provides secure support for deck joists and ledger board connections.
- Floor Framing: Ensures stability in wood-frame floor systems for residential and commercial buildings.
- Roof Framing: Strengthens rafter and beam connections in trusses and roof assemblies.
- Post and Beam Structures: Ideal for pergolas, gazebos, and other timber-framed structures.
- Masonry and Concrete Applications: Can be installed with Titen HD screws for secure attachment to CMU or concrete walls.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
