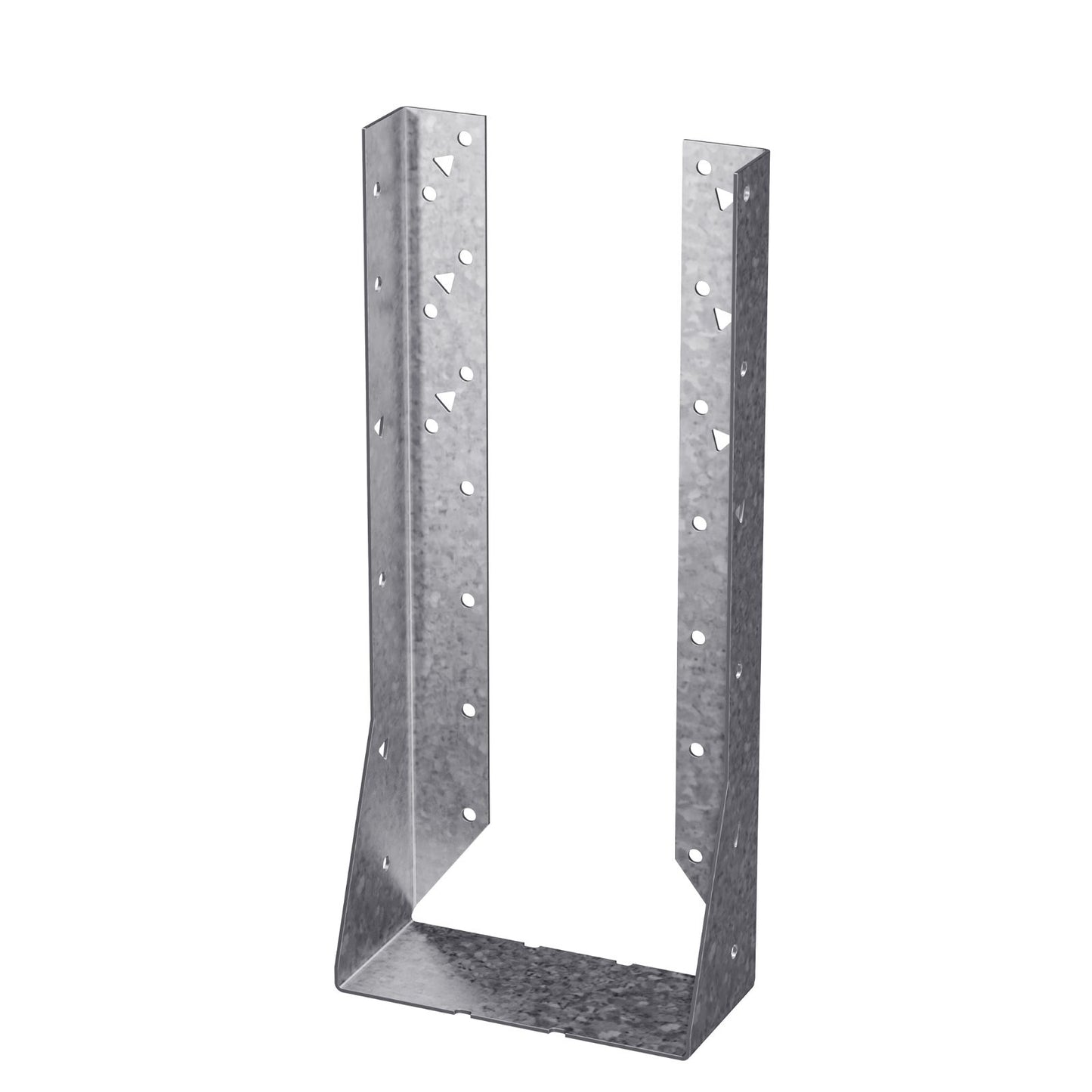

Simpson HUC616 6x16 Concealed Flange Heavy Face Mount Hanger - G90 Galvanized
Simpson HUC616 6x16 Concealed Flange Heavy Face Mount Hanger - G90 Galvanized!
Continue Browsing
HUC/HUCQ Concealed Face Mount Hangers
Specifications
The Simpson Strong-Tie HUC series offers heavy-duty, concealed-flange face-mount joist hangers designed to provide robust support for various construction applications. Crafted from 14-gauge steel with a G90 galvanized finish, these hangers ensure durability and corrosion resistance, making them suitable for both interior and exterior projects.
Key Features:
- Concealed Flange Design: The hidden header flanges offer clean lines for exposed conditions and allow installation close to the end of the supporting beam, enhancing aesthetic appeal without compromising structural integrity.
- G90 Galvanized Finish: Provides standard corrosion resistance suitable for most indoor and dry applications.
- Versatile Applications: Designed to accommodate a wide range of joist sizes, these hangers are suitable for solid sawn lumber, engineered wood products, and cold-formed steel (CFS) joists.
- Code Compliance: HUC-series hangers are tested, load-rated, and comply with building codes, ensuring reliable performance in structural applications.
Installation:
- Fasteners: For G90 galvanized hangers, use hot-dip galvanized nails to ensure maximum corrosion resistance.
- Optional Triangle Holes: Some models feature extra optional triangle holes for additional load capacity; to achieve maximum loads, fill both round and triangle holes with common nails.
Applications:
- Decks & Outdoor Structures: Provides strong, concealed connections for deck framing, pergolas, and covered porches.
- Floor Joists & Ceiling Framing: Ensures secure joist connections in residential and commercial construction.
- Multi-Family Housing & Commercial Buildings: Used in large-scale framing applications for apartments, offices, and mixed-use buildings.
- Engineered Wood & Steel Framing: Compatible with LVL, PSL, and CFS joists for advanced construction needs.
- Retrofitting & Renovation Projects: Ideal for reinforcing existing structures while maintaining a clean, unobtrusive look.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
