SKU: HUS26-2TF

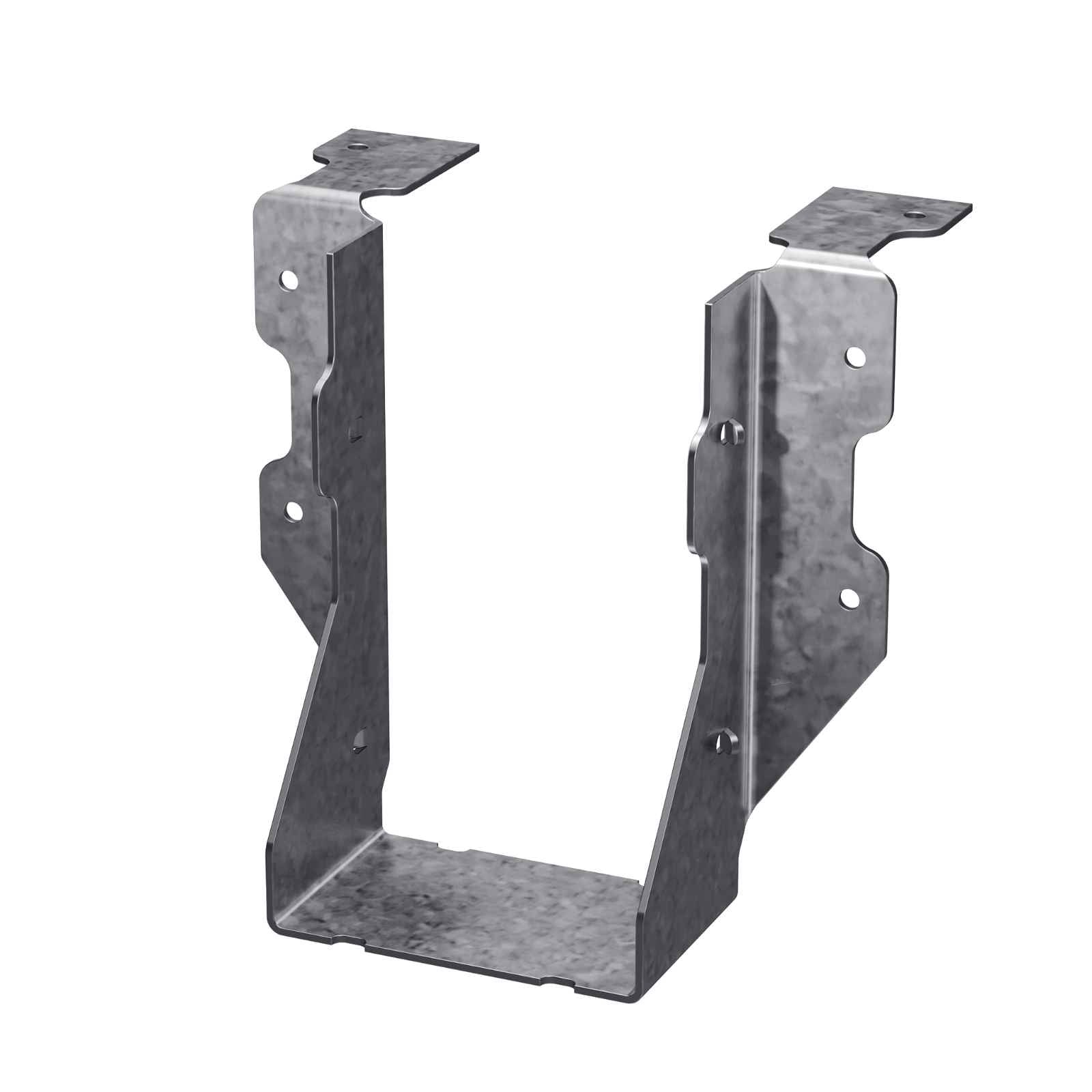

Simpson HUS26-2TF Double 2x6 Top Flange Face Mount Hanger - G90 Galvanized

Simpson HUS26-2TF Double 2x6 Top Flange Face Mount Hanger - G90 Galvanized!

Skip to product information
1 of 3
$25.00

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 9 hours 27 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Fast Shipping

Shipping & Returns

Bulk Pricing Discounts

Business Solutions

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Finish: G90 Galvanized
Material: Carbon Steel
Fasteners required: Face - (6) 0.162" x 3-1/2" Nails Joist - (4) 0.162" x 3-1/2" Nails
For Treated Lumber: No
Height: 5-3/8"
Joist size: Double 2" X 6"
Manufacturer name: Simpson Strong-Tie
Thickness: 14 Gauge
Width: 3-1/8"
Description

The HUSTF Heavy U-Shaped Top Flange Hanger is engineered for high-load applications, offering superior strength and stability in wood-to-wood connections. Designed for solid sawn lumber, this hanger features a U-shaped design that fully encapsulates the beam, ensuring a secure fit and enhanced load capacity.

Crafted from G90 galvanized steel, the HUSTF hangers provide exceptional corrosion resistance, making them ideal for interior, dry environments and general construction projects. Whether you’re working on residential, commercial, or industrial wood framing applications, these hangers deliver reliable performance and long-term durability.

Key Features:

  • Heavy-Duty Construction: Engineered for high-load conditions and demanding structural applications.
  • G90 Galvanized Coating: Provides corrosion resistance suitable for indoor and dry-use environments.
  • Full U-Shaped Wrap: Securely encases the carried beam for optimal load distribution and stability.
  • Optimized for Solid Sawn Lumber: Designed to support various beam widths and depths while ensuring a snug, load-rated connection.
  • Top Flange Design: Allows for secure installation on supporting members, improving structural integrity.

Installation:

  • Flange Fastening: Installed using face nails or structural screws for a secure connection to the support beam.
  • Joist Fastening: Requires nails or screws in the designated side holes to fasten the joist securely within the hanger.
  • Ensure Flush Installation: The top flange should sit flush against the supporting member to maximize load distribution.
  • Follow Manufacturer’s Load Tables: Always reference Simpson Strong-Tie’s published load values to verify hanger performance for your specific application.

Applications:

  • Floor Framing: Securely connects joists to beams for enhanced floor system stability.
  • Roof Trusses & Rafters: Provides strong, load-rated connections in roof framing applications.
  • Commercial Construction: Used in heavy-duty structural applications where strength and reliability are essential.
  • Industrial Wood Structures: Supports engineered wood framing in warehouses, manufacturing facilities, and industrial buildings.
  • Decks & Outdoor Structures (in covered, dry locations): Ensures solid beam-to-beam connections in protected environments.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
