SKU: HWP612

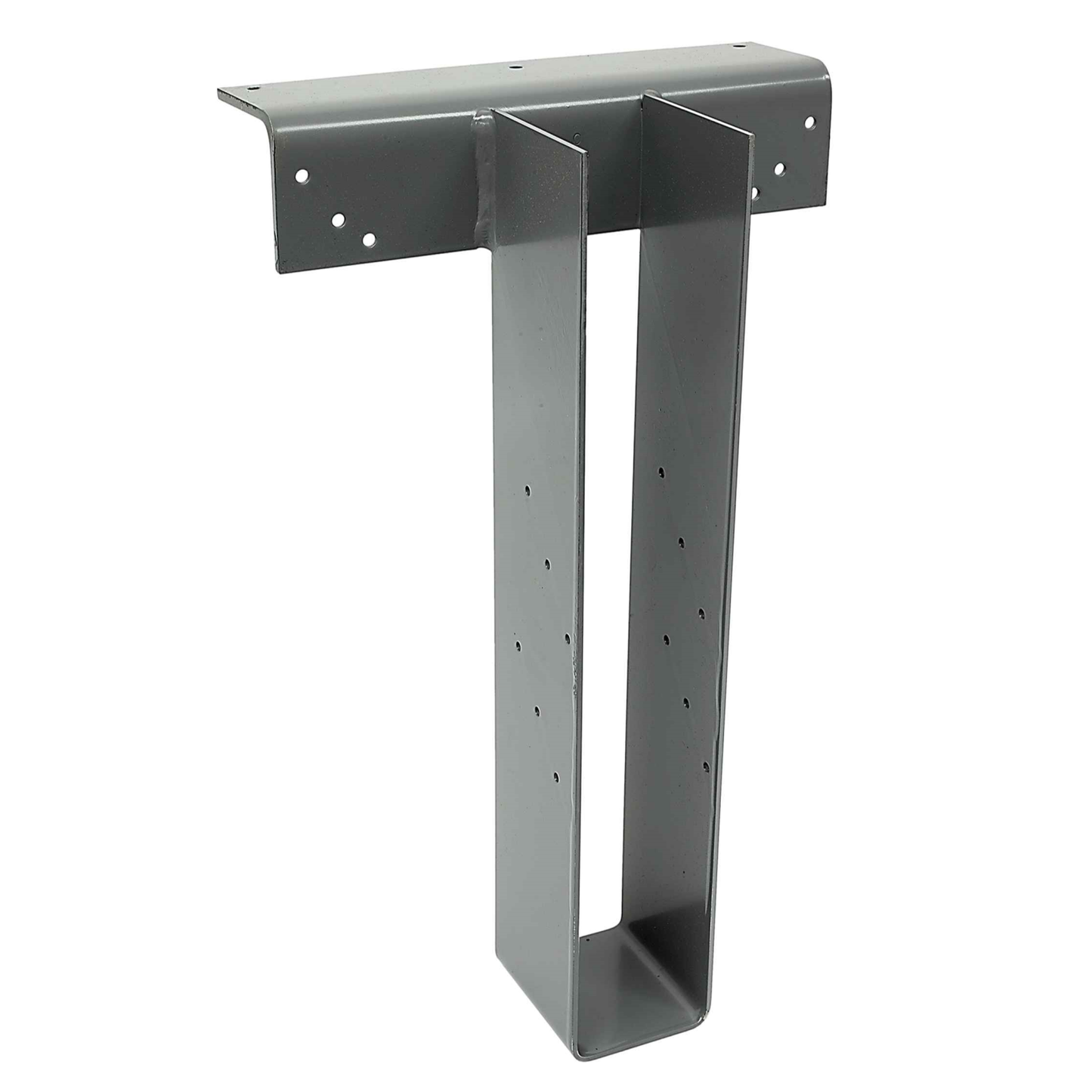

Simpson HWP612 High Wind Uplift Purlin Hanger - Gray Paint, Made to Order Non-Returnable

Simpson HWP612 High Wind Uplift Purlin Hanger - Gray Paint, Made to Order Non-Returnable!

Skip to product information
1 of 4
$38.65

Request Bulk Pricing
Request Bulk Pricing
Made to Order
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Fast Shipping

Shipping & Returns

Bulk Pricing Discounts

Business Solutions

Payment Options

American Express
Discover
Google Pay
Mastercard
PayPal
Shop Pay
Venmo
Visa

Specifications

Finish: Gray Paint
Material: Carbon Steel
Fasteners required: Refer to Spec Sheet
For Treated Lumber: No
Joist size: 6" X 12"
Manufacturer name: Simpson Strong-Tie
Quantity: 1
Thickness: 7 / 12 Gauge Steel
Description

This item is made to order with varied lead times - Please call us at 888-794-1590 for exact lead times on this product

The Simpson Strong-Tie HWP High-Wind Purlin Hangers provide superior support for joists connecting to purlins or beams, offering exceptional uplift resistance. Designed to withstand high-wind conditions, these top-flange hangers enhance structural integrity across wood and cold-formed steel construction projects.

Key Features:

  • High Uplift Capacity: Engineered to provide reliable resistance against extreme wind forces.
  • Versatile Design: Accommodates sloped and skewed joist seats up to 45°, offering flexibility for various framing needs.
  • Durable Construction: Built with a 7-gauge top flange and 12-gauge stirrup for long-term structural performance.

Applications:

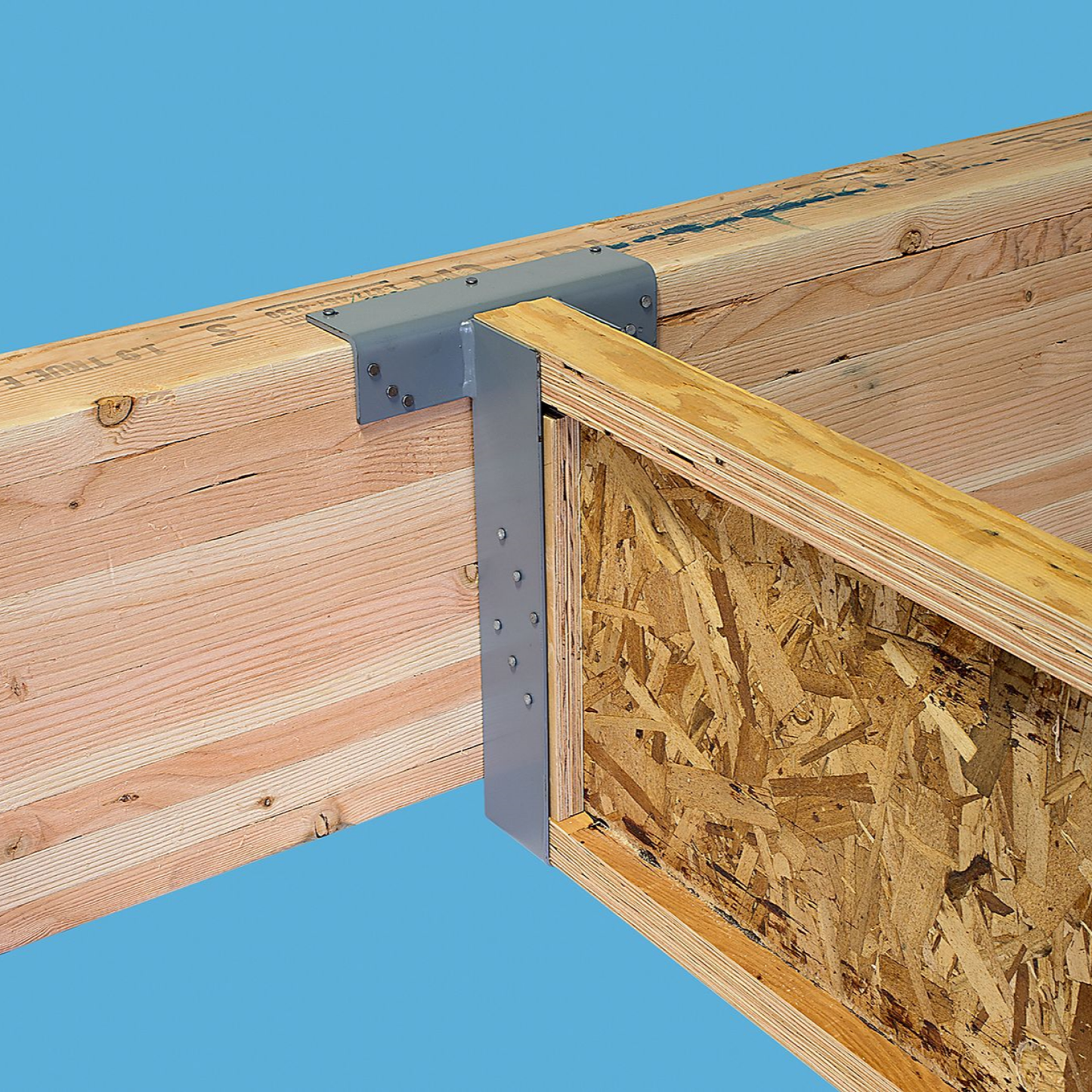

  • Wood and Cold-Formed Steel Construction: Suitable for securing joists to purlins or beams in both materials.
  • High-Wind Areas: Ideal for structures in hurricane or storm-prone regions where uplift resistance is critical.
  • Customizable Angles: Supports sloped and skewed joist connections, making it adaptable for complex construction layouts.

Installation:

  • Fastening Requirements: Use all specified fasteners according to manufacturer instructions for secure connections.

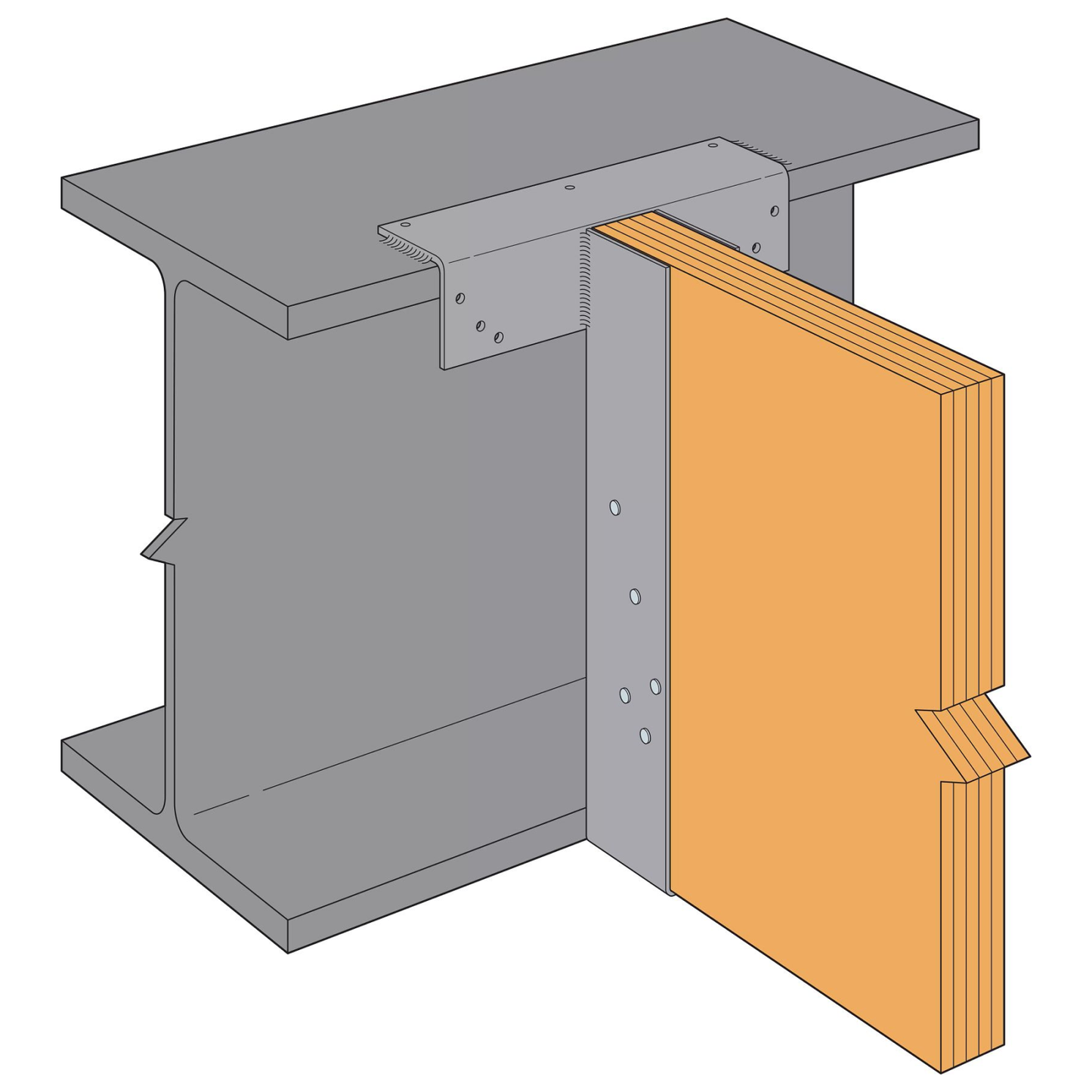

  • Weldable Top Flange: Can be welded to steel headers using 1 1/2-inch-long fillet welds on each side, matching the material thickness.
  • Modifications: Supports sloped top flanges up to 35° and opened or closed top flanges up to 30° for additional project flexibility.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
