SKU: LGUM210-3-SDS

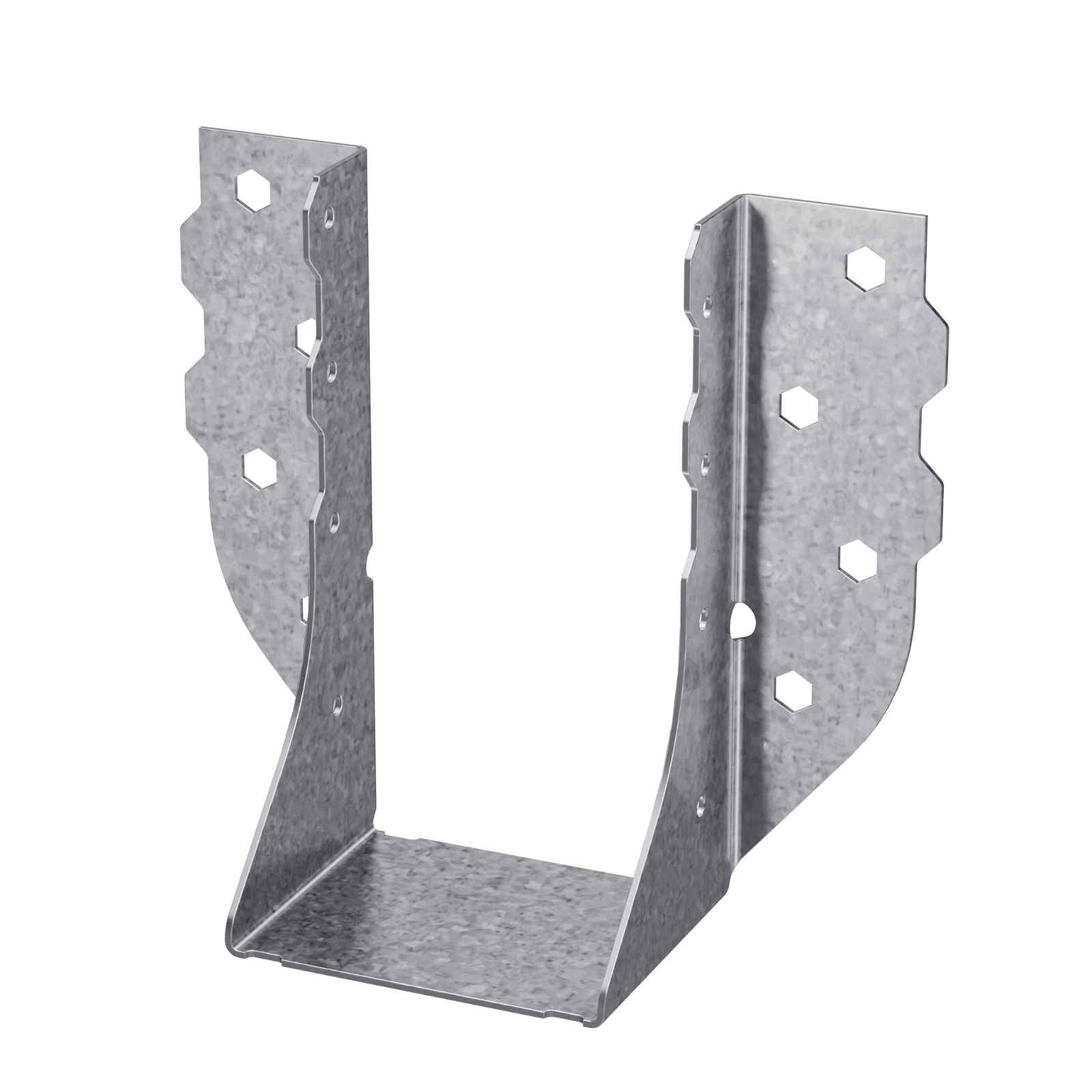

Simpson LGUM210-3-SDS Masonry Girder Hanger W/SDS Screws & Titen HD

Simpson LGUM210-3-SDS Masonry Girder Hanger W/SDS Screws & Titen HD!

  • Simpson LGUM2103SDS Masonry Girder Hanger WSDS Screws & Titen HD

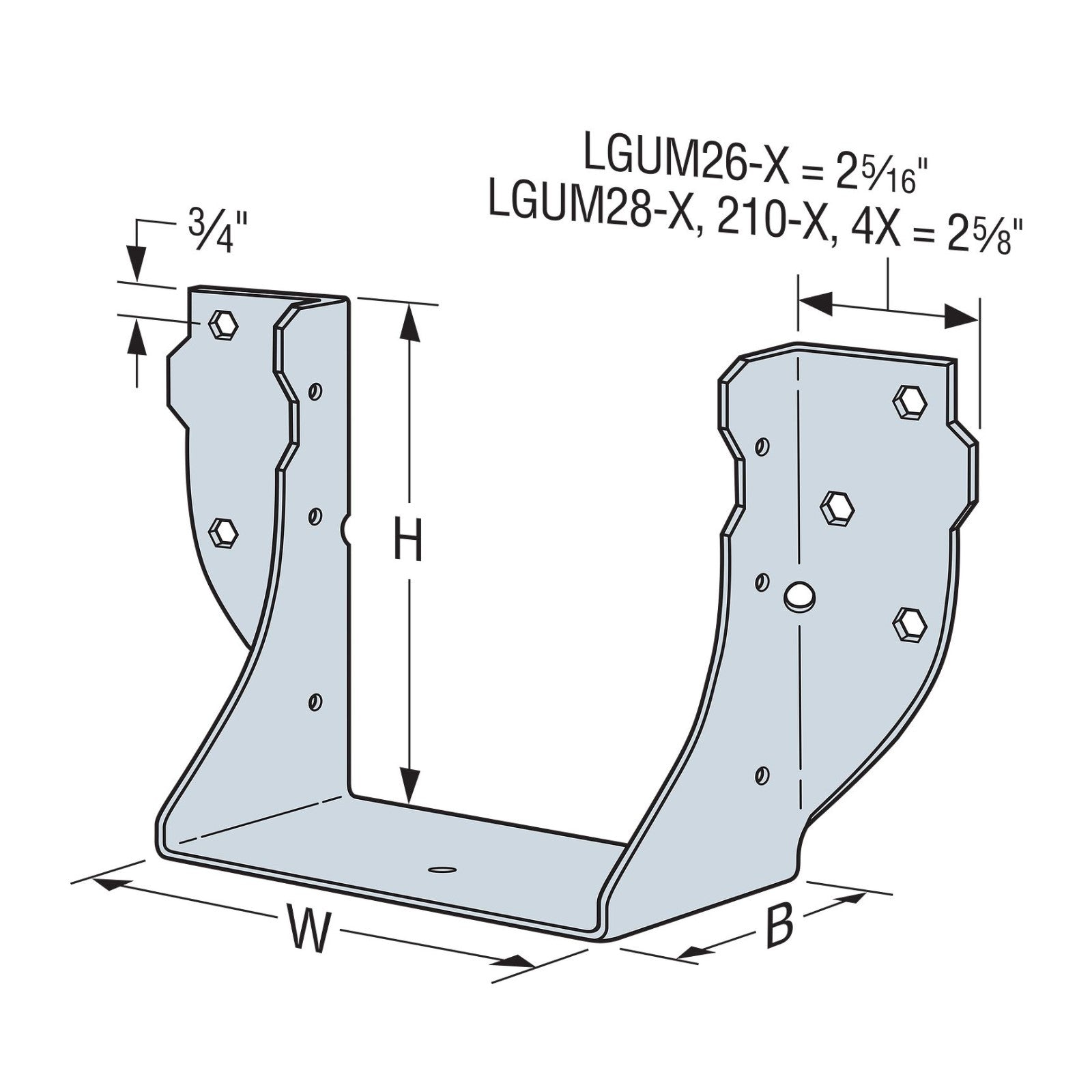

  • Simpson LGUM210 Masonry Girder Hanger specifications
  • Simpson LGUM210 Masonry Girder Hanger installation
1 3

Continue Browsing

LGUM/HGUM Masonry Girder Hangers
SKU: LGUM210-3-SDS

Simpson LGUM210-3-SDS Masonry Girder Hanger W/SDS Screws & Titen HD

$144.15

Request Bulk Pricing
Request Bulk Pricing
Made to Order
Ships in 2-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: All Fasteners Included
For Treated Lumber: No
Height: 9-1/4"
Manufacturer name: Simpson Strong-Tie
Description

Simpson Strong-Tie LGUM High-capacity beam or girder hangers for concrete or masonry applications. Installation is made easier using Simpson Strong-Tie® Strong-Drive® SDS Heavy-Duty Connector screws (provided) into the wood member and Titen HD® anchors (provided) into the masonry.


  • Use all specified fasteners (included).

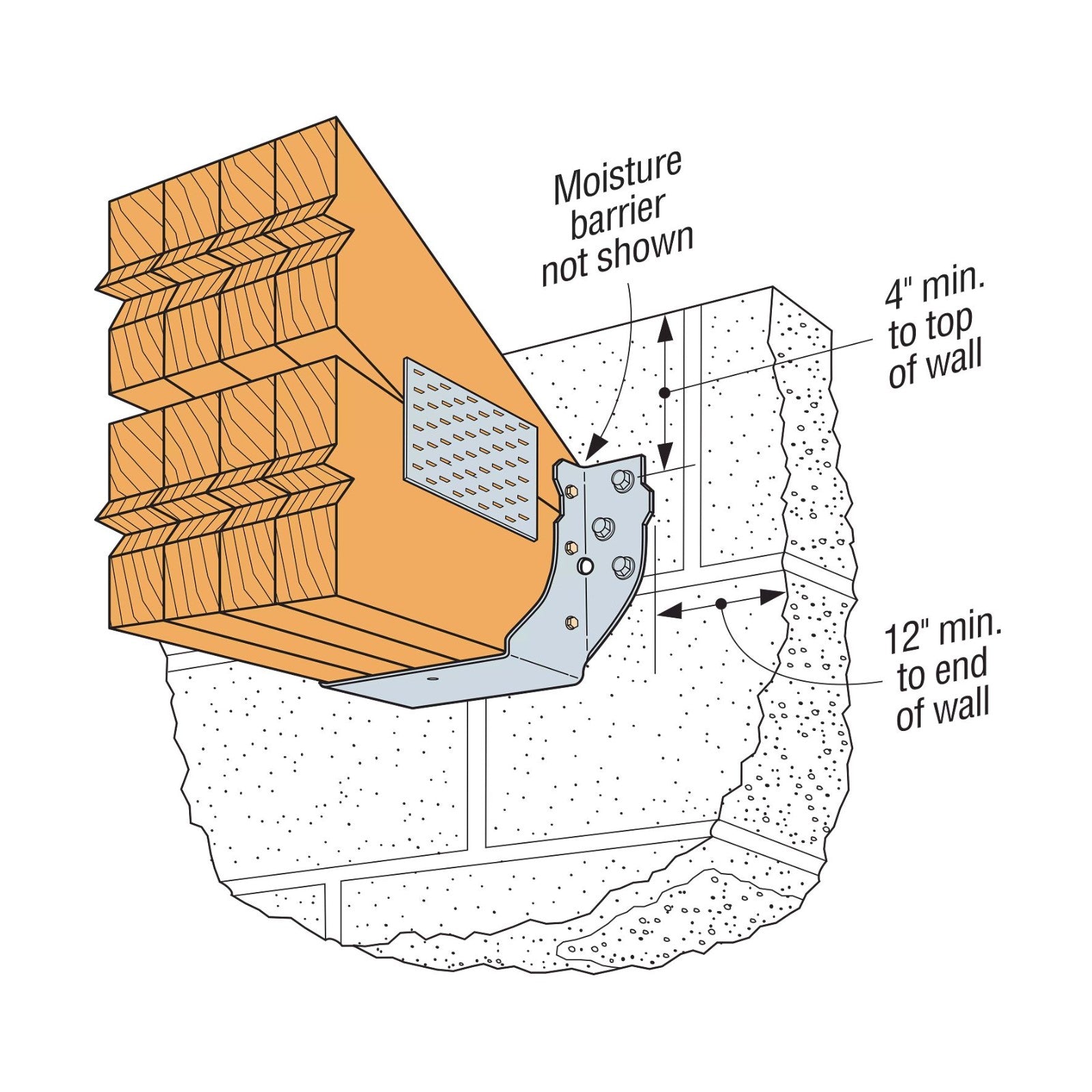

  • Attach hanger to a concrete or grouted CMU wall using Titen HD anchors. Note the following:
    • Drill holes using drill bits equal in diameter to the specified Titen HD anchor.
    • Holes shall be drilled 1/2" deeper than the specified Titen HD length (i.e. 41/2" for a 4" long Titen HD anchor)
    • Caution: Oversized holes in the base material will reduce or eliminate the mechanical interlock of the threads with the base material and will reduce the anchor's load capacity.
  • Titen HD is not recommended for exposed exterior applications.
  • Provide moisture barrier between beam and wall per jurisdictional requirements.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
