SKU: LSSJ210RZ

Simpson LSSJ210RZ Right Side Field Adjustable Jack Hanger -Zmax Finish

Simpson LSSJ210RZ Right Side Field Adjustable Jack Hanger -Zmax Finish!

Skip to product information
1 of 4

Continue Browsing

LSSJ/LSSR Rafter Hangers

$16.05

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 4 hours 31 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: ZMAX
Material: Carbon Steel
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
For Treated Lumber: Yes
Height: 8"
Joist size: 2X10
Manufacturer name: Simpson Strong-Tie
Width: 1-9/16"
Description

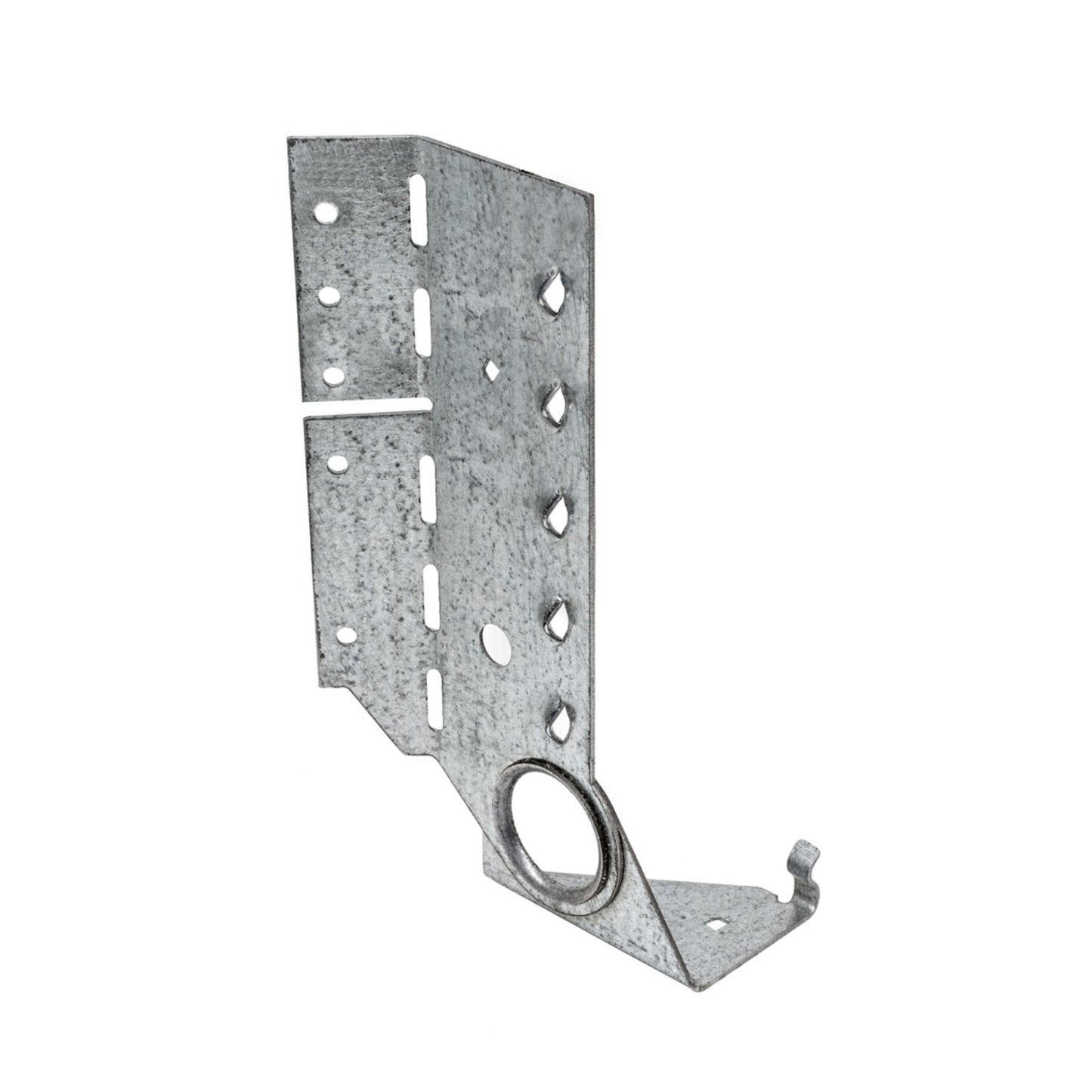

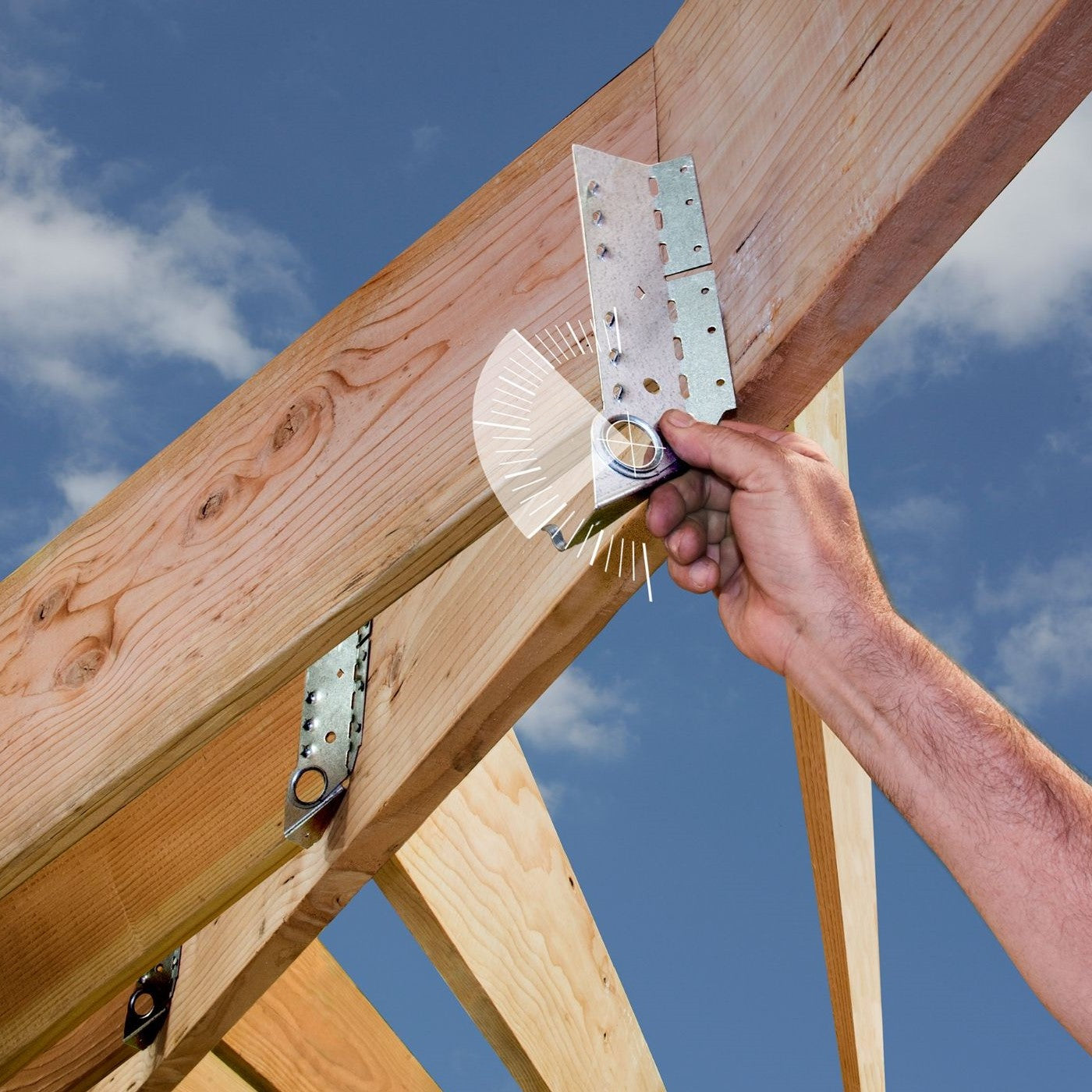

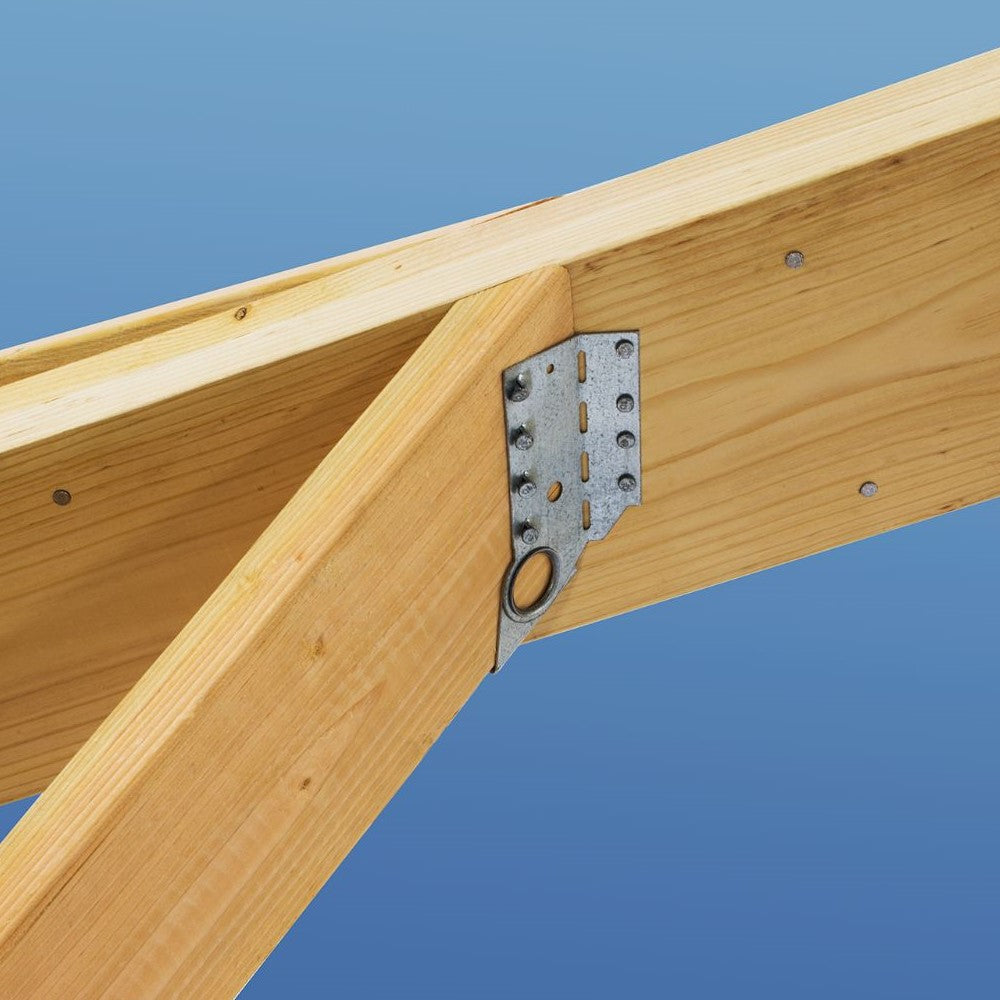

The Simpson Strong-Tie LSSJ series of light adjustable jack hangers create a one sided connection that features a hinged seat that is field adjustable 45 degrees up and down to fit all rafter slopes ranging from 0:12 to 12:12. The LSSJ210RZ can also be skewed in the field up to 45 degrees, making it one of the most versatile connectors offered by Simpson. This connector is shipped pre-bent to a 45 degree angle which is suited for the typical installation.
Installation:
  • Use all specified fasteners
  • For LSSJ210 an extra nail in the seat at load durations (115) and (125) adds 75 lb. to the 0.148" x 1 1/2" nails table downloads
  • Joist end needs to be bevel cut
  • Table and illustration shows left and right skews LSSJR/L (LSSJR = skewed right; LSSJL = skewed left)

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
