Simpson LSSJ26LZ Left Side Field Adjustable Jack Hanger -Zmax Finish
Simpson LSSJ26LZ Left Side Field Adjustable Jack Hanger -Zmax Finish!
Continue Browsing
LSSJ/LSSR Rafter Hangers
Specifications

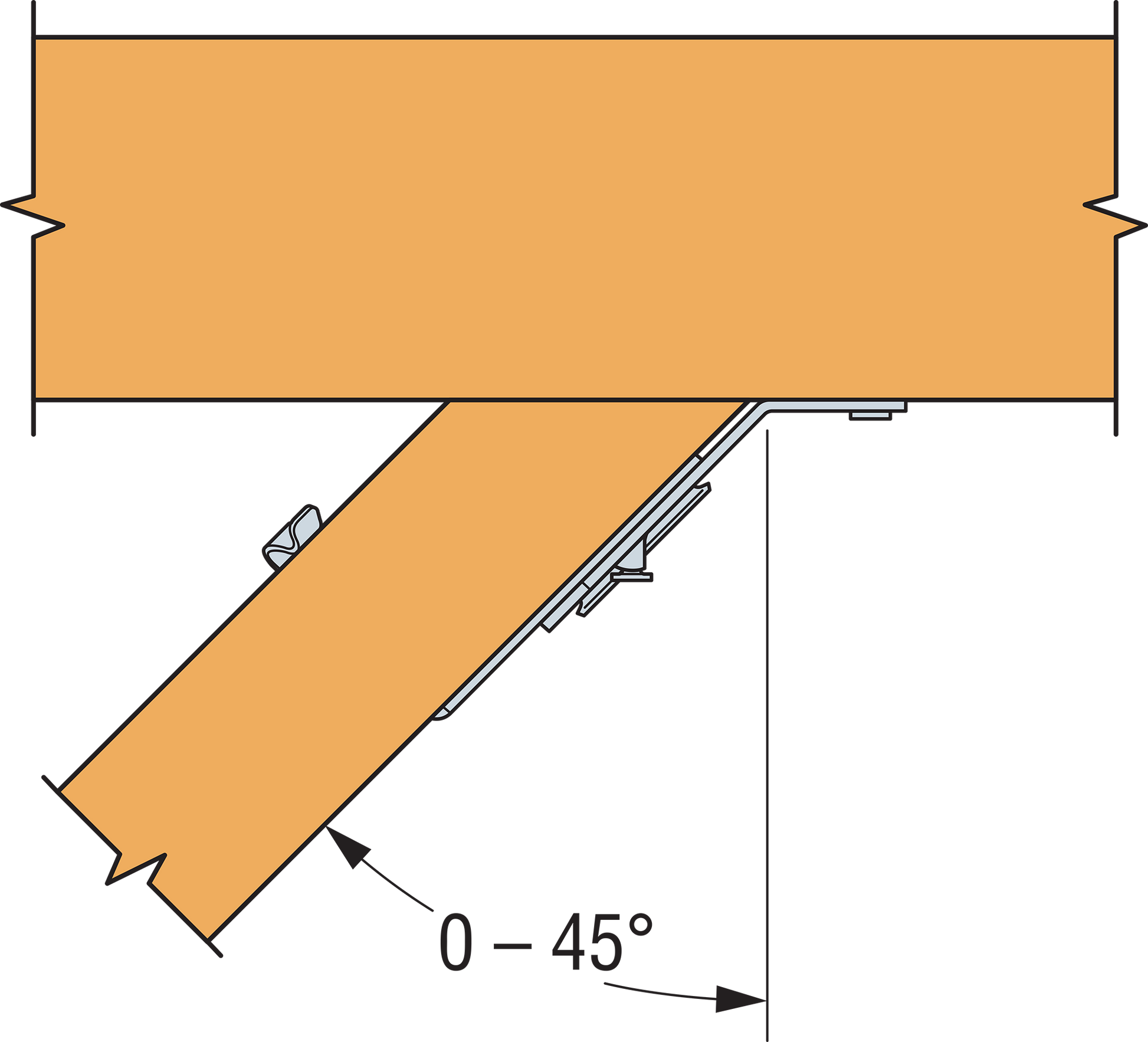

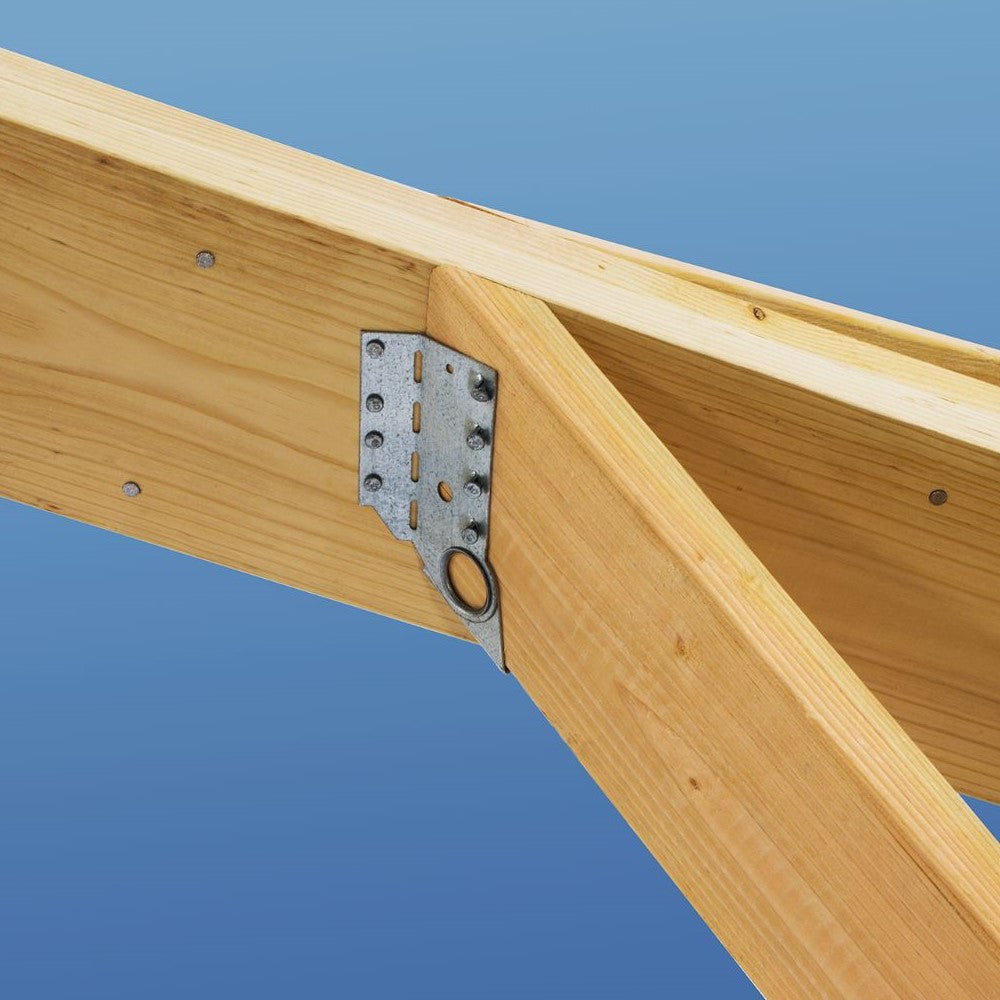

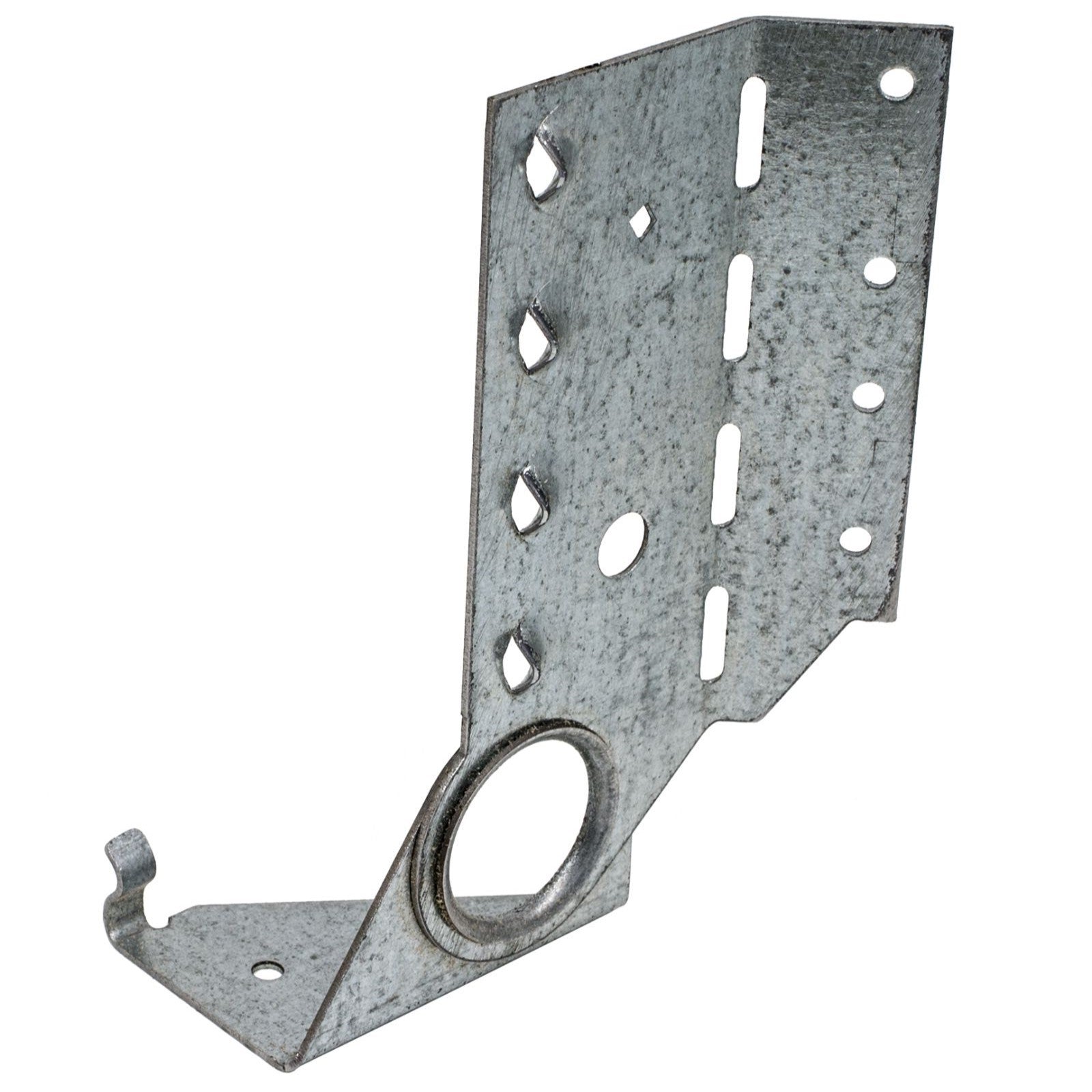

The LSSJ Left-Side Face-Mount Adjustable Jack Hanger is an innovative solution for sloped and skewed wood-to-wood connections, providing strong and secure support in demanding framing applications. Designed for solid sawn lumber, this hanger is adjustable for both skew (up to 45°) and slope (up to 45°), making it ideal for projects requiring precise angled connections.
Constructed with a ZMAX galvanized finish, the LSSJ hanger offers enhanced corrosion resistance, making it suitable for both interior and exterior applications, including environments with higher moisture exposure. Its face-mount design ensures easy installation, while pre-punched fastener holes help create a secure, code-compliant connection.
Key Features:
- Adjustable Slope and Skew: Accommodates up to 45° of slope and skew for flexible framing applications.
- Face-Mount Installation: Provides a strong, stable connection to beams and headers.
- ZMAX Galvanized Finish: Enhances corrosion resistance for protected outdoor and high-moisture environments.
- Solid Sawn Lumber Compatibility: Engineered for use with standard wood framing members.
- Pre-Punched Fastener Holes: Ensures proper fastener placement for a secure and reliable connection.
Installation:

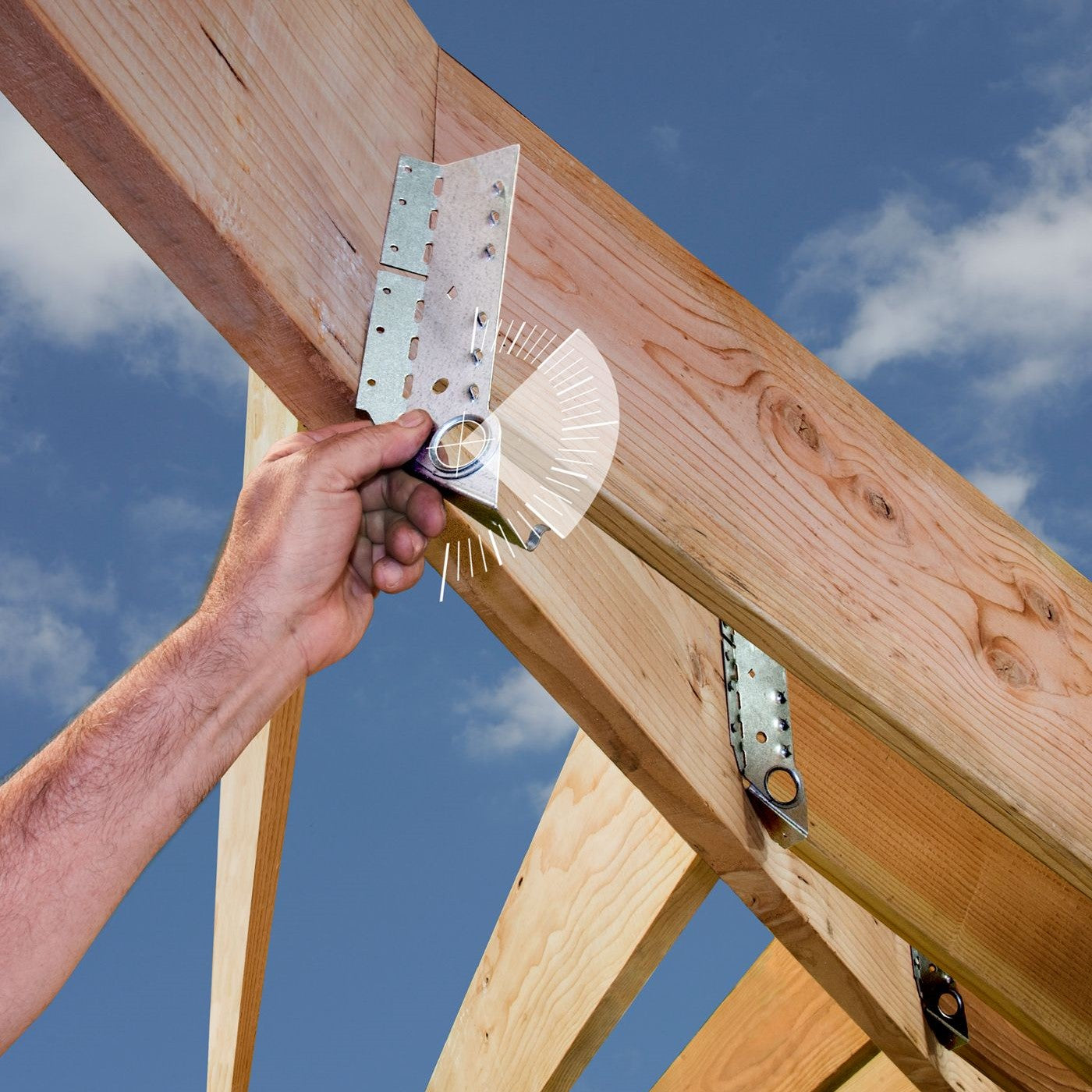

- Adjust the hanger to the required slope and skew angle before securing the joist.
- Use appropriate nails or structural screws for a firm, load-rated connection.
- Ensure full contact between the joist and hanger seat for maximum structural support.
Applications:
- Hip and Valley Framing: Perfect for complex roof framing projects requiring adjustable angled connections.
- Rafter and Ceiling Joists: Provides strong support for sloped and skewed rafters.
- Deck Framing: Ideal for attaching angled joists in multi-level decks or non-standard layouts.
- Beam-to-Beam Connections: Ensures stability in structures with intersecting beams at various angles.
- General Wood Framing: Versatile solution for residential, commercial, and light industrial wood framing applications.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
