SKU: MIU3.56/16

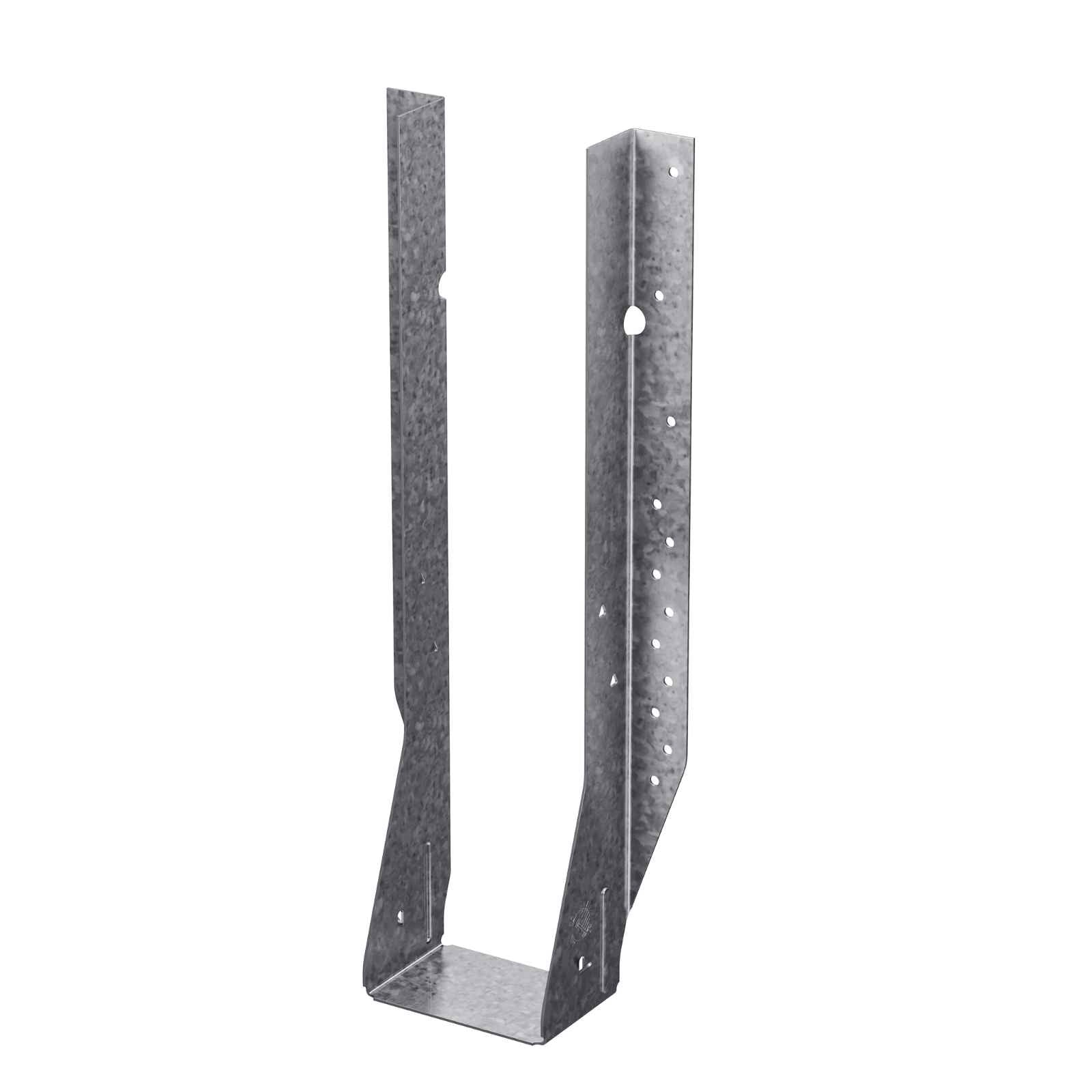

Simpson MIU3.56/16 Face Mount I-Joist Hanger - G90 Galvanized

Simpson MIU3.56/16 Face Mount I-Joist Hanger - G90 Galvanized!

  • Simpson MIU35616 Face Mount IJoist Hanger G90 Galvanized
  • Simpson Strong-Tie galvanized Face Mount I-Joist Hanger installed
  • Simpson Strong-Tie galvanized Face Mount I-Joist Hanger installation
1 3

Continue Browsing

MIU I-Joist Hangers
SKU: MIU3.56/16

Simpson MIU3.56/16 Face Mount I-Joist Hanger - G90 Galvanized

$30.45

Request Bulk Pricing
Request Bulk Pricing
Ships FREE today when you add 7 and order in the next 4 hours 11 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Fasteners required: Face - (24) 0.162" x 3-1/2" Nails Joist - (2) 0.148" x 1-1/2" Nails
For Treated Lumber: No
Height: 15-5/16"
Joist size: 3-1/2" X 16"
Manufacturer name: Simpson Strong-Tie
Width: 3-9/16"
Description

Simpson Strong-Tie MIU series hangers are designed for commercial and high load I-joist applications without requiring web stiffeners. The MIU features Positive Angle Nailing (PAN), which minimizes splitting of the flanges while permitting time-saving nailing from a better angle. The Strong-Tie MIU3.56/16 face mount joist hanger features a G90 galvanized finish for corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners. Verify that the header can take the required fasteners specified in the table.
  • Models have optional triangle joist nail holes for additional uplift. Properly attached web stiffeners are required.
  • MIU—add four additional 10dx1 1/2" joist nails for a total uplift load of 975 lbs.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
