SKU: RTC2Z

Simpson RTC2Z 2x Rigid Tie Corner - ZMAX Finish

Simpson RTC2Z 2x Rigid Tie Corner - ZMAX Finish!

  • Simpson RTC2Z 2x Rigid Tie Corner ZMAX Finish image 1 of 5
  • Simpson RTC2Z 2x Rigid Tie Corner ZMAX Finish image 2 of 5
  • Simpson RTC2Z 2x Rigid Tie Corner ZMAX Finish image 3 of 5
  • Simpson RTC2Z 2x Rigid Tie Corner ZMAX Finish image 4 of 5
  • Simpson RTC2Z 2x Rigid Tie Corner ZMAX Finish image 5 of 5
1 5

Continue Browsing

RTC/FWH Rigid Tie Connectors
SKU: RTC2Z

Simpson RTC2Z 2x Rigid Tie Corner - ZMAX Finish

$6.44

Request Bulk Pricing
Request Bulk Pricing
Ships Nov 27
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Fasteners required: SEE PRODUCT GUIDE DOCUMENT
For Treated Lumber: Yes
Joist size: 2X
Manufacturer name: Simpson Strong-Tie
Post size: 2X
Description

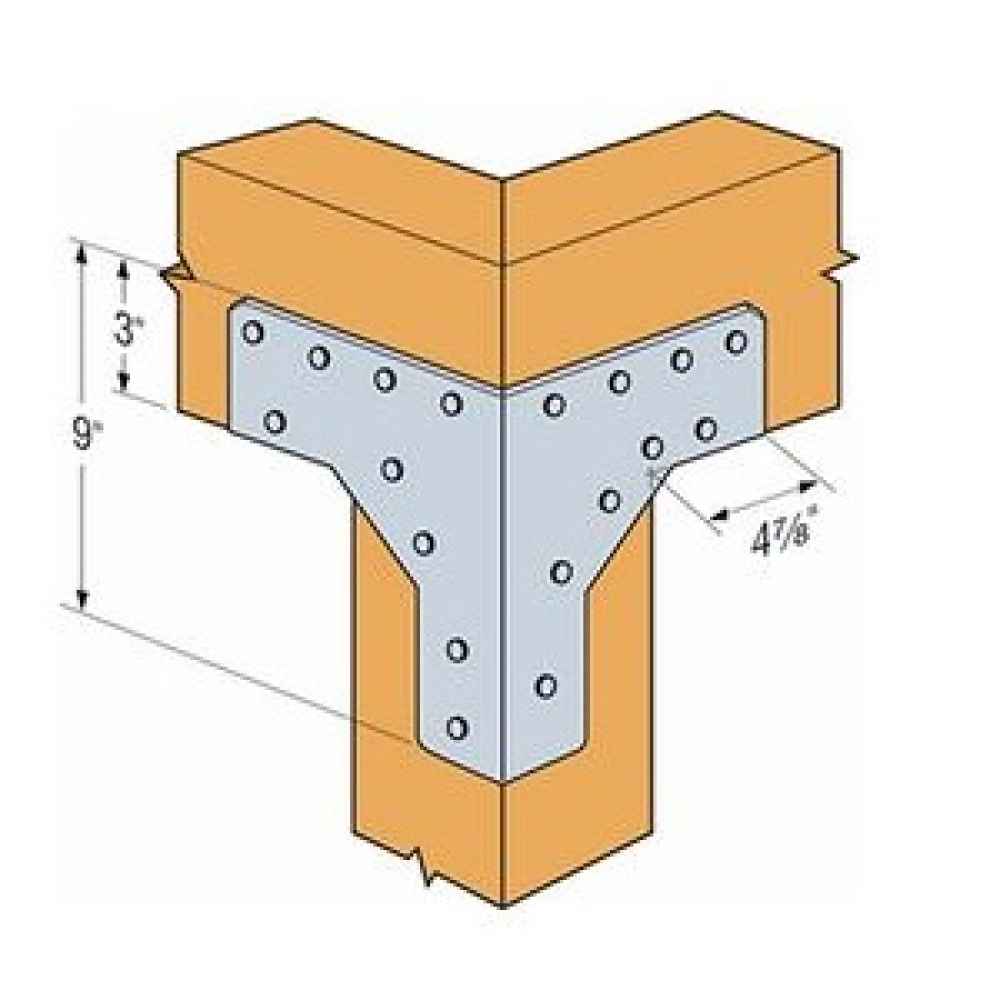

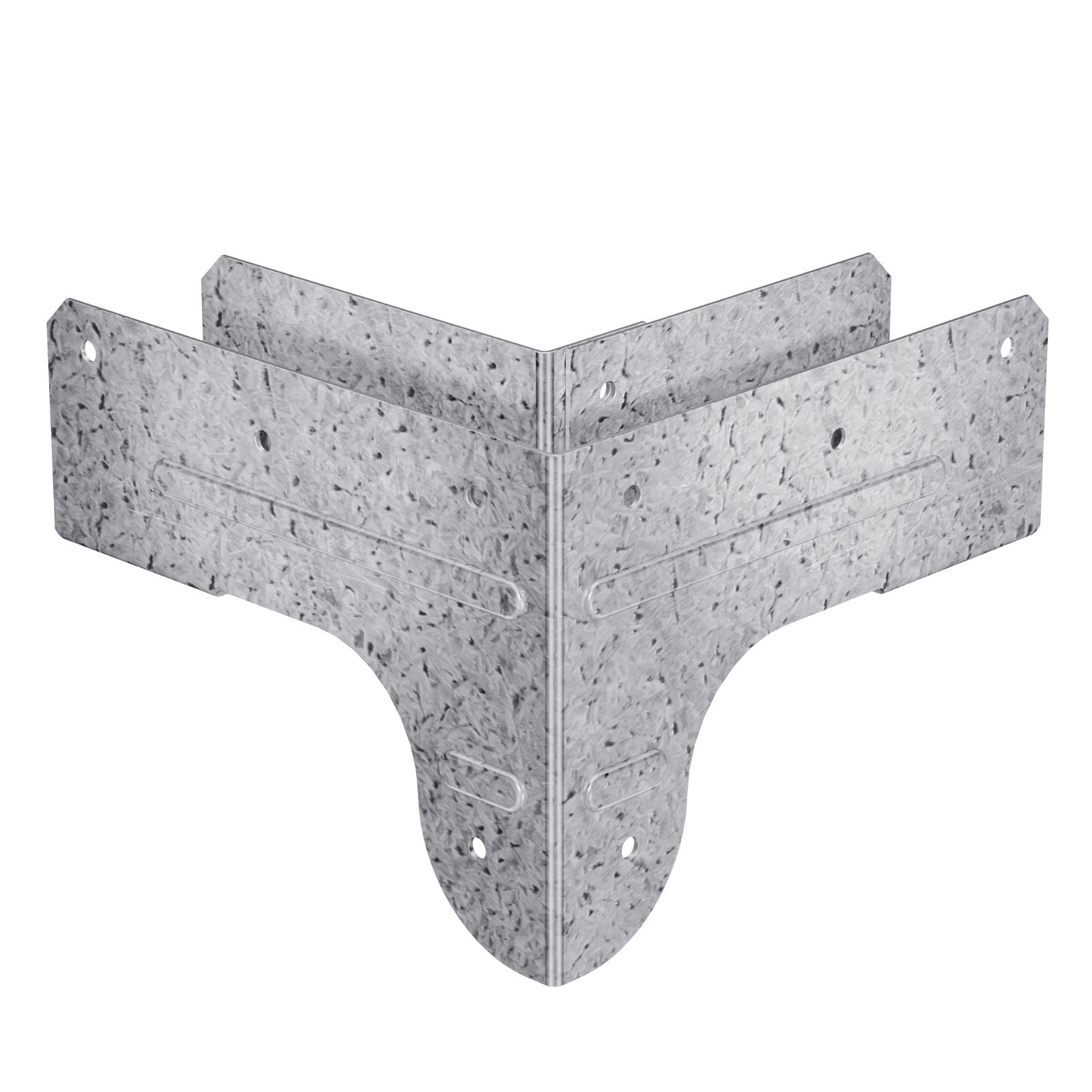

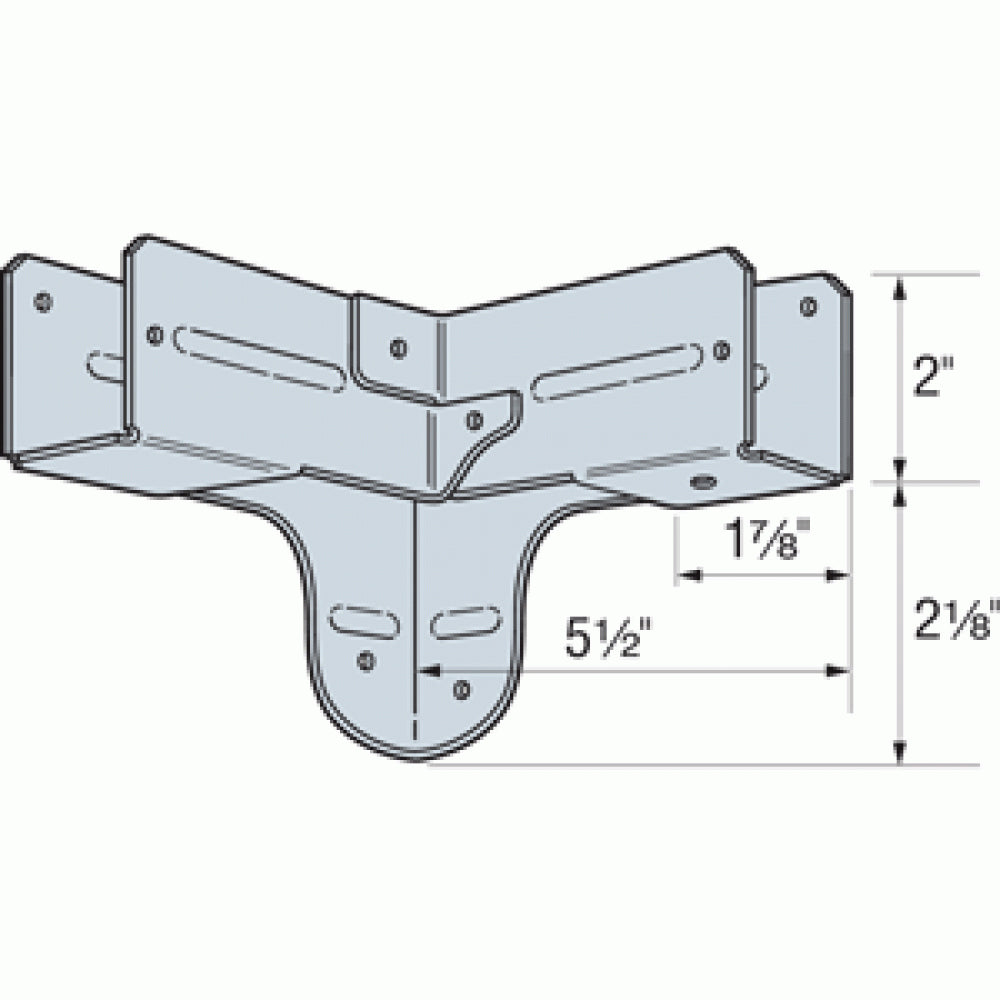

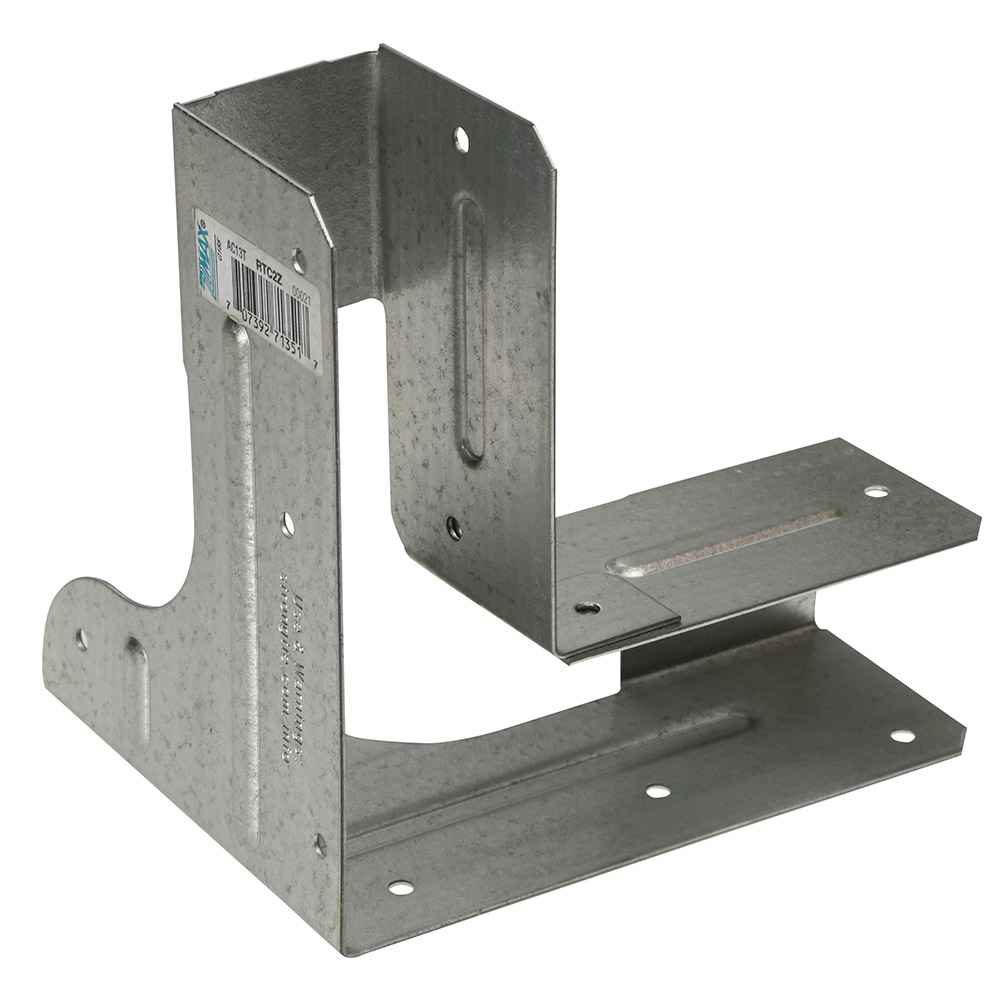

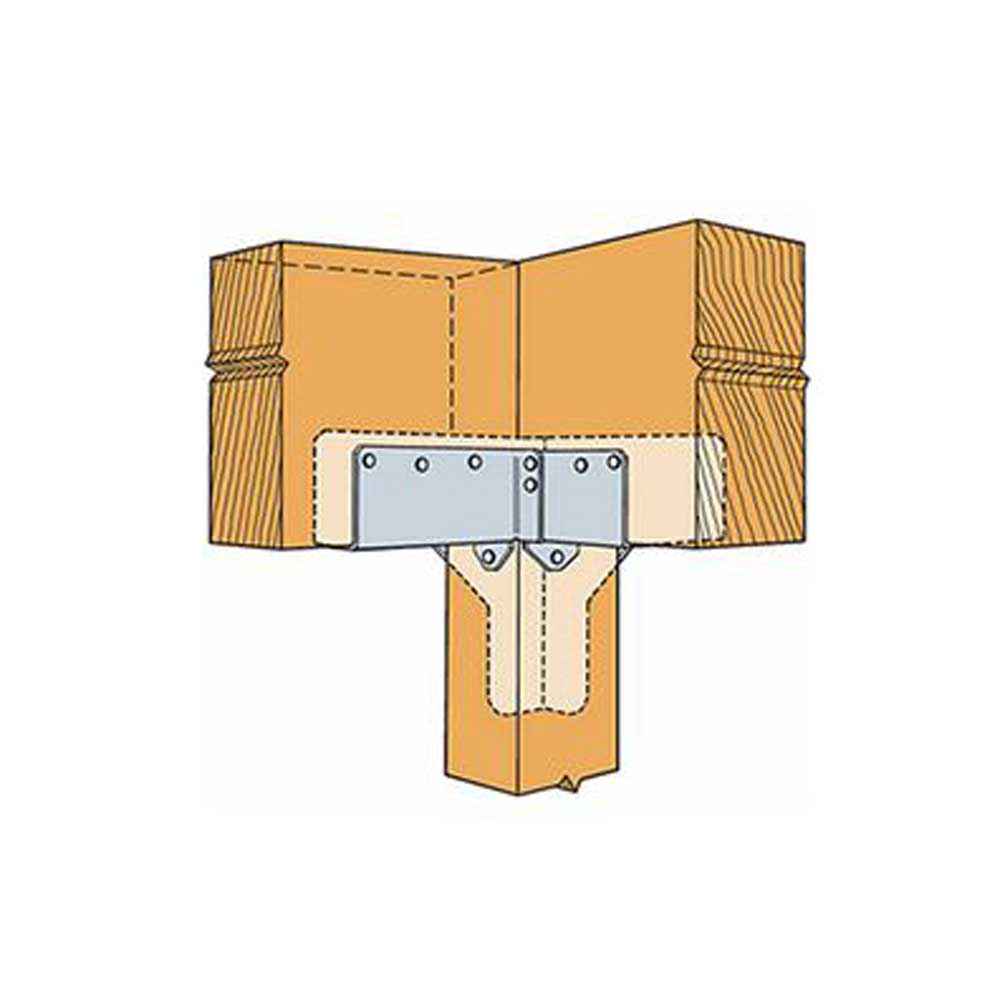

The Strong-Tie RTC Corners are used to secure 2 wood members to a vertical post forming a 90° corner. The RTC2Z rigid tie corner is approved to be installed with the specified nails or with Strong-Drive SD connector screws. The Strong-Tie RTC2Z rigid tie corner features a G185 ZMAX galvanized finish for added corrosion resistance and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


*This part supersedes and replaces old part number RTC24*

Installation:
  • Use all specified fasteners.
  • Install vertical members first, then attach horizontal members for easier alignment.
  • Seat wood member in bracket with a C-clamp before securing to aid positioning and prevent skewing.
  • Always follow manufacturer's instructions when using power tools and building equipment.

    • NOTE: The correct fasteners installed in the correct position must be used to achieve published load values

    Looking for something different? See the rest of our Simpson Adjustable Post Caps.
