SKU: SUL5.12/11

Simpson SUL5.12/11 Joist Hanger Skewed Left - Galvanized

Simpson SUL5.12/11 Joist Hanger Skewed Left - Galvanized!

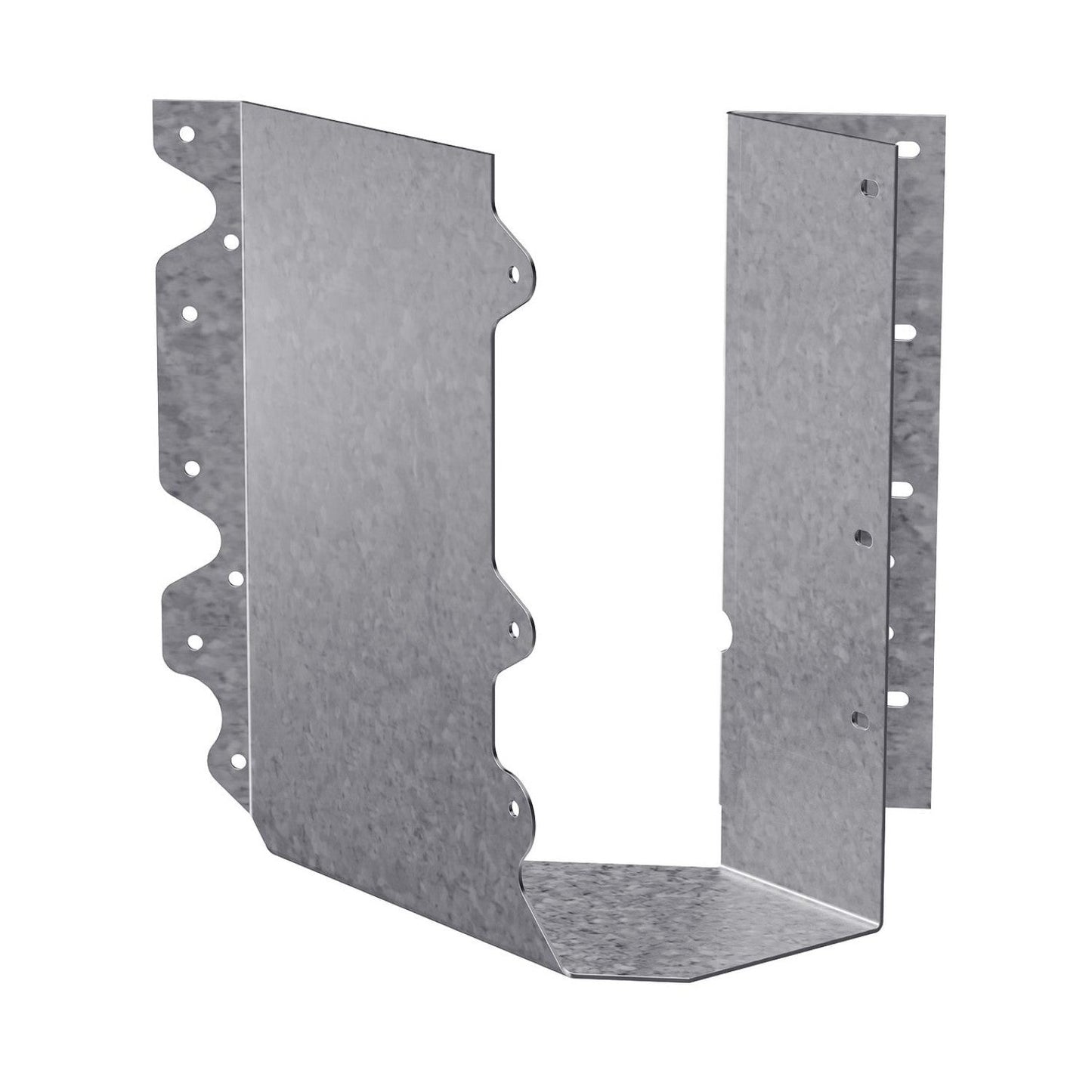

  • SU Skewed U-Shaped Hanger - SUR410 Shown

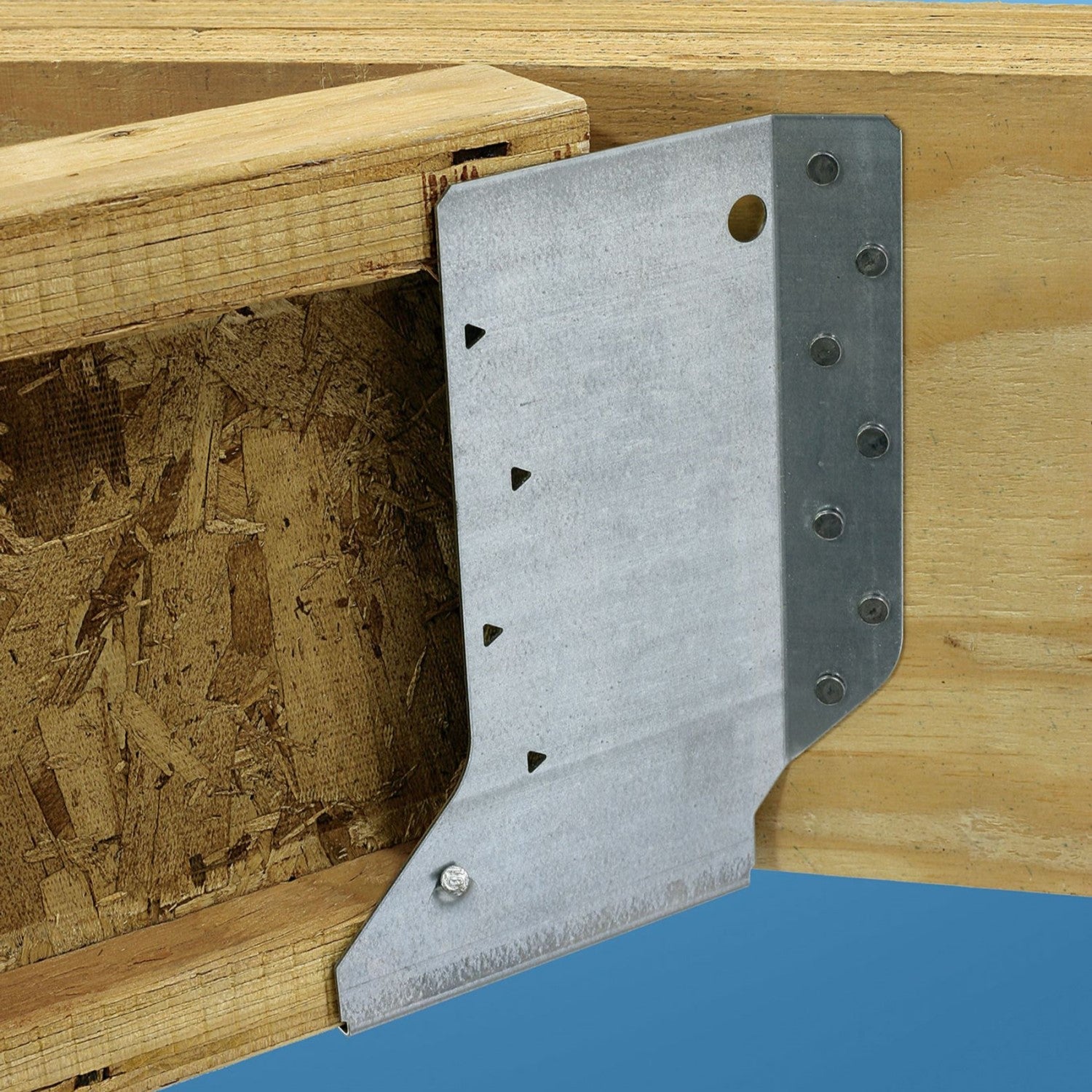

  • SU Skewed U-Shaped Hanger - SUL Installed

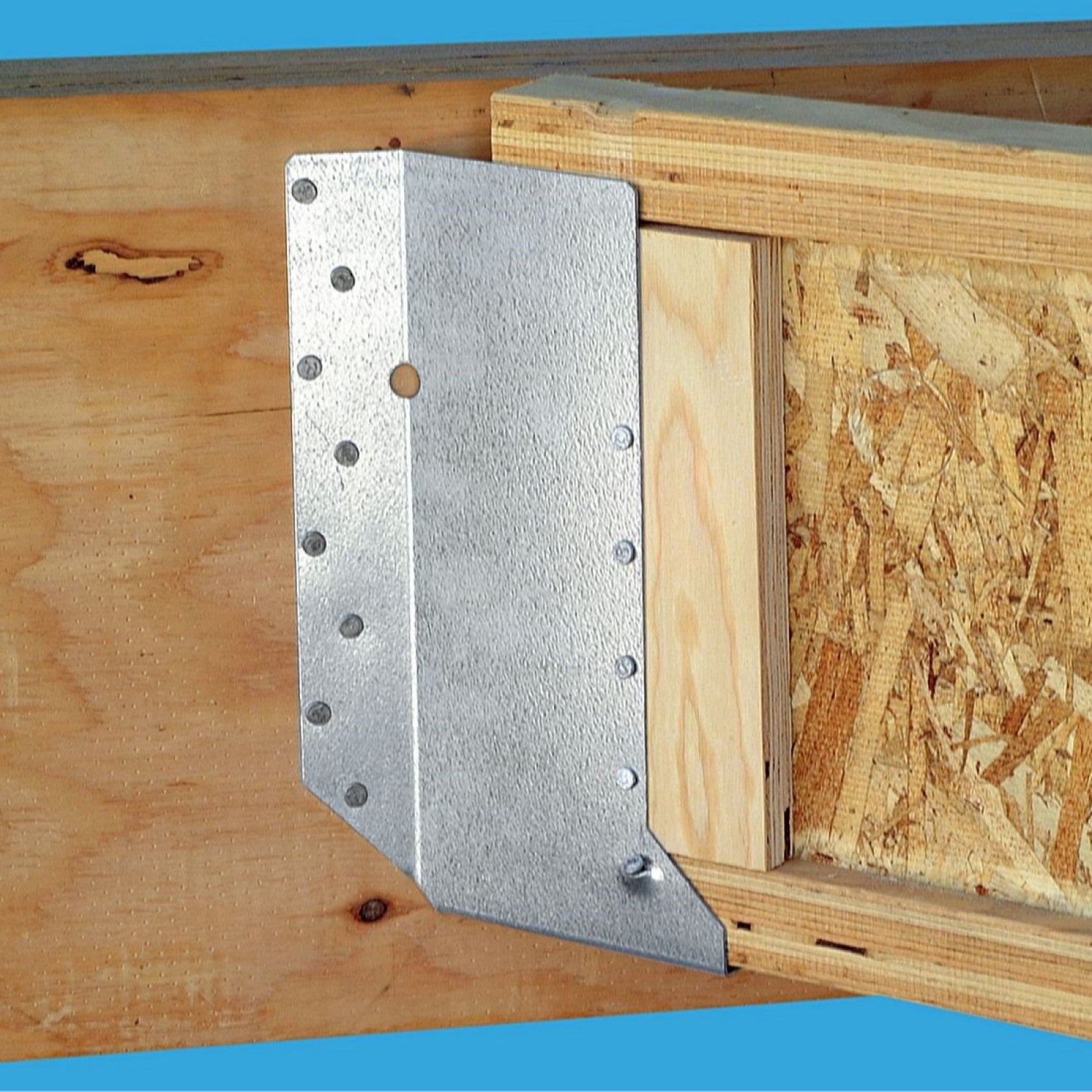

  • SUR Installed – with web stiffener
  • Simpson Strong-Tie SUL specifications

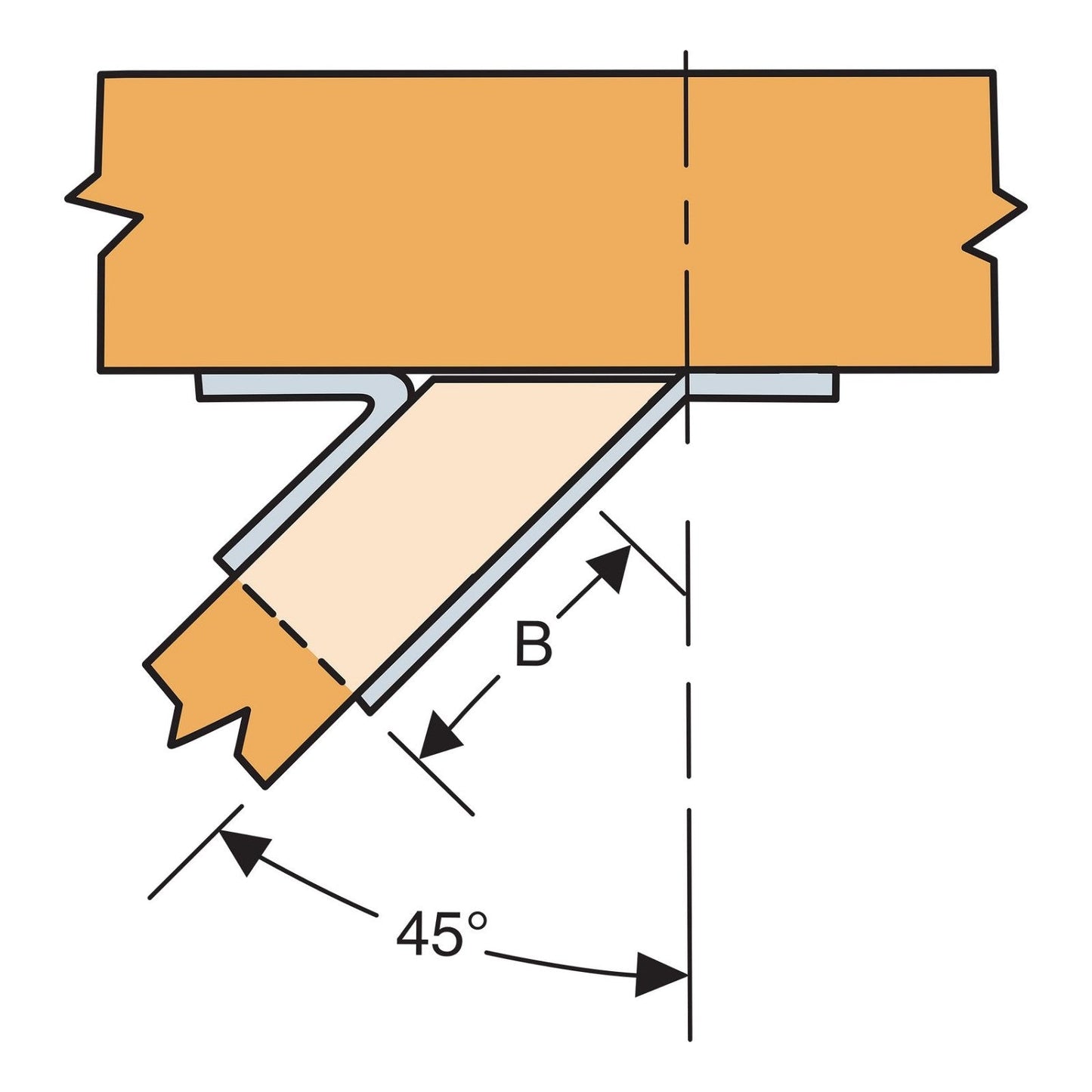

  • Typical SUL Installation with Bevel Cut Joist (HSUL similar)

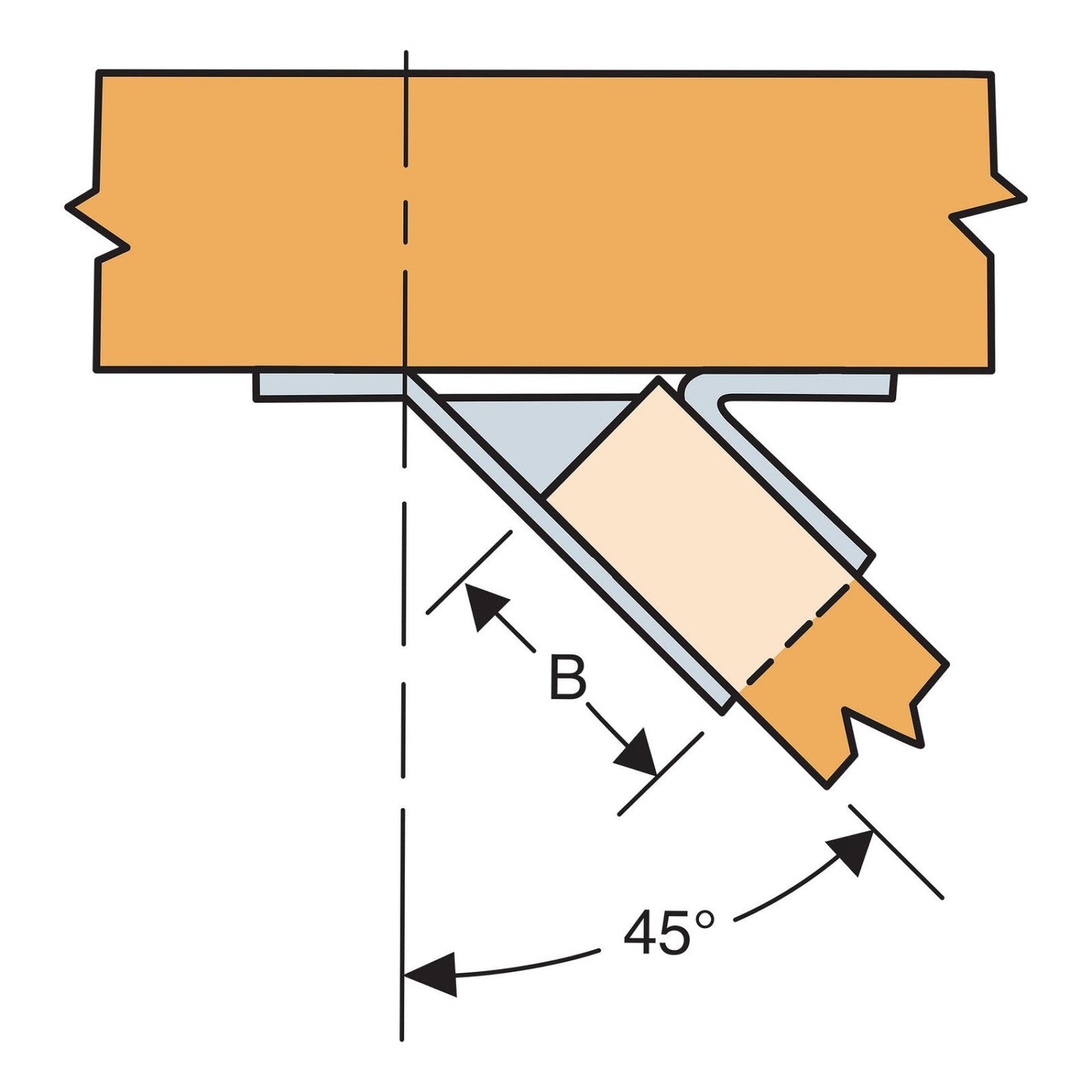

  • Typical SUR Installation with Square Cut Joist (HSUR similar)
1 6

Continue Browsing

SUR/SUL/HSUR/HSUL Skewed 45 Degree Hangers
SKU: SUL5.12/11

Simpson SUL5.12/11 Joist Hanger Skewed Left - Galvanized

$43.15

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Nov 18 when you add 5 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Material: Galvanized Steel
Fasteners required: Face - (16) 0.162" x 3-1/2" Nails Joist - (2) 0.148" x 1-1/2" Nails
Height: 11"
Manufacturer name: Simpson Strong-Tie
Quantity: 1
Thickness: 16 Gauge
Width: 5-1/8"
Description

Simpson Strong-Tie SUL joist hangers are skewed 45 degrees left and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUL5.12/11 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.
  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
