SKU: SUR410

Simpson SUR410 Joist Hanger Skewed Right - Galvanized

Simpson SUR410 Joist Hanger Skewed Right - Galvanized!

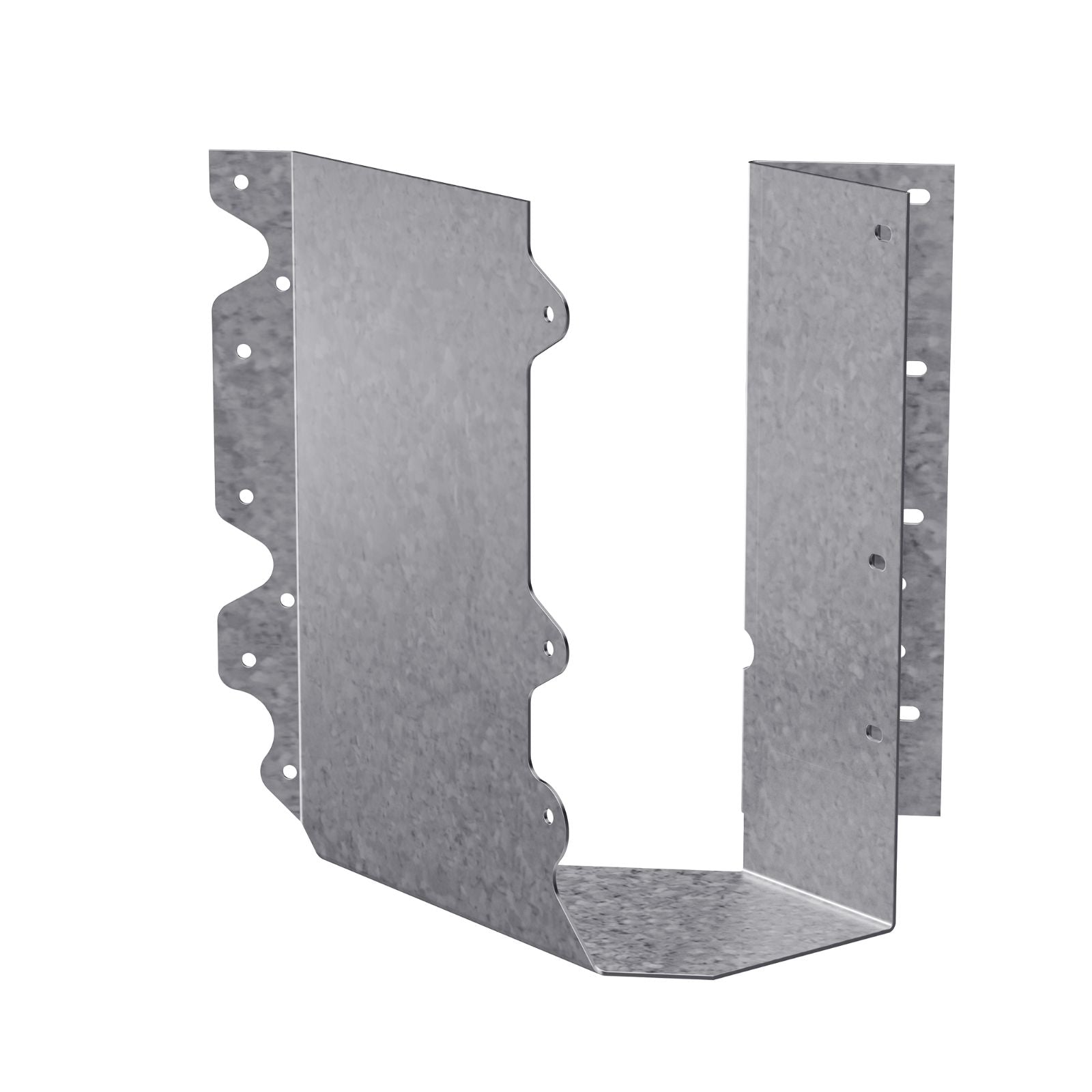

  • Simpson SUR410 Joist Hanger Skewed Right Galvanized image 1 of 2
  • Simpson SUR410 Joist Hanger Skewed Right Galvanized image 2 of 2

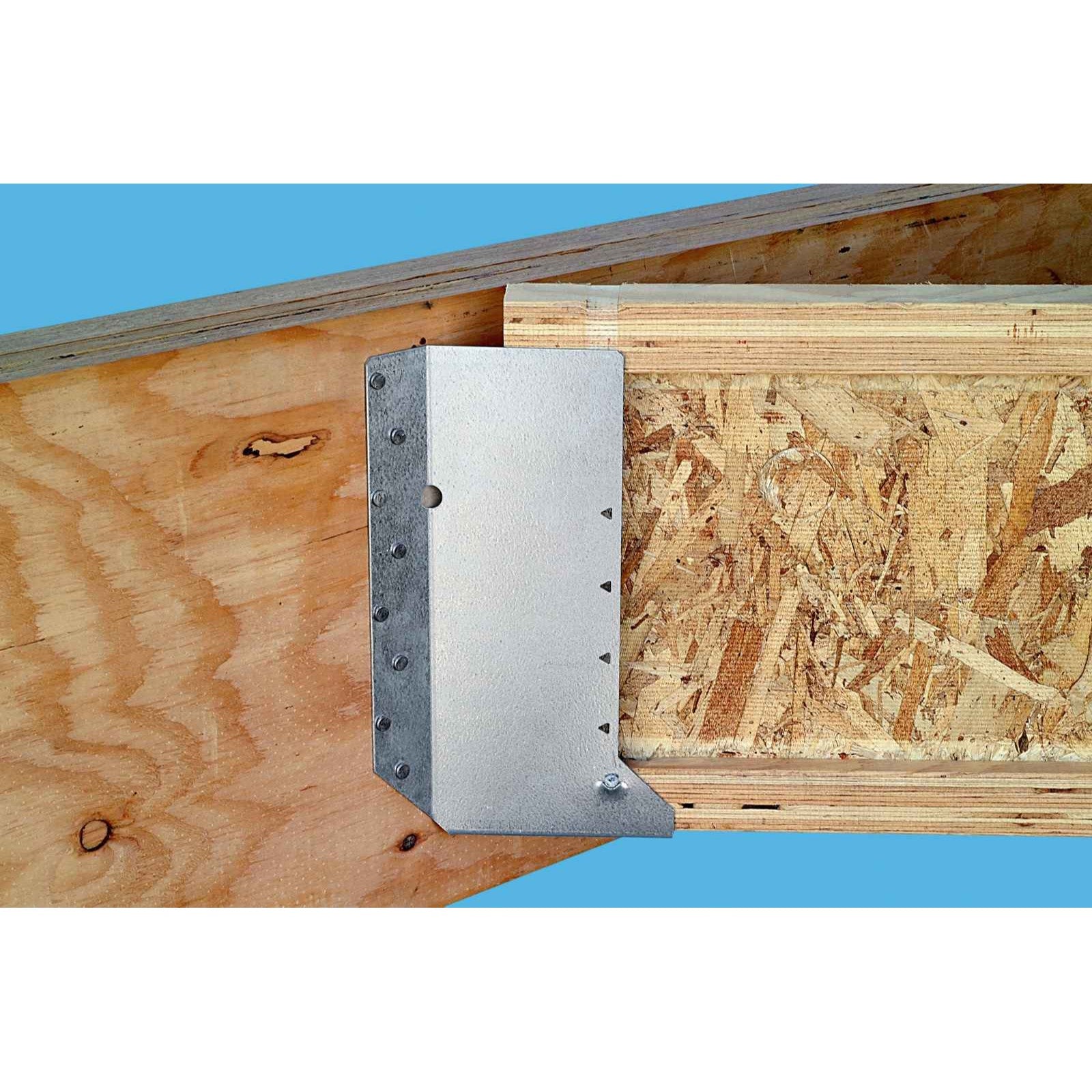

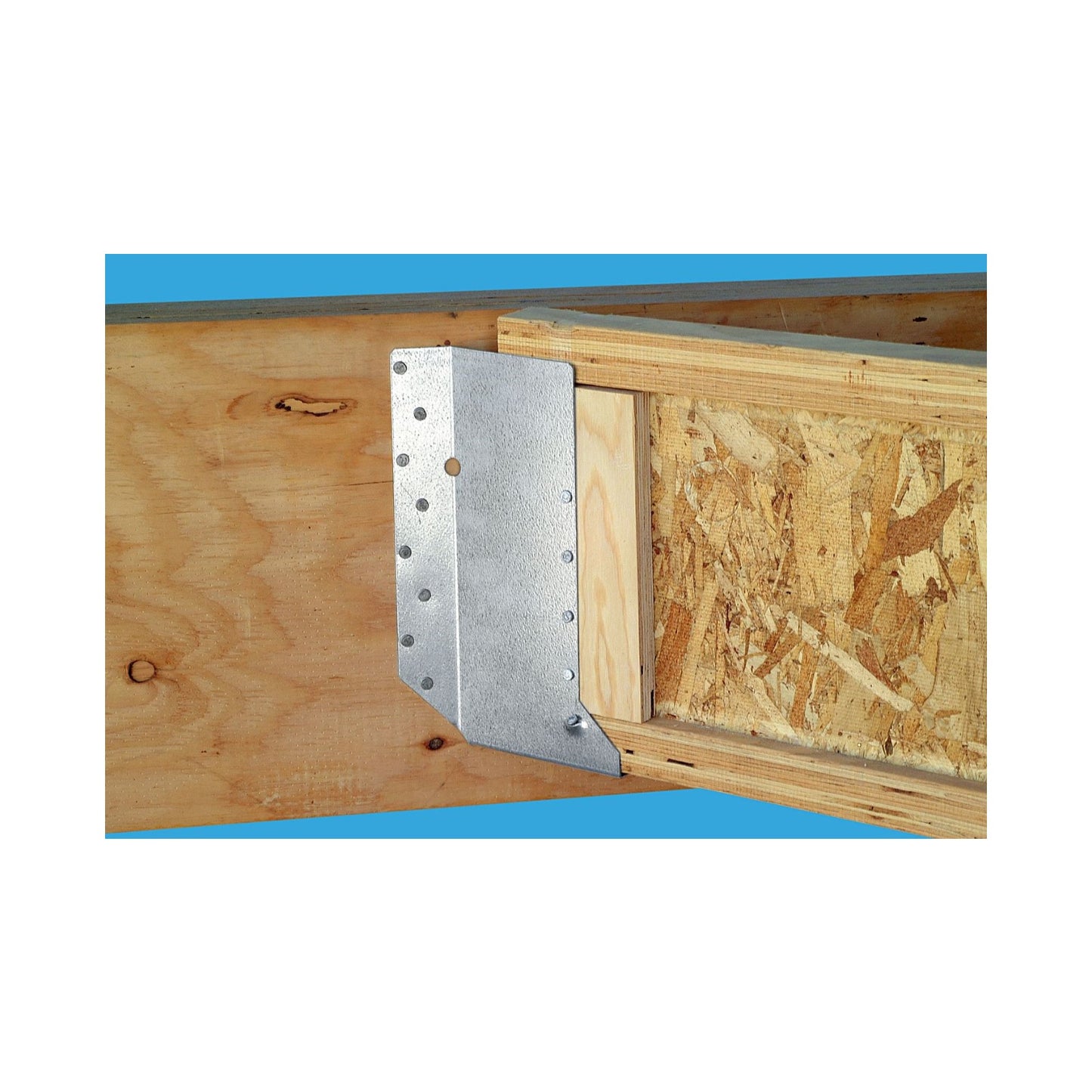

  • I-Joist Hanger Skewed Right installed

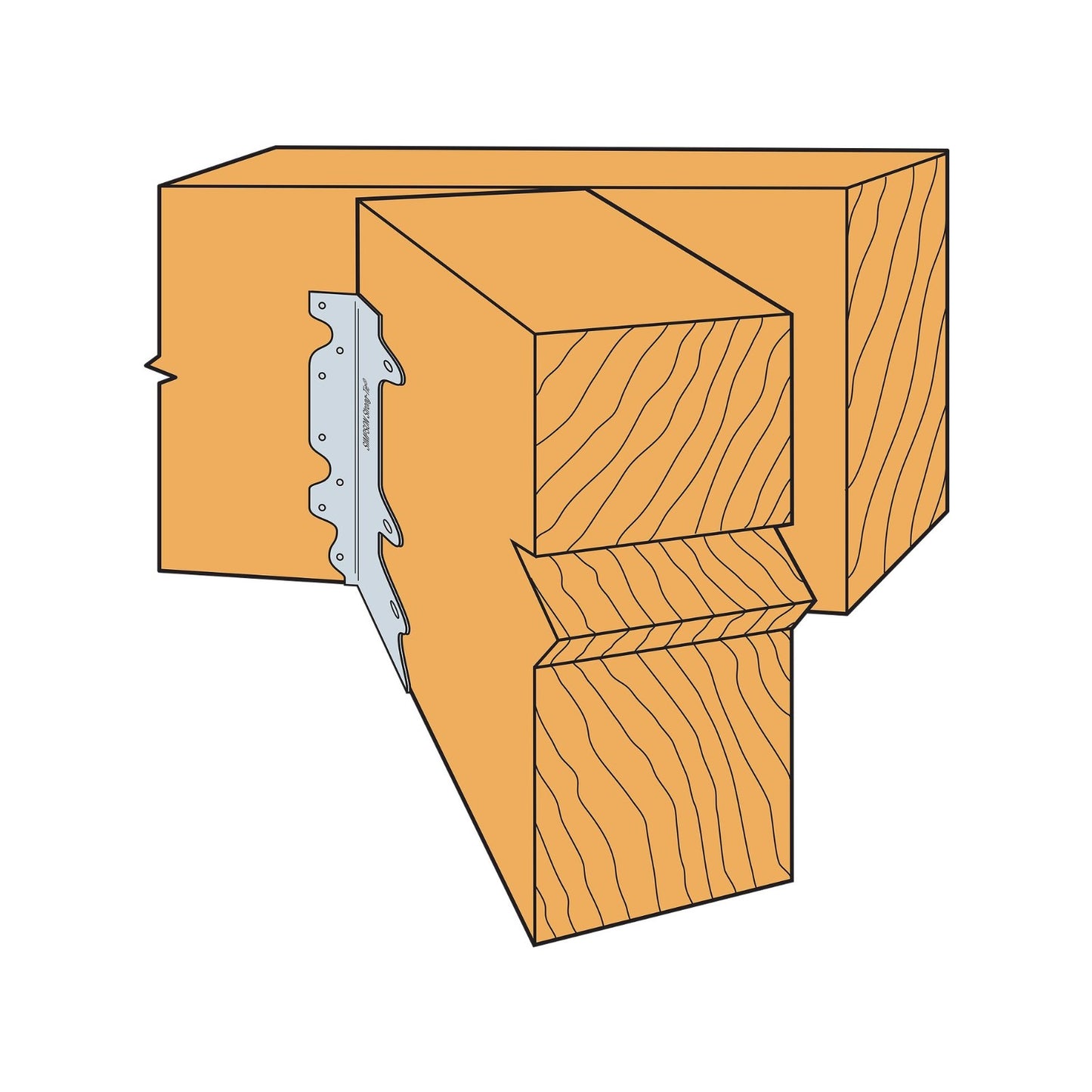

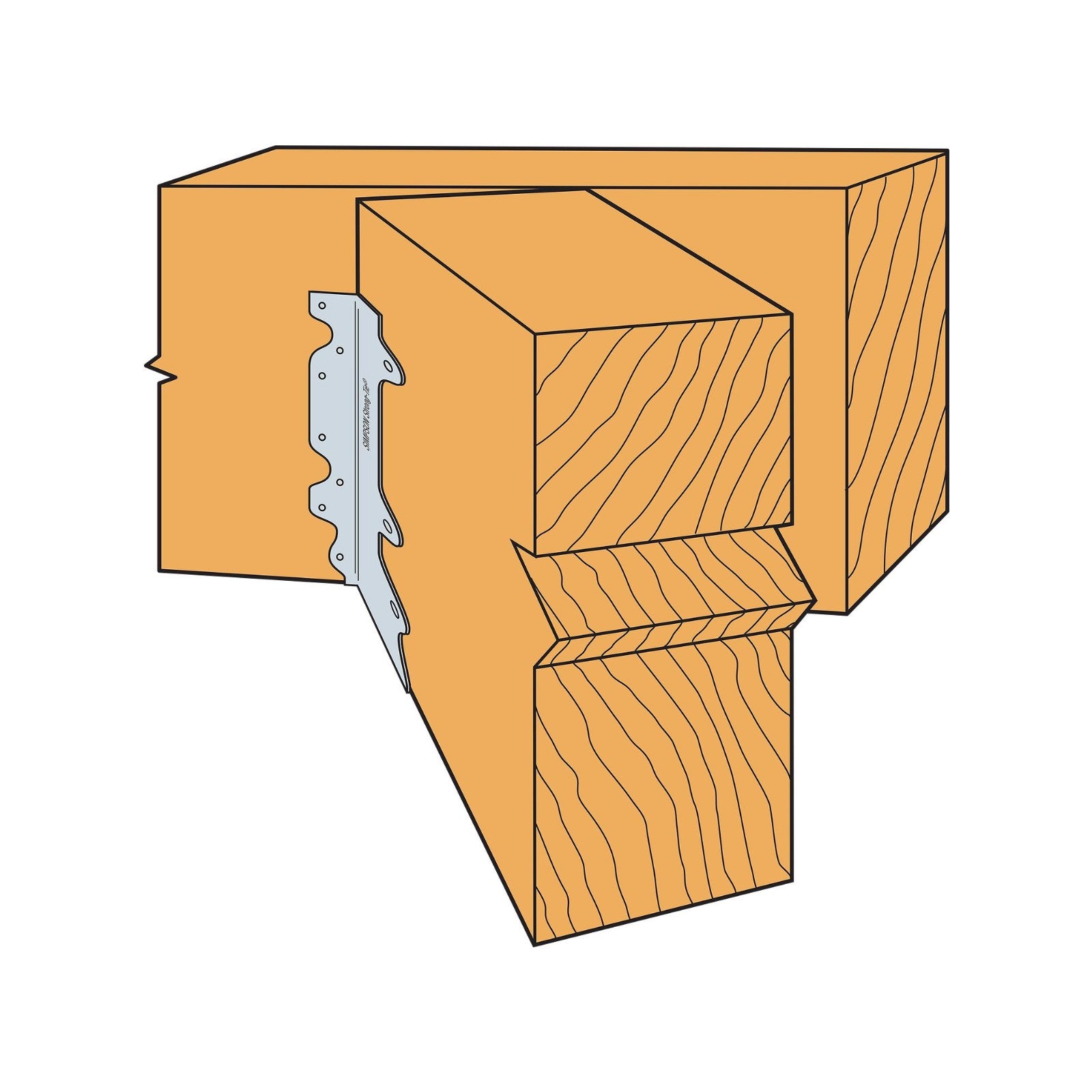

  • Simpson Strong-Tie Sur410 Joist Hanger Skewed Right installation
1 4

Continue Browsing

SUR/SUL/HSUR/HSUL Skewed 45 Degree Hangers
SKU: SUR410

Simpson SUR410 Joist Hanger Skewed Right - Galvanized

$26.51

Request Bulk Pricing
Request Bulk Pricing
Ships FREE Nov 4 when you add 8 to your cart
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Fasteners required: Face - (14) 0.162" x 3-1/2" Nails OR (14) SD9112 Screws Joist - (6) 0.162" x 3-1/2" Nails OR (6) SD9112 Screws
For Treated Lumber: No
Height: 8-1/2"
Joist size: 4X10
Manufacturer name: Simpson Strong-Tie
Width: 3-9/16"
Description

Simpson Strong-Tie SUR joist hangers are skewed 45 degrees right and utilize angled nail slots to direct nails for proper installation. The Strong-Tie SUR410 skewed joist hanger features a G90 galvanized coating and requires the use of hot-dip galvanized fasteners which meet the specifications of ASTM A153.


Installation:
  • Use all specified fasteners.
  • These hangers will normally accommodate a 40° to 50° skew.
  • Illustration shows left and right skews SUR/L (SUR=skewed right; SUL=skewed left).
  • The joist end may be square cut or bevel cut.

NOTE: The correct fasteners installed in the correct position must be used to achieve published load values


California Residents: WARNING

More
View full details

Continue Browsing

SUR/SUL/HSUR/HSUL Skewed 45 Degree Hangers

× WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects and other reproductive harm. For more information visit: www.P65Warnings.ca.gov.
