SKU: TB36

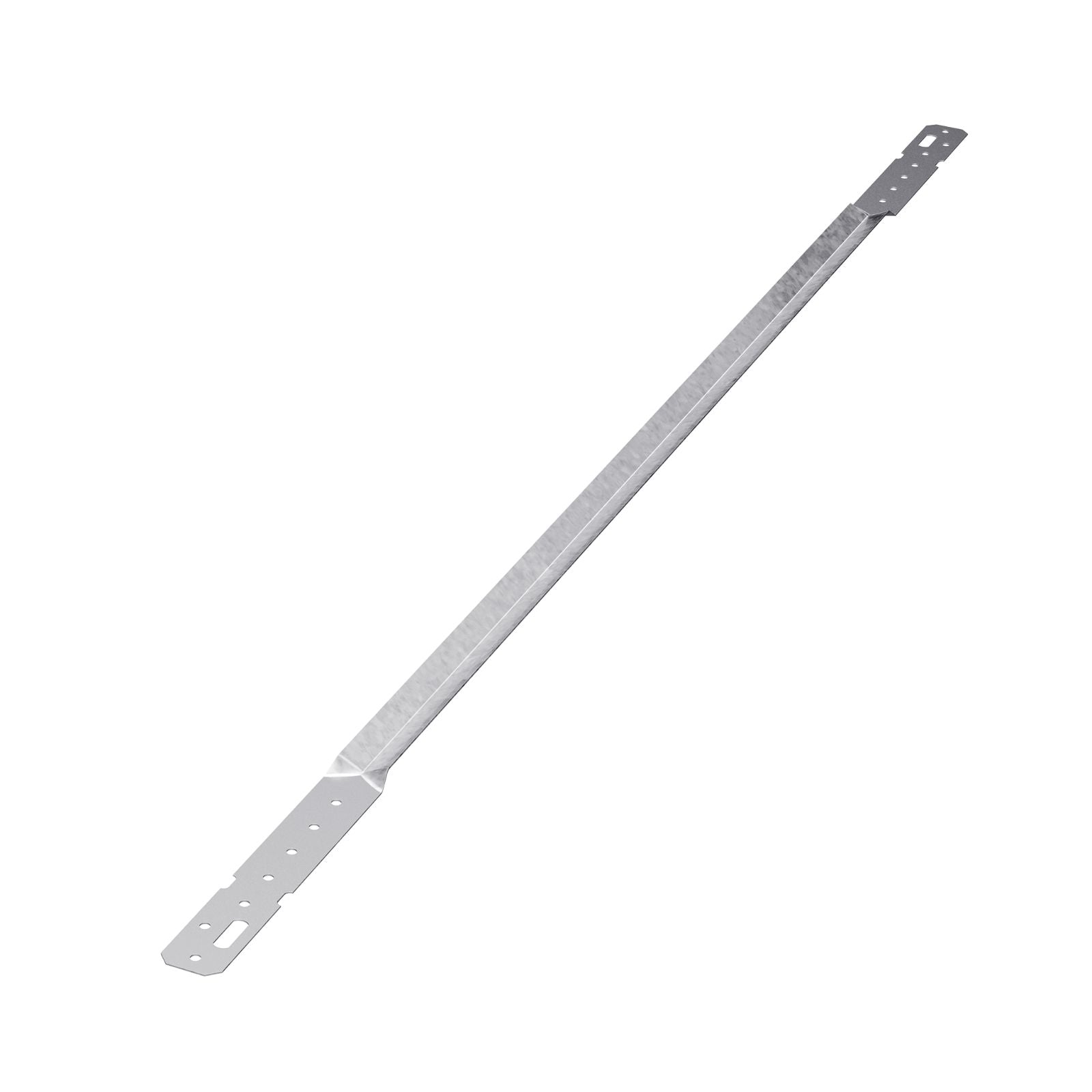

Simpson TB36 Tension Bridging - Galvanized

Simpson TB36 Tension Bridging - Galvanized!

  • Simpson TB36 Tension Bridging Galvanized

Continue Browsing

TB Tension Bridging
SKU: TB36

Simpson TB36 Tension Bridging - Galvanized

$3.73

Request Bulk Pricing
Request Bulk Pricing
Ships today, order in the next 2 hours 5 minutes
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Length: 36"
Material: Carbon Steel
Fasteners required: SEE PRODUCT GUIDE DOCUMENT
For Treated Lumber: Yes
Manufacturer name: Simpson Strong-Tie
Description
The Simpson Strong-Tie tension-type bridging with maximum nailing flexibility is a cost effective way to provide additional support between floor joists. Installing tension bridging solves the problem of floors bouncing or flexing while being walked on. The tension bridging spreads the weight-load which reduces the possibility to structural damage as well. Use just two of the seven nail holes at each end.
Installation:
  • Support floor joists with a depth-to-thickness ratio of six or more with bridging at intervals not exceeding 8'. If span is greater than 8', install on 2x8 or larger joists. If span is greater than 16', use more than one pair.
  • Tension bridging works only in tension, so must be used in cross pairs.
  • Install bridging tightly; loose installation may allow floor movement.
  • NCA may be installed before or after sheathing, from the top or bottom. Simply locate the bend line approximately 1" from the joist edge.
  • NCA has nail holes in one end for use if a prong is bent during installation. Fully seat nails (0.131" x 1 1/2") if they are used; otherwise, they may lead to squeaks.
  • TB requires two 0.148" x 1 1/2" fasteners per end.
