Simpson TB56 Tension Bridging - G90 Galvanized
Simpson TB56 Tension Bridging - G90 Galvanized!
Continue Browsing

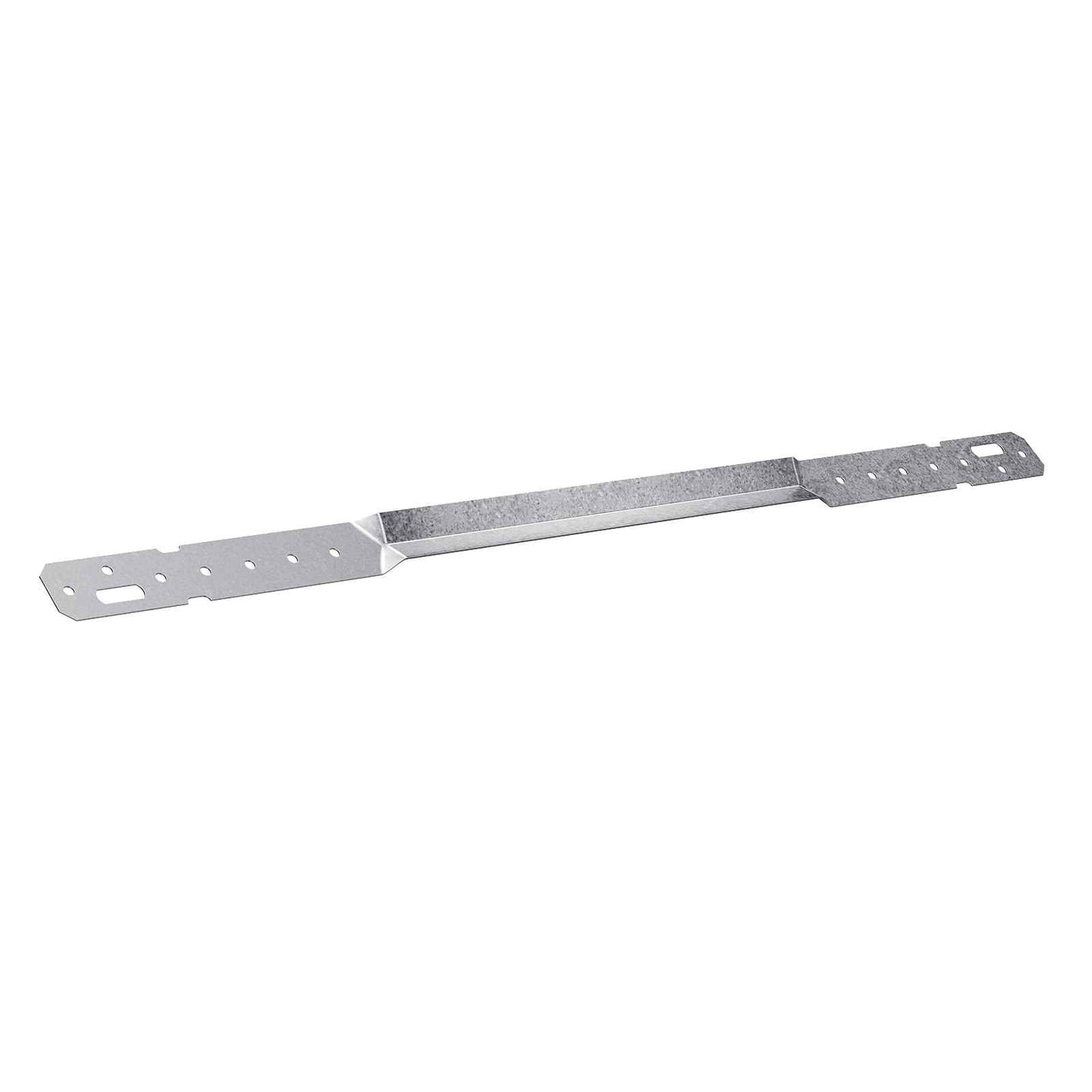

TB Tension Bridging
Specifications

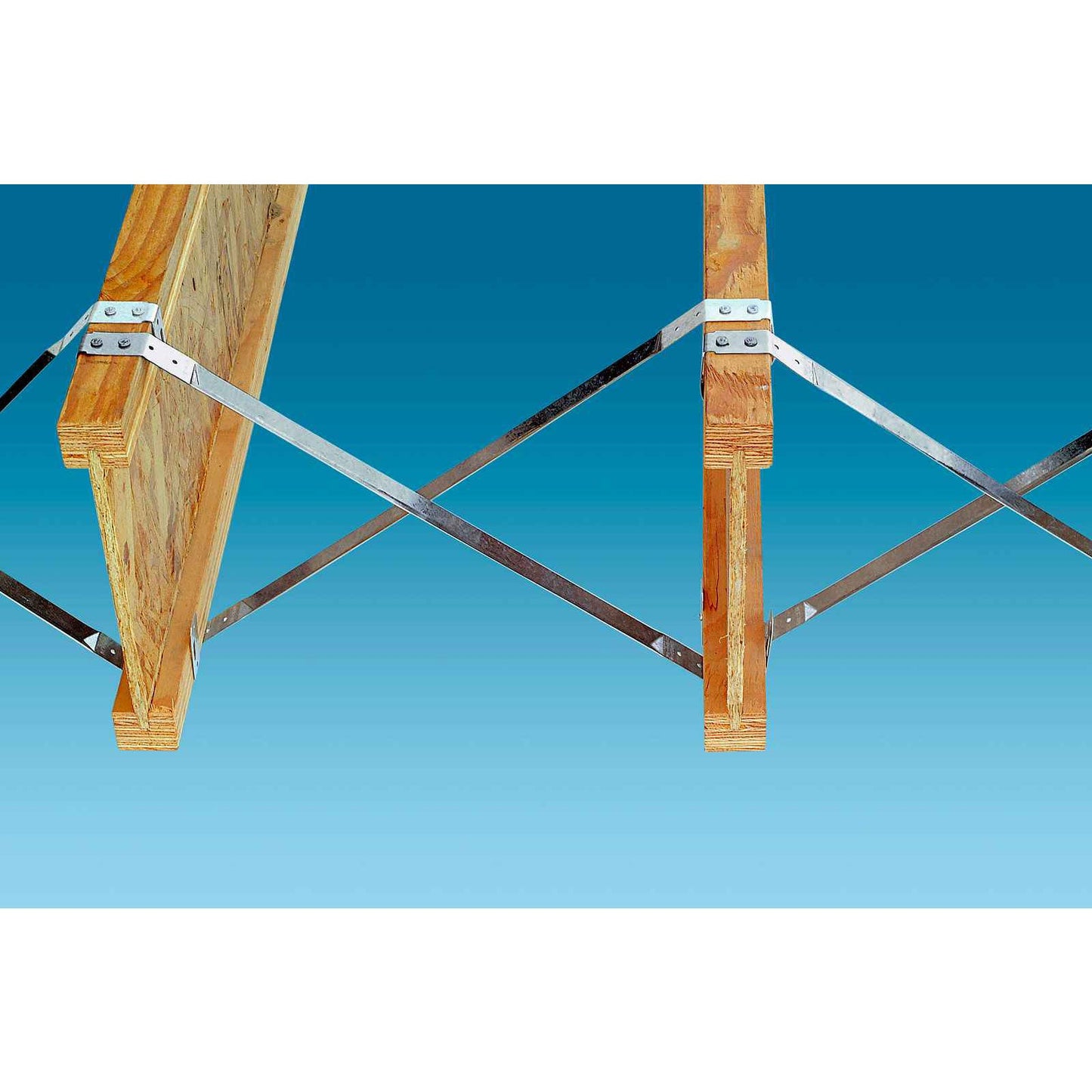

The Simpson Strong-Tie tension-type bridging with maximum nailing flexibility is a cost effective way to provide additional support between floor joists. Installing TB56 tension bridging solves the problem of floors bouncing or flexing while being walked on. The tension bridging spreads the weight-load which reduces the possibility to structural damage as well. Use just two of the seven nail holes at each end.
Installation:
- Support floor joists with a depth-to-thickness ratio of six or more with bridging at intervals not exceeding 8'. If span is greater than 8', install on 2x8 or larger joists. If span is greater than 16', use more than one pair.
- Tension bridging works only in tension, so must be used in cross pairs.
- Install bridging tightly; loose installation may allow floor movement.
- NCA may be installed before or after sheathing, from the top or bottom. Simply locate the bend line approximately 1" from the joist edge.
- NCA has nail holes in one end for use if a prong is bent during installation. Fully seat nails (0.131" x 1 1/2") if they are used; otherwise, they may lead to squeaks.
- TB requires two 0.148" x 1 1/2" fasteners per end.
California Residents: WARNING
