SKU: THAI5.13/21

Simpson THAI5.13/21 Adjustable I-Joist Truss Hanger - G90 Galvanized

Simpson THAI5.13/21 Adjustable I-Joist Truss Hanger - G90 Galvanized!

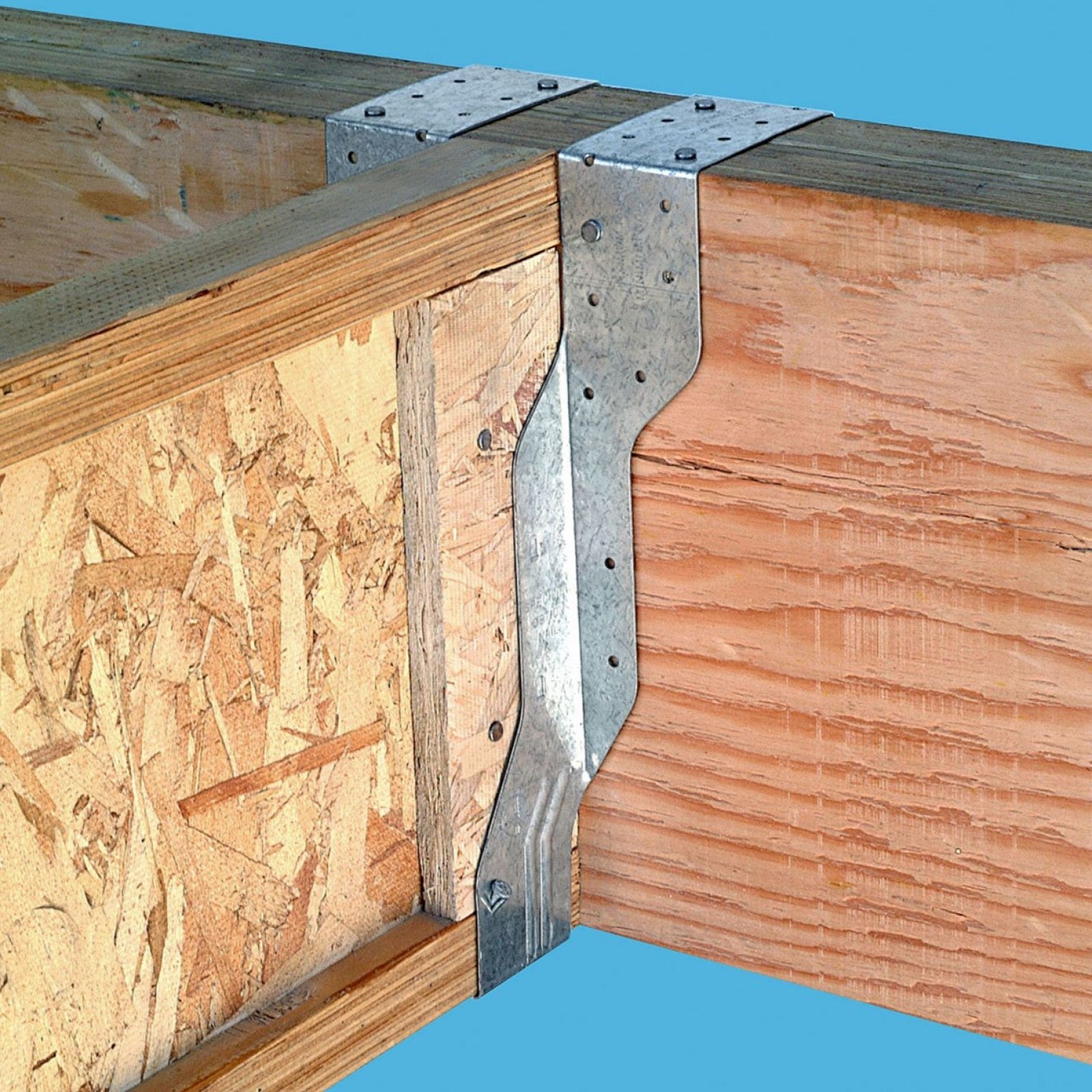

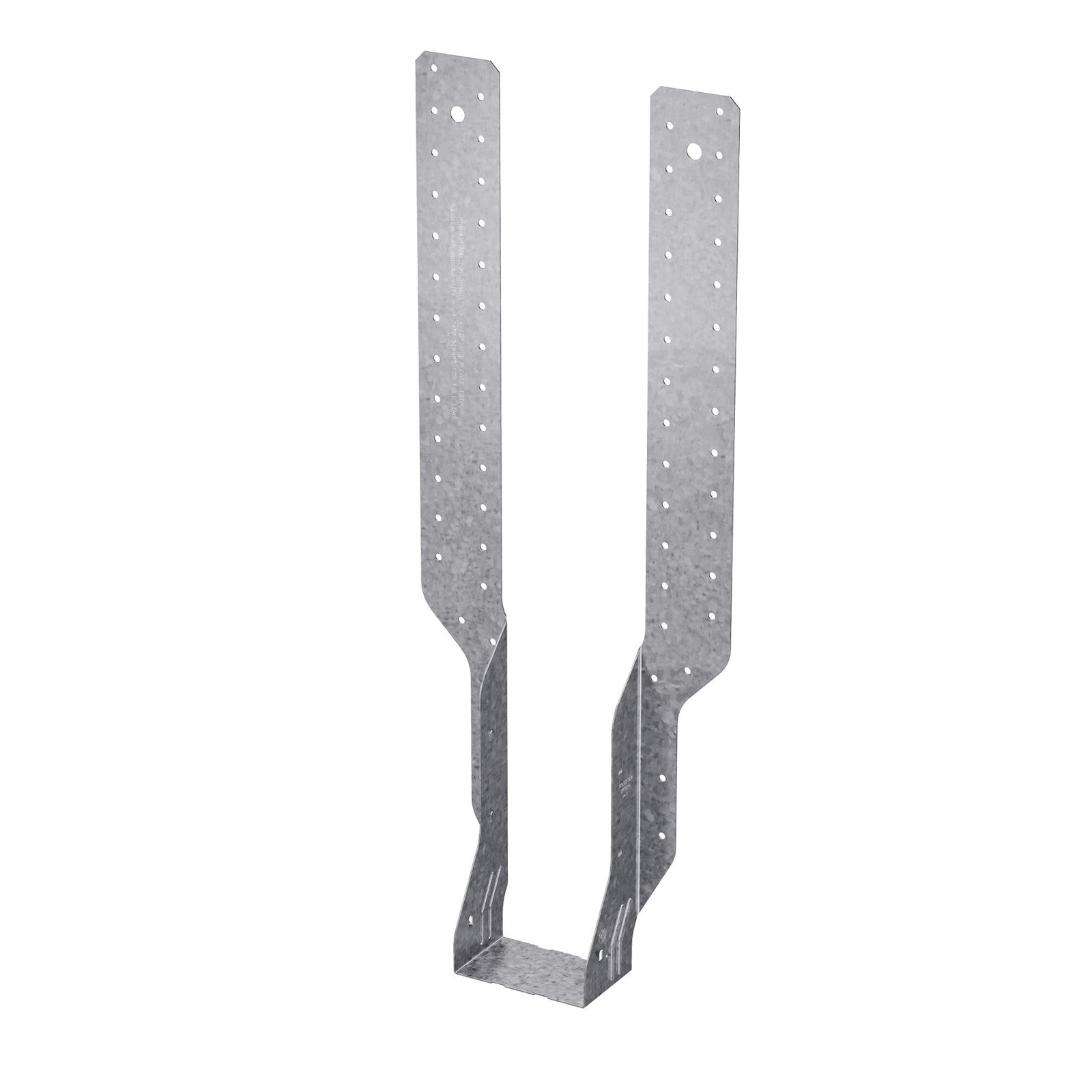

  • THAI Adjustable I-Joist Truss Hanger - THAI422 shown
  • THAI Adjustable I-Joist Truss Hanger Callout

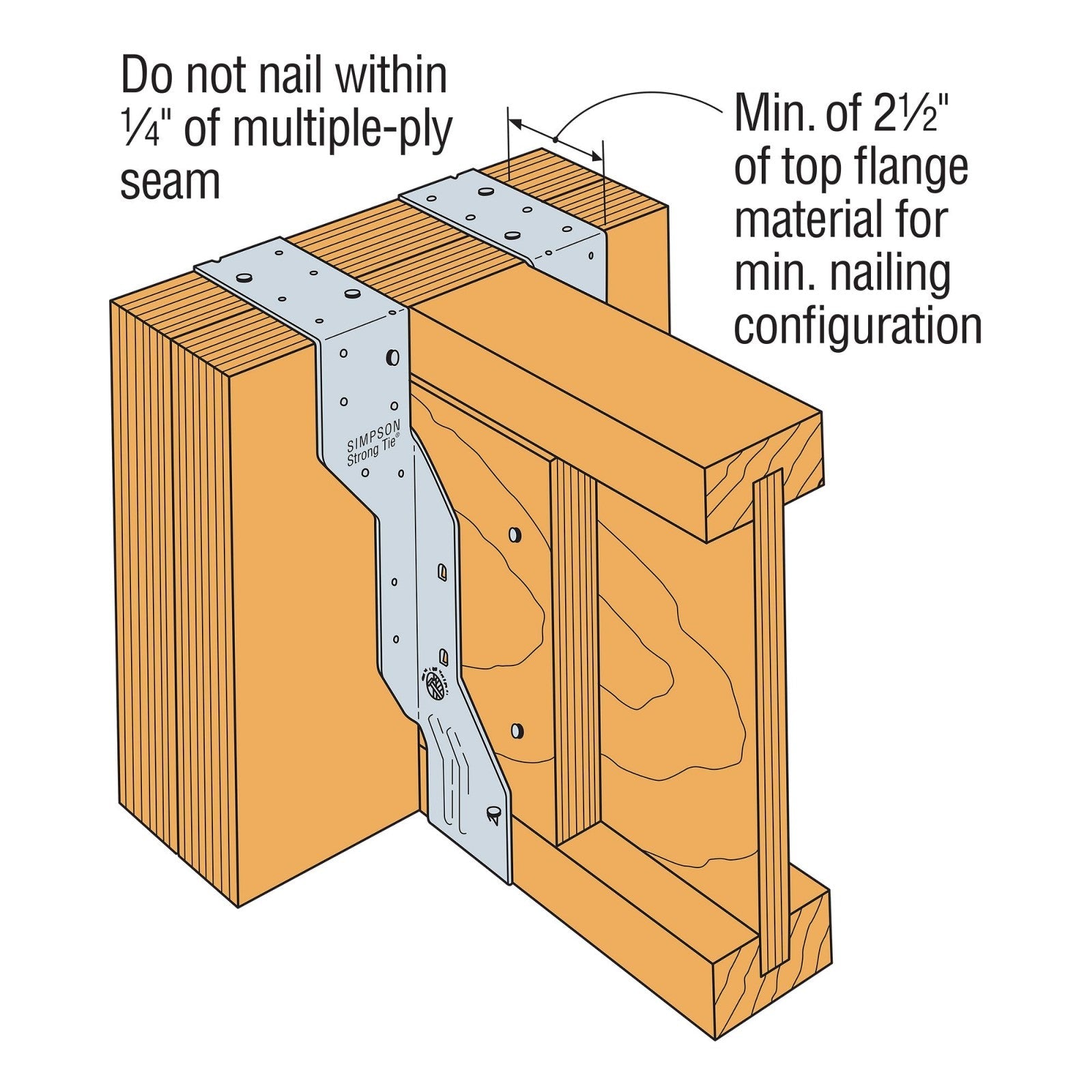

  • THAI Adjustable I-Joist Truss Hanger Installation Callout
1 3

Continue Browsing

THAI Adjustable Hangers
SKU: THAI5.13/21

Simpson THAI5.13/21 Adjustable I-Joist Truss Hanger - G90 Galvanized

$58.09

Request Bulk Pricing
Request Bulk Pricing
Ships in 1-3 business days.
Fill out the form below or give our sales consultants a call at 866-421-4854.

Specifications

Finish: G90 Galvanized
Material: Galvanized Steel
Fasteners required: Top: Min - (4) 0.148 x 1-1⁄2” OR (4) 0.148 x 3” Face: Min - (2) 0.148 x 1-1⁄2” OR (2) 0.148 x 3” Max - (20) 0.148 x 3” Joist: Min - (2) 0.148 x 1-1⁄2” Max - (2) 0.148 x 1-1⁄2”
Height: 21-3/4"
Manufacturer name: Simpson Strong-Tie
Quantity: 1
Thickness: 18 Gauge
Width: 5-1/8"
Description

The Simson THAI Adjustable Hanger is designed for I-joists and features extra-long straps that can be field-formed for height adjustment and top-flange hanger convenience. Positive-angle nailing prevents the bottom flange of the I-joist from separating. There is no longer room for increasing the uplift loads for earthquake or wind loading. Where other loads are govern, reduce.

Use all specified fasteners. Verify that the header can take the fasteners specified in the table.
