Simpson VPA3 2-1/2" To 2-9/16" Joist Variable Pitch Connector - G90 Galvanized
Simpson VPA3 2-1/2" To 2-9/16" Joist Variable Pitch Connector - G90 Galvanized!
Continue Browsing
VPA Variable Pitch Connectors
Specifications

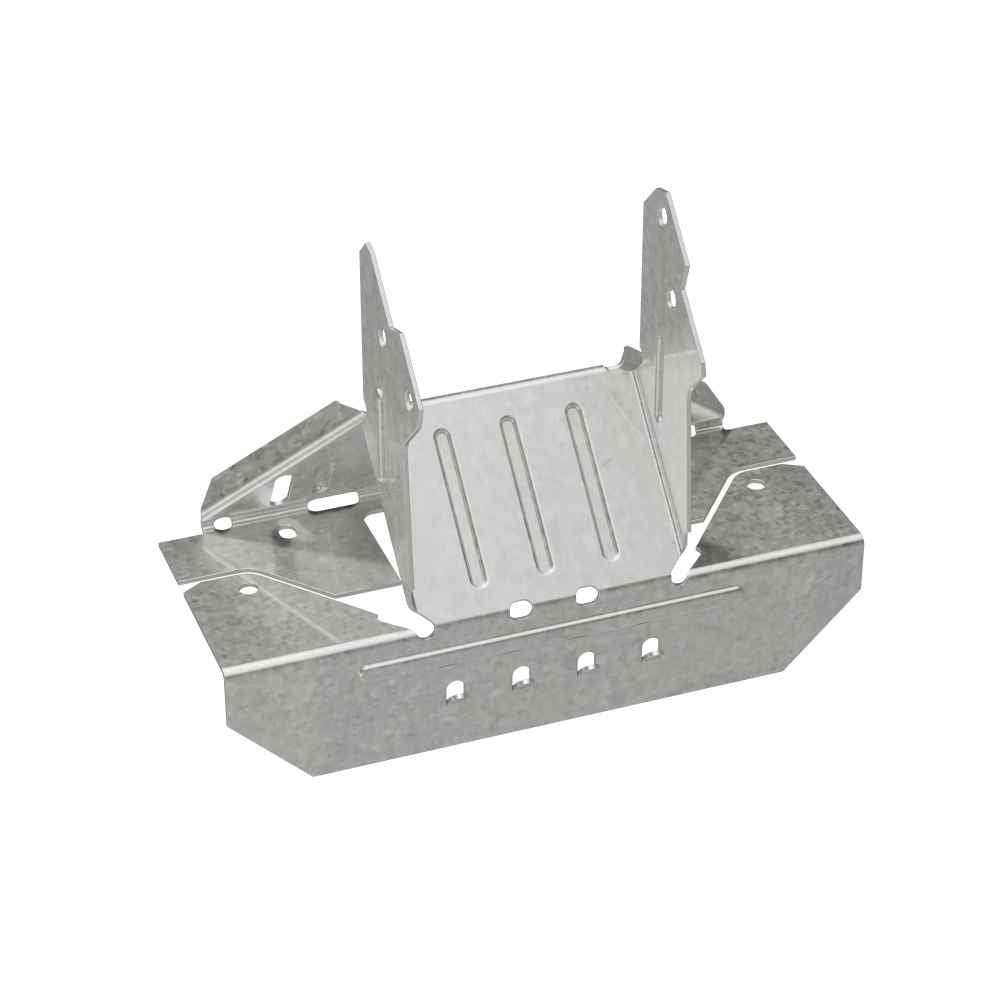

The Simpson VPA Variable-Pitch Connector delivers strength and versatility for rafter-to-wall or beam-to-post connections at varying angles. Designed to accommodate diverse framing configurations, this adjustable connector is an ideal solution for securing members at pitches from 3:12 to 12:12, with field adjustability to match your exact slope needs.
Constructed from heavy-gauge steel and coated with a corrosion-resistant finish, the VPA provides structural integrity while maintaining flexibility during installation. Whether working with solid sawn lumber or engineered wood, this connector simplifies complex angled joins in residential, agricultural, or commercial framing projects.
Applications:
- Rafter-to-Top Plate Connections: Securely anchor angled rafters to wall plates or headers.
- Beam-to-Column Ties: Provide reliable lateral and uplift support for beams intersecting columns at an angle.
- Knee Braces: Reinforce angled support members in covered porches, pergolas, or pole barns.
- Shed or Awning Roof Framing: Adapt to varying roof slopes in accessory structures.
- Retrofit Projects: Add reinforcement to existing framing where angular connections were previously unsupported.
Installation:
- Each connector is field-adjustable to suit the pitch required for your application.
- Fasteners must be installed according to manufacturer guidelines—typically requiring Strong-Drive SD Connector screws or nails based on the member type.
- Always verify load requirements and placement with an engineer or refer to the load tables in Simpson’s documentation.
- Install both sides of the connector for full strength and ensure proper alignment of the flanges to structural members.
Features:
- Adjustable Pitch Design: One connector accommodates multiple angles for diverse roof and brace configurations.
- Heavy-Duty Steel Construction: Offers high structural load capacity with consistent performance.
- Engineered for Wood Members: Compatible with both solid sawn lumber and engineered wood.
- Corrosion-Resistant Finish: Provides durability in exterior and interior environments.
- Quick Field Installation: Slotted bend line allows fast, easy pitch adjustment on the job site.
NOTE: The correct fasteners installed in the correct position must be used to achieve published load values
